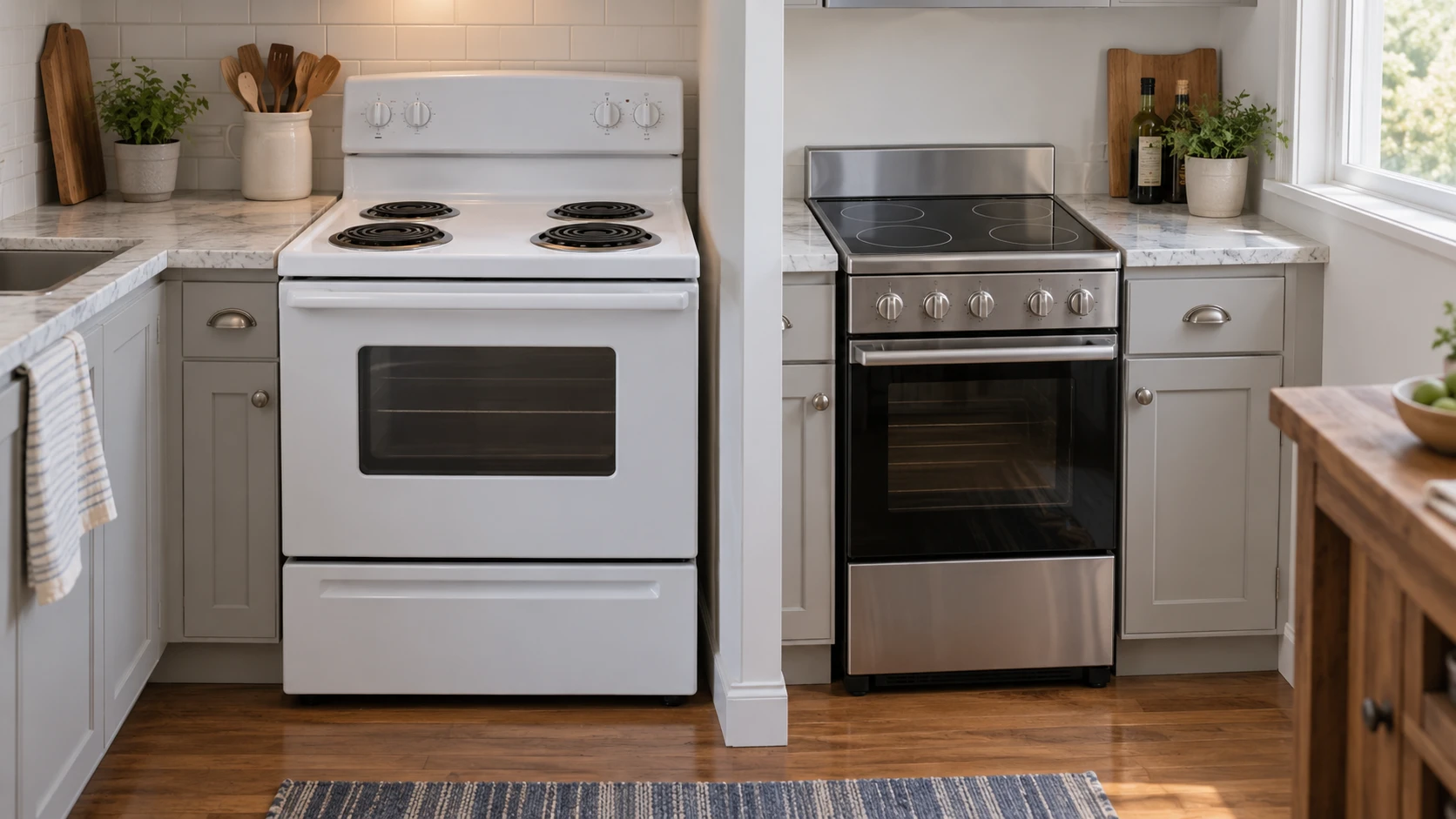

Summit WEM630KW electric coil range or REX2071SSRT for a narrow kitchen

The Summit WEM630KW electric coil range is a 24-inch-wide model with four coil elements, a high backguard, and a drop-down storage compartment. A published guide on oven and pan fit beyond range width uses other appliances to show why opening width and cookware dimensions matter after the cabinet fits. The Summit REX2071SSRT smooth-top range is a 20-inch model with four ceramic-glass cooking zones and a removable low backguard. Four inches of nominal width and a different cooktop surface can change both installation and daily cooking. Start with the kitchen opening, the circuit, and the pans already used.

Measure the space between cabinets at the front and back, including any wall trim, countertop overhang, or uneven floor. Check the depth from the wall to the cabinet fronts and the available clearance for an open oven door. Summit lists a 24-inch depth for the WEM630KW, but the saved REX2071SSRT row does not give a comparable cabinet depth. Obtain installation diagrams for the exact models before assuming the 20-inch range is easier to place in every direction. A narrower body may leave a side gap that needs an approved filler or changed countertop finish.

Fit the backguard and oven door — oven and pan fit beyond range width

The WEM630KW has an eight-inch backguard with a digital clock and timer. That can put the controls and display above the cooking surface, but it also occupies wall space behind the range. Check for a low window, outlet, shelf, or tile detail that would interfere. The REX2071SSRT has a low stainless-steel backguard that the listing says can be removed for slide-in installation. Confirm the current installation sheet before removing any supplied part; the wall, countertop, and safety clearances still have to meet the maker's requirements.

Both saved rows describe an oven-door window and light. The WEM630KW has an exterior rocker switch for its light, while the REX2071SSRT lists an on/off light without giving the switch location. Open the door through its full arc in a floor plan. Leave space to stand beside it with a heavy pan and somewhere heat-safe to place the dish. An oven door that clears a cabinet handle by a fraction of an inch may still be awkward when a person has to reach a back rack.

The WEM630KW listing mentions a recessed oven door and removable door and range top for cleaning. The REX2071SSRT row gives a porcelain oven interior but does not describe a removable door or top. Check the exact cleaning procedure and access to the oven floor for each model. If the range is trapped between built-in cabinets, plan how it can be pulled forward safely for service. A removable part helps only when the manual allows its removal and there is room to handle it.

Test cookware on the burners — Summit REX2071SSRT smooth-top range

The WEM630KW has three six-inch coil elements and one eight-inch element, each with a removable chrome drip pan. The row calls these lower-wattage safety burners and says they heat more slowly and steadily without cycling off. That behavior may suit some simmering tasks but should be checked with the pans and recipes used at home. The larger element can support a wider pan base than the six-inch positions. Put the everyday skillet, saucepan, and stockpot on a paper drawing of the cooktop to see whether all needed pieces can be used at once without handles colliding.

The REX2071SSRT lists four six-and-a-half-inch, 1200-watt ceramic-glass zones. Its row says the elements cycle off before flashpoint temperatures and cycle back on to continue heating. An even glass surface can be easier to wipe after a small spill, but a burned spill may need prompt care under the maker's instructions. Check cookware base requirements for ceramic glass, especially if the household uses rough-bottomed pans. Four equal zones may simplify placement for similarly sized cookware yet offer no dedicated eight-inch zone in the saved description.

Neither row provides a matched boiling, simmering, or temperature-accuracy test. The wattage of a zone does not establish how fast a particular pot will heat when the range shares the household circuit and the pan base differs. If quick boiling is central to the cooking routine, ask for current performance information and compare the allowed cookware sizes. If most meals use two small pans, burner spacing and knob access may matter more than one larger element. Try the controls in a showroom if possible, or inspect clear photographs of the exact front panel.

The REX2071SSRT includes a hot-surface indicator. That can help show when the smooth surface is still hot after the element is switched off. The WEM630KW row describes oven and burner indicator lights but does not name a comparable residual-heat indicator. Treat each light according to its manual; do not assume an unlit coil is cool enough to touch. Arrange cookware and utensils so a child or passerby cannot catch a handle. Push-to-turn burner knobs are listed on both models; test whether every person who cooks can use them comfortably.

Check the oven with a real pan — Summit REX2071SSRT smooth-top range

The WEM630KW lists two adjustable wire racks with safety brakes and an inside-oven broiler. It includes a two-piece porcelain broiler pan with a grease well. The REX2071SSRT also lists two adjustable racks with brakes, a waist-high broiler, and a two-piece broiler pan. Neither saved row gives matched usable oven width, height, depth, or capacity. Measure a baking sheet and the roasting pan used for a typical meal, then compare those with the current manufacturer drawings. The outside width alone cannot show whether a tray can turn through the door or clear the rack supports.

Think about how the broiler will be used. The WEM630KW places it inside the oven, and its supplied pan may be the simplest way to follow the intended setup. The REX2071SSRT row calls its broiler waist-high, but the excerpt does not spell out every rack position or clearance. Confirm the manual's broil arrangement and door position before attempting a familiar recipe. Hot pans need a safe landing space immediately beside the range. A narrow kitchen may make that more important than the nominal oven volume.

The WEM630KW has a drop-down compartment for cookware below the oven. Verify its usable dimensions and whether the door can open when someone stands at the counter opposite. The REX2071SSRT row does not mention lower storage. That absence is a question for the current specification sheet, not proof the model has no usable space below. If the kitchen already lacks pan storage, include that in the layout comparison. Do not put items in a compartment unless the manual permits their storage there.

Plan the cleaning space around the cooktop as well as the surface itself. The WEM630KW's coil elements and drip pans can be lifted out under the manual's procedure, giving access to spills below. Keep track of how each part goes back before cooking again. The REX2071SSRT's glass top avoids those separate pans, but it needs compatible cleaning materials and care with sliding cookware. Ask about replacement elements, drip pans, and glass-top service for the exact models. If a wall or cabinet sits close to the burners, check required side and overhead clearances before choosing a pan that may overhang the cooktop.

Confirm electrical and safety requirements — Summit REX2071SSRT smooth-top range

Both product rows say a power cord is not included and that the ranges accept a standard 40-amp three- or four-wire range cord. The correct cord and connection depend on the home's circuit and current local electrical rules. Have a qualified installer inspect the outlet, breaker, and wiring before purchase. Confirm whether delivery includes installation or only placement. A range can fit the cabinet opening while the electrical connection still needs work, and an unplanned cord or outlet change can delay cooking in the new kitchen.

An anti-tip bracket is listed with each range. The installer should secure it as the exact model instructions require and verify engagement after the unit is moved for cleaning. Do not treat the supplied bracket as installed merely because it was in the box. The WEM630KW's listing notes front-mounted controls and push-to-turn burner knobs, with a separate oven knob that does not push to turn. The REX2071SSRT also lists upfront controls with push-to-turn burner knobs and a non-push oven knob. Try the reach from the planned counter arrangement and check visibility of indicator lights.

The REX2071SSRT is described as ADA compliant in its saved row. Accessibility at home still depends on the full installation, clear floor space, control reach, and the user's needs. Request the current compliance documentation if it is material to the purchase. The WEM630KW row does not make that claim. It does not follow that its controls will be difficult for every user; physical testing is more informative than a missing label for an individual kitchen.

Choose with the opening and meals in view — Summit REX2071SSRT smooth-top range

The WEM630KW gives a 24-inch coil layout, an eight-inch cooking element, a high backguard with clock, and lower cookware storage. The REX2071SSRT saves four inches of nominal width and uses a smooth top with equal-sized zones and a low removable backguard. Those differences deserve a kitchen sketch and a pan-fit check. Confirm the oven's usable dimensions, door clearance, countertop treatment, and circuit before ordering either one. Once installed, test the anti-tip engagement, the control lights, and the fit of the everyday cookware and baking sheet under the maker's instructions.
