Unique Bargains Windshield Parts sku-17244218178 Motor

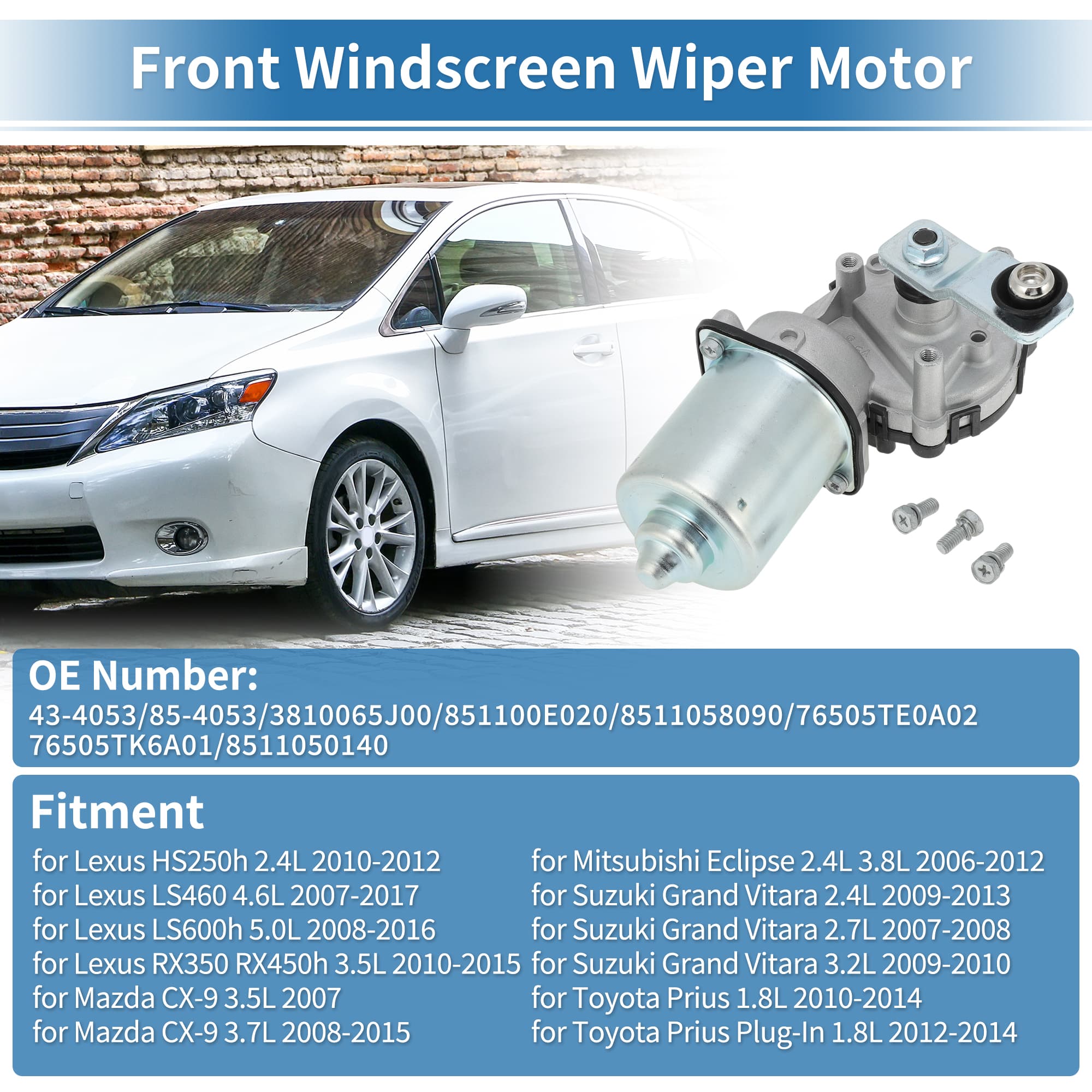

Unique Bargains Windshield Parts, SKU sku-17244218178, are a Black front windshield wiper motor (UPC 695792577764). It has a 6-pin connector and replaces OE numbers 43-4053, 85-4053, 3810065J00, 851100E020, 8511058090, 76505TE0A02, 76505TK6A01 and 8511050140. Listed fitment includes Lexus HS250h 2.4L 2010-2012; LS460 4.6L 2007-2017; LS600h 5.0L 2008-2016; and RX350 or RX450h 3.5L 2010-2015.

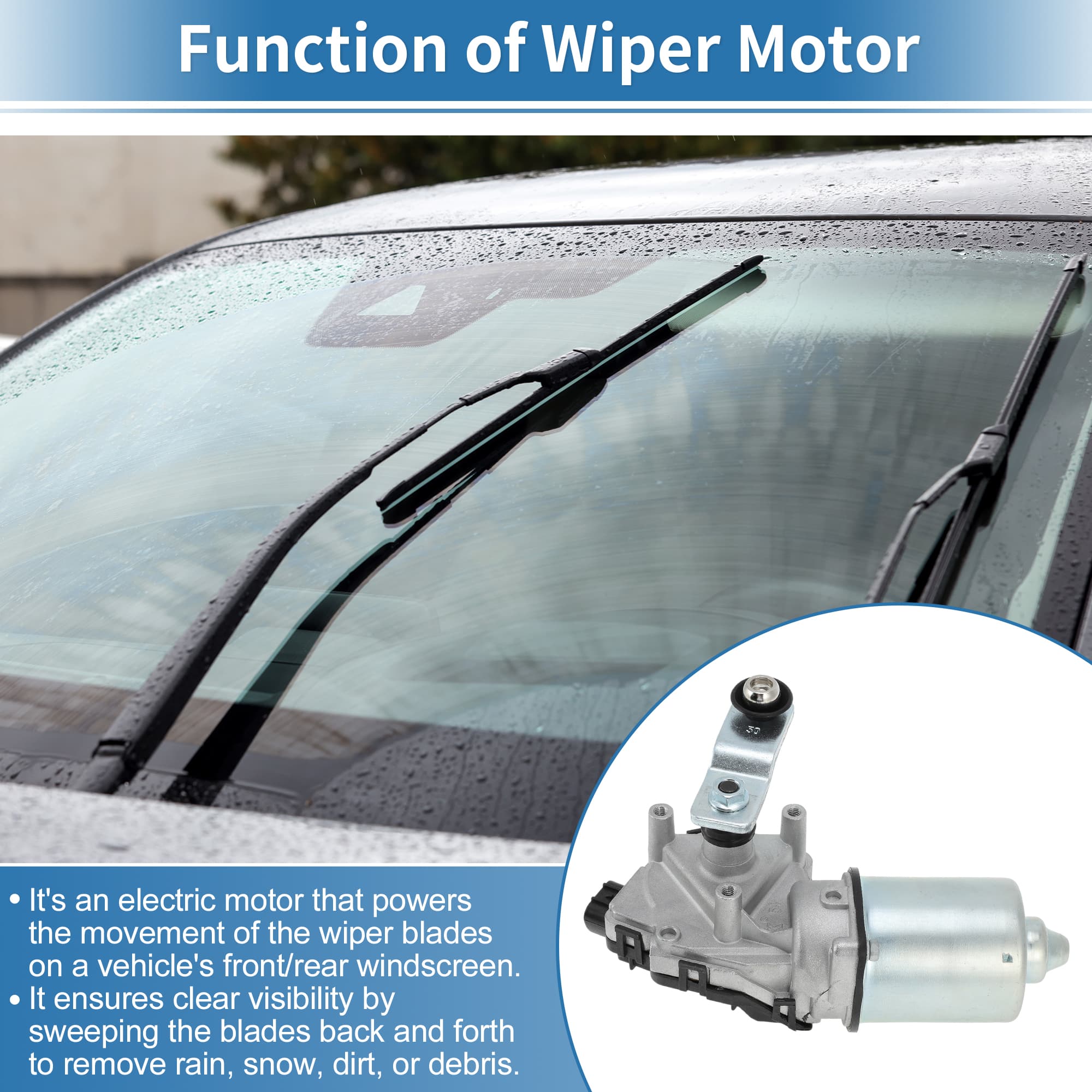

It also includes Mazda CX-9 3.5L 2007 and 3.7L 2008-2015; Mitsubishi Eclipse 2.4L or 3.8L 2006-2012; Suzuki Grand Vitara 2.4L 2009-2013, 2.7L 2007-2008 or 3.2L 2009-2010; Toyota Prius 1.8L 2010-2014; and Prius Plug-In 1.8L 2012-2014. The motor moves the wiper blades across the windscreen to clear rain, snow, dirt and debris.

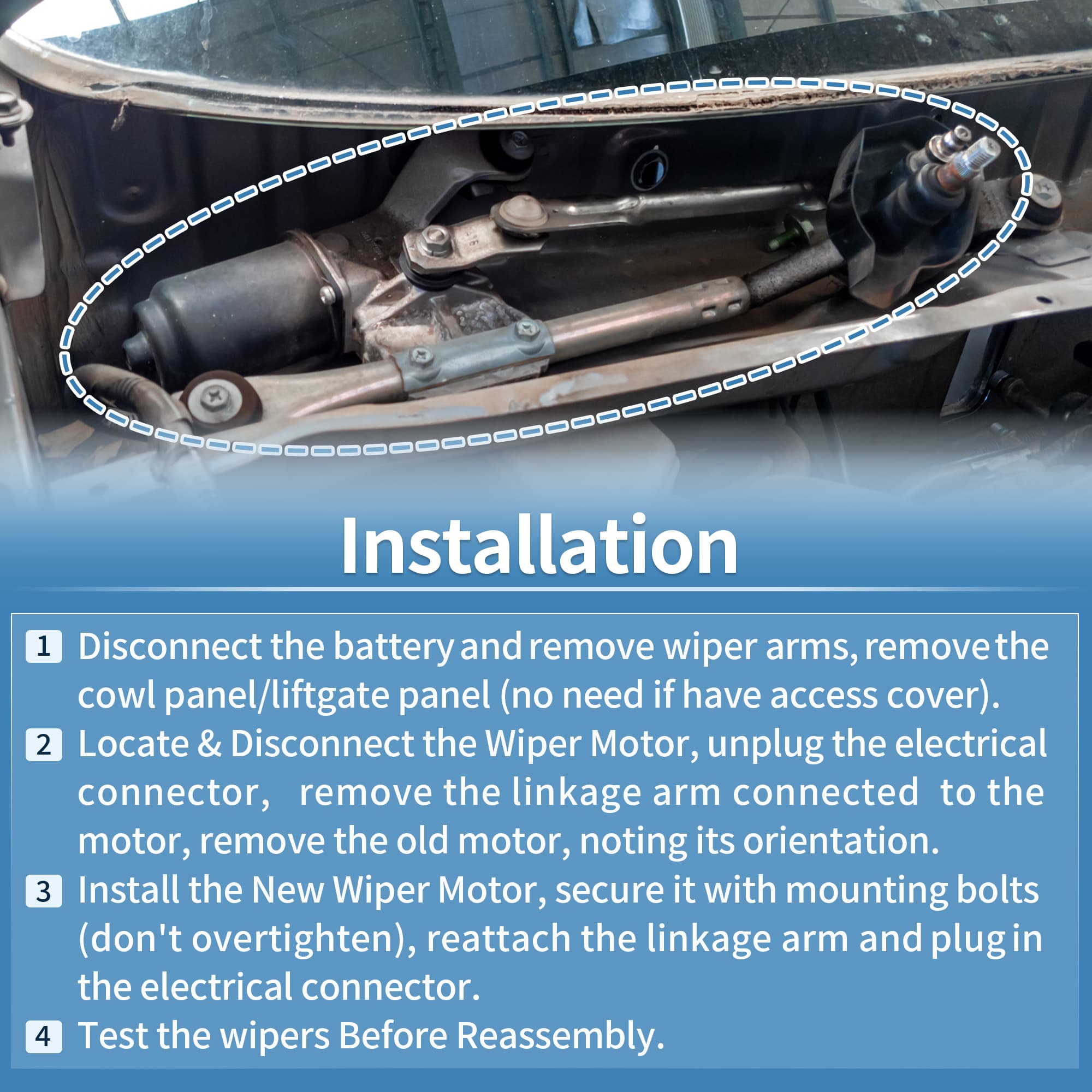

It has a metal housing for corrosion resistance and heat dissipation, plastic inner gears intended to reduce noise and wear, copper windings for electrical conductivity and heat resistance, and a rotor and brush designed for smooth contact with the commutator and reduced energy loss. To install: 1.

Disconnect the battery, remove the wiper arms and remove the cowl or liftgate panel unless there is an access cover. 2. Unplug the motor, disconnect its linkage arm and remove the old motor, noting its orientation. 3. Bolt the new motor in place without overtightening, then reconnect the linkage and electrical connector. 4. Test the wipers before reassembly.

The package contains 1 front wiper motor. Replace a damaged motor if the wipers stick or make unusual noises.
