Rockville REQ215 Dual 15-Band (1/3 Octave) Rackmount Graphic Equalizer with Sub Out

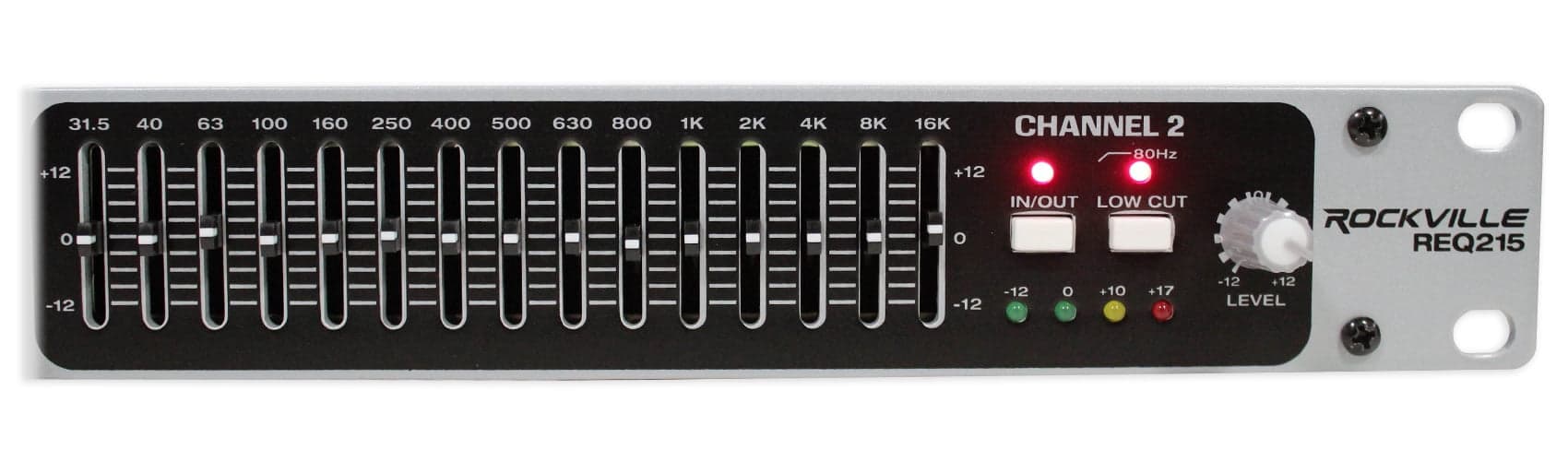

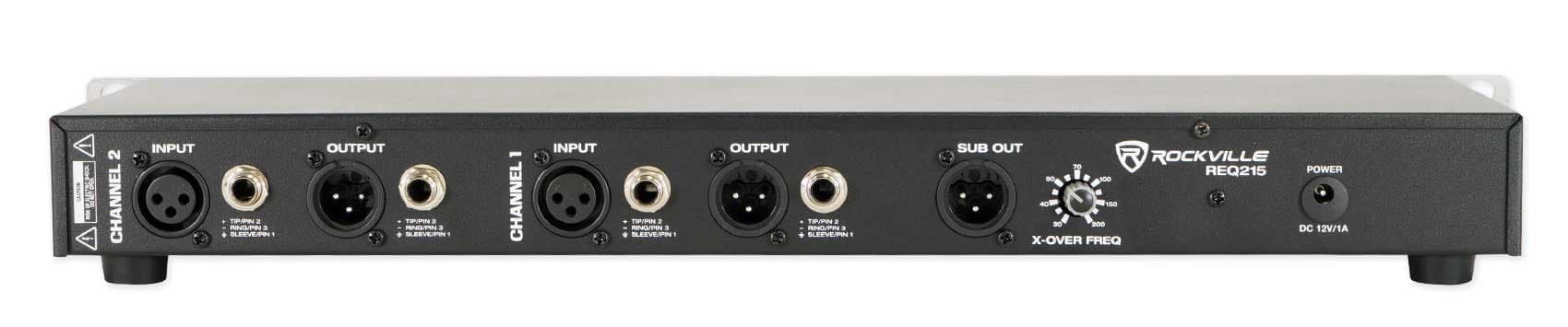

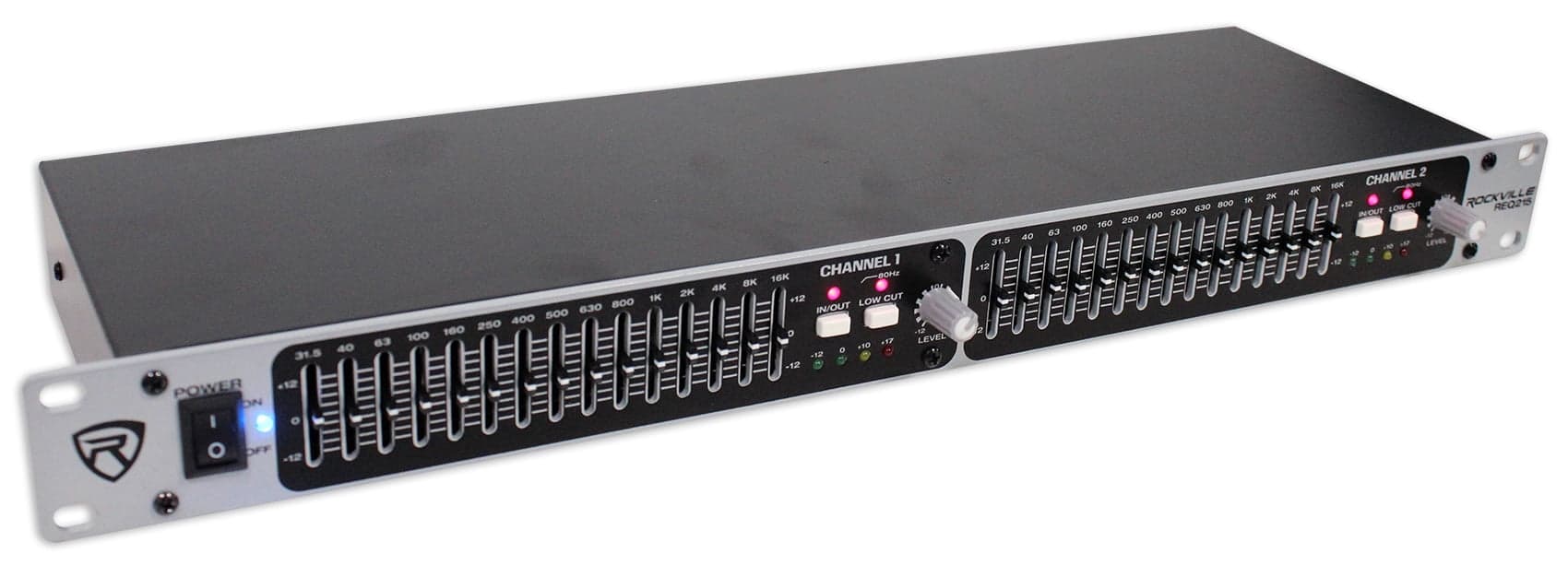

The Rockville REQ215 is a rack-mountable, dual-channel graphic equalizer delivering 30 bands of control (15 bands per channel) for detailed tone shaping. It uses Constant Q filters and 2/3 octave filter sets to provide an effective equalization range from 25 Hz to 16 kHz. Features include a Switchable 12 Band or 6dB boost/cut range and an 80Hz 24dB low cut filter with its own switch and status LED. A dedicated subwoofer output is provided with selectable Subwoofer X-Over Freq ( 30Hz - 200Hz ). Monitoring and control are aided by output level LEDs (-12 to +17 dB) and a bypass switch with status LED. Balanced connectivity is handled via XLR inputs and outputs for balanced operation; connectors : XLR balanced inputs and outputs. A ground lift switch is also included. Frequency Centers : 31.5 Hz, 40 Hz, 63 Hz, 100 Hz, 160 Hz, 250 Hz, 400 Hz, 500Hz, 630 Hz, 800 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz. Electrical and performance specifications: Input Impedance : 20k ohms. Output Impedance : 1.5k ohms. Maximum Output Level : 11 VAC. Level Control : +/- 12 dB. Signal to Noise : 90 dB. Distortion : 0.03%. Power : 120 Volt. Power Consumption : 15 watts. Physicals and shipping: Weight Unpacked : 6.00 lbs. Shipping Weight : 7.50 lbs. Shipping Dimensions (in packaging) : Width 4.37" x Height 20.25" x Depth Packed: 10.5".
