EQ-57MOTO 5-Band Graphic Equalizer & Line Driver — Flush-Mount Mobile Audio, 7V Output

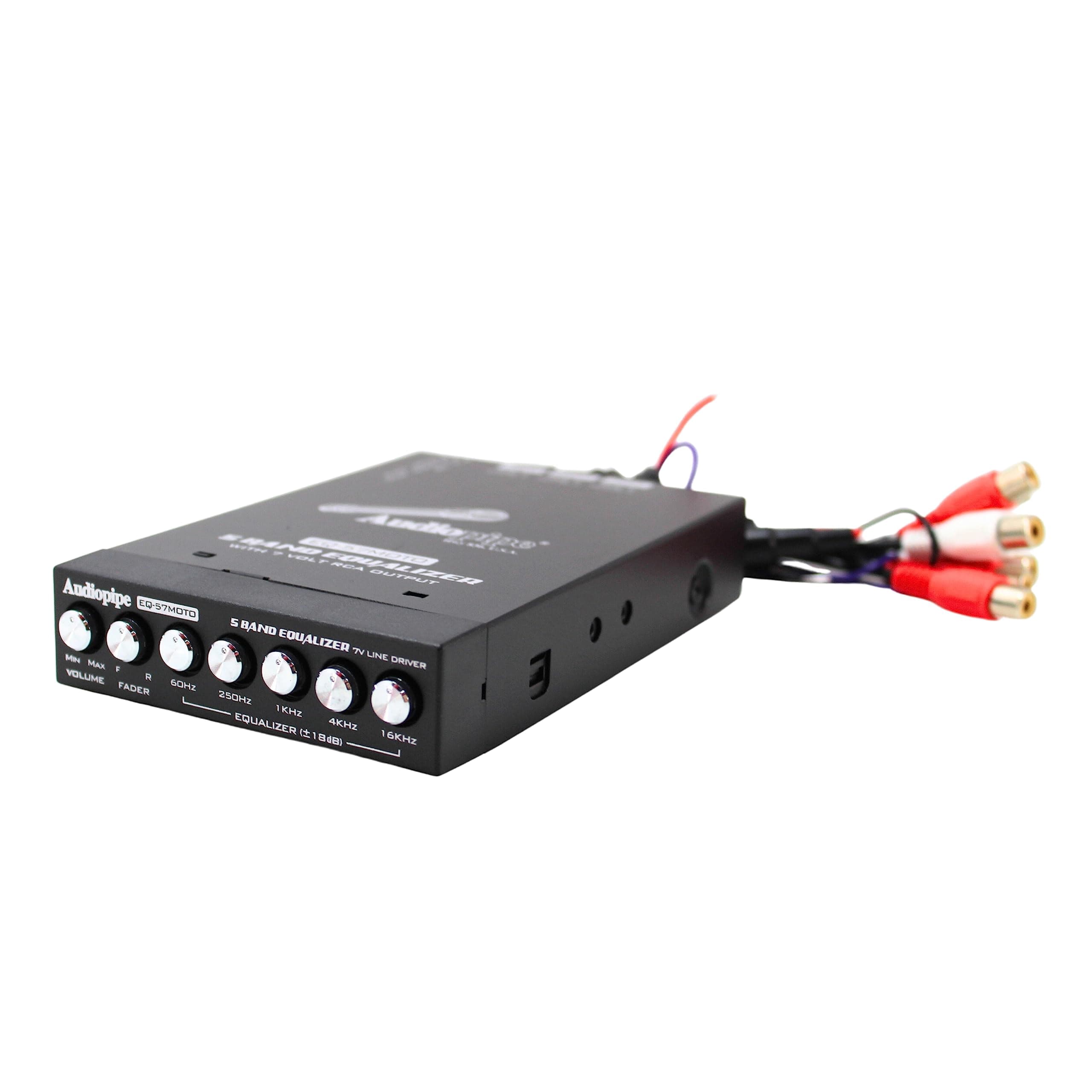

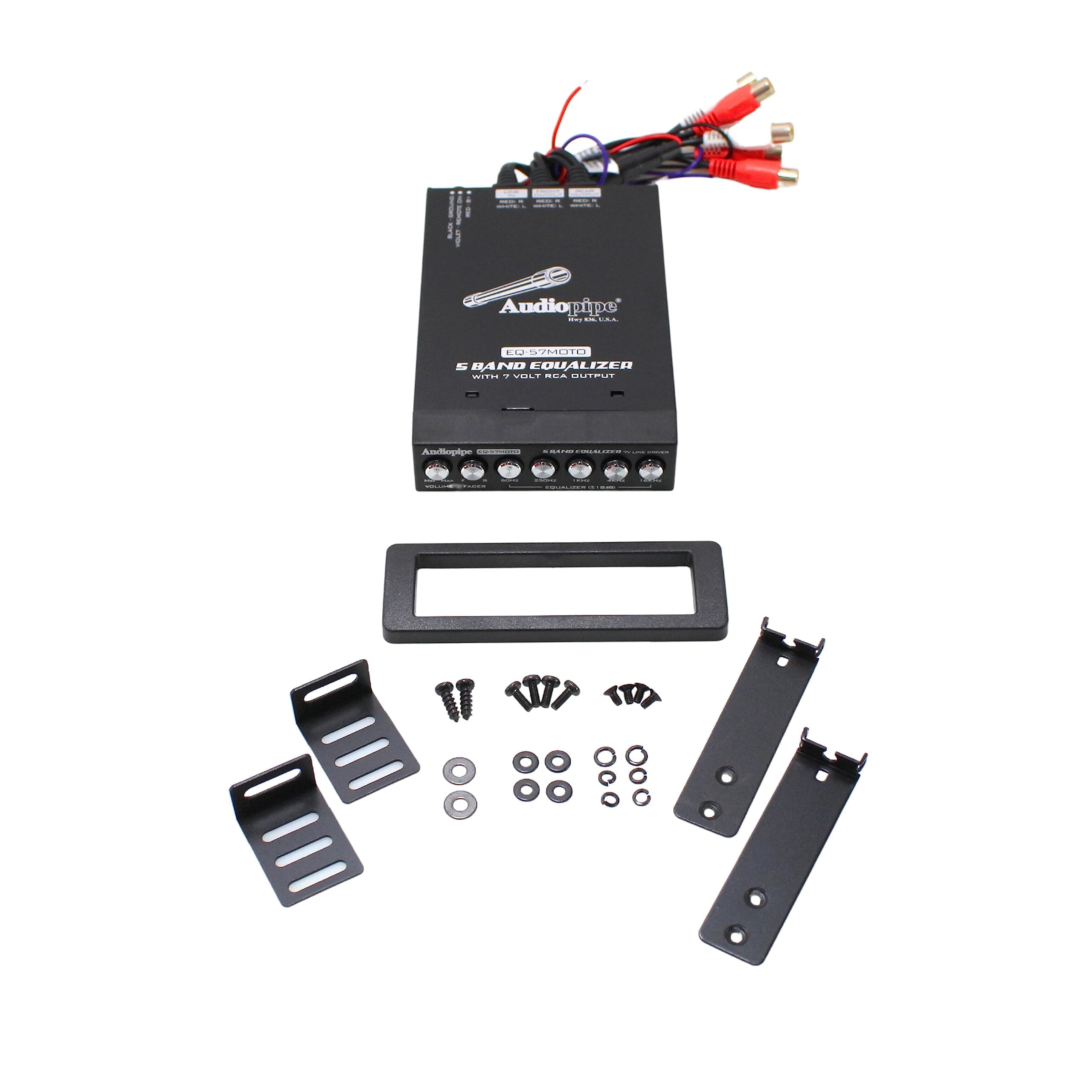

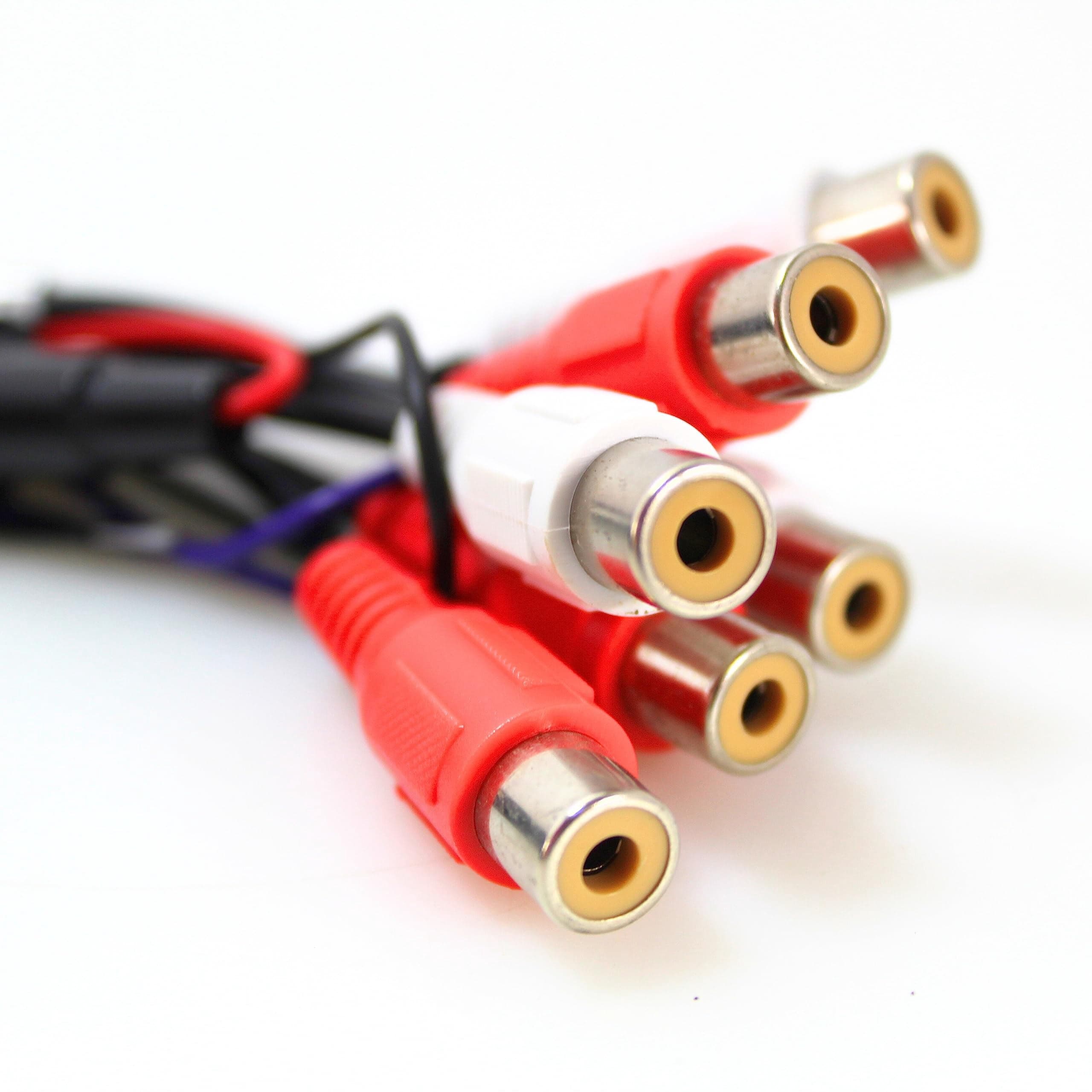

The EQ-57MOTO is a flush-mount, half-din 5-band graphic equalizer and line driver built for mobile audio tuning. It offers graphic center frequencies at 60Hz, 250Hz, 1kHz, 4khz, and 16kHz with a frequency response of 10Hz to 50kHz +/-1dB for precise tonal shaping. Controls include nickel-plated locking adjustable knobs and adjustable gain allowing up to a 7-volt output. The unit provides 20dB of headroom on output and level controls, and delivers a maximum output voltage of 7 volts with THD of 0.005% and a signal-to-noise ratio of 100dB. Connectivity features nickel-plated RCA input connectors and two stereo RCA outputs; input sensitivity ranges from 50Mv to 3v. Boost/cut per band is 18dB. The package includes a flush mount bezel and the chassis comes in black. Physical specs: Dimensions (L x W x H) 5.76 x 4.33 x 1.45 inchs, Weight 0.81 pounds. Manufacturer's warranty: 1-year warranty.
