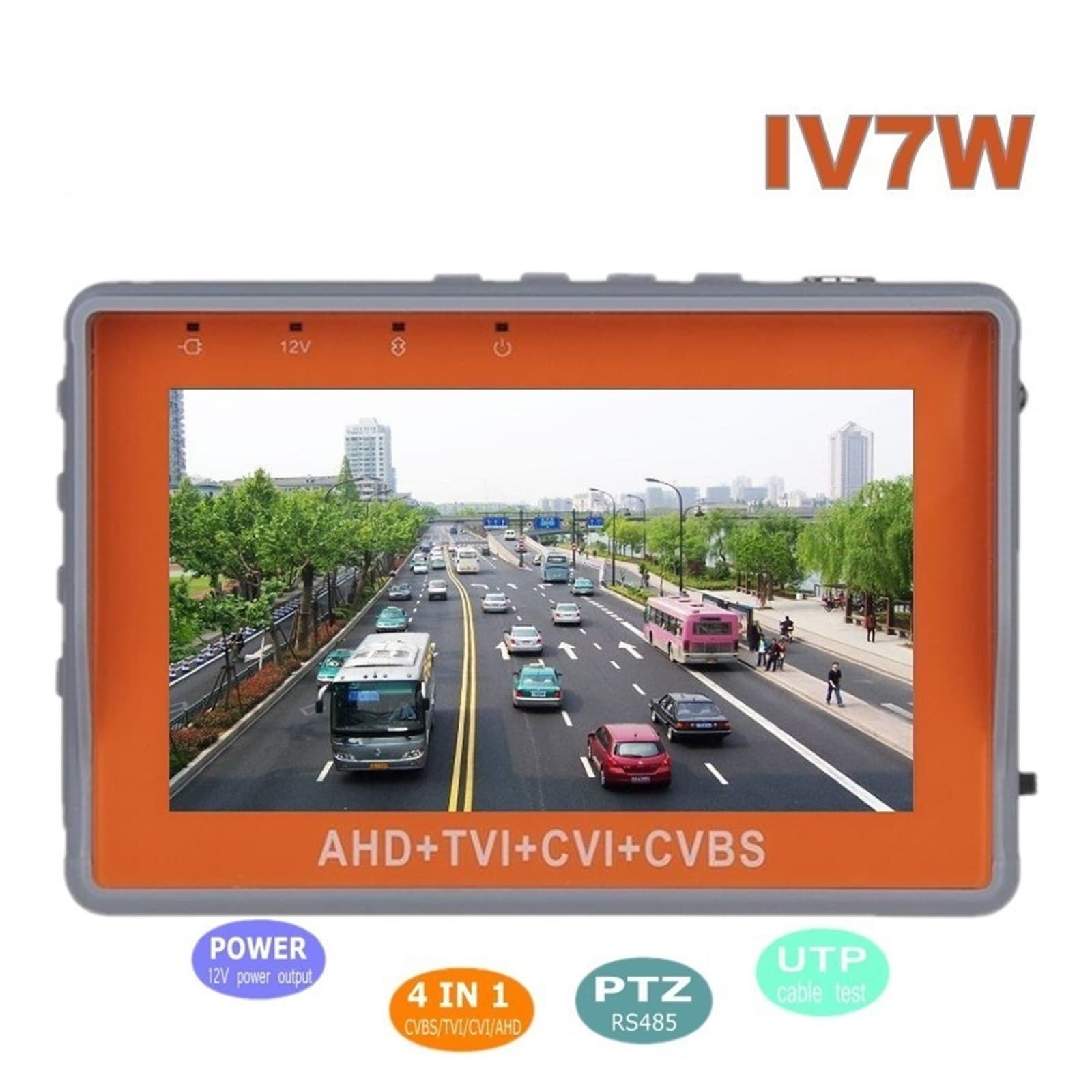

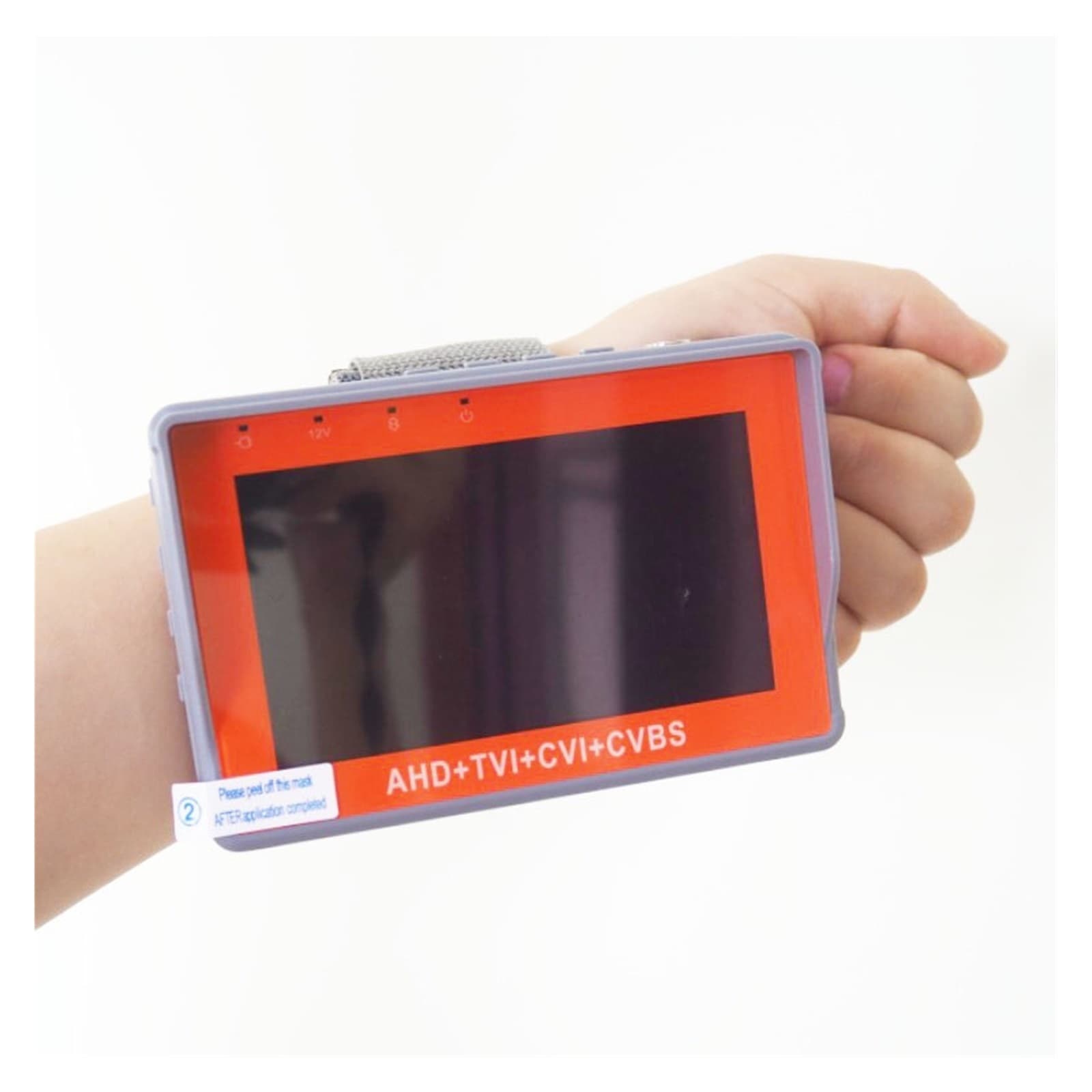

IV7W 4.3 Inch Camera Tester 1080P/5MP NEW Security Portabl AHD CVBS 5MP TVI 4MP CVI Tester 4-in-1 Analog Video Tester Monitor

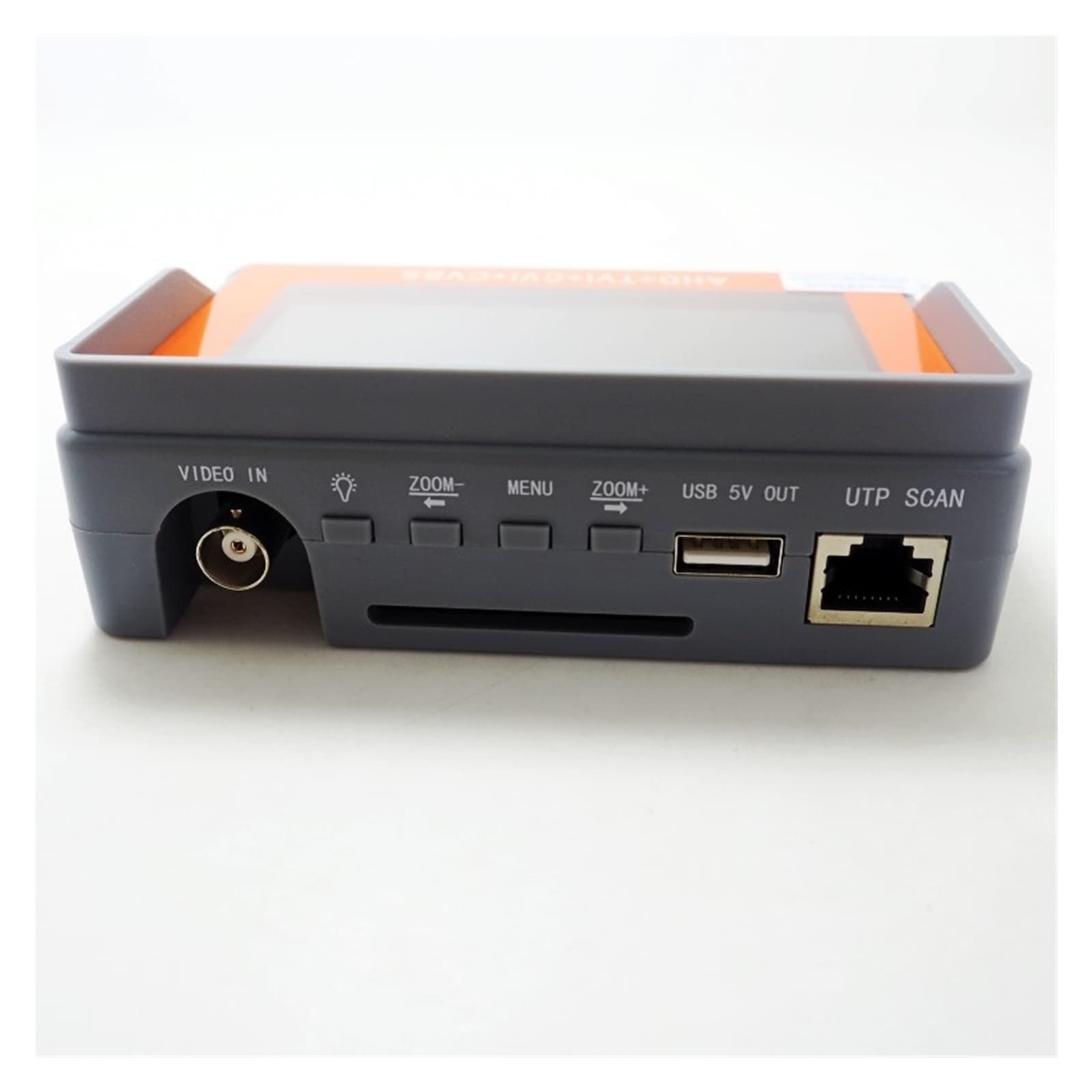

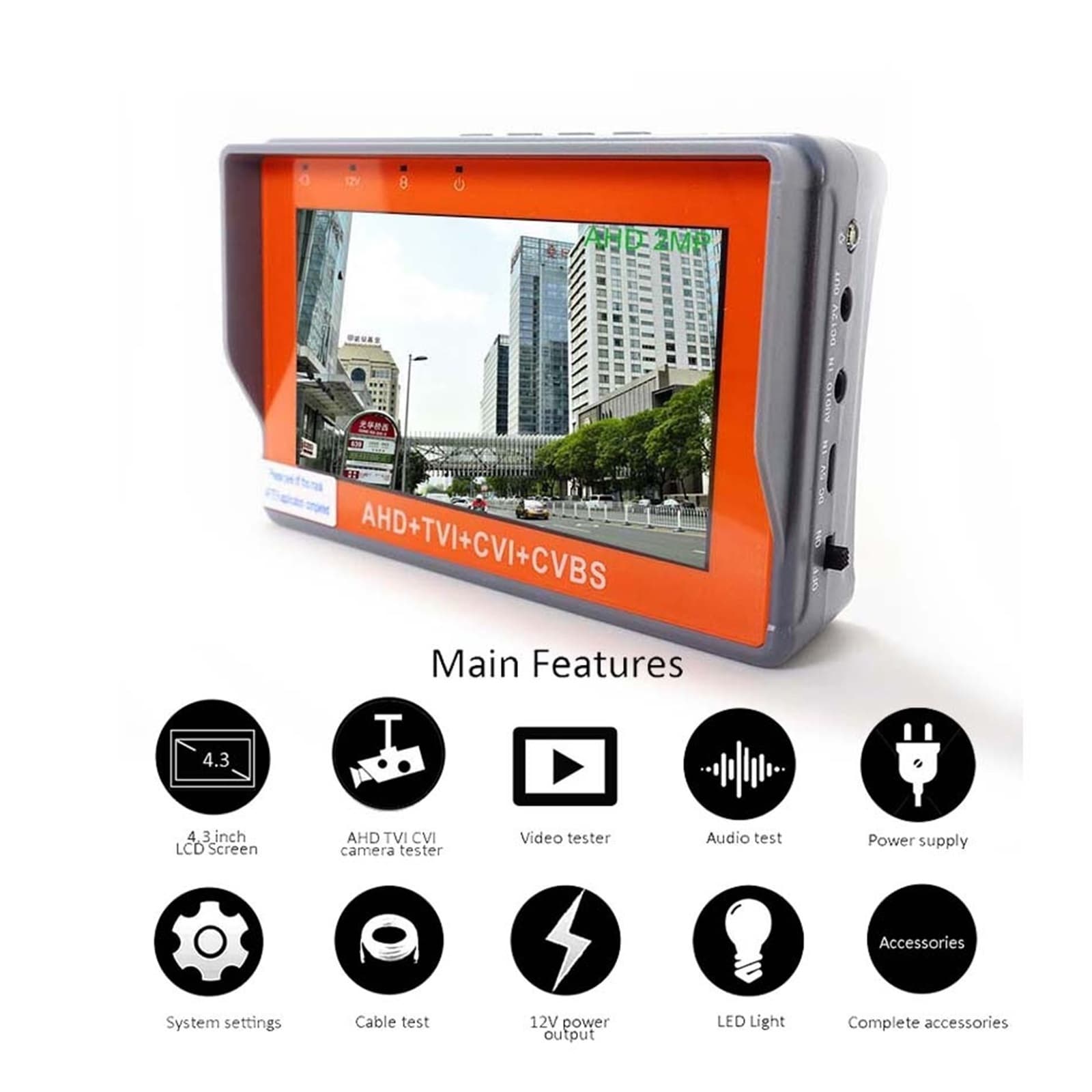

Features : Model: IV7W Support TVI Cameras :5MP, 4MP, 3MP, 1080P, 720P; Support AHD Cameras :5MP, 4MP, 3MP, 1080P, 720P; Support CVI Cameras :1080P, 720P; Analog cameras=video testing updated model 1. video tester Video System: NTSC/PAL Automatically recognize Video level: 1VPP LCD backlight brightness adjustable Video input / output: 1 channel BNC Video IN 2. HD AHD ,TVI Test SD signal Format: NTSC,PAL Video signal: HD AHD,TVI,CVI,CVBS Resolution : D1,720P,960p,1080P,3MP,4MP,5MP MAX Support 5MP,4MP AHD 20FPS ; 5MP 4MP TVI 20FPS Signal Level: 1Vpp 3. 12V power output Power output: Temporary power output 12V 1A D USBX1 5V1A output 4. test test: Input signal, and played on the internal speaker 5. Power supply External power supply: DC 5V(2A) Battery-powered: Built-in 3.7V li-polymer battery, Capacity 2600mAh Charge: Charge time 3-4 hours Battery power time 8 hours Power saving features: Low power consumption, automatic power off, Real-time display of battery level 6. System Language : English Auto power off: Disable / 5-60 minutes 7.Cable test cable test: Test any two or more wire cable Display connect sequence and remote number LED Light: 1*35lm LED light Working environment and Specifications: -20---+70/30%-90%R Packing List: HD AHD+TVI+CVI+CVBS CCTV Tester x 1 AC/DC Adapter x 1 Power Output Cable x1 Transformer x 1 A/V Cable x 1 Video Cable x 1 Date Cable x 1 Wristbands x 1 CCTV Monitor & Display,Security & Protection, CCTV Monitor & Display
