Unbranded ZT-703S Electrical Testing sku-18623303850

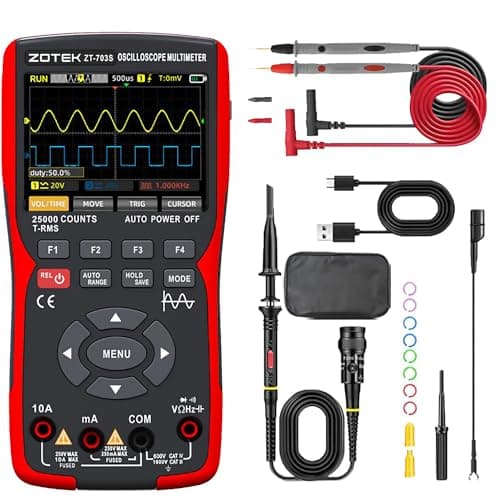

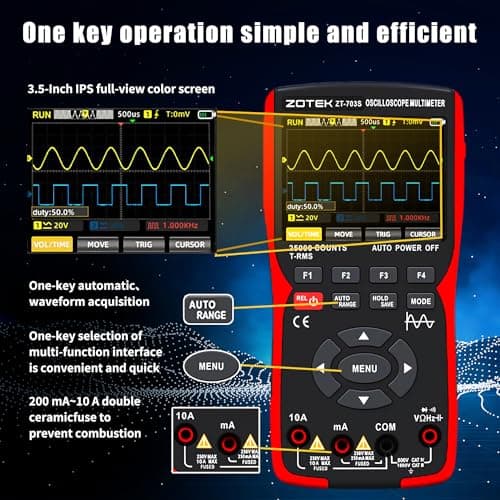

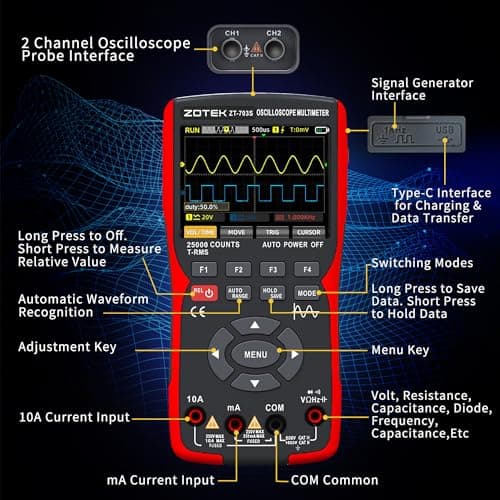

This Unbranded ZT-703S is a handheld Electrical Testing device with a dual-channel oscilloscope, multimeter and signal generator. Its 3.5-inch IPS color display supports one-button automatic measurement, time-base calibration, data saving and export, language selection, shutdown-time settings and an adjustable backlight. It also has a data transmission port and memory.

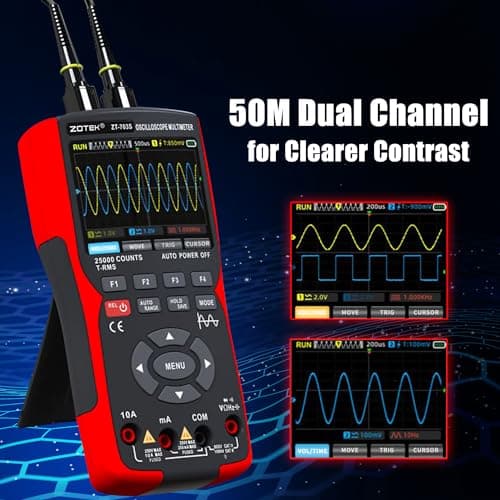

The oscilloscope has 50MHz bandwidth, a 280MSa/s real-time sampling rate, 128kb record depth and a maximum measurement voltage of ±400V. It supports automatic measurement, auto/normal/single triggering, 20mv/div-10v/div vertical sensitivity, an 8/10ns/div-20S/div horizontal scanning range, 20ppm time-base accuracy, and waveform image storage and export.

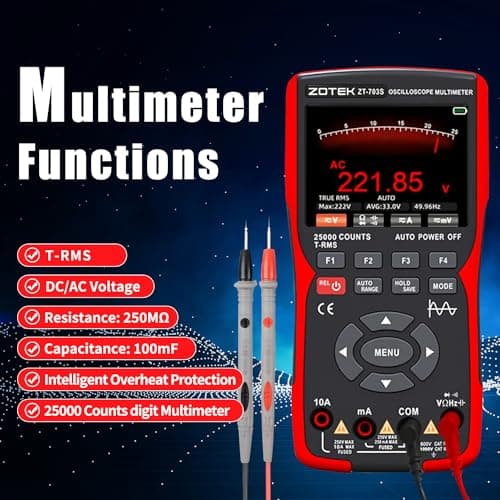

The 25000-count multimeter measures AC voltage from 0-750V, DC voltage from 0-1000V, DC/AC current from 0-10.0A, resistance from 0-250.0MΩ, capacitance from 0-99.99mF and frequency from 0-999.9kHZ. It also tests diodes and continuity. The signal generator produces sine, square, triangle, full, half and sawtooth waveforms, with output up to 1kHz in 1Hz steps.

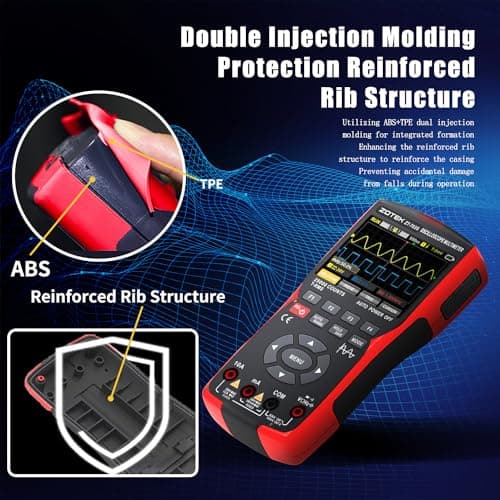

The listed safety levels are CTA III 1000V in multimeter mode and CTA II 600V in oscilloscope mode; the listing also states CE certification requirements, A/D high-sampling conversion, 600mA-10A dual ceramic fuses and ABS+TPE dual-injection molding. It is described for use with home and automotive circuits, sockets, switches, lights and low-voltage circuits. SKU: sku-18623303850.

UPC: 727458900835.
