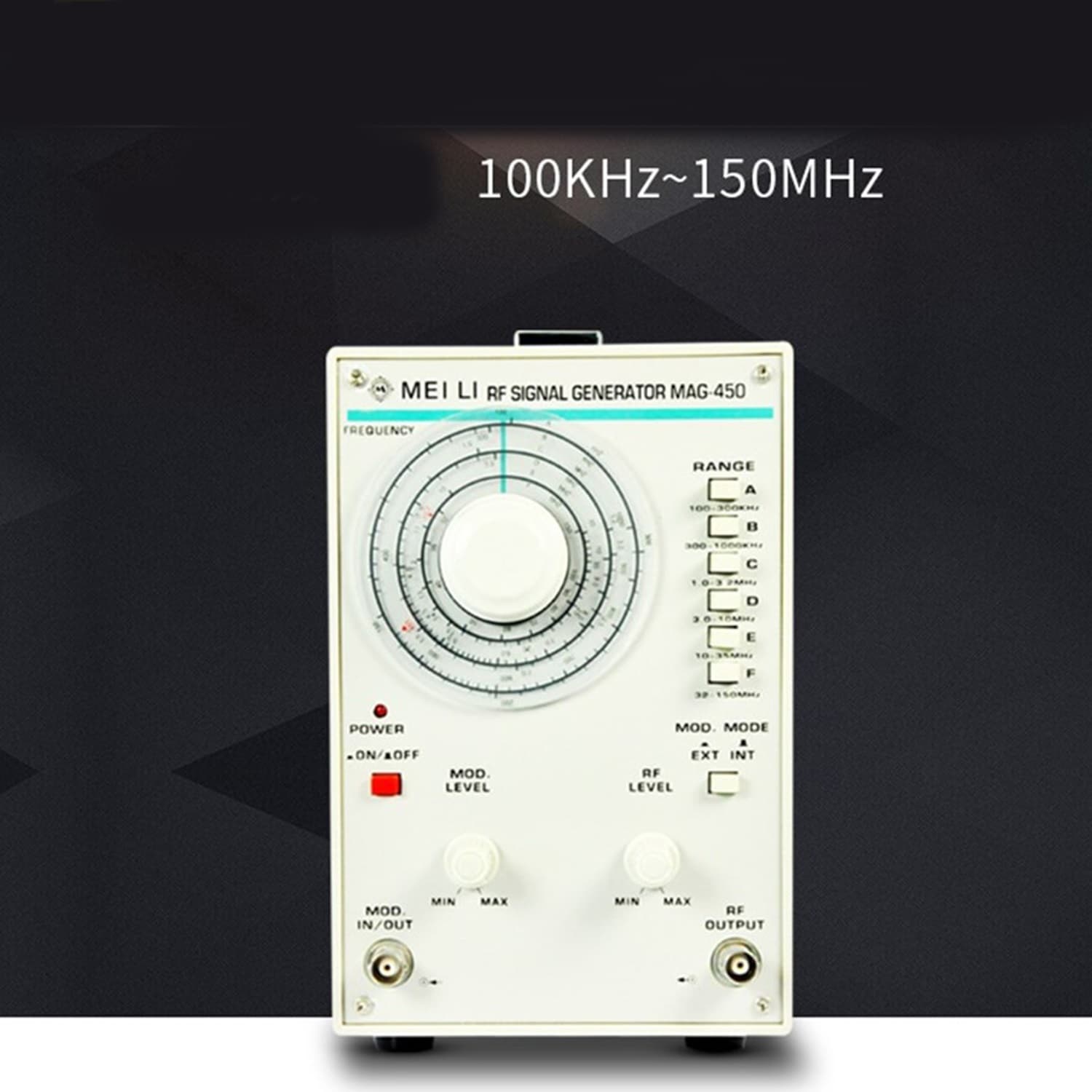

High Frequency Signal Generator 100kHz-150MHz Signal Source Audio Signal Generator MAG-450
No rating yet(0 ratings)Type: High frequency signal generator Model: MAG-450 Frequency: 150 (MHz) Dimensions: 128(W) x 190(H) x 239(D) mm Weight: 4 (kg) Display: LCD Frequency ranges A: 100KHz~300KHz B: 300KHz~1MHz C: 1MHz~3.2MHz D: 3MHz~10MHz E: 10MHz~35MHz F: 32MHz~150MHz Frequency range :100KHz~150MHz (3rd harmonic wave up to 450MHz) Frequency accuracy: ±3% Output waveform : RF/AM signal waveform Output impedance: 600W Radio frequency output: Over 100 mVrms (when frequency ≤35MHz ) Level control: 1mV~100mV Internal modulation: 1KHz ±2% >2Vrms output (1KHz±2%>2Vrms) External modulation：50Hz~20KHz for any setting (50Hz-20KHz) Normal operation : 10ºC to 35ºC/within 85%RH temperature/humidity Power supply: 220V/110V +/-10%; 50Hz/60Hz
