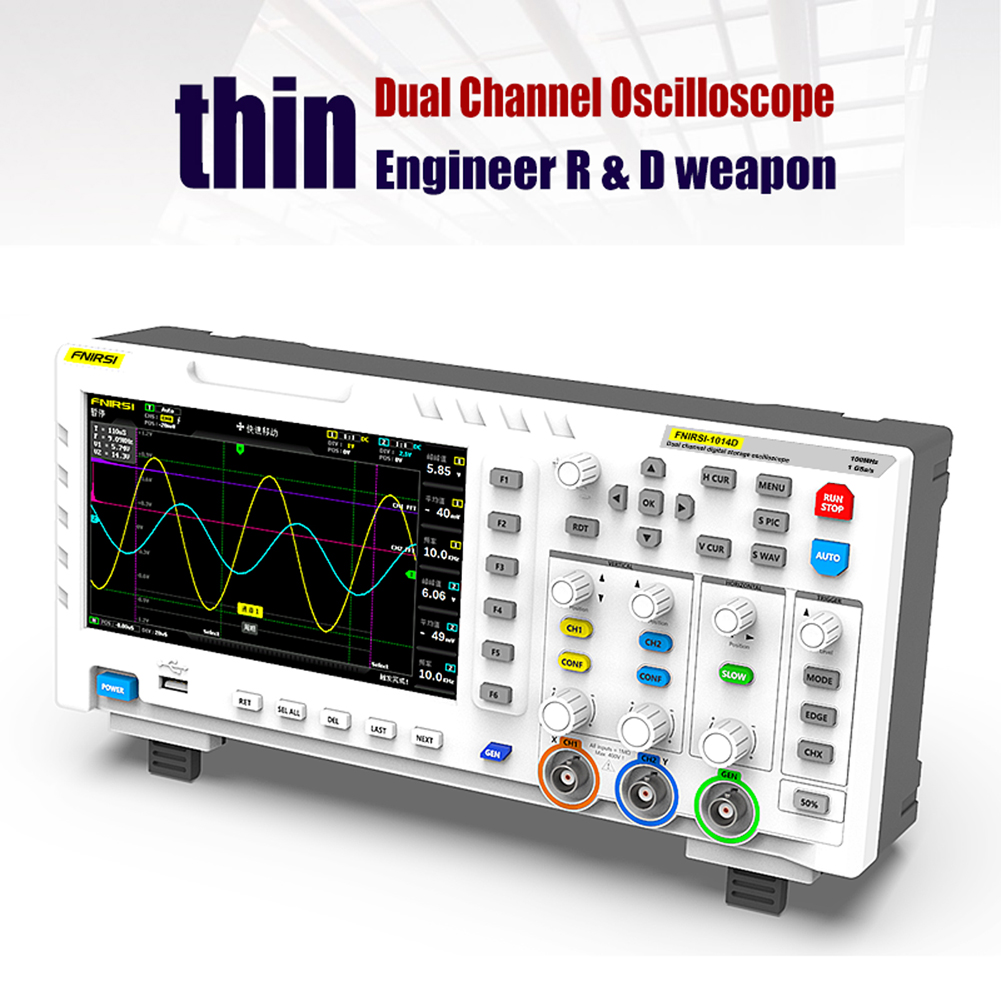

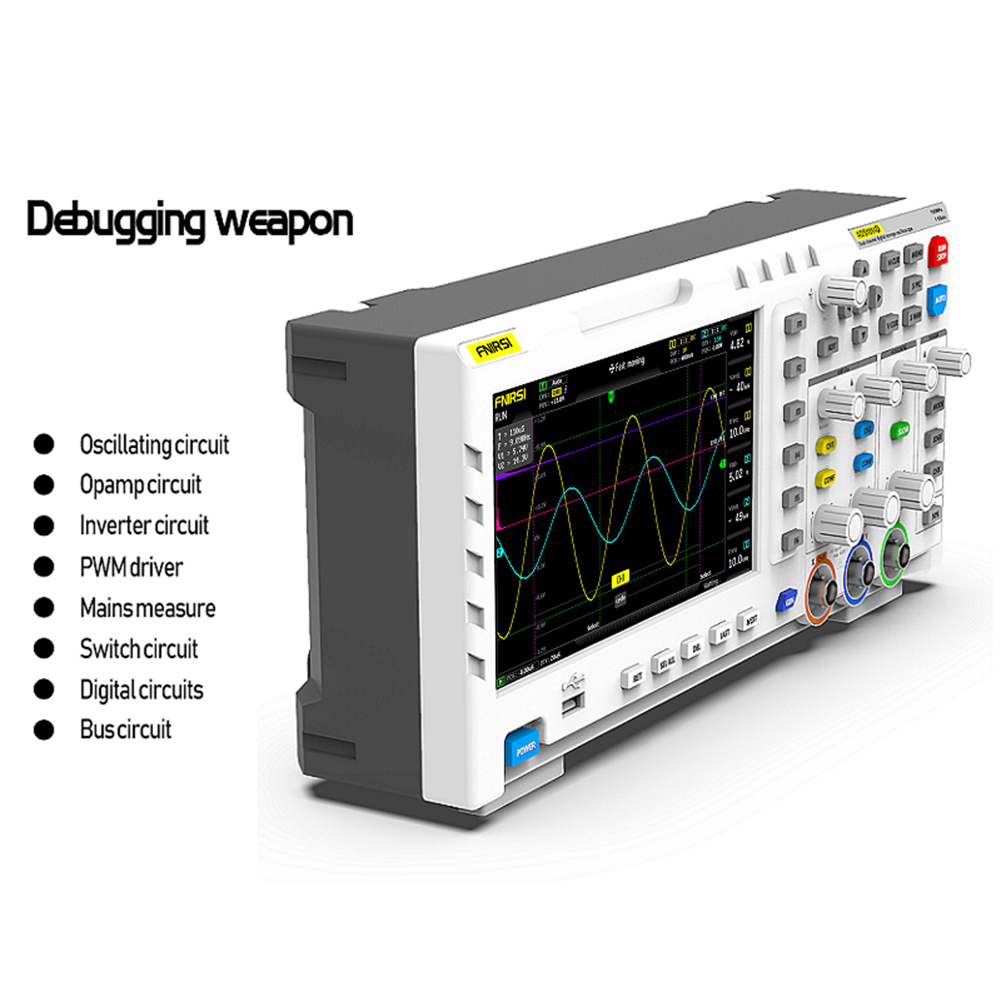

FNIRSI Digital Oscilloscope 7" Multicolor sku-1028097846

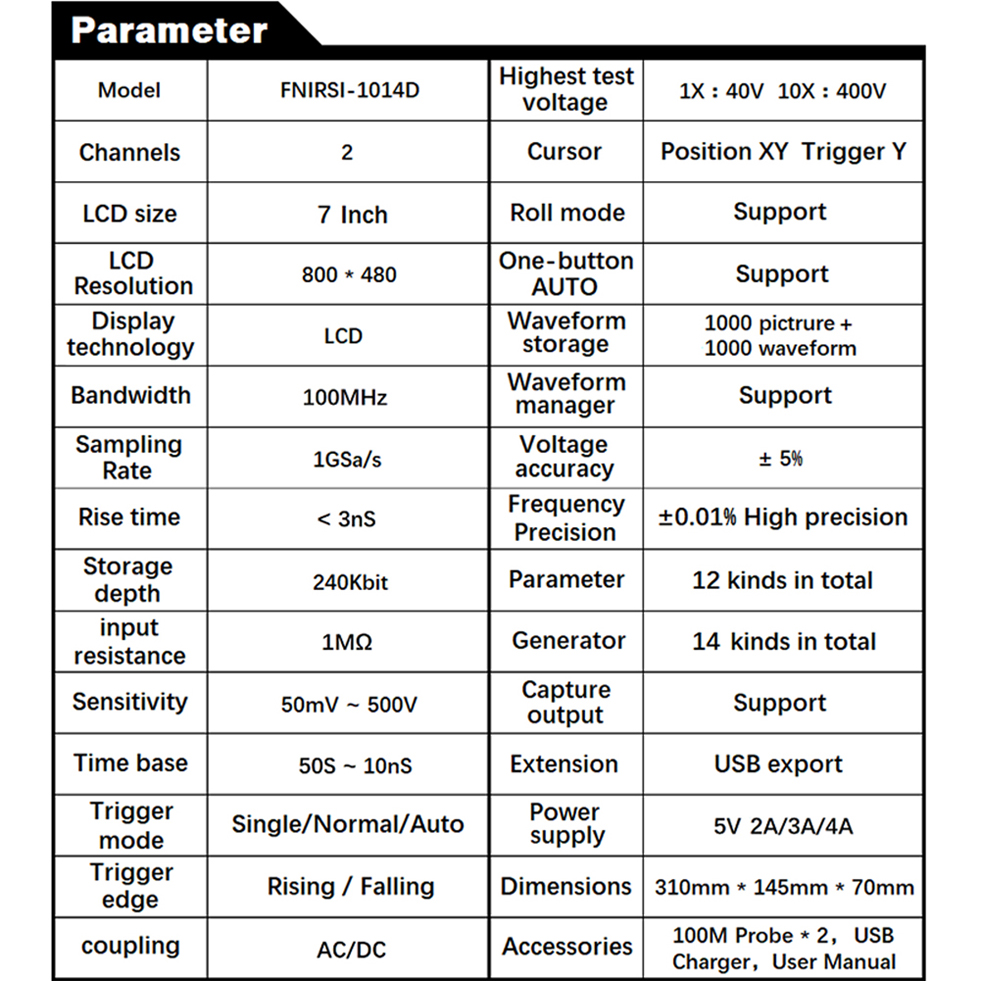

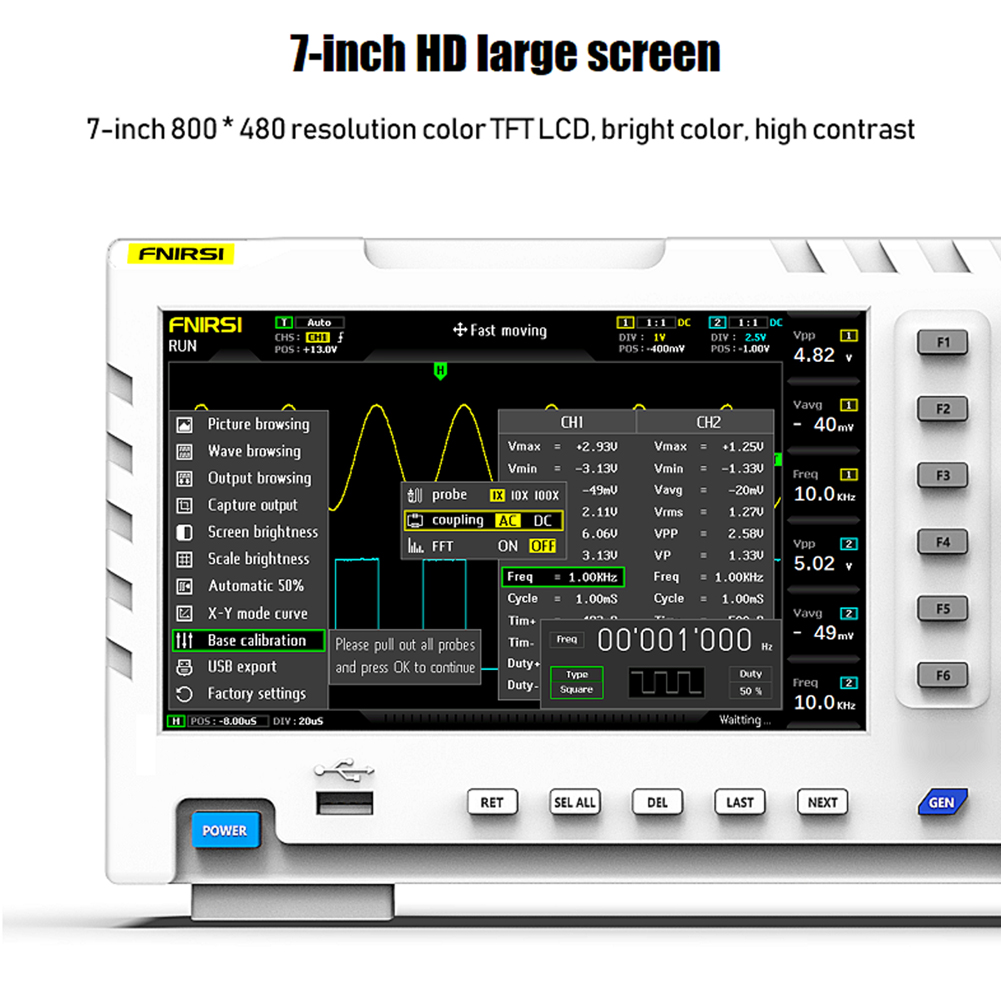

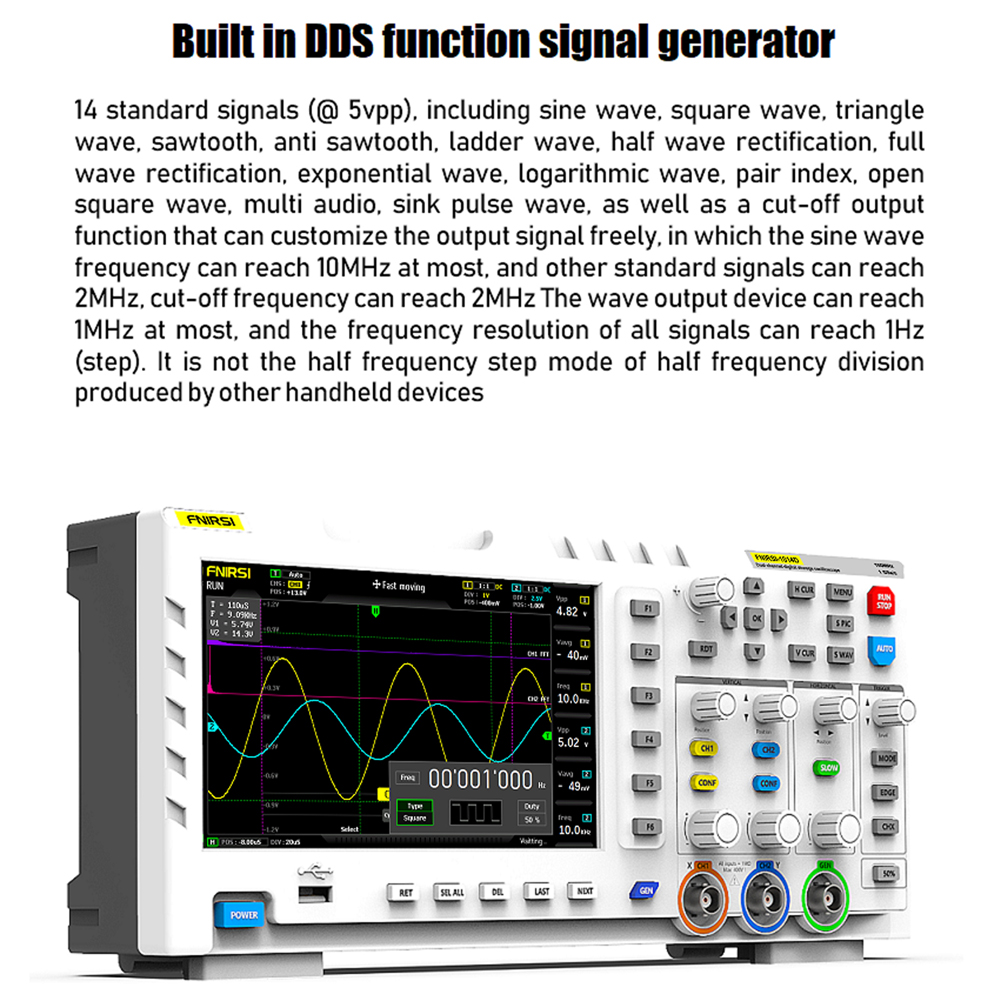

The FNIRSI Oscilloscope is a Multicolor Electrical Testing device with a 7" display, listed as a 7 inch LCD, SKU sku-1028097846, UPC 752917346091. It has 2 channels, 100MHz analog bandwidth per channel, a 1GSa/s maximum real-time sampling rate and a DDS signal generator. Vertical sensitivity ranges from 50 mV/div to 500 V/div; the horizontal time base ranges from 50S/div to 10nS/div.

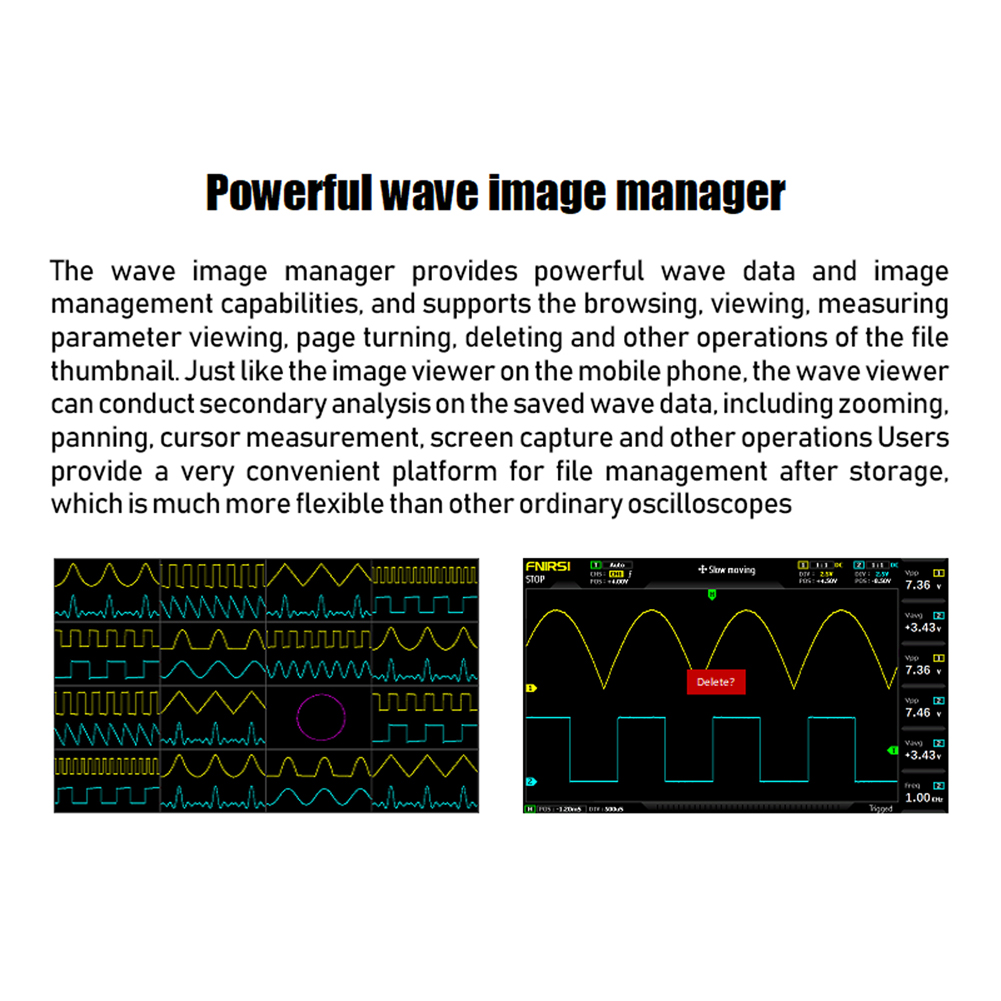

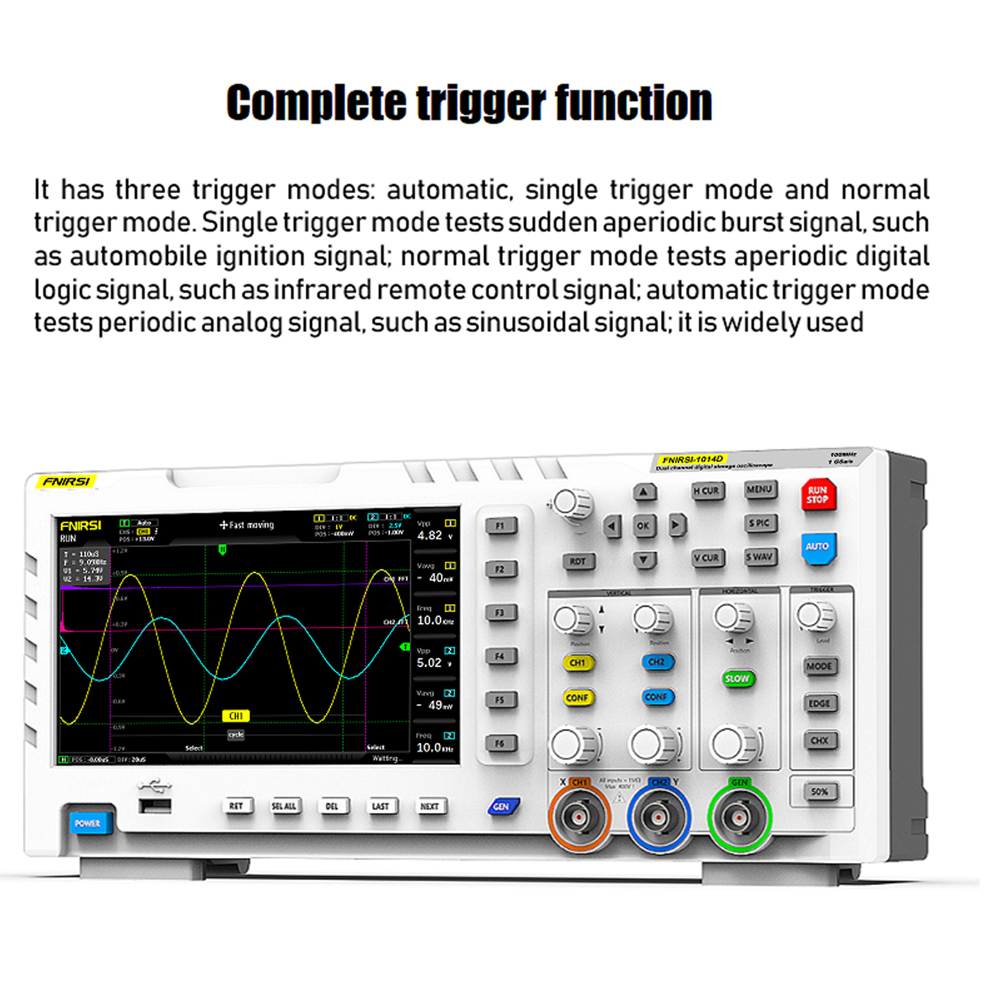

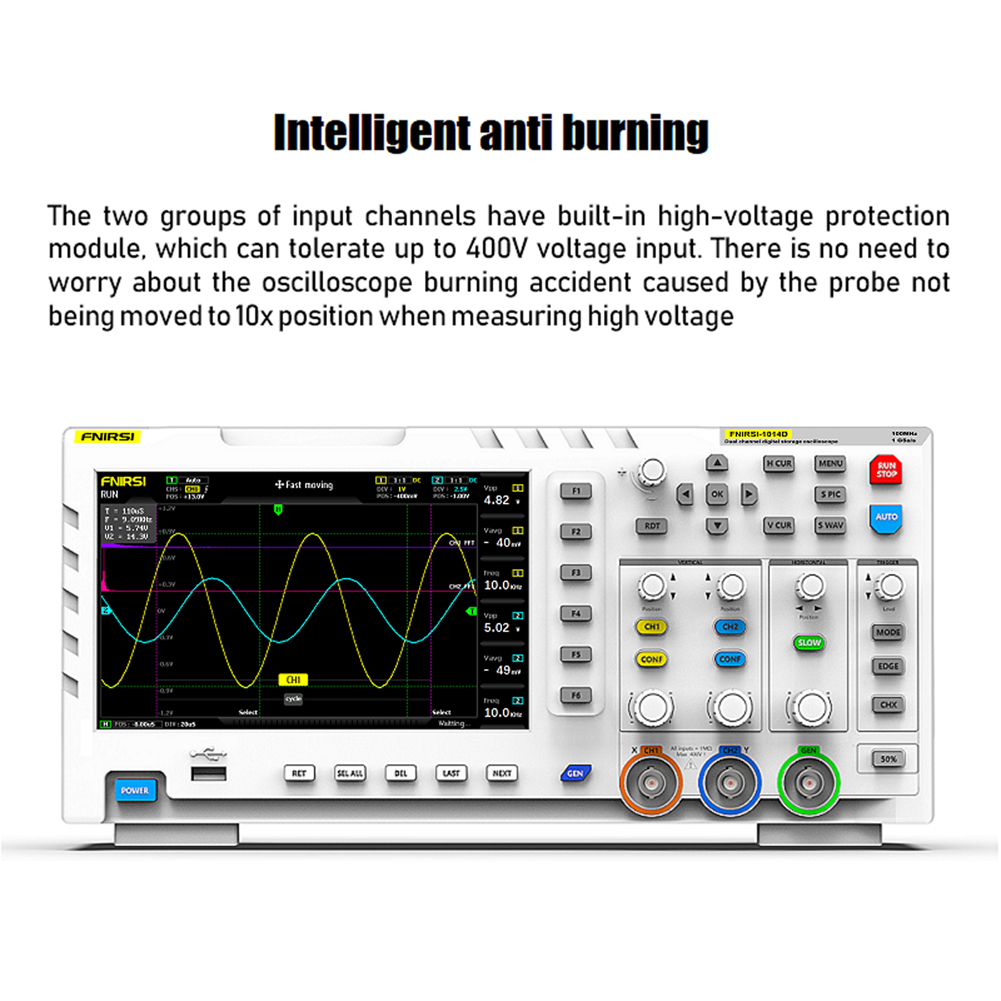

Maximum test voltage is 40 V with a 1X probe or 400 V with a 10X probe. It has 240Kbit storage depth, 1MΩ input resistance, 8-bit ADC precision, AC/DC coupling, single, normal and auto trigger modes, rising or falling edge triggering, and a 0 to 40 V external trigger range. A USB port supports picture export. The package measures 340 x 140 x 70 mm (13.4 x 5.5 x 2.8 in) and weighs 1949 g (4.3 lb).

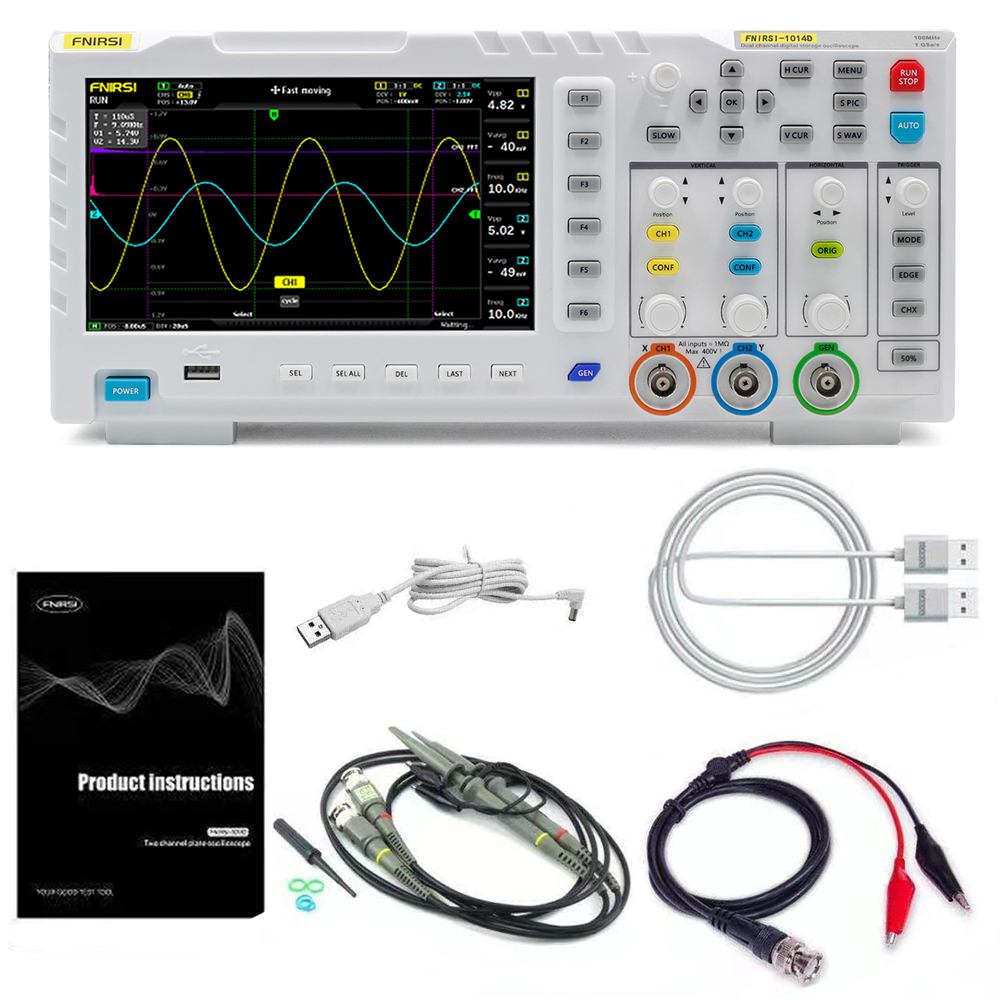

It includes 1 FNIRSI-1014D oscilloscope host, 2 matching 100MHz probes (1x and 10x), 1 clip, 1 USB data line and 1 English user manual.
