Eugene Color Electrical Testing Scope sku-6733768089

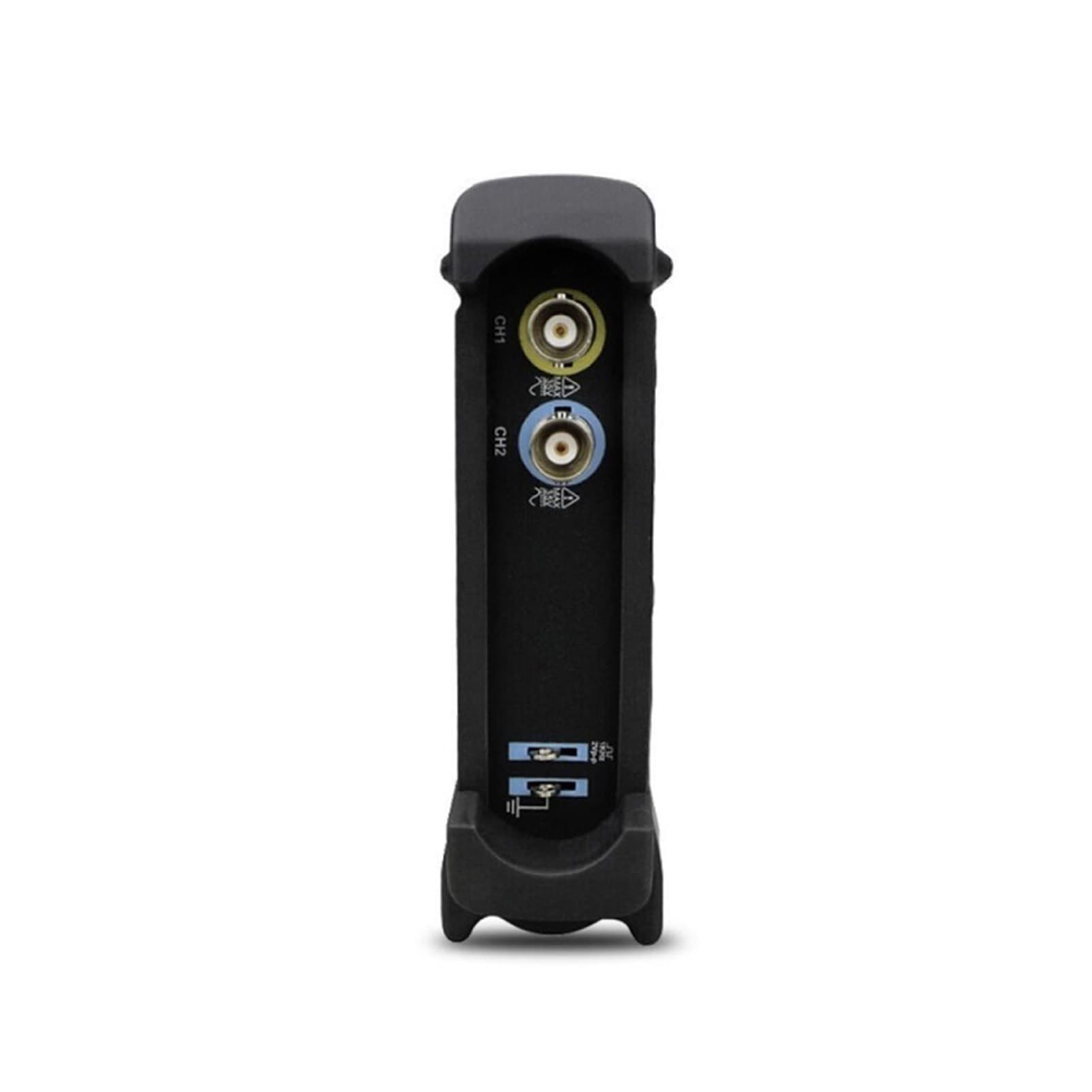

The Eugene Color 6052BE USB oscilloscope is listed under Electrical Testing as sku-6733768089. It has 2 channels, a USB2.0 connection that needs no external power, and a standard USBXI interface for use in a USBXI housing. Its anodized aluminum casing is described as heat- and wear-resistant. The stated dimensions are 205 mm long by 120 mm wide by 35 mm high.

The listing cites 150MS/s real-time sampling, 50MHz bandwidth and 23 measurement functions. It supports waveform averaging, persistence, intensity, inversion, X-Y plots and addition, subtraction, multiplication and division. DEMO code for VC, CVI, VB and LABVIEW and technical support are listed. The 6000BE series specifications give a 20MHz-200MHz bandwidth and a 250MSa/s sample rate.

Listed bandwidth options are 20MHz, 50MHz, 80MHz, 100MHz and 200MHz; sample-rate options are 48MS/s, 150MS/s and 250MS/s. Other listed specifications include 1M 25pF input impedance; DC and AC/DC/GND coupling; 8Bit vertical resolution; a 10mV-5V gain range in 9Steps; ±3% DC accuracy; 4ns-5ks and 4ns-1h timebase ranges in 38 Steps; diode-clamping input protection; adjustable vertical settings and trigger level; and a 0-100% pre/post trigger range.

Trigger modes are Auto, Normal and Single, with rising- and falling-edge triggers and CH1, CH2 or EXT sources as listed. The specification also lists X-Y display, sampling selection, port/line waveforms, network open/close, CH1, CH2, Dual and ADD vertical modes, FFT, cursor measurement of frequency and voltage, and buffer sizes of 1M or 10K-64KB per channel.

EXT input availability varies by specification. Accessories listed are a software CD, probes, a manual and a USB cord.
