NOBRAND ZT-702S Red Meter 177*89*40mm sku-15611604931

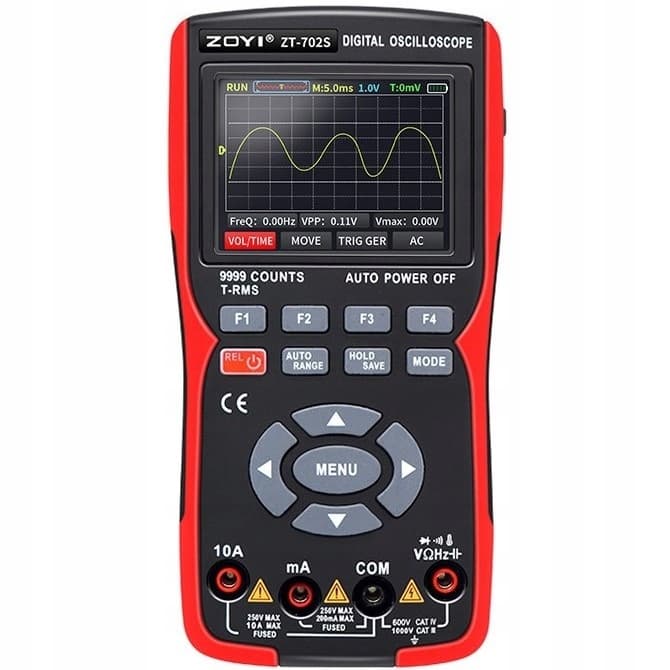

The NOBRAND ZT-702S is a Red 2-in-1 multimeter and oscilloscope listed under Electrical Testing as sku-15611604931. Its listed size is 177*89*40mm; the source also gives dimensions of 17.7 x 8.9 x 4 centimeters and a weight of approximately 650 grams.

It has a 2.8 inch IPS color display at 320x240 resolution, automatic and manual measurement modes, one-click measurement, adjustable backlight, data storage and export, language selection and a shutdown-time setting. Tests include continuity, voltage, diodes, temperature, capacitance, resistance and frequency.

It uses an 18650 3.7V rechargeable battery, charges through USB-C and has dual ceramic fuses rated 200mA and 10A. The stated safety levels are CTA III 1000V and CTA II 600V in oscilloscope mode. Its 1 oscilloscope channel has AC/DC coupling, 48MSA/s sampling and a 3V-1kHz square-wave output.

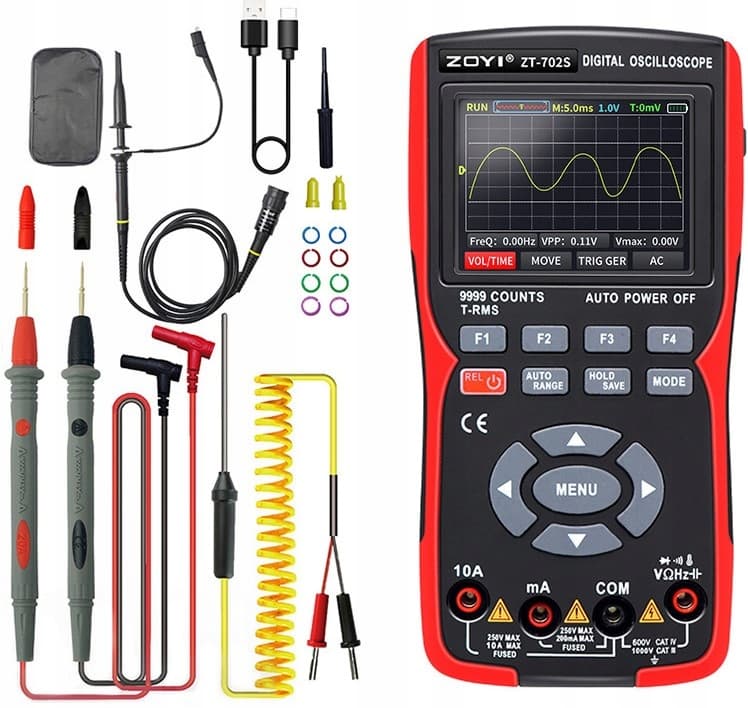

Listed ranges include DC and AC current of 0.001A~9.999A, DC voltage of 0.1mV~999.9V, AC voltage of 0.1mV~750.0V, capacitance of 0.001nF~99.99mF, resistance of 0.01 Ω~99.99M Ω and frequency of 0.01Hz~999.9kHz. The ABS+TPE device comes with measuring leads, an oscilloscope probe, thermocouple, adjustment screwdriver, USB cable, battery and small bag.

In the stated ZOYI comparison, the ZT-701S has a 2.8 inch screen and 6000-count meter; this ZT-702S has a 2.8 inch screen and 9999-count meter; and the ZT-703S has a 3.5-inch screen and 25000-count meter.
