VDIAGTOOL V200 Automotive Power Probe Circuit Tester Kit Electrical Diagnostic Tool 12V / 24V Car Fuse Tester with 40FT Cable Wire Tracer

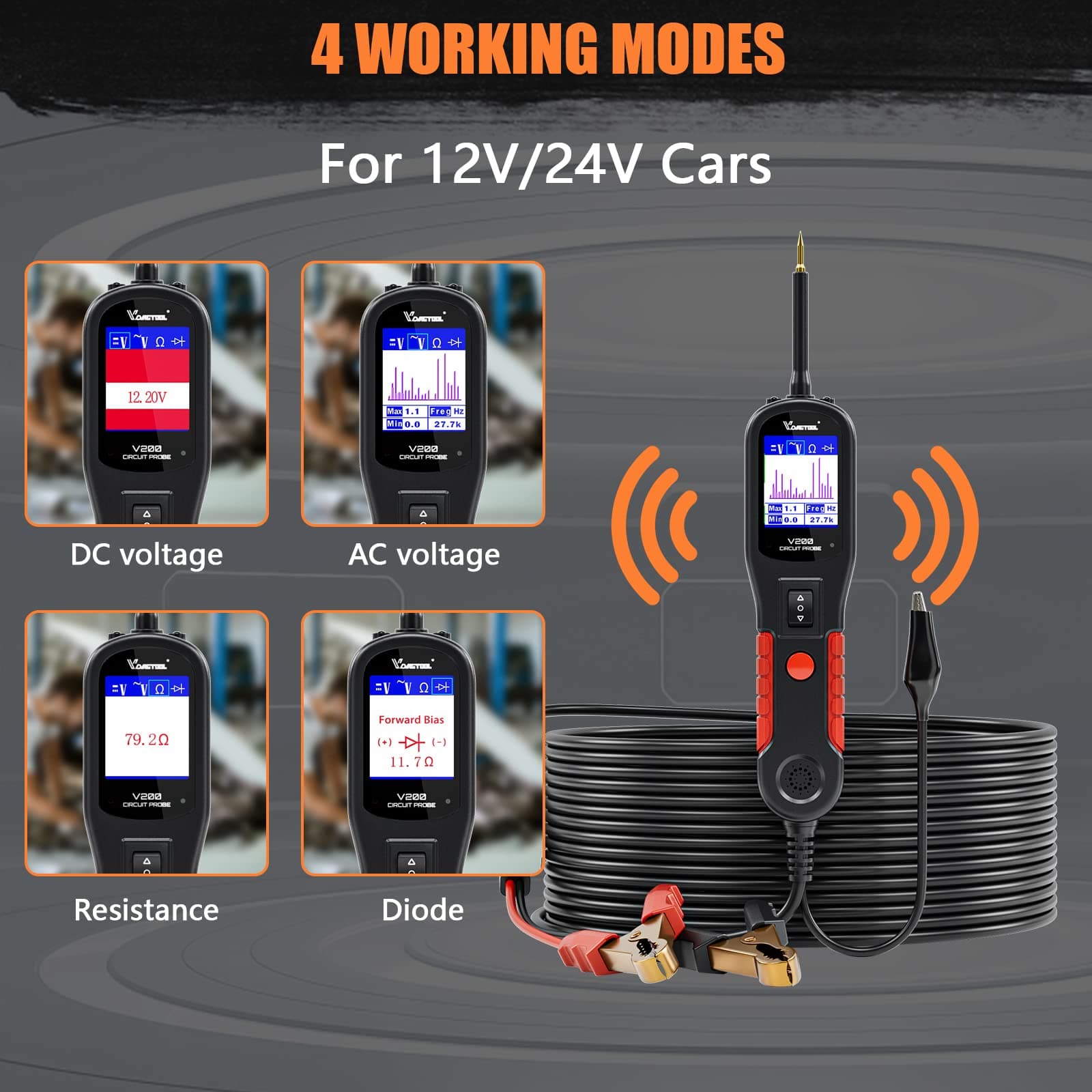

4 Working Modes - Simply Switch By One Button DC Voltage Test: Detects the voltage value of the circuit under test with a resolution of 0.1 volt AC Voltage Test: Detects the Max. Voltage, the Min. Voltage and Frequency of the circuit Resistance Test: Detects resistance between the circuit probe tip and the auxiliary ground lead. Determines whether an electrical circuit is complete or broken and if the resistance of a component matches the manufacturer's specification Diode Test: Detect the operation of the diode assembly and determine if it is conducting. Display the actual forward voltage of the diode when it's conducting current DC voltage range: 0-65V; Resistance range: 0-100 k & Omega; Rated current: 1-10 amps; Frequency response of sound passage: 0Hz to 10Khz. Polarity Identification + Overload Protection + Built in Light + 20 FT. Extension Cable Find out whether it is a positive or negative ground circuit and display volts. Red light for Positive and Green for Negative. An auto circuit breaker makes this power probe kit safe and sustainable, and short circuit protection prevents the device and your components from overloading. With the built-in light and 20ft. extension cord, it can test the whole vehicle even under dark areas Generate Activation Signals to the Tested Components The activation test function is designed to generate activation signals to the tested components in hands or vehicles, such as car lights, relays, fuel injectors, motors, and other on-board electrical equipment. It functions in DC voltage mode Other Useful Functions: Locate The Short Circuit: Normally, a short circuit will appear by a blown fuse or an electrical protection device tripping (i.e., a circuit breaker). Use the probe tip to activate and energize each of the fuse contacts. The contact which trips the circuit breaker is the shorted circuit. Check Continuity: In Resistance mode, using the probe tip and the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle's electrical system Test Trailer Lights: In DC Voltage mode, clip the auxiliary ground lead to the trailer ground, probe the contacts at the jack and then apply voltage to the probe tip. This allows you to check the function and orientation of the connector and trailer lights. Find The Bad Ground: Probe the suspected ground wire or contact with the tip. If the circuit breaker tripped, this circuit is more than likely a good ground. Quick Self-test: Make sure it is working properly before using it. Press the power switch forward to activate the tip positively, the Red LED lights up and displays the battery voltage. Press the power switch backwards to activate the tip negatively, the Green LED lights up and displays 0.0V
