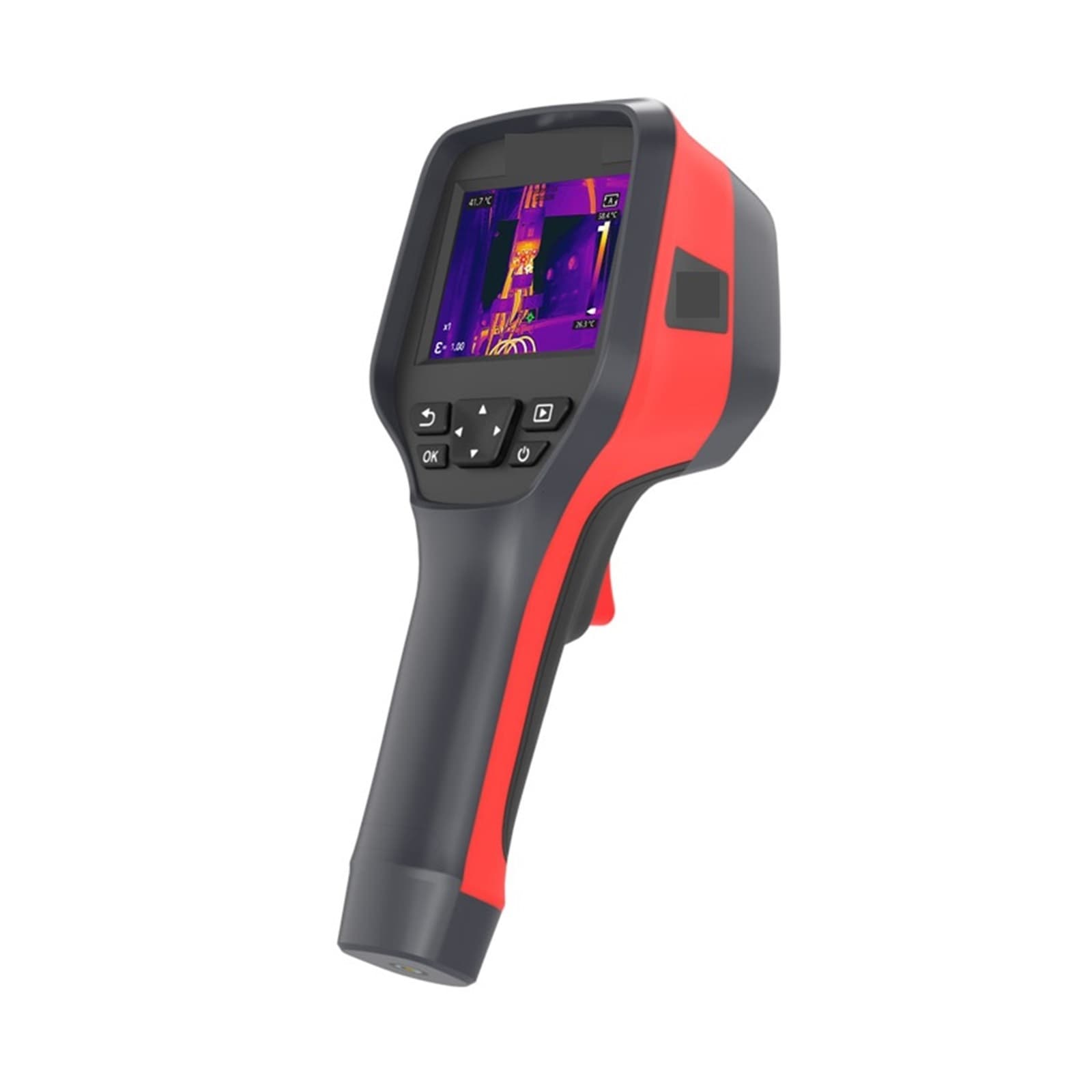

Thermal Imaging Camera, Infrared Thermal Imager Resolution 256x192 Touch Screen Leak Detection And Maintenance Infrared Camera

Infrared Thermal Imager Resolution 256x192 Touch Screen Leak Detection And Maintenance Infrared Camera Detector resolution 256×192 Infrared response band 8~14m Pixel size 12m NETD 40mK IFOV 3.8mrad Frame rate 25Hz Focal length 3.2mm Field of view 56°×42° Focus mode Free focus Temperature measurement range -20~150, 100~550 Temperature measurement accuracy ±2% or ±2 Temperature measurement resolution 0.1 Temperature measurement mode Center point/hot spot tracking and temperature display Point, line, area temperature measurement Support up to 10 points, 10 areas, 10 lines Temperature measurement units Celsius, Fahrenheit, Kelvin Emissivity setting 0.01~1.00, step size 0.01 Ambient temperature setting -10~+50, step size 1 Distance setting 0.25~4m, step length 0.25m Image Mode Infrared, Dual Light Fusion, Visible Light, Picture-in-Picture, Detail Enhancement Pseudo-color 7 kinds Alarm mode/temperature alarm Image alarm/support temperature alarm Color scale temperature range Manual/Auto temperature range Visible light camera/ pointer 200W pixel/support pointer Video and photo storage JPG infrared pictures with temperature data and pure visible light JPG pictures; video in H.264 format without temperature data Display size: 3.5-inch touch screen (480×640) Image naming Automatic/manual input naming, scanning QR code naming Memory card Standard 32GB Micro SD card Battery type Rechargeable lithium battery, removable Power interface USB TypeC Connection method USB, SD card, (connect to App) Charging time about 3h Working time about 8h (medium brightness infrared) Cloud Features \ Power management Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, no automatic shutdown Analysis software PC&APP Tripod mount Yes at the bottom of the handle Working temperature -10°C~+50°C Storage temperature -20°C~+60° Related Products: thermal camera,thermal imager,thermal imaging camera,infrared thermal imager,thermal imaging,infrared camera,infrared thermal imager camera,thermal vision,infrared thermometers,infrared water leak detector,thermal gunthermal imagers,infrared thermometer gun,infrared thermometers
