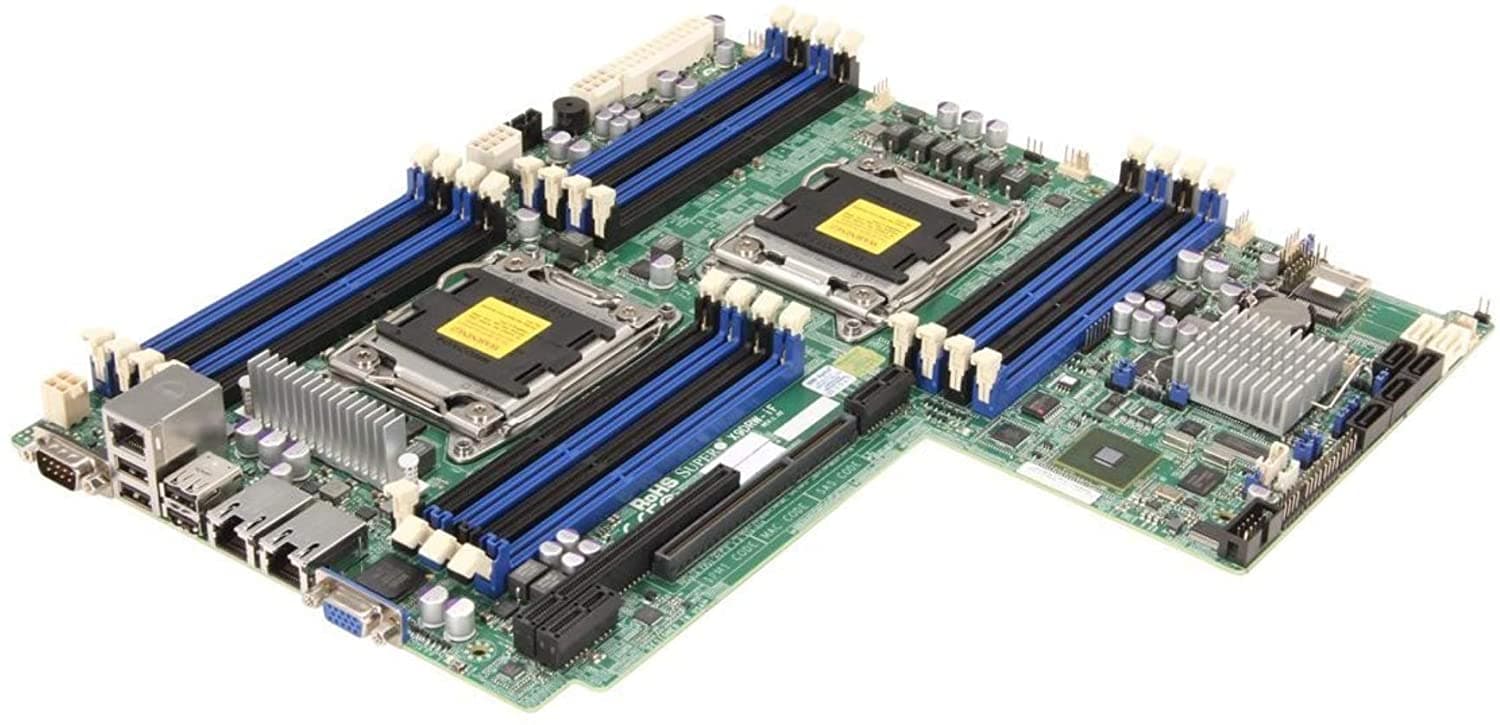

Supermicro X9DRW-IF Server Motherboard — Dual LGA2011 Sockets, Intel C602, Proprietary WIO

Compact enterprise motherboard built for dual-socket LGA2011 servers. Supports Dual socket R (LGA 2011) with Intel® Xeon® processor E5-2600 and E5-2600 v2 family† and is based on the Intel® C602 chipset with QPI up to 8.0GT/s. Memory capacity reaches up to 1TB ECC DDR3 at up to 1866MHz using 16x DIMM slots. Expansion is provided via riser card support: left side — 1 (x32) PCI-E 3.0; right side — 1 (x16) PCI-E 3.0. Network connectivity is handled by an Intel® i350 Dual port GbE LAN adapter. Storage includes 8x SATA2 and 2x SATA3 ports. Management features include integrated IPMI 2.0 and KVM with a dedicated LAN. I/O inventory finishes with 6x USB 2.0 ports (4 rear + 2 via header).
