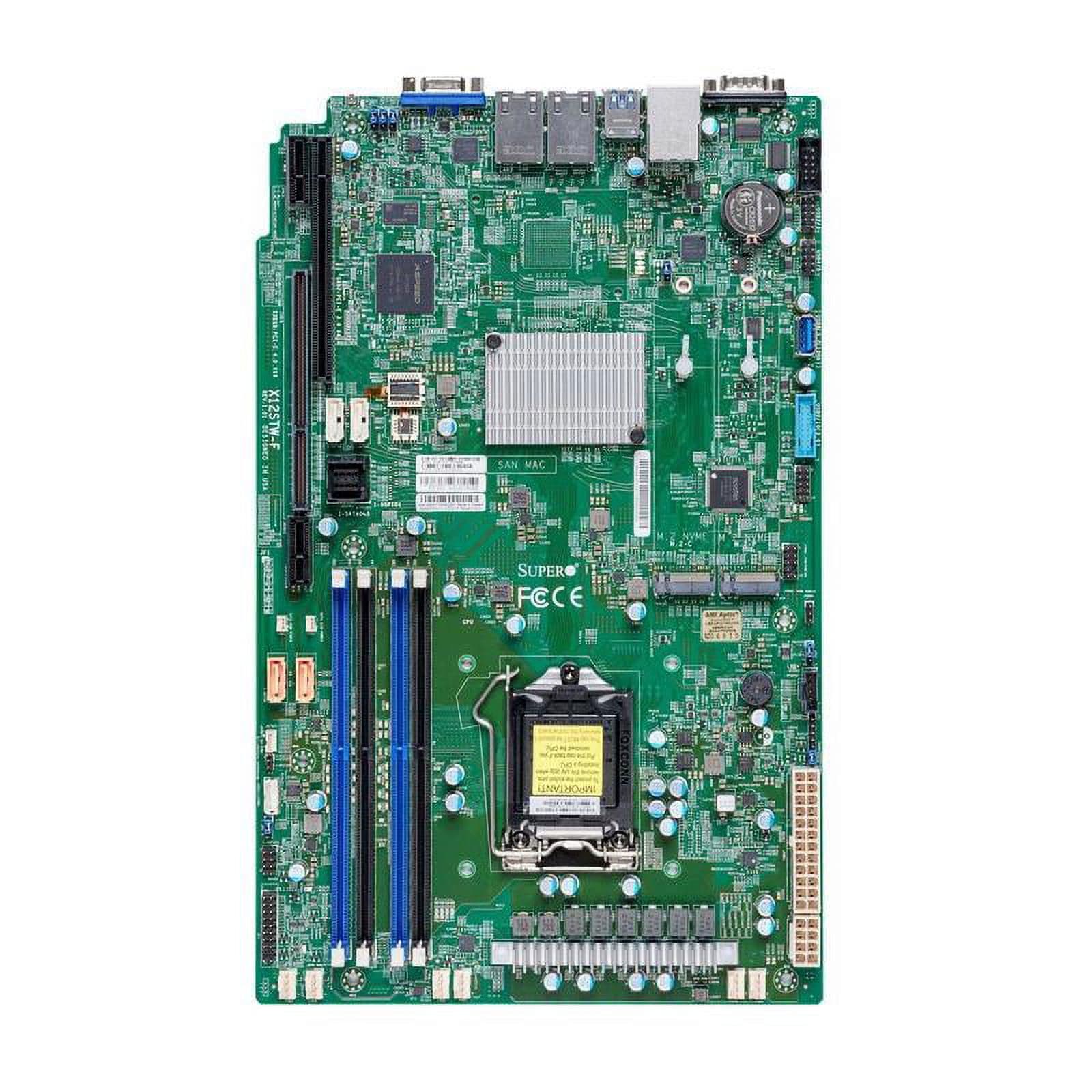

NEW Supermicro X12STW-TF Motherboard — Intel C256, LGA-1200 (Socket H5), DDR4 — Proprietary WIO Full Warranty

Supports Intel® Xeon® E-2300 processors and 10th Generation Intel® Pentium® processors on a single Socket LGA-1200 (Socket H5) CPU socket with CPU TDP support up to 95W. Built on the Intel® C256 chipset and compatible with up to 128GB Unbuffered ECC UDIMM memory at DDR4-3200MHz. Expansion and onboard connectors: 1 PCIe 4.0 x16 (left riser slot) and 1 PCIe 3.0 x4 (operates in x8, right riser slot). M.2 support includes one PCIe 4.0 x4 and one PCIe 3.0 x4 interface. Supported M.2 form factors: 2280/22110; M.2 Key: M-Key. Features a Double Height Connector. Storage and RAID: Intel® C256 controller provides 8 SATA3 (6 Gbps) ports with RAID 0,1,5,10 support. Networking: Dual LAN using the Intel® X550 10GBase-T Ethernet controller. I/O: 1 VGA port; 4 USB 3.2 Gen1 ports (2 rear + 2 via headers); 1 USB 3.2 Gen2 port (1 Type A); and 6 USB 2.0 ports (2 rear + 4 via headers).
