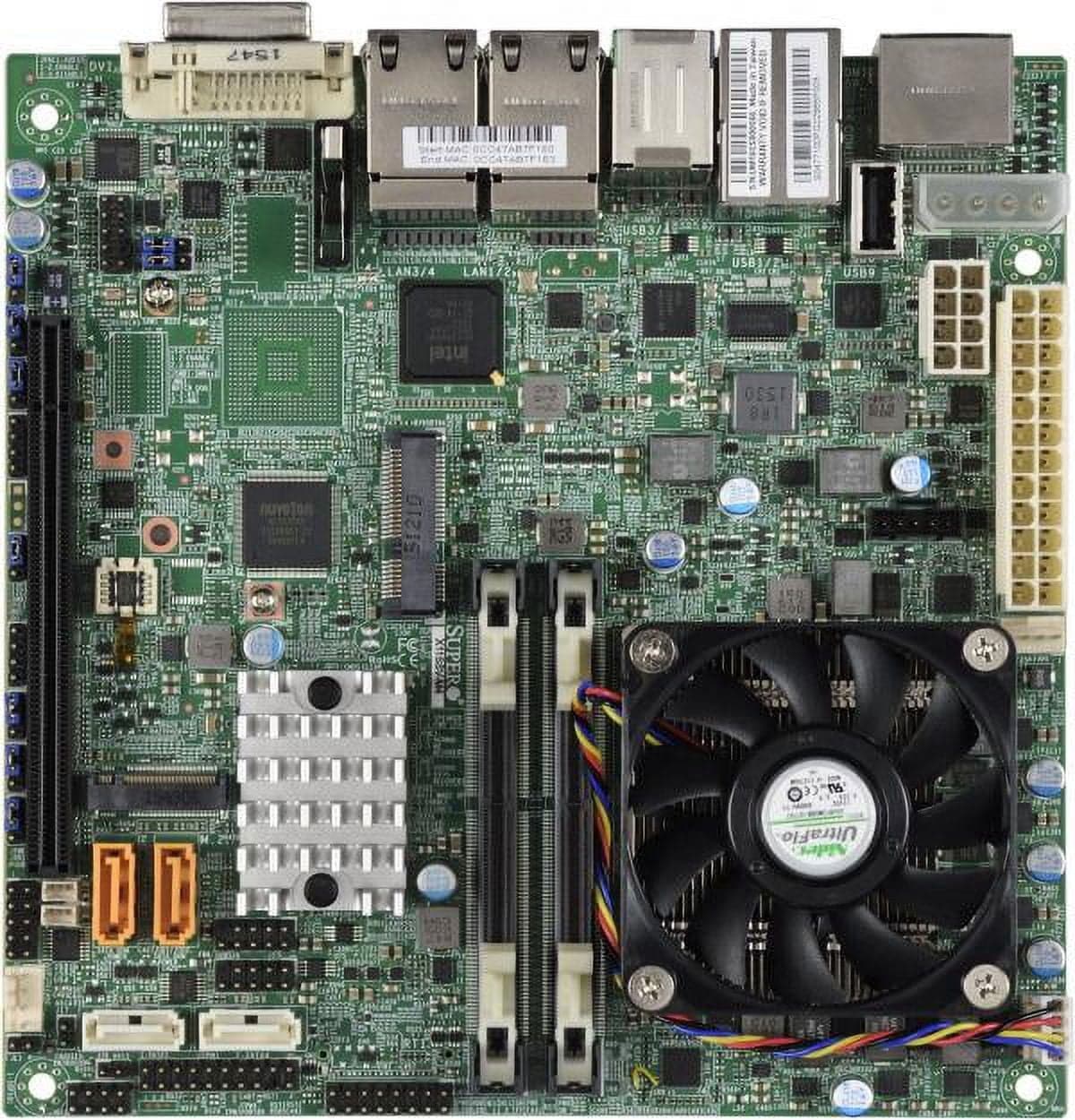

Supermicro X11SSV-M4 Mini-ITX Motherboard — Intel Xeon E3-1515M v5 (Single FCBGA 1440) CM236 Chipset

Compact Supermicro X11SSV-M4 Mini-ITX board built on the Intel CM236 chipset with an onboard Intel Xeon processor E3-1515M v5 (Single socket FCBGA 1440). The Xeon E3-1515M v5 provides 4-Core, 8 Threads processing with a 45W power envelope and includes Intel Iris Pro Graphics P580. Memory and graphics: Supports up to 32GB using 2 SO-DIMM slots compatible with ECC/Non-ECC Unbuffered SO-DIMM DDR4 2133MHz. The integrated Intel Iris Pro Graphics P580 can drive 3 independent displays. Expansion and storage: Expansion options include 1 PCI-E 3.0 x16, 1 Mini-PCI-E (mSATA support), and 1 M.2 PCI-E 3.0 x4 (SATA support) M Key 2242/80. Onboard storage features 4 SATA3 (6Gbps) ports provided by the CM236 chipset with RAID support for 0, 1, 5, 10 and also supports 2 SATA DOM devices. Networking and management: Four 1GbE LAN ports implemented with Intel I219LM, I210AT, I350AM2 controllers. Platform management capabilities include AMT and vPro for remote administration. Power input supports 12V DC. Rear I/O and onboard interfaces: Video outputs consist of 1 HDMI2.0, 1 DP1.2, and 1 DVI-I. Additional connectivity includes 1 COM (in RJ45), a TPM header, and ALC 888S HD Audio.
