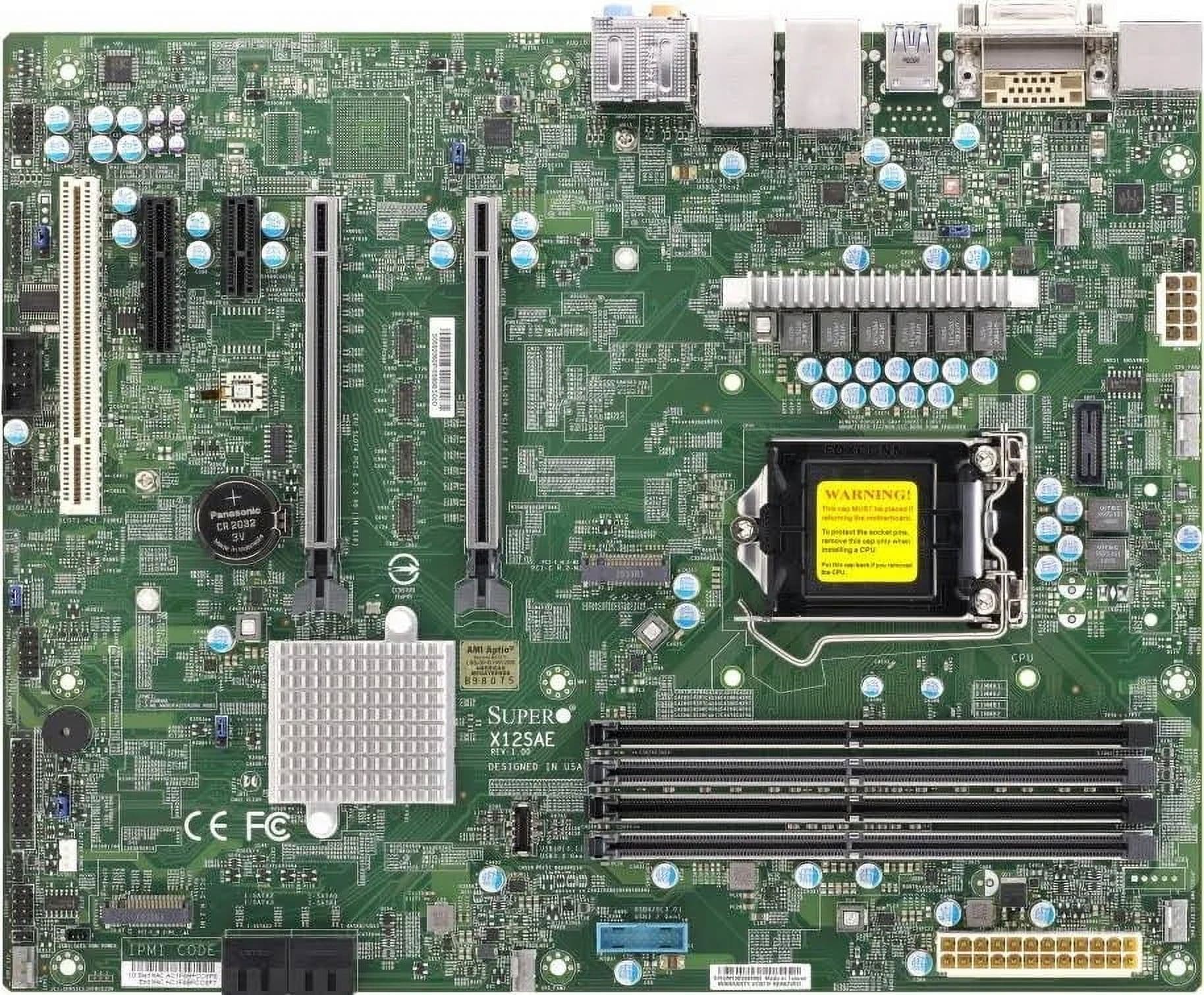

Supermicro X12SAE ATX Motherboard — Intel W480 Chipset, Single LGA-1200 (Socket H5), DDR4-2933MHz — Full Warranty

Workstation/server ATX board supporting 10th Gen Intel® Core i9/Core™ i7/Core™ i5/Core™ i3/Pentium® processors and Intel® Xeon® W-1200 processors. Single Socket LGA-1200 (Socket H5) design with support for up to 125W TDP, built on the Intel® W480 chipset. Networking: two single LAN interfaces — Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro and Single LAN with Intel® Ethernet i225V. Memory: 128GB maximum using Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz across 4 DIMM slots. Expansion: 1 PCIe 3.0 x4 slot; 2 PCIe 3.0 x16 slots (16/NA or 8/8); 1 PCIe 3.0 x1 slot; plus 1 - 5V PCI 32bit slot. M.2 and SATA storage: two M.2 interfaces (PCIe 3.0 x4 each) supporting RAID 0 & 1; M.2 form factors 2280/22110, M-Key. Intel® W480 controller provides 4 SATA3 (6 Gbps) ports with RAID 0,1,5,10 support. Video outputs: 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI-D port. This Supermicro X12SAE motherboard comes with full warranty coverage.
