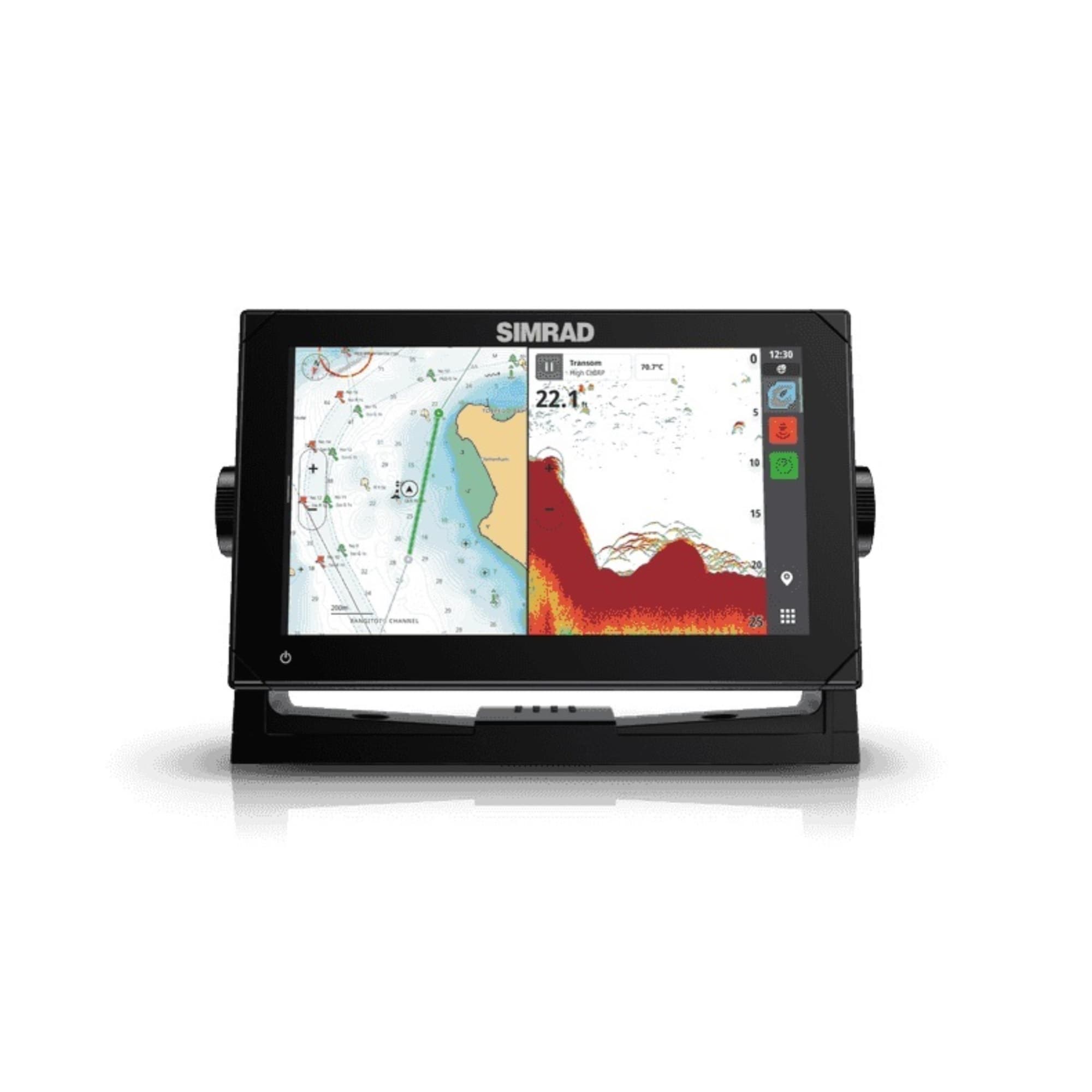

Simrad NSX 3009 9" MFD No Transducer

Simrad NSX3009 9" MFD No Transducer 000-15218-001 Simrad NSX 3009 - Smart Chartplotter / fishfinder. No transducer. C-MAP® DISCOVER™ X chart included Model: 000-15218-001 Features support for the new marine-optimized C-MAP® DISCOVER™ X and C-MAP REVEAL™ X charts with a fresh, intuitive chart presentation and daily updates High-definition IPS touch screen with extreme viewing angles, viewable through polarized lenses Support for high-resolution views of fish and structure with Active Imaging™ featuring CHIRP, SideScan and DownScan Imaging™, plus 1kW transducer capability to reach greater depths Quickly identify fish with FishReveal™ Setup Wizard to get you up and running quickly, plus simpler sonar setup Full integration with the capability to expand the system with Simrad® radar, autopilot, and more Faster Autorouting with seamless accessibility Stay on course with full Simrad® autopilot integration Modern and straightforward interface Simrad® App integration — keep your chart data at your fingertips, both on and off the water Third-party app integration Wireless connectivity, plus Ethernet and NMEA 2000® networking capability IP Video Support Experience modern simplicity in rich detail.

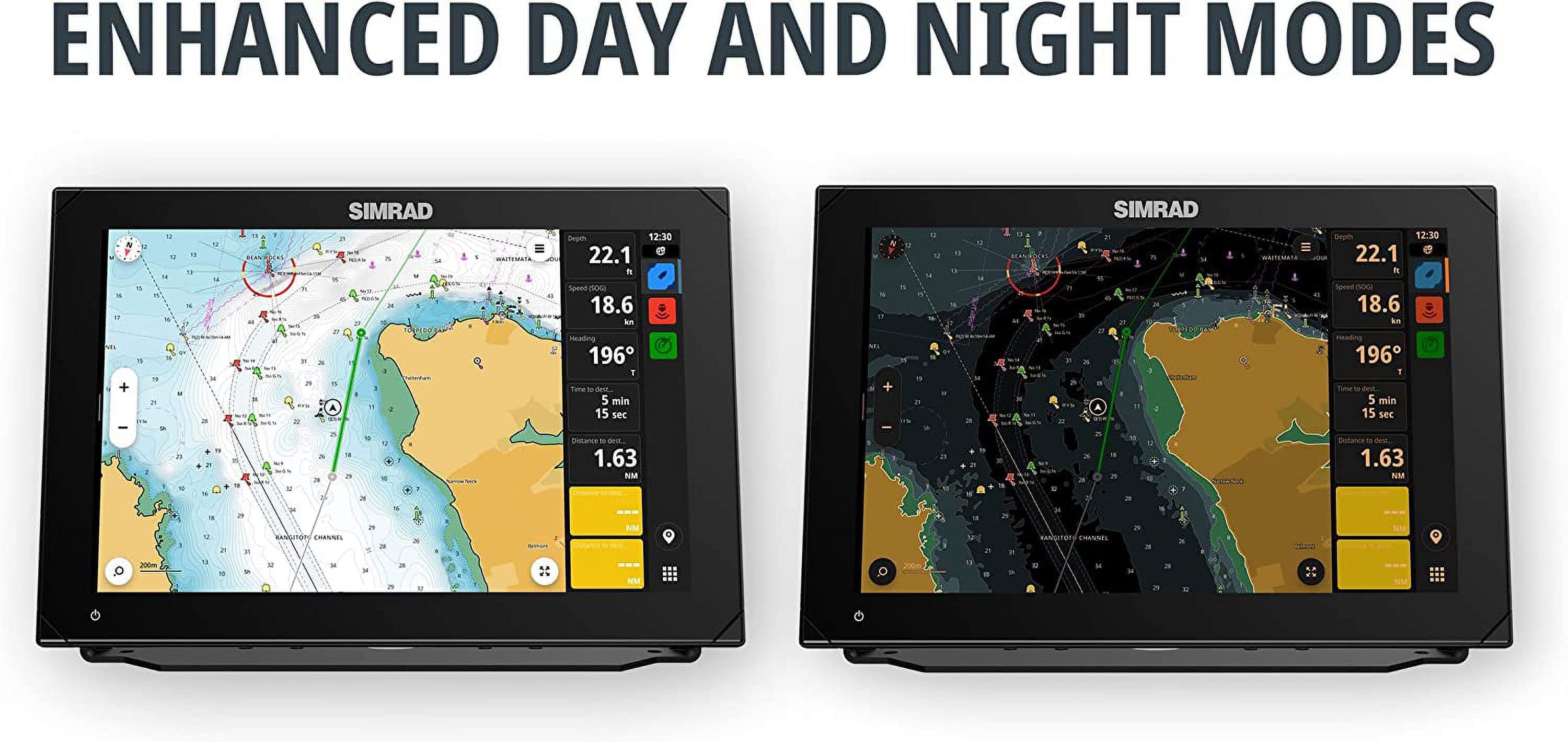

NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen.

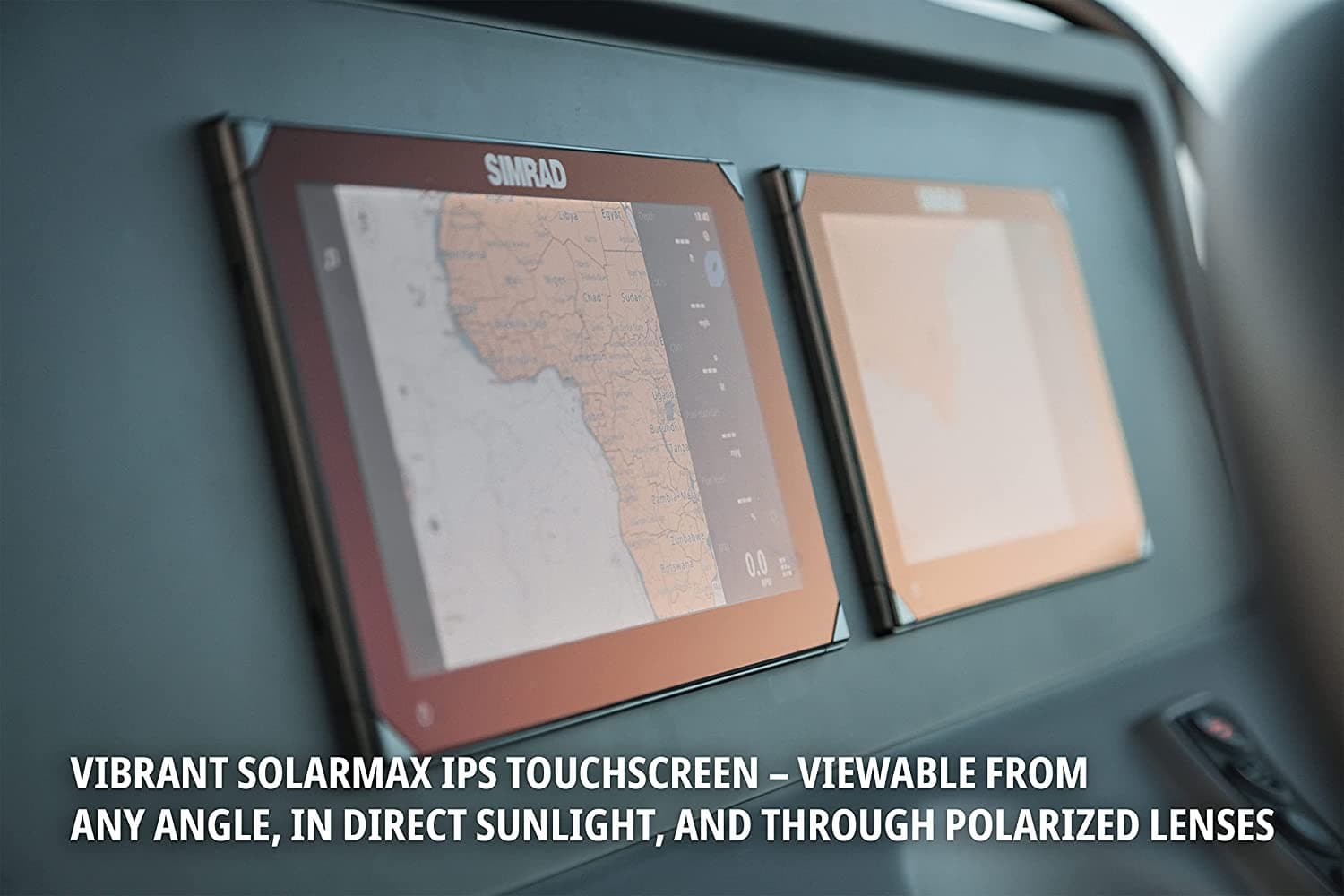

The high-definition display is viewable from any angle, in direct sunlight, and through polarized lenses with complete touch screen operation. See map details in a new way with a next-generation C-MAP® DISCOVER X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates.

NSX also supports marine-optimized C-MAP Reveal X charts with coastal, seafloor and inland Shaded Relief. C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High-Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting.

Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more. The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.

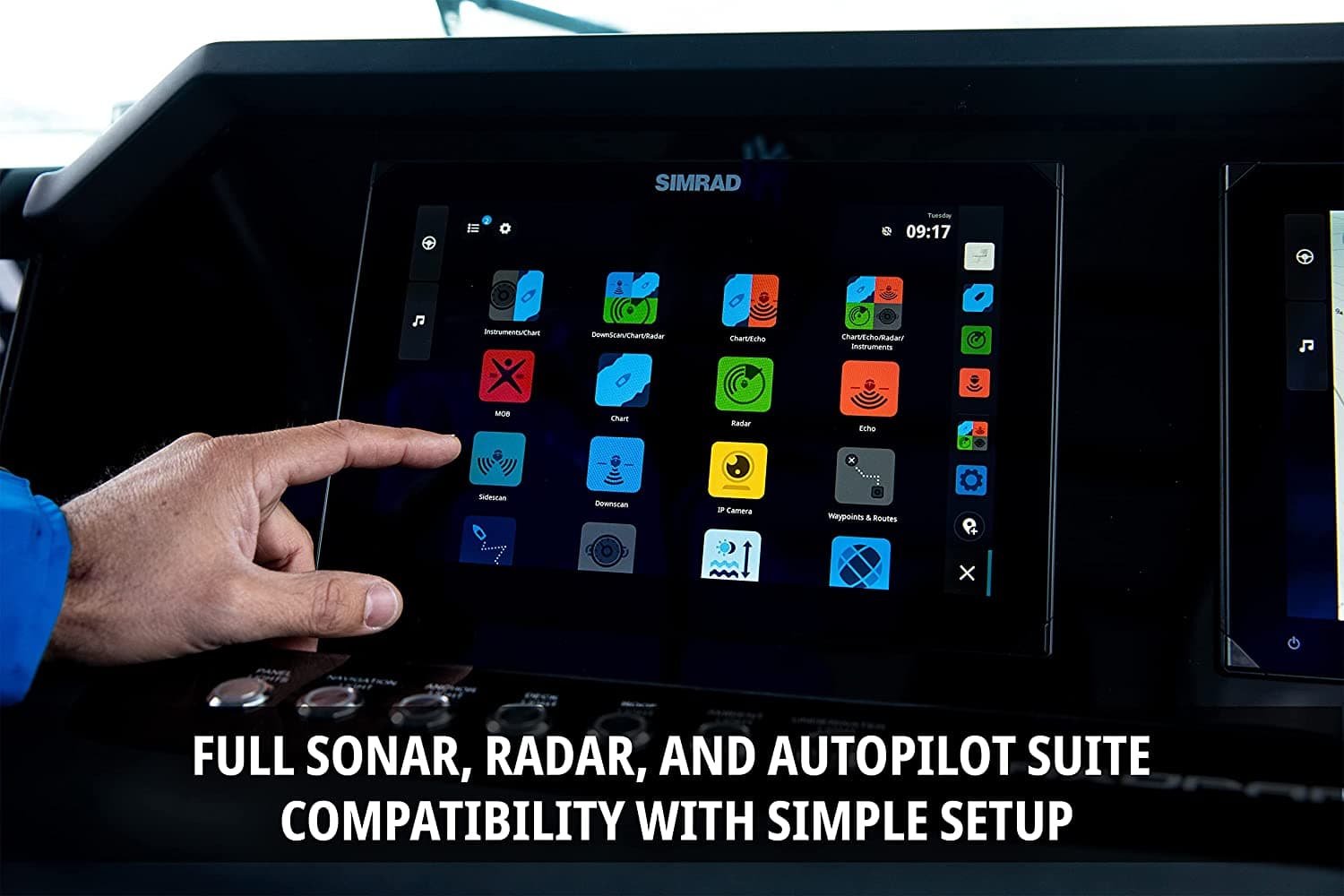

NSX opens up a world of possibilities, from the included Active Imaging™ 3-in-1 transducer with CHIRP sonar, SideScan and DownScan Imaging™ to system expansion options like Autopilot and a wide range of compatible 1kW transducers that allow you to search greater depths. Identify hazards immediately with our award-winning pulse compression HALO Radars.

See near and far simultaneously (up to 72 nm) and be ready instantly with low-power standby mode. Highlight targets using custom modes such as harbor, offshore and weather. Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered.

Available for outboard and inboard engines, our 'extra pair of hands' helps run patterns and routes, navigate to waypoints, and stay on course. With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before.

The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints. But that’s not all.

Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process — you’ll be up and running in no time. All you need to do now is choose your next adventure.Specifications Display Size and Type 9" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses Resolution 1280 x 720 px Viewing Angles 85° (top, bottom, left, and right) Screen Brightness >1200 nits Backlight Color White Power Supply Voltage 12 V DC (10 - 17 V DC min - max) Power Consumption max 18.8 W (1360 mA at 13.8 V) Recommended Fuse Rating 3A Physical Dimensions W x H x D With bracket: W: 263.0 mm (10.35") x H: 172.6 mm (6.80") x D: 80.6 mm (3.17") MountingType Bracket (supplied), panel mount or flush mount Compass Safe Distance 50 cm (1.7 ft) Environmental Operating Temperature Range -15°C to 55°C (5°F to 131°F) Storage Temperature Range -20°C to 60°C (-4°F to 140°F) Waterproof rating IPx6 and IPx7 Humidity IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) Shock Vibration 100,000 cycles of 20 G Interface and connections Interface Multi-touch screen Sonar Compatibility One 9 pin Xsonic 1 kW Sonar port.

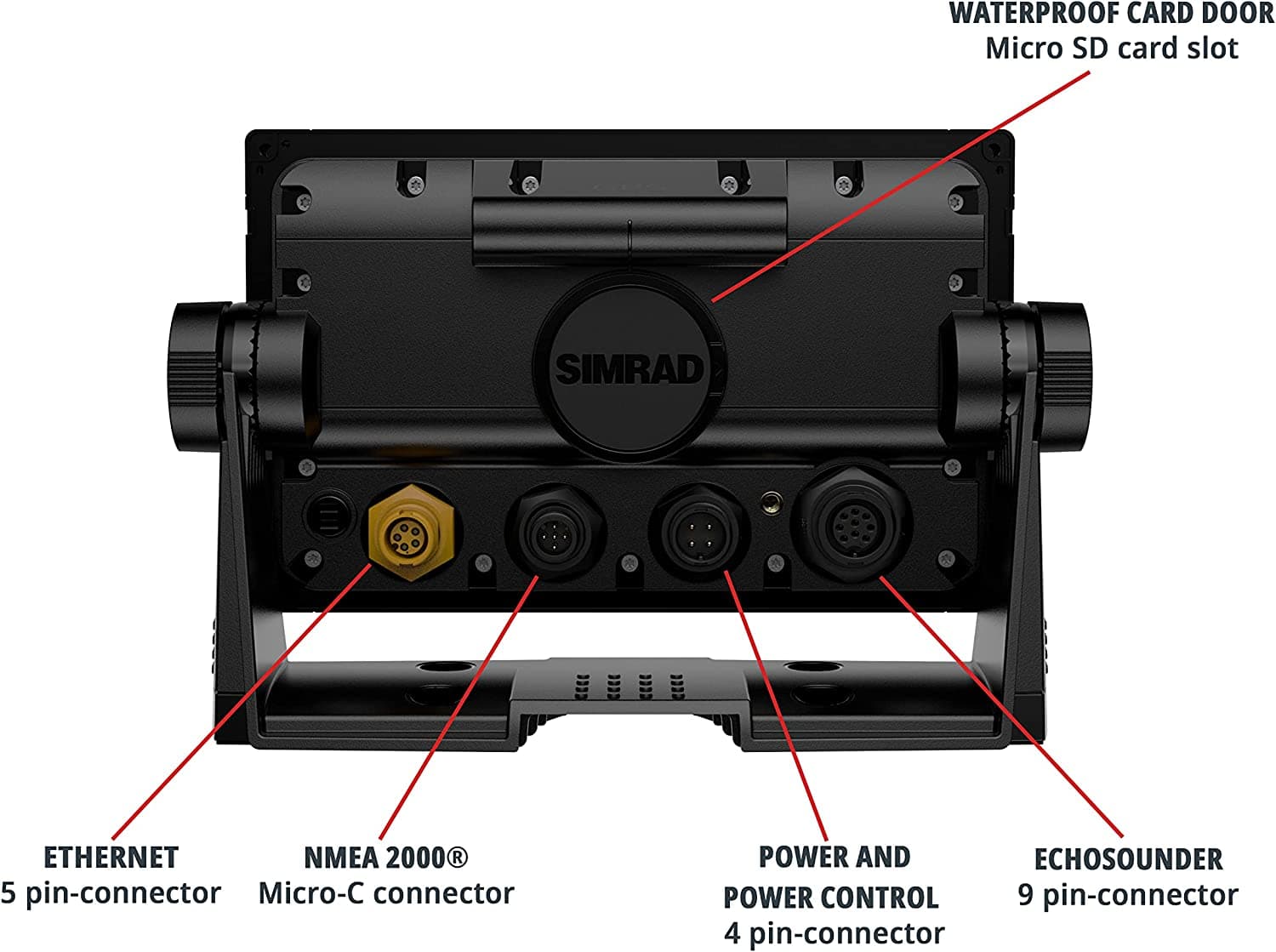

Single channel CHIRP, 50/200 khz, HDI, Active Imaging Ethernet 1 port (5-pin connector) NMEA 2000 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 No USB 1 port (USB A) Output: 5 V DC, 1.5 A External Storage 1 MicroSD slot, 1 port (USB A) GPS Internal, 10Hz, WASS, MSAS, EGNOS GPS Correction 10 Hz high speed update (internal) WASS, MSAS, EGNOS, GLONASS GPS Position Accuracy Horizontal Accuracy 3 m (9.8 ft) GPS Receiver Channels 32 Channels GPS Update rate 10Hz J1939 No ConnectivityPcConnectivity No WiFi IEEE 802.11b/g/n Bluetooth Bluetooth 4.0 with support for Bluetooth Classic Languages English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish Charts Supported C-MAP Discover X, C-MAP Reveal X Radar Compatibility Halo Dome radars, Halo open array radars Weather No AIS Receive AIS data over NMEA 2000 Digital Switching Simrad COMMAND DDS only on release to market What's in the Box: NSX 3009 Display M-NA-T-200-D-MS: DISCOVER X - NORTH AMERICA Gimbal mounting bracket with knobs Suncover NSX 3009 Dash mount kit 4-pin Power Cable Fuse Kit NSX Corner bezel clips for NSX 000-15218-001
