Eugene Color Oscilloscope sku-6737303212 Electrical Testing

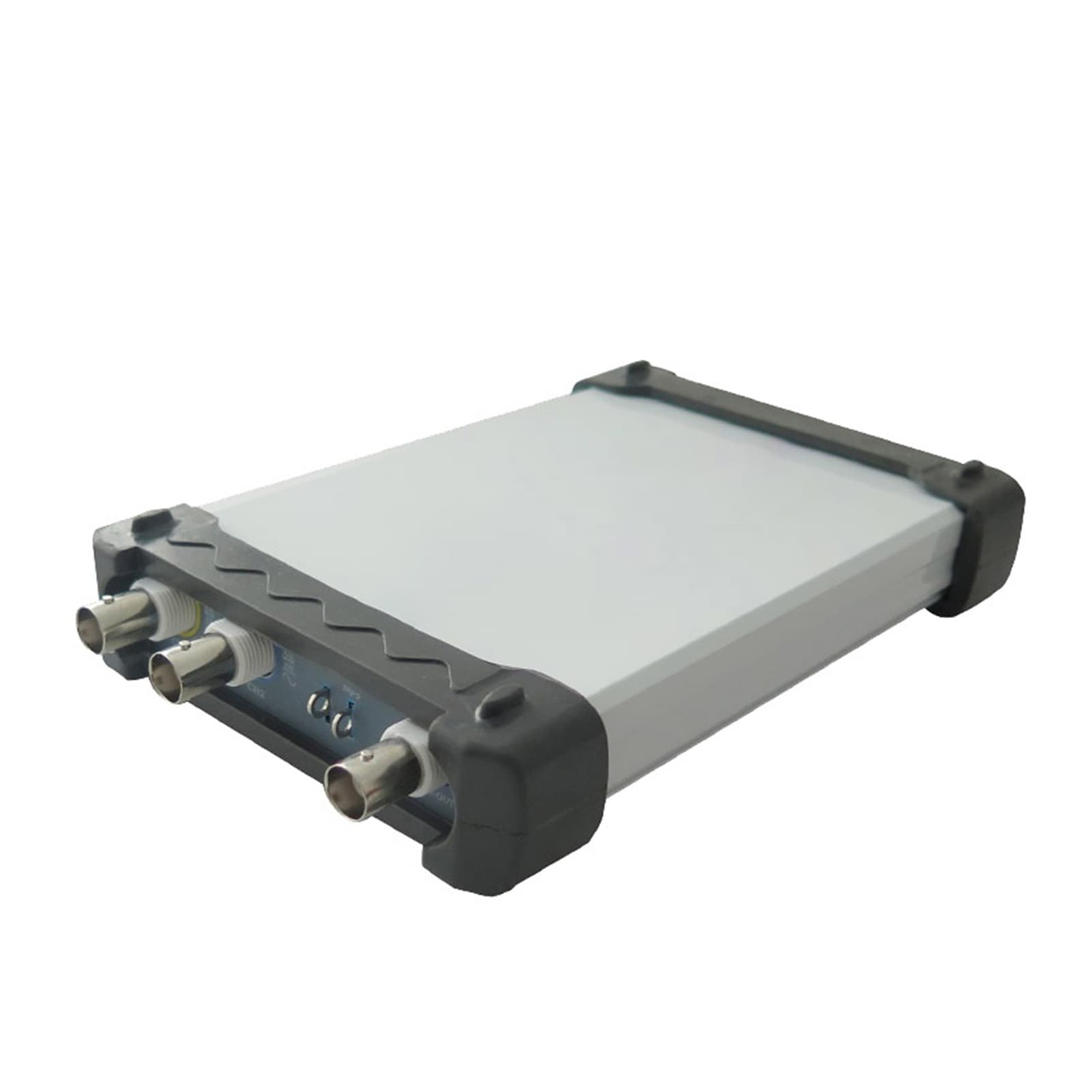

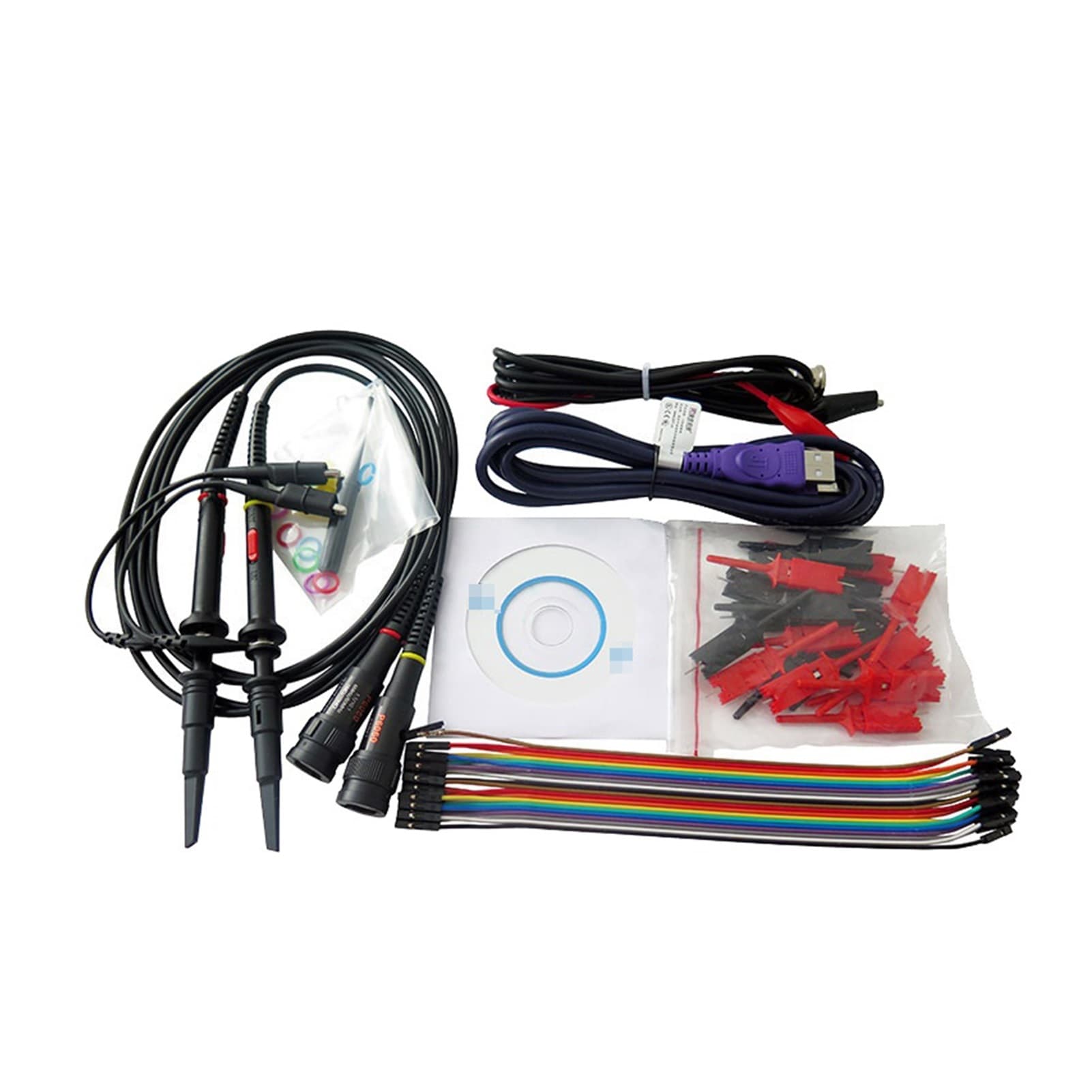

The Eugene Color USB oscilloscope (sku-6737303212) is an Electrical Testing device with 2 channels, 20 MHz bandwidth, 48M maximum sampling and 8-bit vertical resolution. It supports X-T and XY display modes, a spectrum analyzer, a data recorder, logic analysis and 5 waveform outputs; sine-wave output reaches 20M. The 205X supports a logic analyzer. Input impedance is 1M 25pF with AC/DC coupling.

Gain ranges are -6 to 6 V with an X1 probe and -60 to 60 V with an X10 probe; vertical accuracy is ±3%. The time base runs from 1 ns to 20 s, input protection is diode and 50Vpk, and autoset covers 10 Hz to 20 MHz. Trigger modes are auto, normal and signal, with rising- or falling-edge options, a trigger level setting and CH1 or CH2 as source. The buffer is 1 MB per channel.

Vertical modes include ADD, SUB and MUL; waveforms can be saved as Osc, Excel or Bmp files. The 2-channel spectrum analyzer uses FFT with 18 windows, correlation and 8 to 1048576 points per channel. The recorder samples 1 channel at 1K to 24M Hz or 2 channels at 1K to 16M Hz, with a maximum 4G save file.

The 16-channel logic analyzer samples at 250 K to 24 MHz with 8 channels or 250 K to 16 MHz with 16 channels; listed sample points are 1 M to 2 GB. An 8-channel protocol analyzer samples at 25 K to 24 MHz, supports Atmel SWI, BiSS C, SPI, I2C, CAN, UART, I2S/PCM, DMX-512, JTAG, LIN, Manchester, 1-WIRE, UNI/O, Simple Parallel, MDIO, USB1.1 and PS/2 Keyboard/Mouse, and lists 1 MB to 10 TB sample points.

The DDS produces sine, variable-duty square, triangle, up-sawtooth and down-sawtooth waves at 1 Hz to 20 MHz, with 9Vp-p unloaded amplitude, 200±10% impedance and a ±2.5V offset. Do not connect the oscilloscope directly to house voltage; use isolation protection.
