NVX VADM4v2 4-Channel Class D Amplifier — 500W RMS (1000W Peak) — 2/4Ω Stable — Adjustable High/Low-Pass

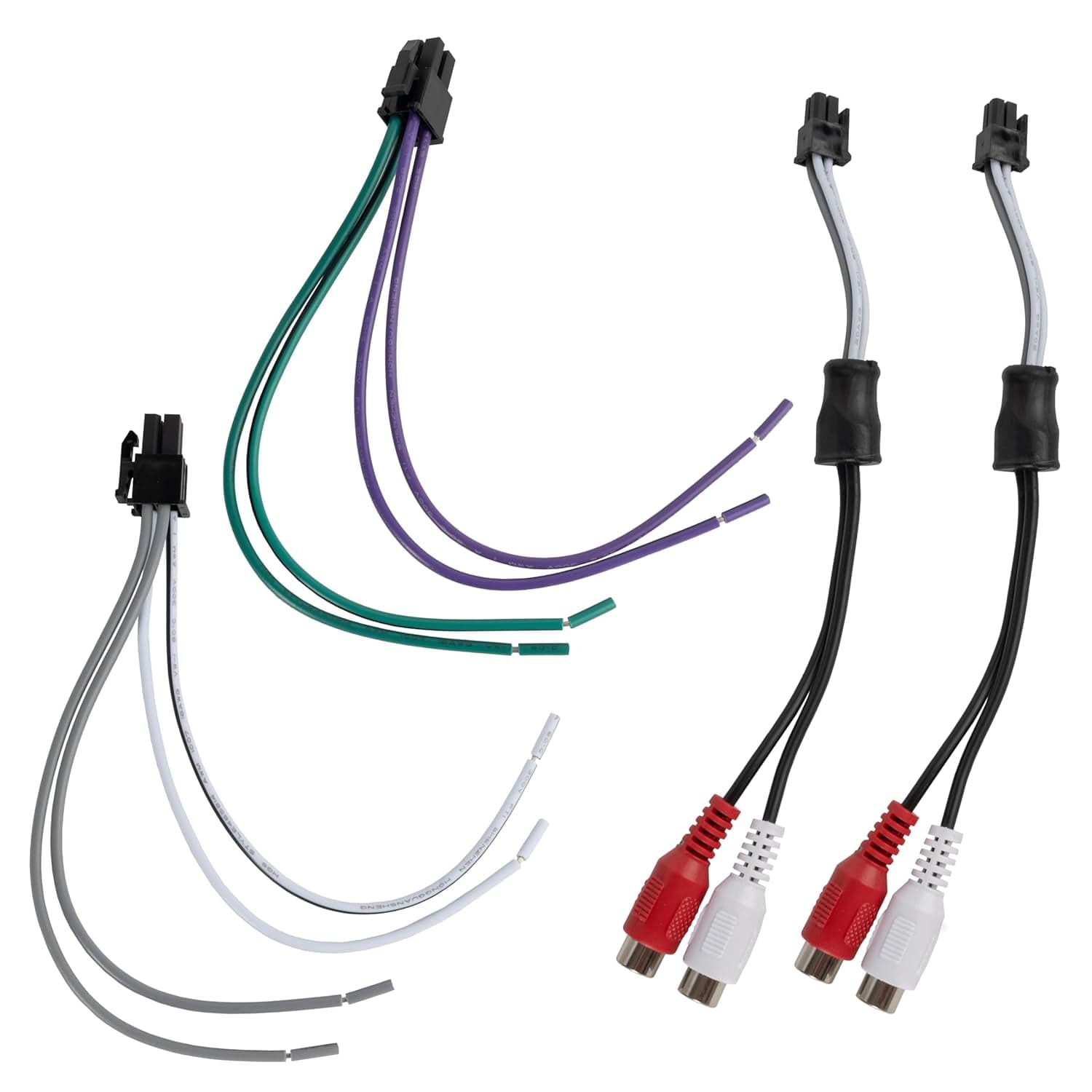

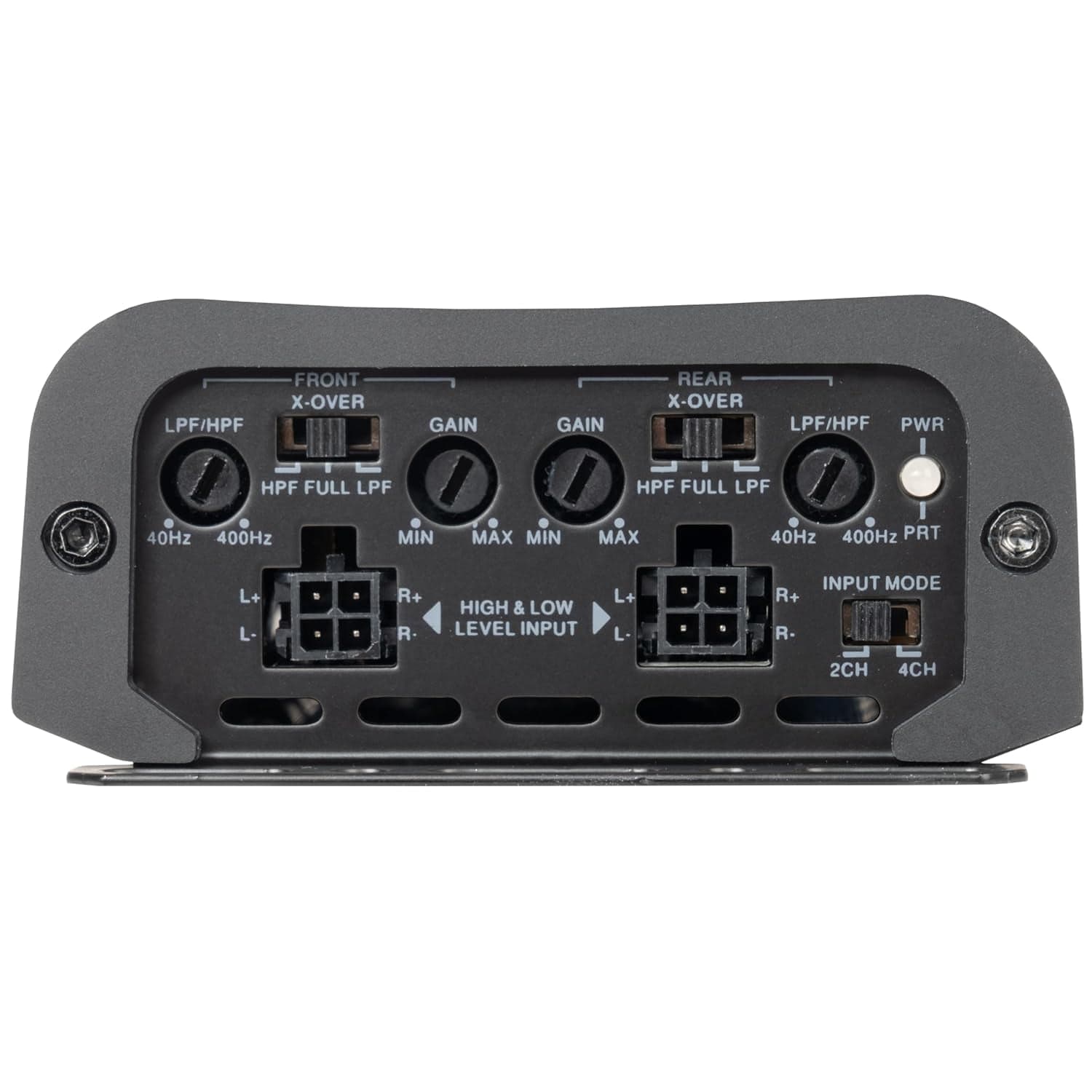

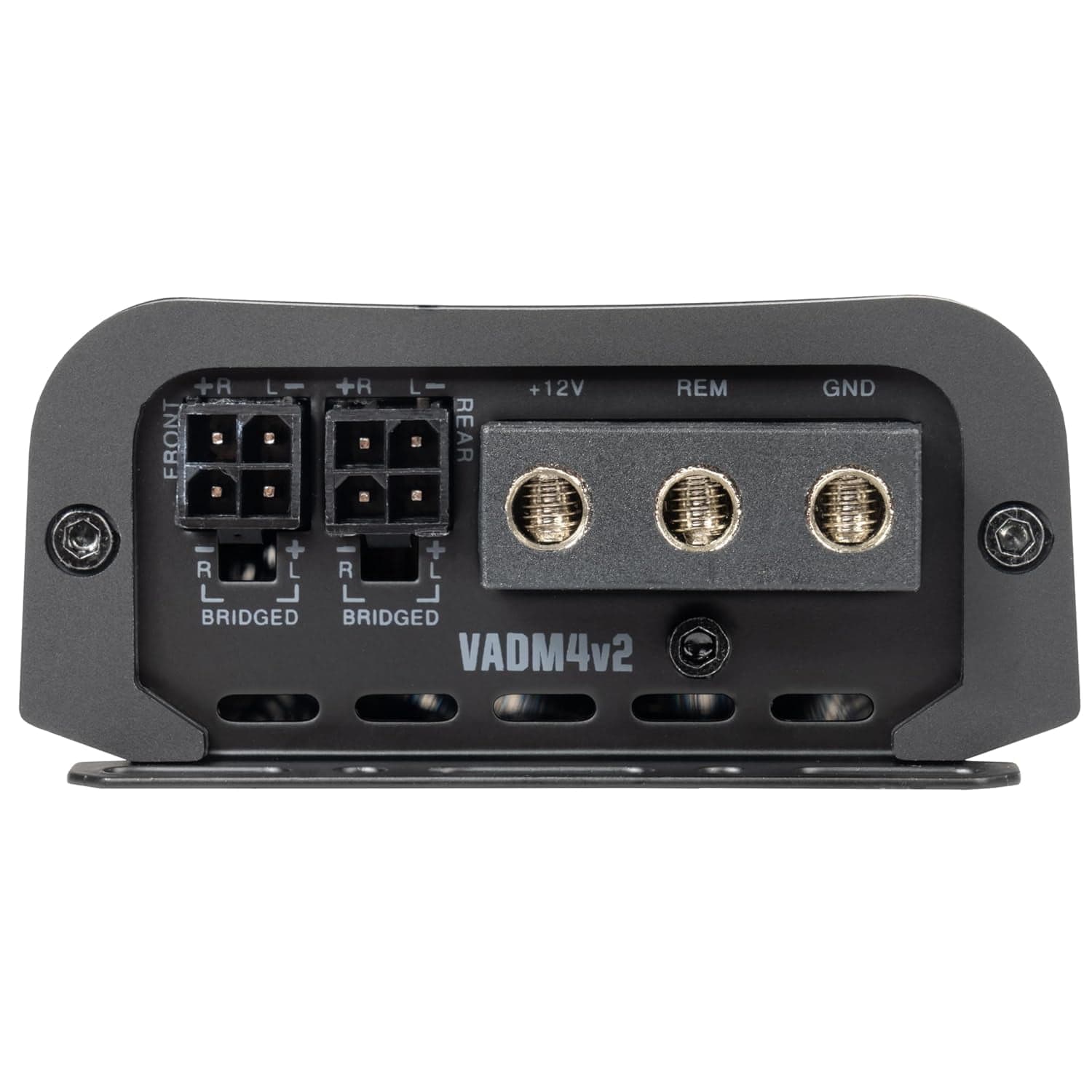

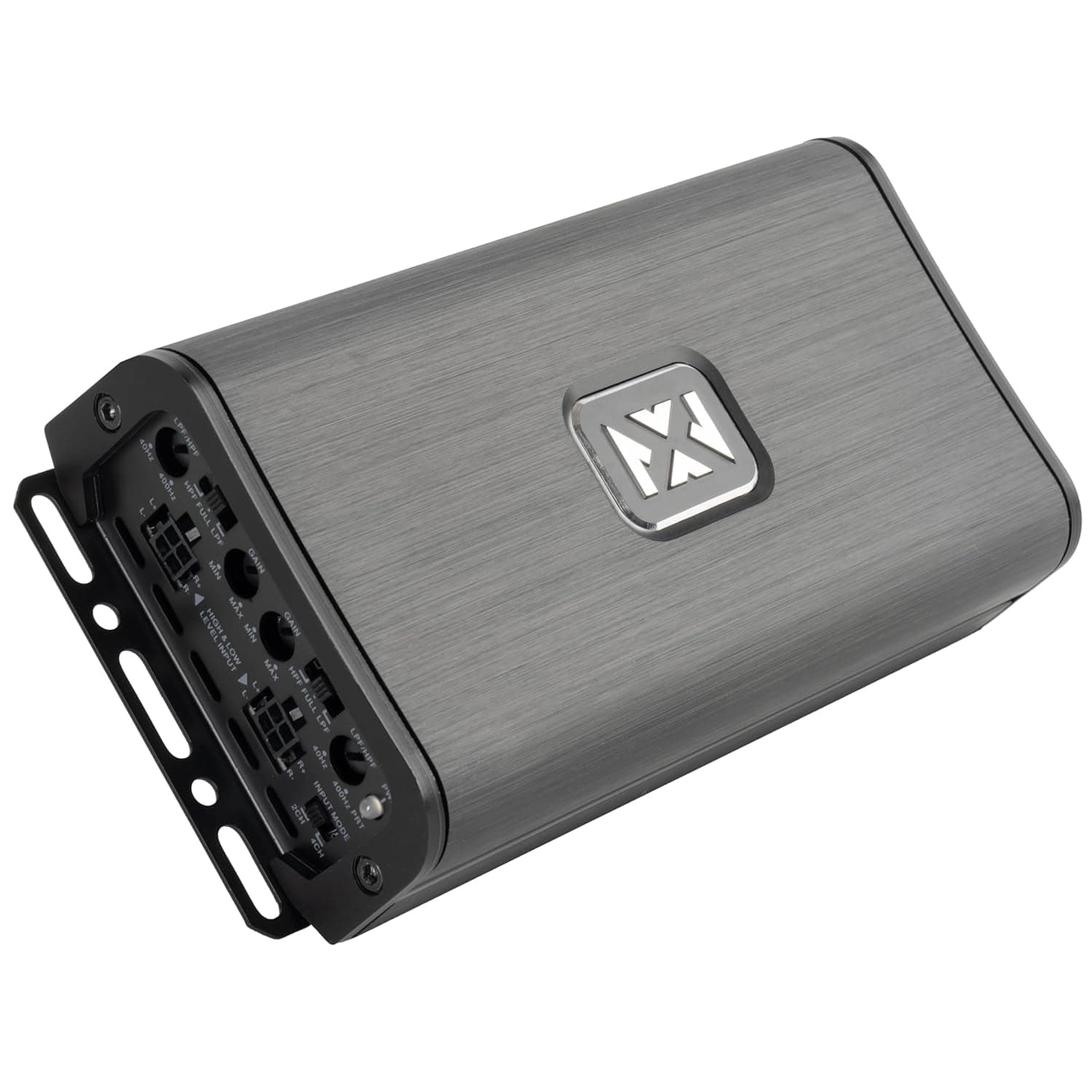

Overview: The NVX VADM4v2 is a compact V Series Class D 4-channel amplifier engineered for tight spaces while delivering robust power. It produces a combined 500 watts RMS (1000 watts peak) and is stable down to 2 ohms, with bridged operation supported at 4 ohms. MFR #: VADM4v2. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Power Ratings (RMS & Bridged): - 4 ohm: 80 watts x 4 channel - 2 ohm: 125 watts x 4 channel - Bridged: 250 watts x 2 channel @ 4 ohm - Total RMS Power: 500 watts Peak Power: - Peak @ 4 ohm: 160 watts x 4 channel - Peak @ 2 ohm: 250 watts x 4 channel - Bridged Peak/Max: 500 watts x 2 channel - Total Peak Power Output: 1000 watts Design & Protection: - Class D design, 4-channel configuration - 2 ohm stable unbridged; minimum bridged impedance: 4 ohms - 4-way protection circuitry: thermal, overload, speaker short protection and DC offset - LED power/protect indicator - Balanced differential inputs reduce noise from signal cabling Inputs, Outputs & Controls: - Speaker-level (high-level) inputs available (requires adapter like the Kicker KISL; high-level wiring harness included) - Low-level and High-level input sensitivity: 0.2 - 10 volts - Preamp outputs: No - Remote bass/level controller: Optional (accessory required and sold separately), NVX XBRC - Strappable: No Crossover & Audio Performance: - Selectable crossover modes: FULL / HPF / LPF (Built-in Crossover: Low-Pass, High-Pass, Full (AP)) - Variable high-pass filter: 40 - 400 Hz - Variable low-pass filter: 40 - 400 Hz - Frequency response: 20 - 20000 Hz - Total Harmonic Distortion (THD): <0.1% (at rated RMS) - Signal-to-Noise Ratio: >96 dB - Sonic Certified: Yes - Bluetooth Connectivity: No - Hi-Res Certified: No Installation & Physical: - Recommended amplifier wiring: 8 AWG gauge amplifier wiring kit is recommended for installation - Maximum Input Gauge Size: 8 AWG - Dimensions: 6.49" L x 3.3" W x 1.48" H - Minimum Impedance Unbridged: 2 ohm In the Box: - Amplifier - Mounting screws (4) - High-level input wiring harness with Molex connector - Allen wrenches (2) - Paperwork: User manual Warranty & Support: - Parts Warranty Duration: 1 year - Labor Warranty Duration: 1 year - Warranty Provider: Manufacturer
