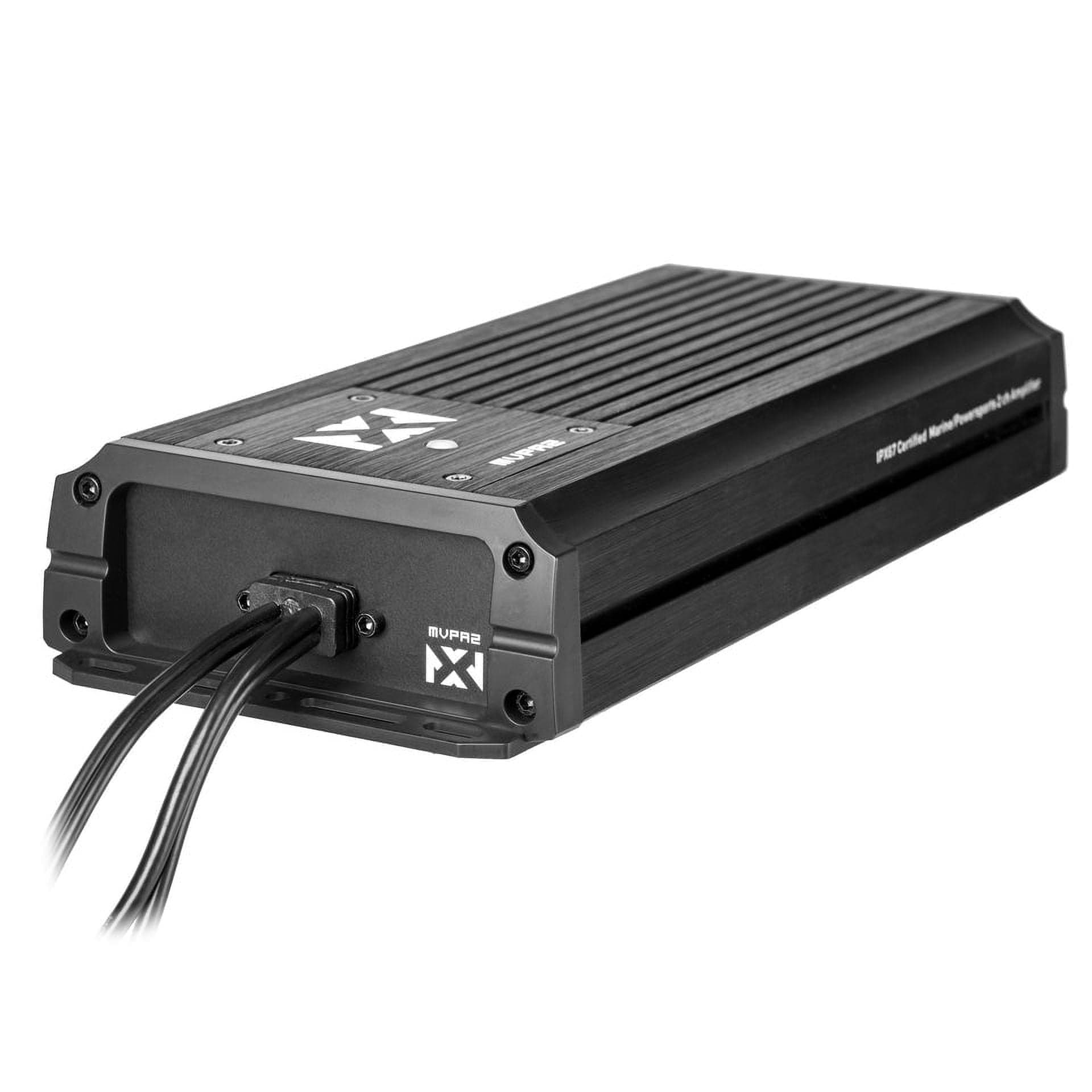

NVX MVPA2 2-Channel Class-D Marine/Powersports/Motorcycle Amplifier — 600W Bridged (300Wx2 @2Ω, 200Wx2 @4Ω)

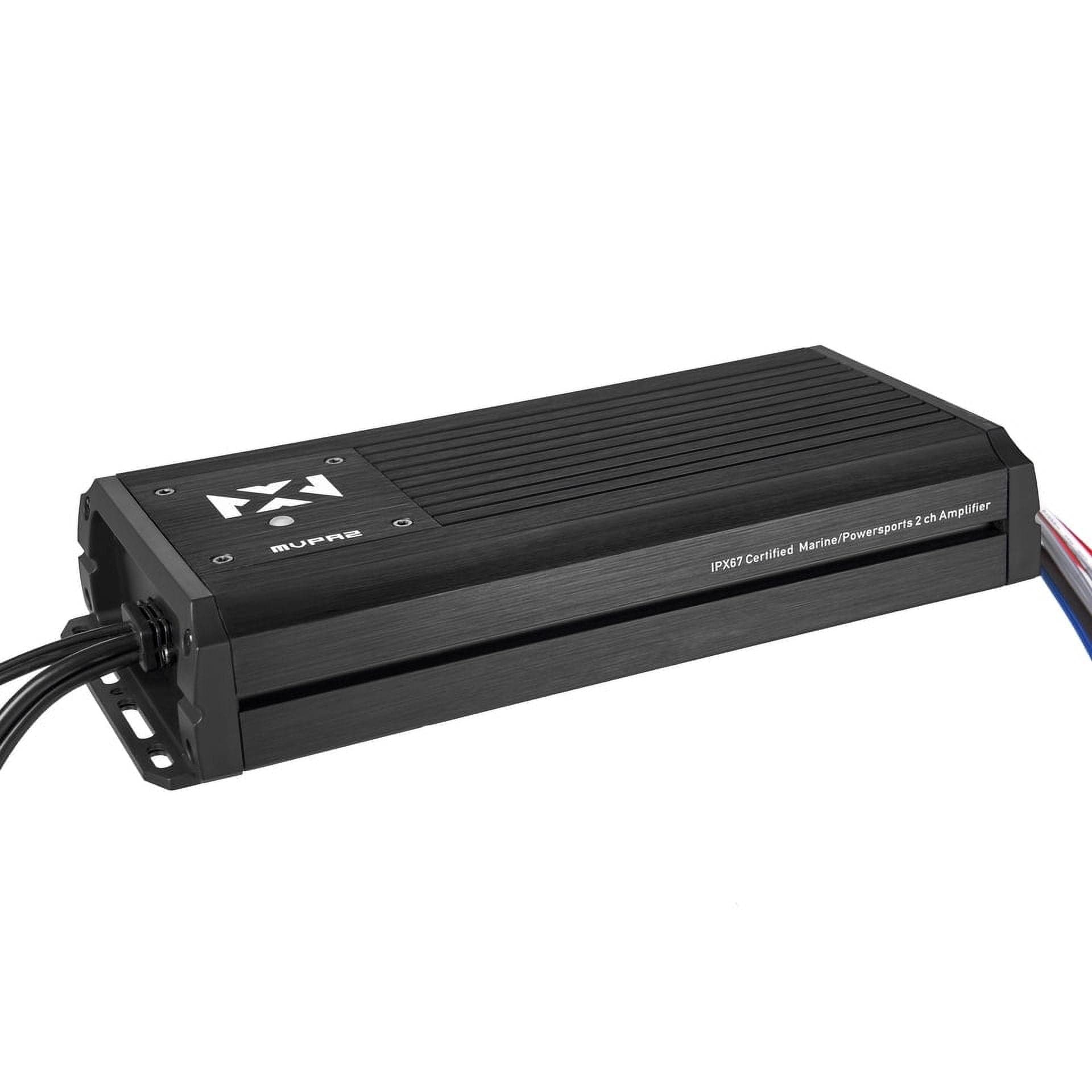

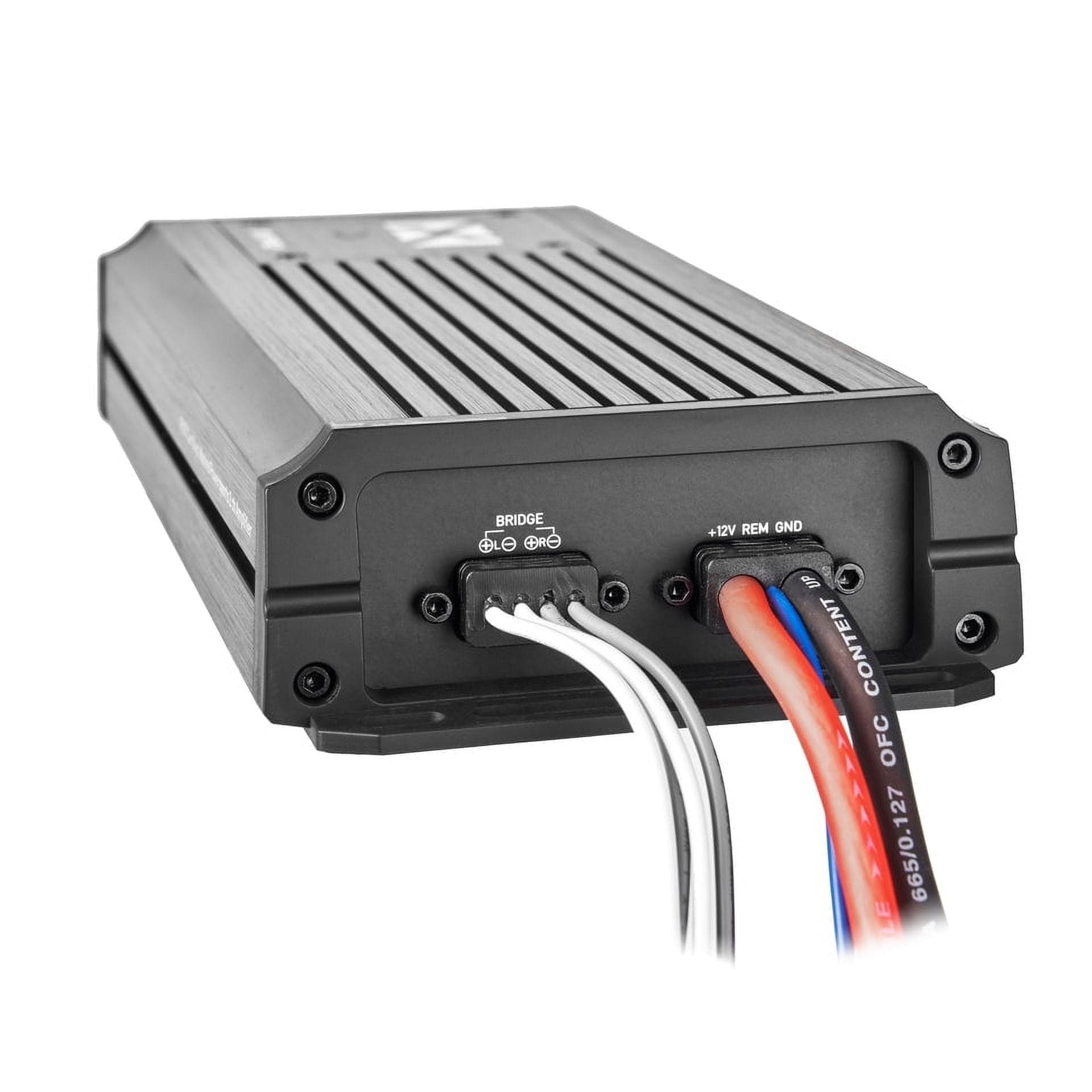

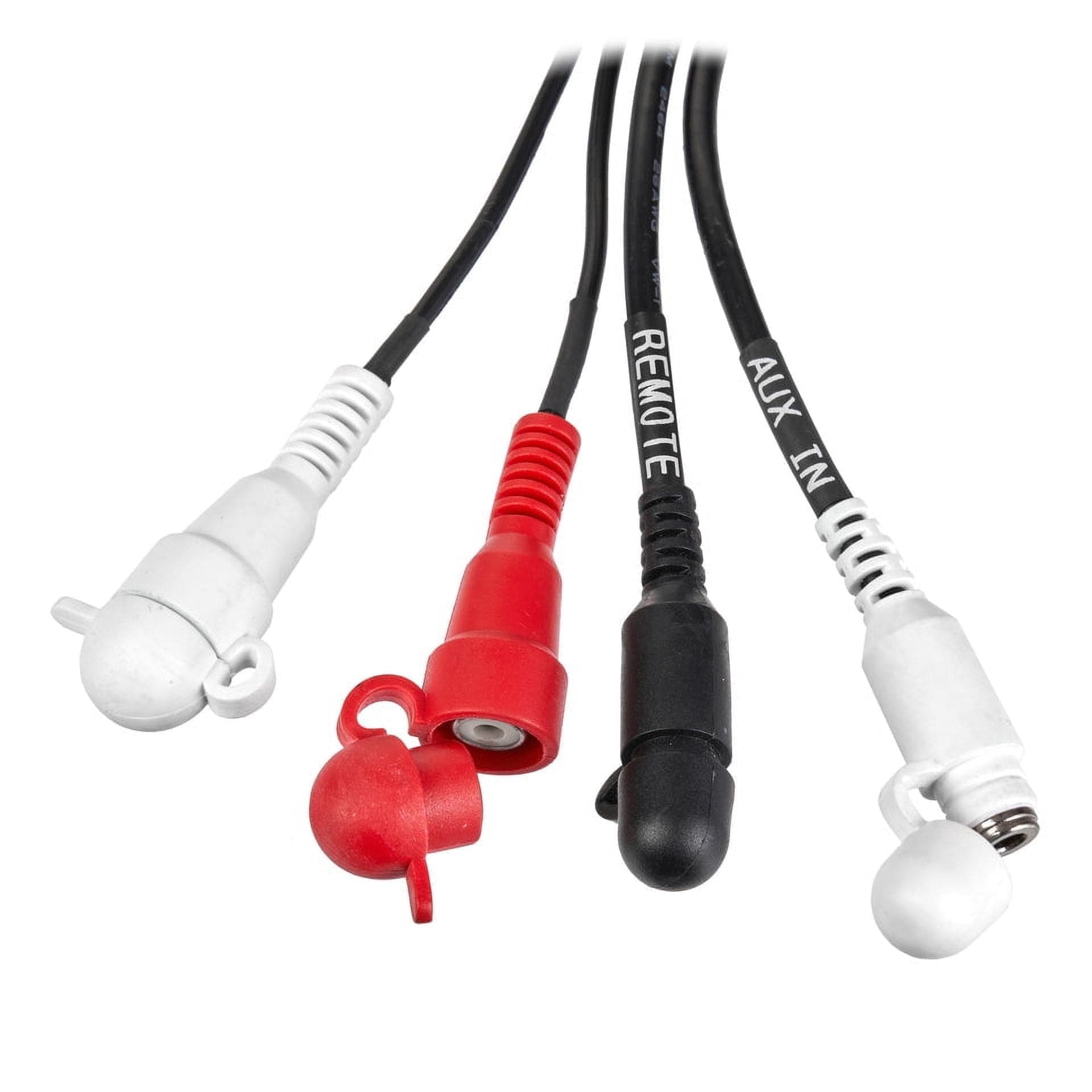

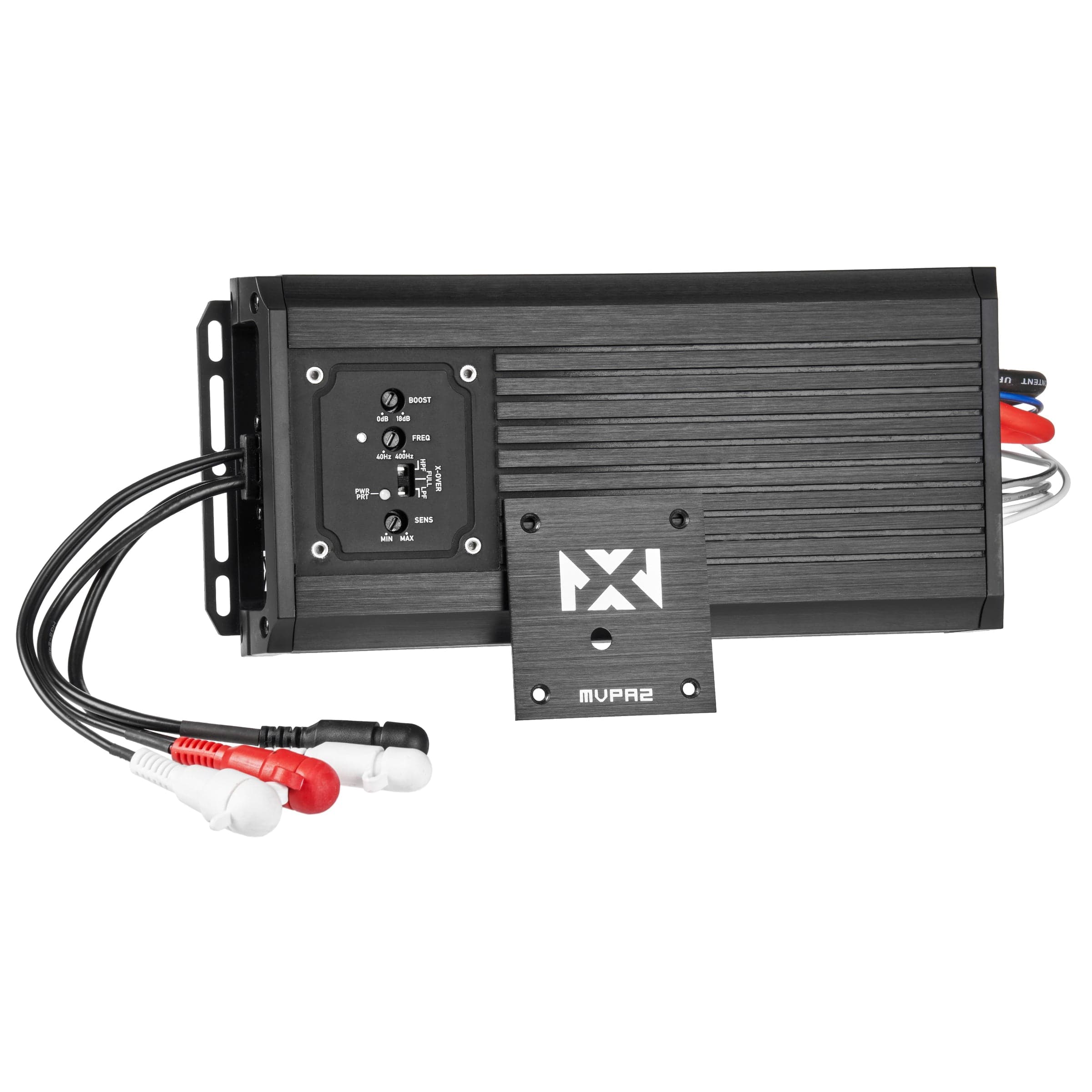

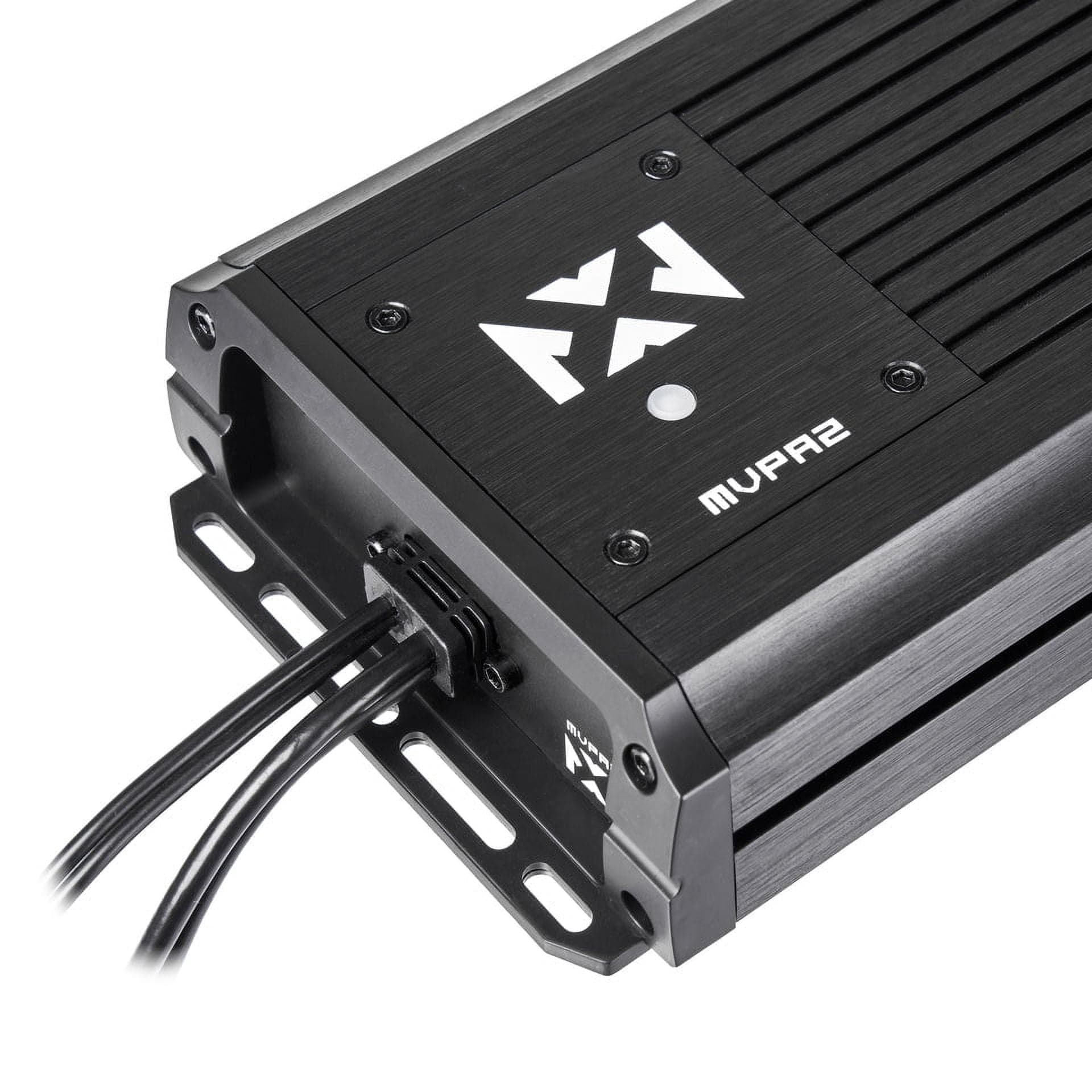

Overview: The NVX Micro-V Series NVX Micro-V Series MVPA.2 micro Class-D amplifier is engineered for marine, powersports and motorcycle installations where size, durability and high output matter. IRS full Class-D topology delivers efficient power with clean performance while IPX67 waterproofing and conformal-coated PCBs protect the unit from harsh outdoor conditions. Power & Performance: RMS ratings are 200 watts x 2 channels at 4 ohms and 300 watts x 2 channels at 2 ohms. Bridged operation yields 600 watts x 1 channel (4 ohm). Total RMS power output is 600 watts with total peak output of 1200 watts. Frequency response is 20 Hz – 20,000 Hz, THD at rated RMS power is 0.3% and signal-to-noise ratio is 90 dB. Key Features: - CEA-2006 compliant - Preamp outputs (1 pair) and LPF capability - Surface-mount component technology and four-layer PCB trace layout for stability and reliability - Conformal-coated PCB and IPX67 waterproof rating for outdoor use - Ultra-compact footprint for tight installs (9.7"W x 4.4"L x 1.7"H) - Power & protection LED status indicators - Short circuit, thermal and voltage protection - Top-access tune controls - Multiple inputs: speaker-level inputs plus RCA/aux options - Remote bass/level controller included (knob) Inputs / Controls / Connectivity: Speaker level inputs supported. Low-level input sensitivity listed as 125mV–5V (also noted as .124–5 volts) and high-level input sensitivity listed as 250mV–10V (also noted as .25–10 volts). High-pass crossover tunable between 40–400 Hz. Remote bass/level control ready. No Bluetooth, not strappable, and not Hi-Res certified. Installation & Specs: Series: Marine V Series. Amplifier class: D. Number of channels: 2. Maximum input gauge size: 8 AWG. Minimum bridged impedance: 4 ohms. Channel separation: 103 dB. Total harmonic distortion: 0.3%. Physical dimensions: 9.7" W x 4.4" L x 1.7" H. What’s in the Box: Amplifier, user manual and paperwork. Warranty & Dealer Info: Sold by an Authorized Internet Dealer. Manufacturer provides a 1-year parts and 1-year labor warranty (1-year Manufacturer's Warranty).
