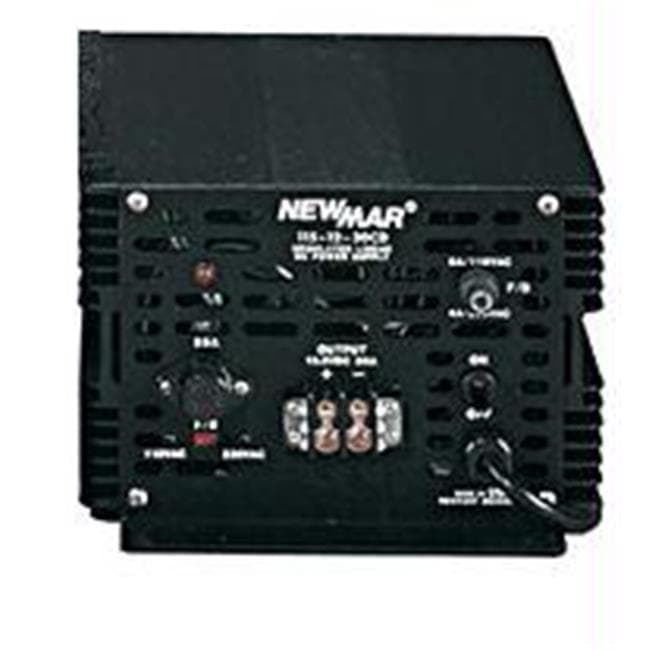

Newmar 115-24-35CD Power Supply sku-135997699 012302329932

The Newmar Heavy Duty Series 115-24-35CD is an Electronic & Bench Testing power supply for communication and navigation equipment aboard commercial vessels. A front-panel slide switch selects 115 or 230 VAC input. Output regulation is within 1% under rated line and load conditions.

The PC board has a polyurethane conformal coating, and the corrosion-resistant aluminum case has integral shock mounts. Heat-sink fins dissipate heat from the semiconductors. Protection includes overvoltage, current limiting set at 105% of the intermittent rating, thermal overload, and input and output fusing. CD units have a thermally activated cooling fan.

Specifications for the series are: 115-12-8, 8 amps intermittent and 5 amps continuous, 6.0 h x 4.6 w x 8.5 d, 10lbs; 115-12-20A, 20 amps intermittent and 8 amps continuous, 5.7 h x 4.8 w x 16.3 d, 20lbs; 115-12-35CD, 35 amps intermittent and continuous, 6.5 h x 9.5 w x 14.0 d, 32lbs.

The 115-24-10 delivers 10 amps intermittent and 4 amps continuous, with dimensions of 5.7 h x 4.8 w x 16.3 d and a weight of 20lbs. The 115-24-18CD delivers 18 amps intermittent and continuous, measures 6.5 h x 9.5 w x 14.0 d, and weighs 32lb.

The 115-24-35CD delivers 35 amps intermittent and continuous, weighs 60lbs, and measures 6.5" H x 13.0" W x 18.75" D (listed as 13.0 w in the series specifications). Models take 115/230 VAC input. For 12 V models, output is 13.6 VDC, adjustable from 12.6 to 14.5 VDC, with ripple below 40 mV P-P at 110-125 / 220-250 VAC input.

For 24 V models, output is 24.5 VDC, adjustable from 21 to 27.5 VDC, with ripple below 70 mV P-P at 110-125 / 220-250 VAC input. SKU sku-135997699; UPC 012302329932.
