Dag Black Electrical Testing Multimeter sku-7294903573

The Dag Black 2-in-1 oscilloscope multimeter, sku-7294903573, is listed under Electrical Testing. It is a 6000-count True RMS meter with an ABS housing, silicone buttons, a function dial and a back bracket tilted at 60° for viewing. Historical records and real-time data appear on the same screen. The white-backlit 320*240 LCM has a display area of about 2.4 inches. Input resistance is 10M.

It uses 3 AA batteries, which are not included, draws about 80mA and runs for about 5 hours in low light. Storage holds 100 data records or 10 waveforms. The operating environment is 0~40 at <75%RH; the storage environment is -10~60 at <90%RH. Bandwidth is ACV/1MHz and ACA/5KHz, with a maximum real-time sampling rate of 2.5Msps. The multimeter has automatic and manual ranging.

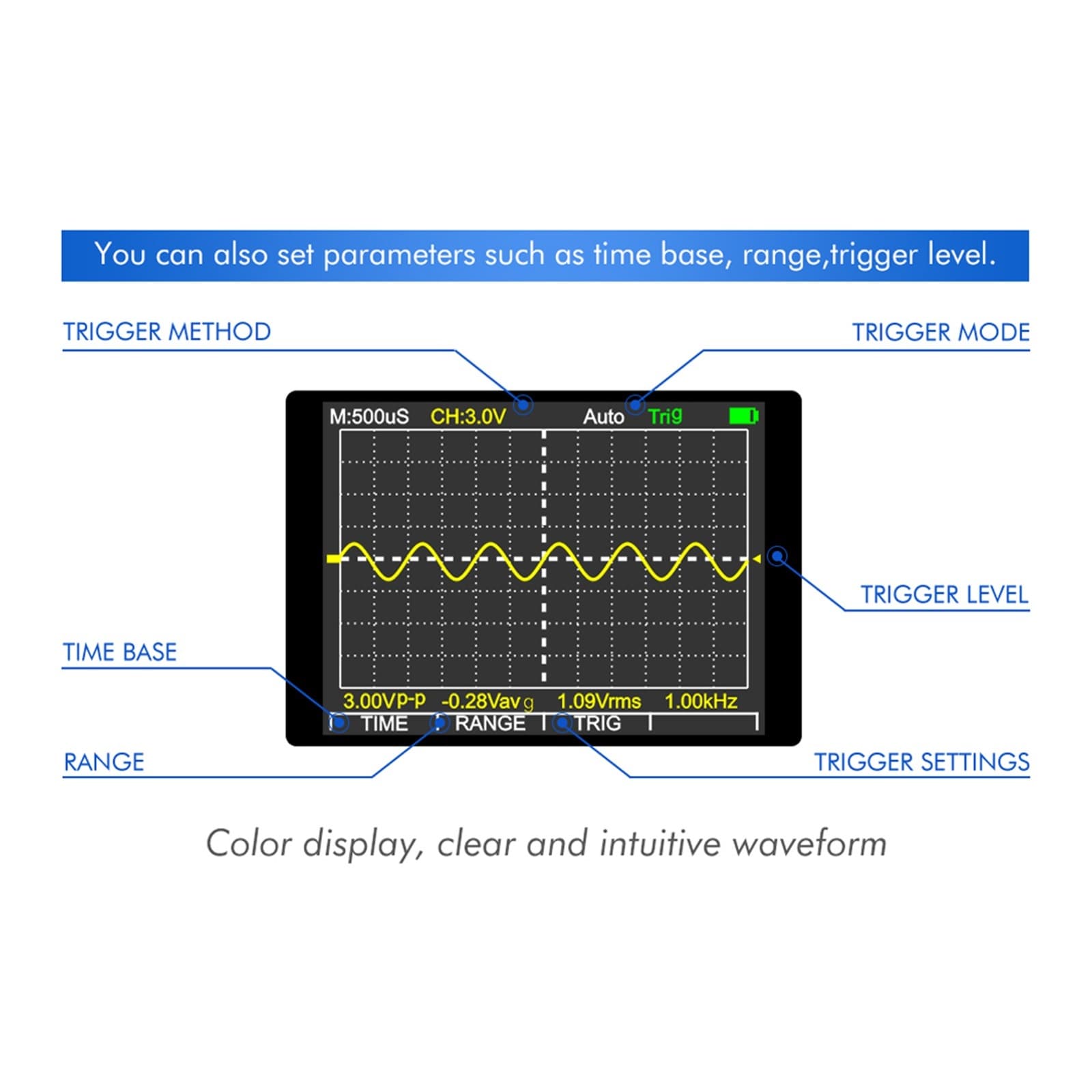

Oscilloscope secondary readings include VP-P, average value, effective value, frequency, time base and amplitude; measurement modes are normal and automatic. The meter measures 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in and weighs 195g / 6.9ounce. The package measures 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in and weighs 370g / 13.1ounce.

DC voltage ranges are 400mV/4V/40V/400V/1000V, with uncertainty of 0.75% rdg+10dgt; AC voltage ranges are 400mV/4V/40V/400V/750V, with uncertainty of 1.0% rdg+10dgt. DC current ranges are 40mA/400mA/4A/10A, with uncertainty of 1.2% rdg+10dgt; the same AC current ranges have uncertainty of 1.5% rdg+10dgt. Resistance ranges from 400.0~40.00M with uncertainty of 1.0% rdg+5dgt.

Capacitance ranges are 0.1nF~100 and 10.00mF, with uncertainty of 2.0% rdg+10dgt. Frequency ranges from 5Hz~10MHz and duty cycle from 0.1%~99.9%; each has uncertainty of 1.0% rdg+5dgt. The diode test uses about 5V and 1.5mA. The continuity test beeps at a judgment resistance of about <50. Fuse specifications are 500mA/250V and 10A/250V.

The package contains 1 graphical multimeter, 1 pair of test pens, 1 protective bag and 1 user manual.
