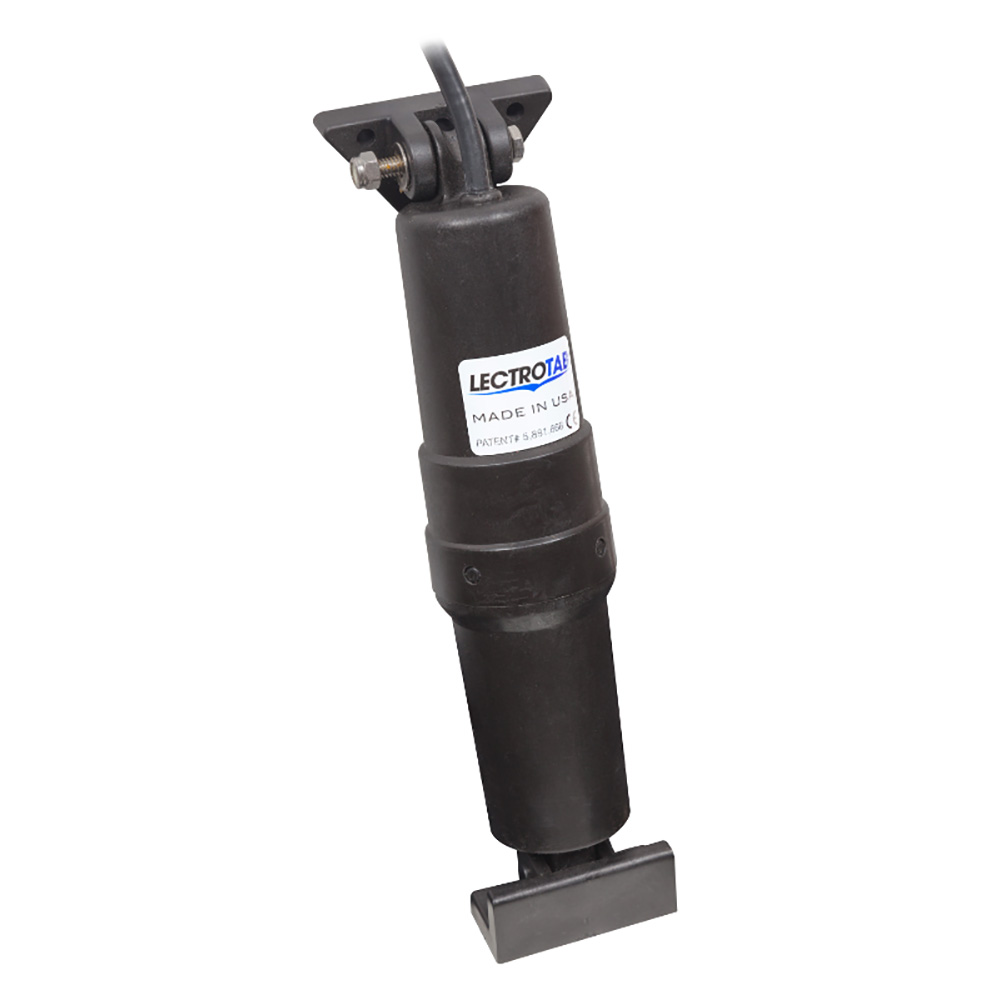

Lectrotab S-BK-16 23' Boating Actuator sku-2011742545

Lectrotab S-BK-16 is a Multicolor Boating trim tab actuator with a 12 V supply and a 23' (7 M) cable; its SKU is sku-2011742545 and UPC is 850046155109. The short actuator is intended for installations with limited vertical height, such as swim platforms. Its sealed, non-metallic housing contains the operating components, so none need to be installed inside the boat.

The non-hydraulic design has no oil to leak, needs no maintenance and provides quiet operation, accurate tab positioning and lift force. The upper ram seal is positioned to avoid damage from a fouled ram or barnacle growth. An internal pressure equalization system and brake help prevent unwanted tab movement while under way or backing down.

The external structure resists corrosion and deterioration in sun or water. Every actuator is load tested to push 1000 lbs of force. Stroke length is 2.25" (57 mm), and vertical height is 10" (254 mm). It has a low-profile upper mounting bracket and a standard lower bracket. Sold individually; an owner's manual and brochure are listed as PDFs.
