KZYEE KT60 Gray timing light sku-12683419948 898948641931

The Gray KZYEE KT60 digital timing light is a Diagnostic and Test Tools item, SKU sku-12683419948, UPC 898948641931. It has an LED display for RPM and ignition angle readings up to 10,000 RPM, with buttons to adjust the displayed angle and select 2-stroke or 4-stroke operation. Clamp the inductive pickup around the No. 1 spark plug wire with its arrow pointing toward the plug.

Keep the pickup away from hot exhaust parts; incorrect placement can cause inaccurate or intermittent readings. The light is listed for 9V-16V ignition systems and operates on 12V systems. It works on 6-volt vehicles when powered by a separate 12V car battery. Applications include cars, motorcycles, boats and agricultural petrol engines.

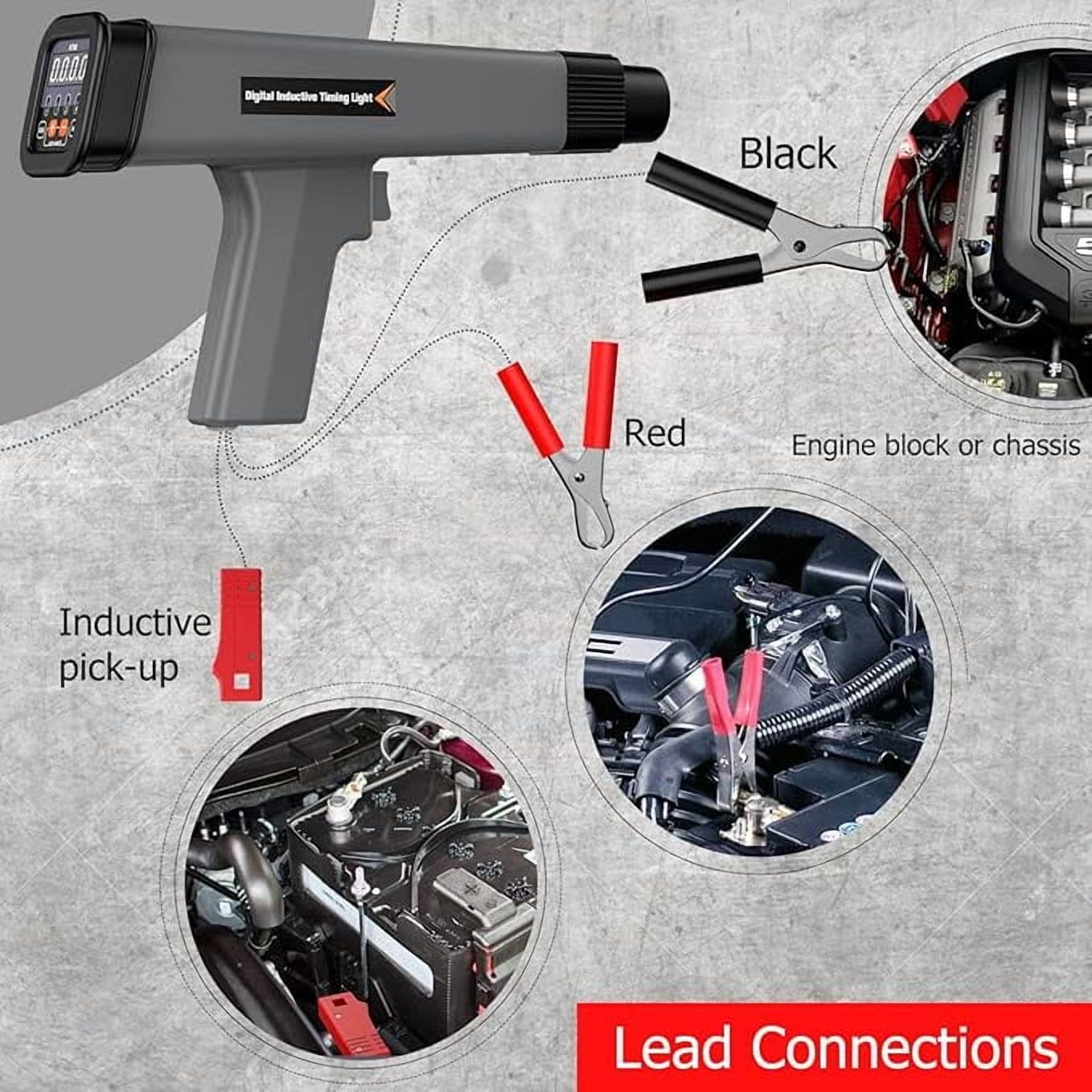

Red and black clips identify polarity, and the unit has reverse-polarity and overload protection. Its pistol-style handle has an ABS housing. Incorrect engine timing can cause starting problems, reduced power, increased fuel use, unstable idling or engine damage.
