KZYEE KT60 Gray 1 Timing sku-16909169943 124825583514

The KZYEE KT60 is a Gray, size 1 timing light listed under Diagnostic and Test Tools. SKU sku-16909169943; UPC 124825583514. It detects ignition timing marks on an engine flywheel or pulley; incorrect timing can cause starting trouble, reduced power, higher fuel use, uneven idling or engine damage.

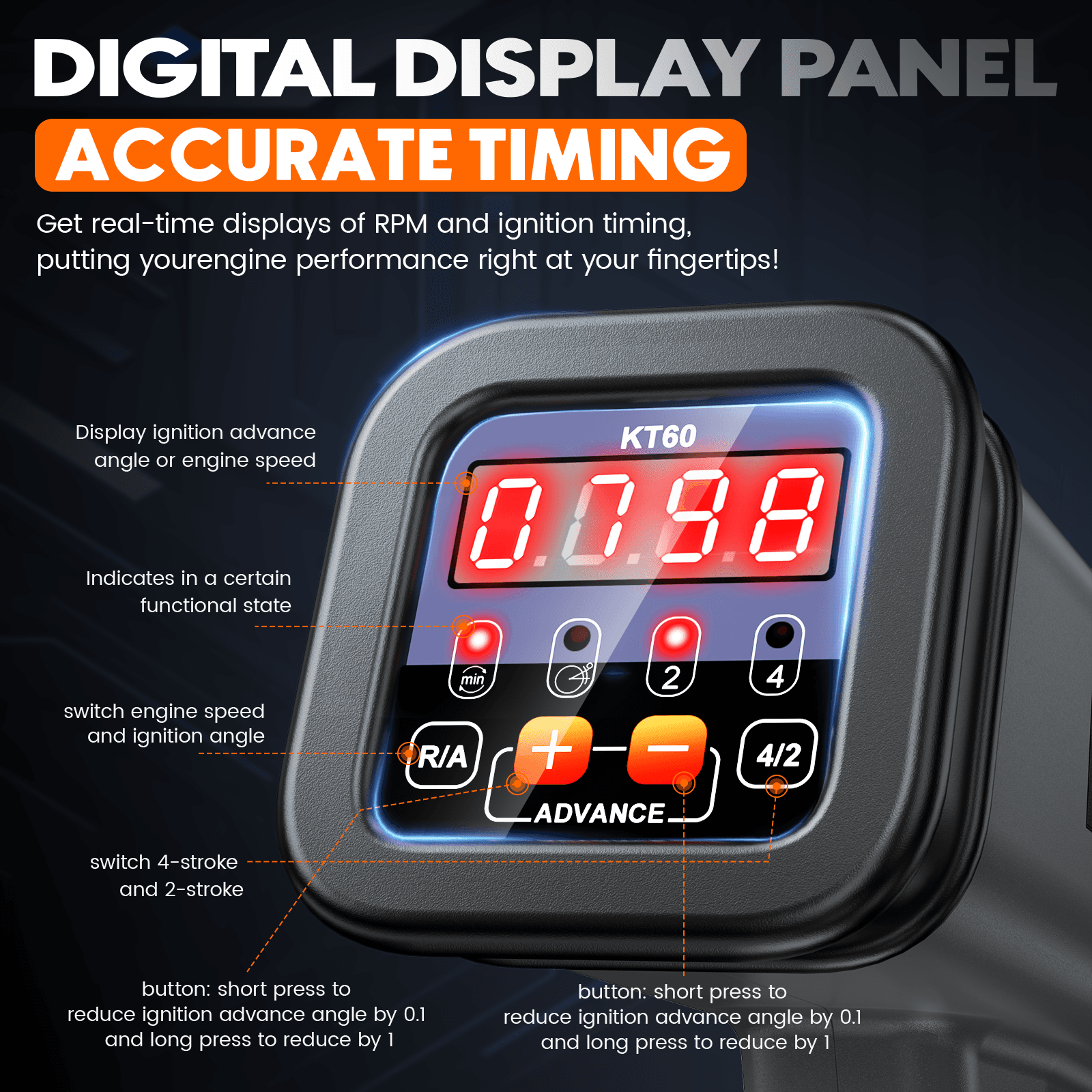

Its LED screen shows RPM and ignition angle, with controls for 2-stroke and 4-stroke engines and timing advance. The stated range reaches 10,000 RPM. A flash tube and Fresnel lens illuminate the timing marks, including in daylight.

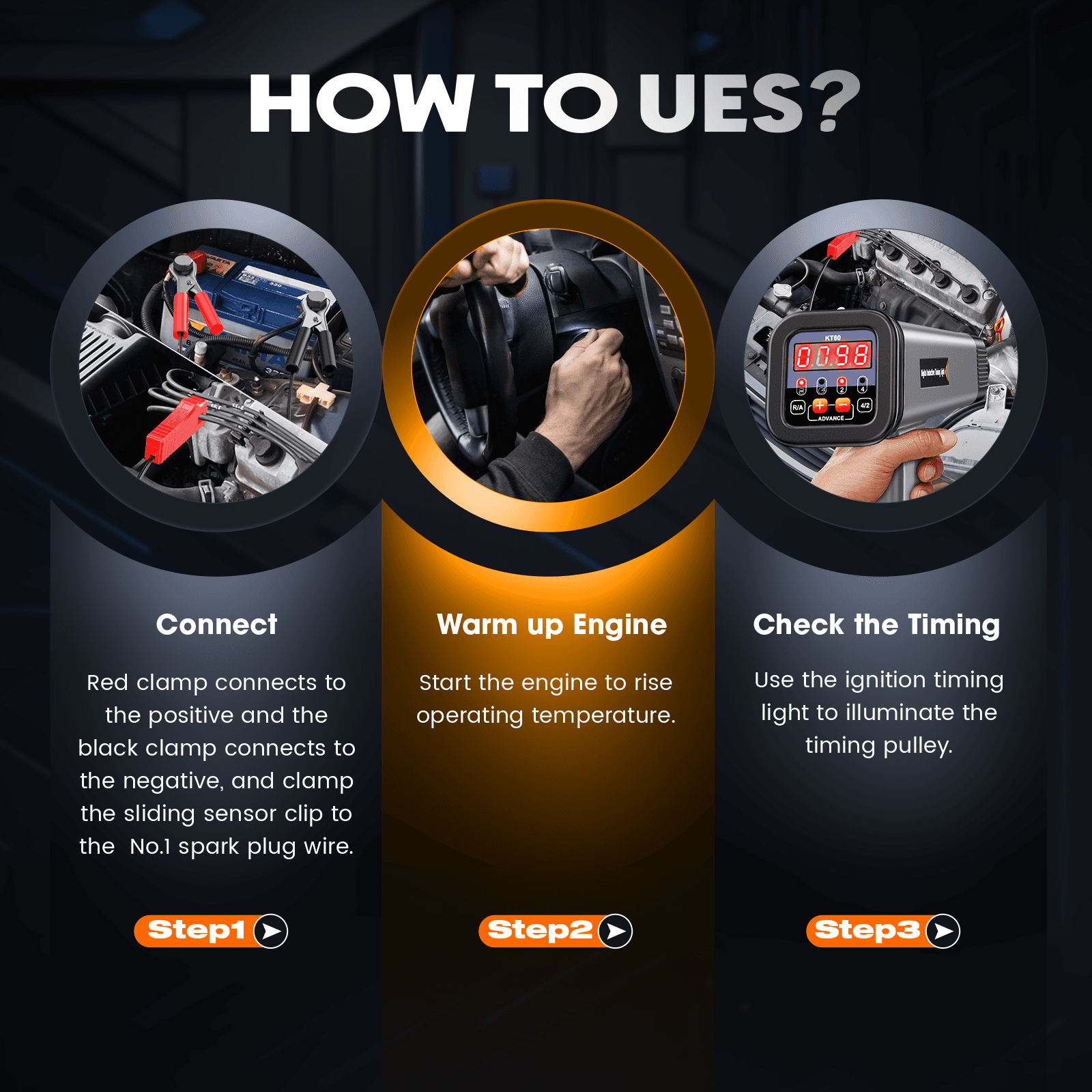

Clamp the inductive pickup around the No. 1 spark plug wire with its arrow toward the plug, away from hot exhaust parts; incorrect placement can cause intermittent flashes or inaccurate readings. The light is intended for cars, motorcycles, boats and agricultural gasoline engines.

It operates on 12V ignition systems and works with 6 and 12 volt vehicles, though 6 volt use requires a separate 12 volt battery for power. Red and black clips identify polarity; the unit has reverse-polarity and overload protection, a pistol-style handle and a shock-resistant ABS housing. Release the handle button when timing work is complete.
