ANCEL KM50+BST100 Red Battery Tester Kit sku-13053406495

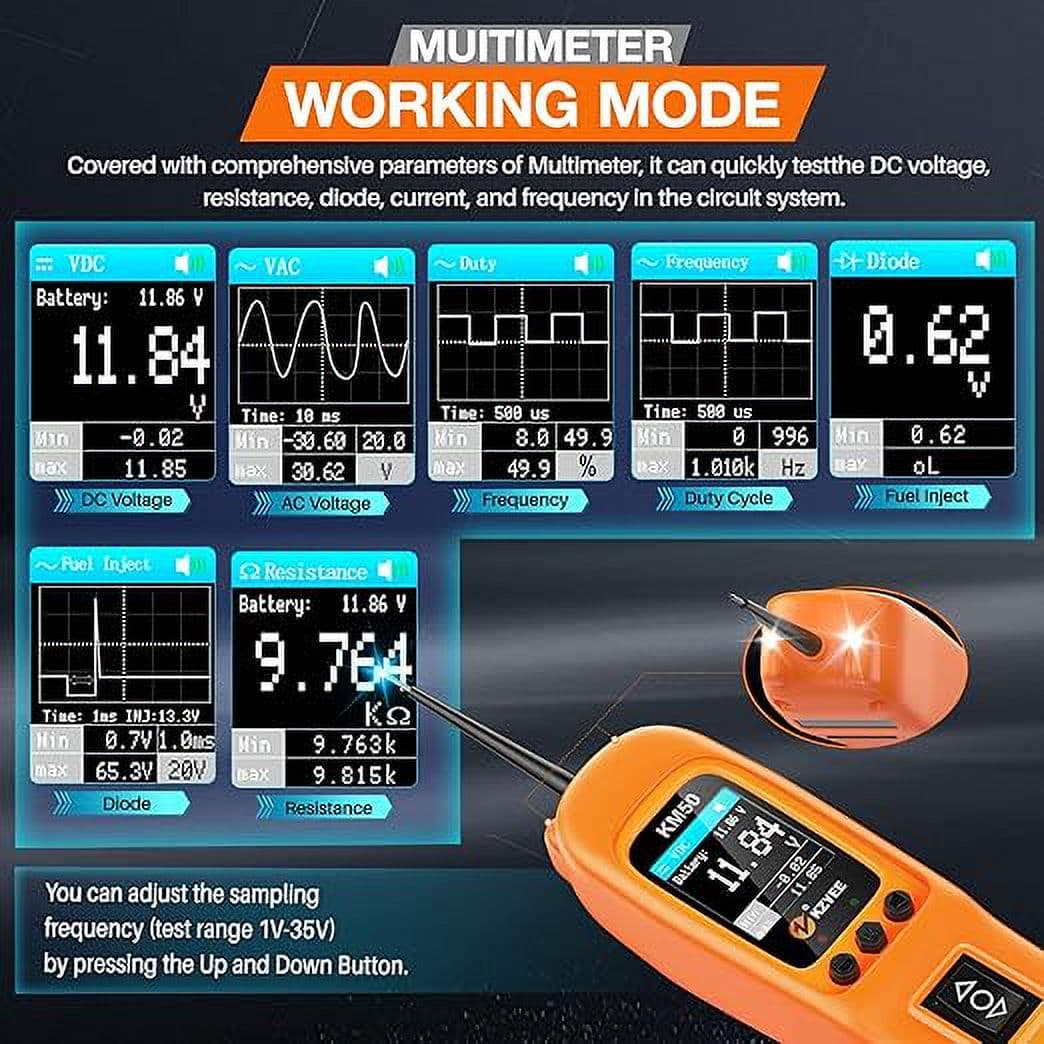

ANCEL KM50+BST100 is a Red Electrical Testing kit (sku-13053406495; UPC 718885474303) with a KZYEE KM50 circuit probe and an ANCEL BST100 battery tester. The KM50 is an upgrade of the KM10. Its listed upgrades are 1) fuel injector testing, 2) frequency testing, 3) duty-cycle testing, 4) switching between waveform and digital displays, and 5) additional internal signal lines.

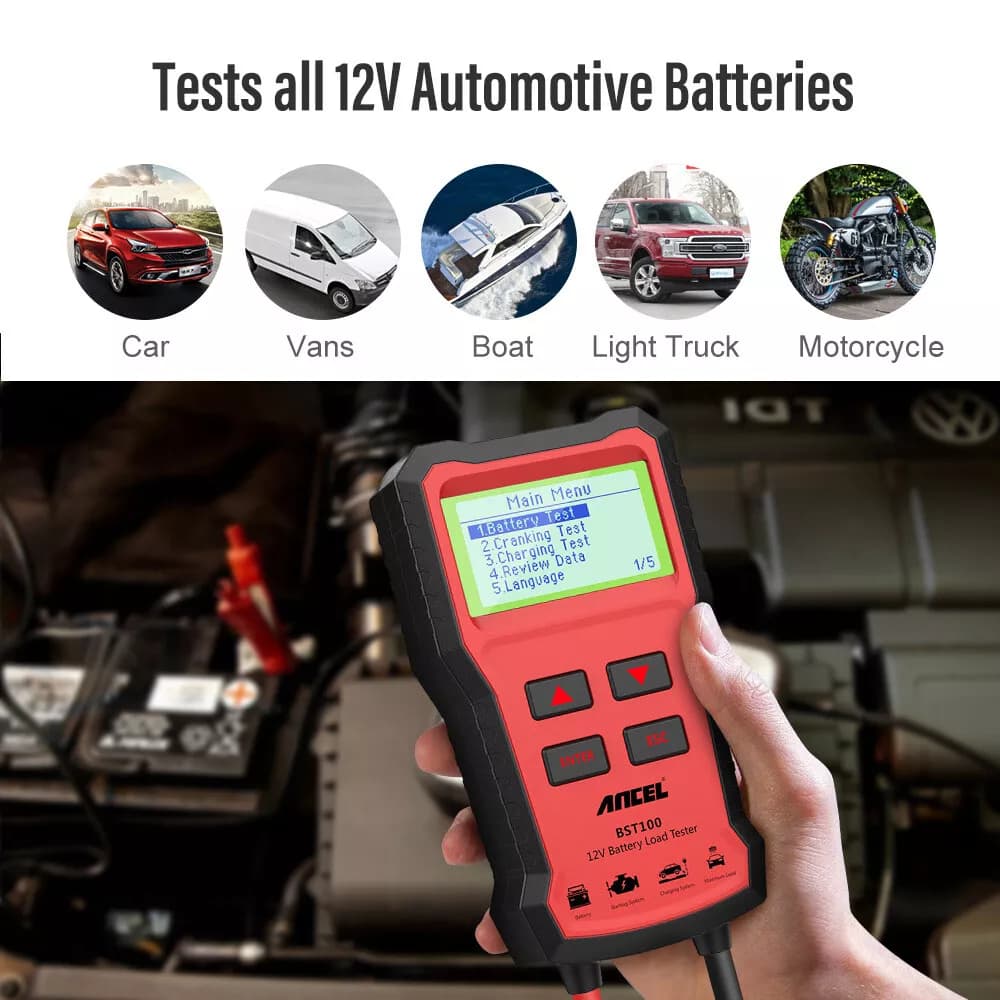

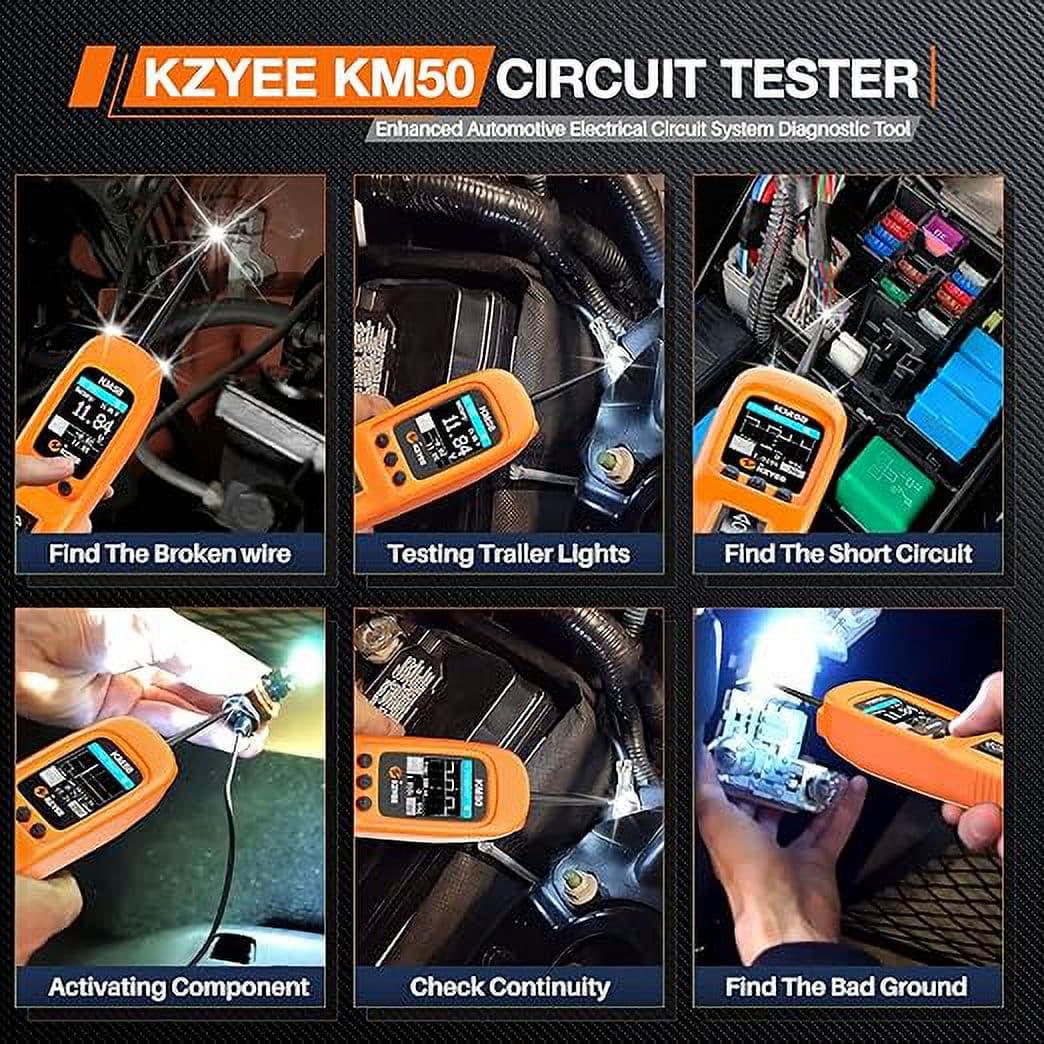

The piercing probe helps locate short circuits without removing multiple jumper wires, and the circuit probe checks power and ground without switching leads. It tests component resistance and diode polarity, detects voltage changes, and displays results on an LCD screen. The BST100 tests 12V batteries rated 100-2000 CCA, including lead-acid, flat-plate AGM, spiral AGM and gel batteries.

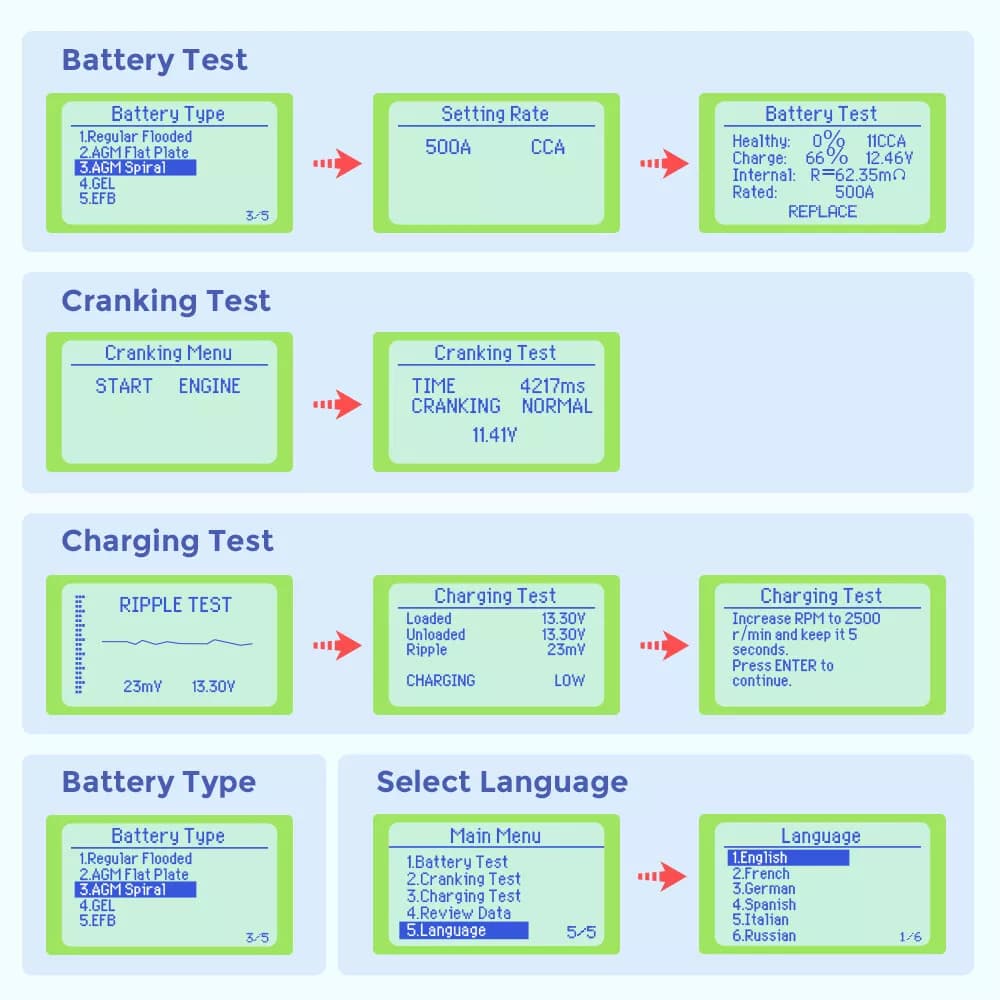

It provides battery-health, cranking and charging tests, with conclusions and recommendations. Results use CCA, IEC, EN, DIN, JIS, GB, SAE, MCA, BCI and CA standards.
