Icom M400BB VHF Marine Black Box Radio with Black Command Mic [M400BB 31]

Name: Icom M400BB VHF Marine Black Box Radio with Black Command Mic [M400BB 31]
Brand: Icom America
SKU: prod_b238bf57d3f8733c2508fa42
Price: 527.80 USD
Availability: InStock

No rating yet(0 ratings)

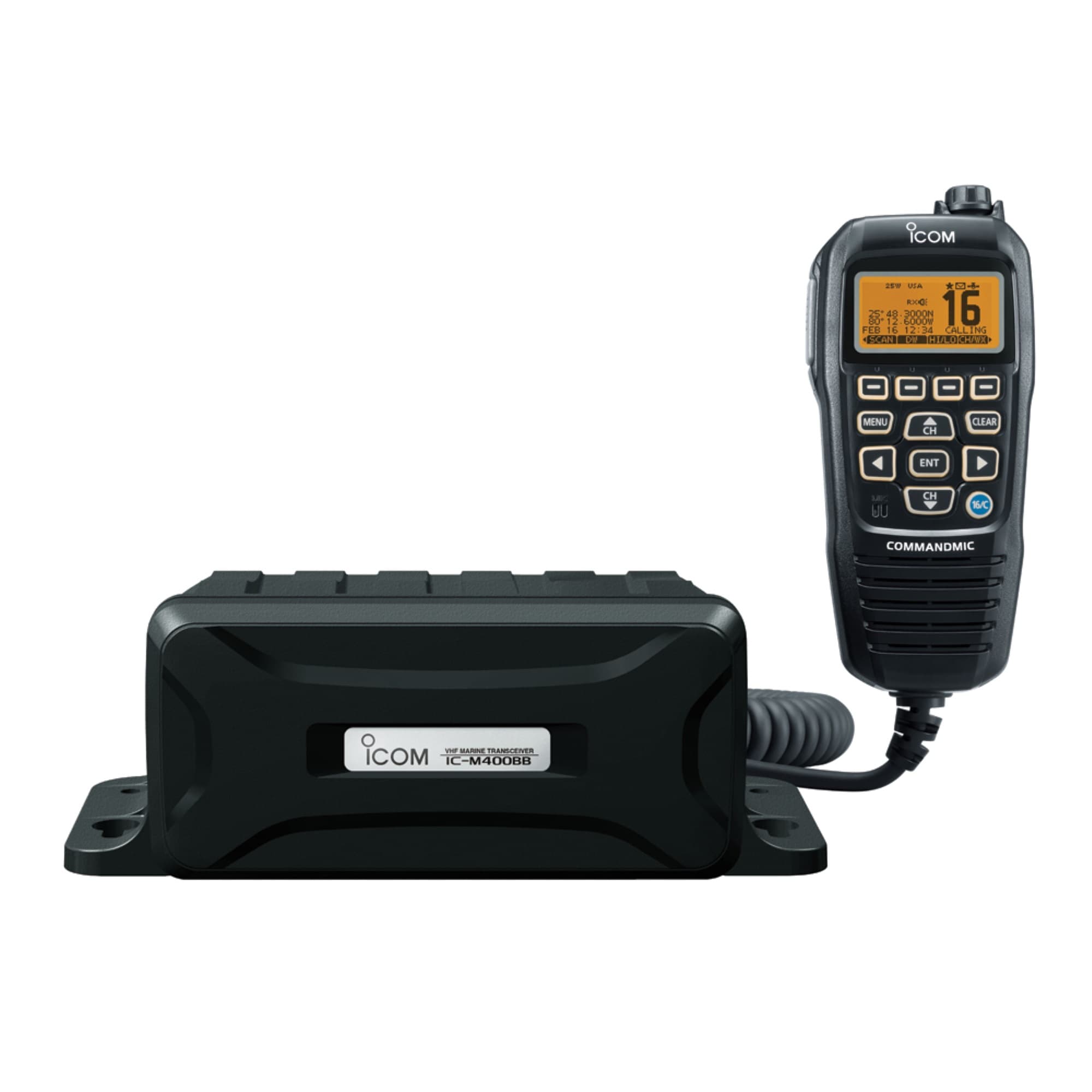

Black Box Transceiver - Icom Quality. Small Footprint. Space-saving, two-piece configuration The IC-M400BB consists of a two-piece, black box configuration. All function control including DSC operation, can be made from the COMMANDMICIV™, HM-195B/SW, and the RF unit, IC-M400BB, can be installed in an out-of-sight place.

New intuitive user interface The new menu system is shared with Icom's latest models. The bottom line of the dot-matrix display shows the software key functions which can be toggled with the left and right buttons. Active noise cancelling The built-in bidirectional active noise cancelling reduces background noise to up to 90% and improves both your transmitted voice and incoming call.

Hear and be heard more clearly. 10W Loud Audio, Public Address and Foghorn The IC-M400BB has a built-in 10W amplifier that increases the audio output from an additional external speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, and the foghorn can also be emitted from the external speaker.

Built-in Class D DSC The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Common NMEA Interface When connected to an external GPS receiver, current position and time are shown on the COMMANDMICTM display. When receiving DSC information from another vessel, the radio can transfer it to a navigational device via NMEA 0183 connectivity.

AIS Target Call with MA-500TR When connected to the optional MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DSC call from the MA-500TR. Additional features include class="wtul"> MarineCommander™ compatible AquaQuake™ water draining function IPX7 submersible protection both for IC-M400BB and HM-195B/SW (1m depth for 30 minutes) Dual/tri-watch function for monitoring Ch.16 and/or call channel Priority and normal scan Specifications width="500" style="border-collapse: collapse" border="1"> General Frequency Range Tx Rx Ch.

70 156.025-157.425MHz 156.050-163.275MHz 156.525MHz Usable channel groups INT, USA, CAN and WX channels Type of emission 16K0G3E (FM), 16K0G2B (DSC) Power supply requirement 13.8V DC nominal (11.7-15.9V DC) Current drain (at 7.4V DC) Tx (at 25W output) Rx (Max. audio) 5.5A Max. 3.5A Max.

Operating temperature range -20°C to +60°C; -4°F to +140°F Antenna Impedance 50Ω (SO-239) Dimensions (W H D) IC-M400BB HM-195B/SW 216 79 125mm; 8.5 3.11 4.92 in 67.5 144.5 37mm; 2.66 5.69 1.46 in Weight (approx.) IC-M400BB HM-195B/SW 830g; 1.83 lb 400g; 14.1 oz NMEA in/out formats RMC, GGA, GNS, GLL, DSC, DSE width="500" style="border-collapse: collapse" border="1"> Transmitter Output power (Hi/Low) 25W, 1W (High, low) Max. frequency deviation ± 5.0 kHz Frequency tolerance ±10ppm Spurious emissions Less than -70dBc (at 25W) width="500" style="border-collapse: collapse" border="1"> Receiver Sensitivity Main Ch.

70 0.22μV typical (at 12dB SINAD) -5dBμ emf typ. (1% BER) Squelch sensitivity Less than 0.32μV Adjacent Channel Selectivity Main Ch. 70 More than 70dB More than 73dBμ emf (1% BER) Spurious response Main Ch. 70 More than 70dB More than 73dBμ emf (1% BER) Intermodulation Main Ch.

70 More than 70dB More than 68dBμ emf (1% BER) Hum and noise ratio More than 40dB Audio output power Internal speaker External speaker More than 2W (HM-195B/SW) More than 10W (RX Speaker) Measurements made in accordance with TIA/EIA 603 and IEC 62238 (Ch. 70 receiver specifications).

Applicable IP Rating width="500" style="border-collapse: collapse" border="1"> Ingress Protection Standard (IC-M400BB and HM-195B/SW) Water IPX7 (Waterproof protection
