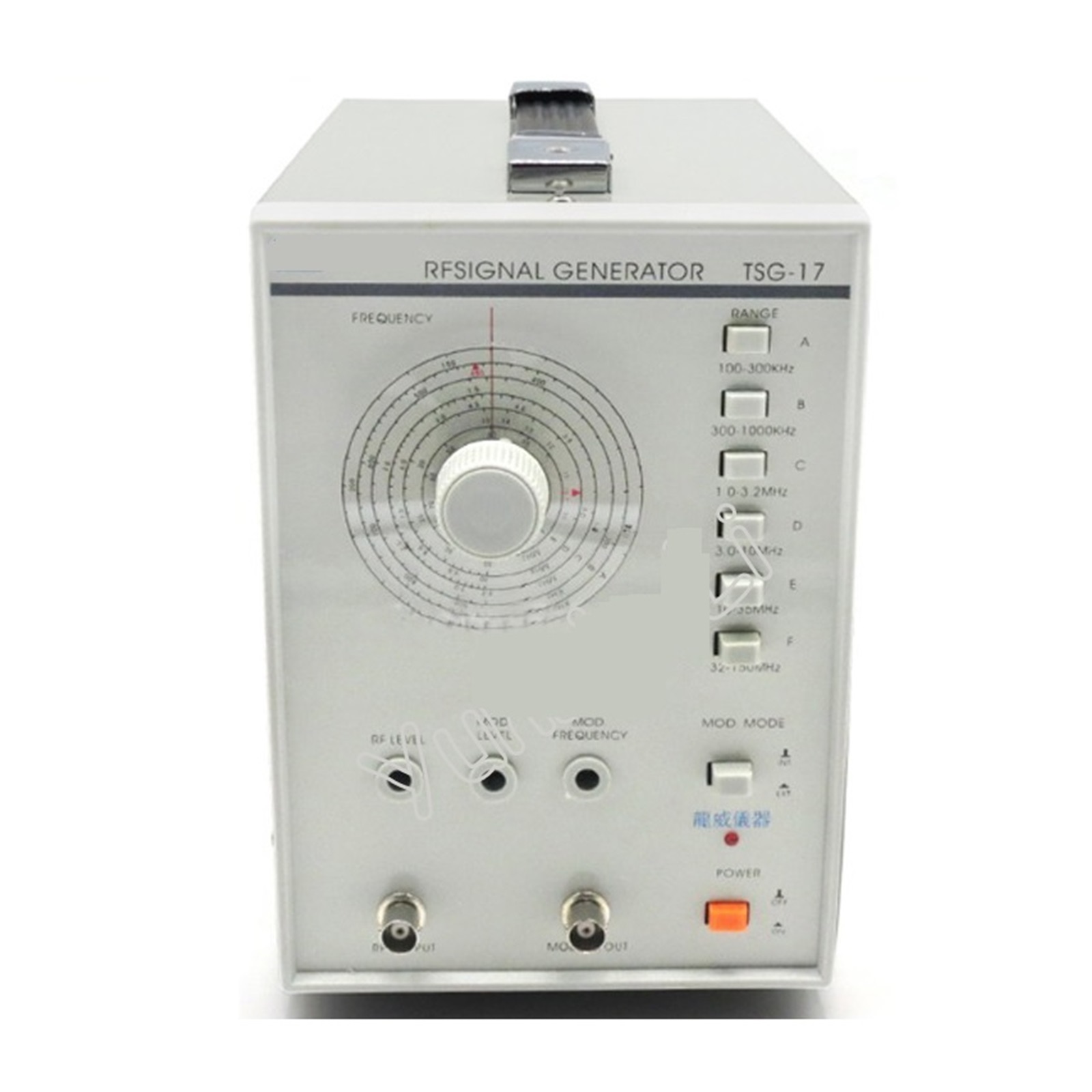

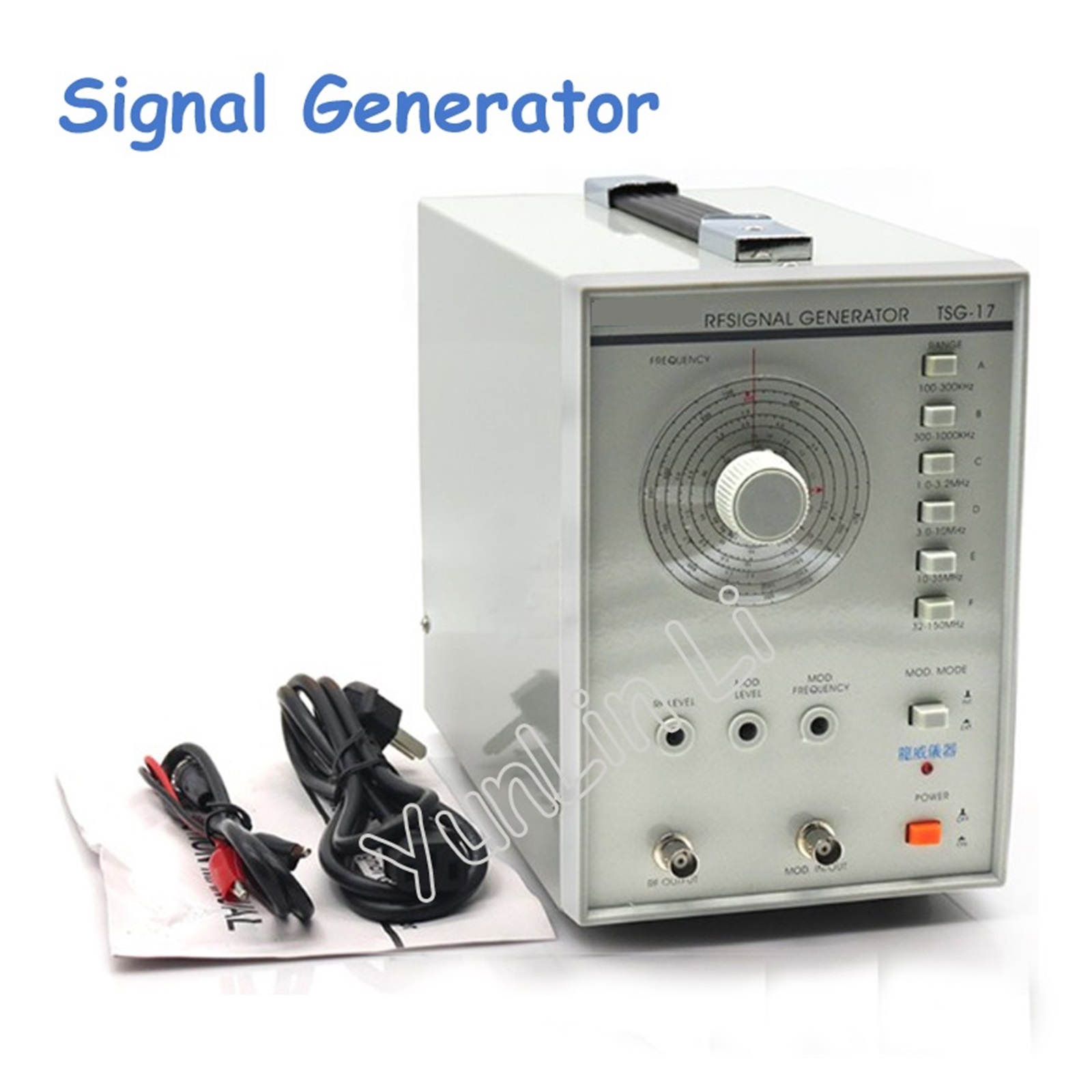

Dag TSG-17 sku-7293364915 Electrical Testing RF Unit

The Dag TSG-17 high-frequency signal generator is an Electrical Testing instrument, SKU sku-7293364915. Its RF/AM signal waveform has frequency accuracy of plus or minus 5% and output impedance of 600. RF output is listed as greater than 100 MVRMS at a shift frequency of 35 MHZ or less, with level control from 1 mv to 100 mv. AM modulation is adjustable from about 0 to 30% at 150 hz to 1.5 KHZ.

The listed working environment is 50 hz to 20 KHZ. Spectrum ranges are 100 to 300 KHZ, 300 KHZ to 1 MHZ, 1 to 3.2 MHZ, 3 to 10 MHZ, 10 to 35 MHZ, and 32 to 150 MHZ. Weight: 2.5 kg. Size: 239 * 140 * 200 mm.
