Garmin GPSMAP® 1242xsv Combo GPS/Fishfinder GN+

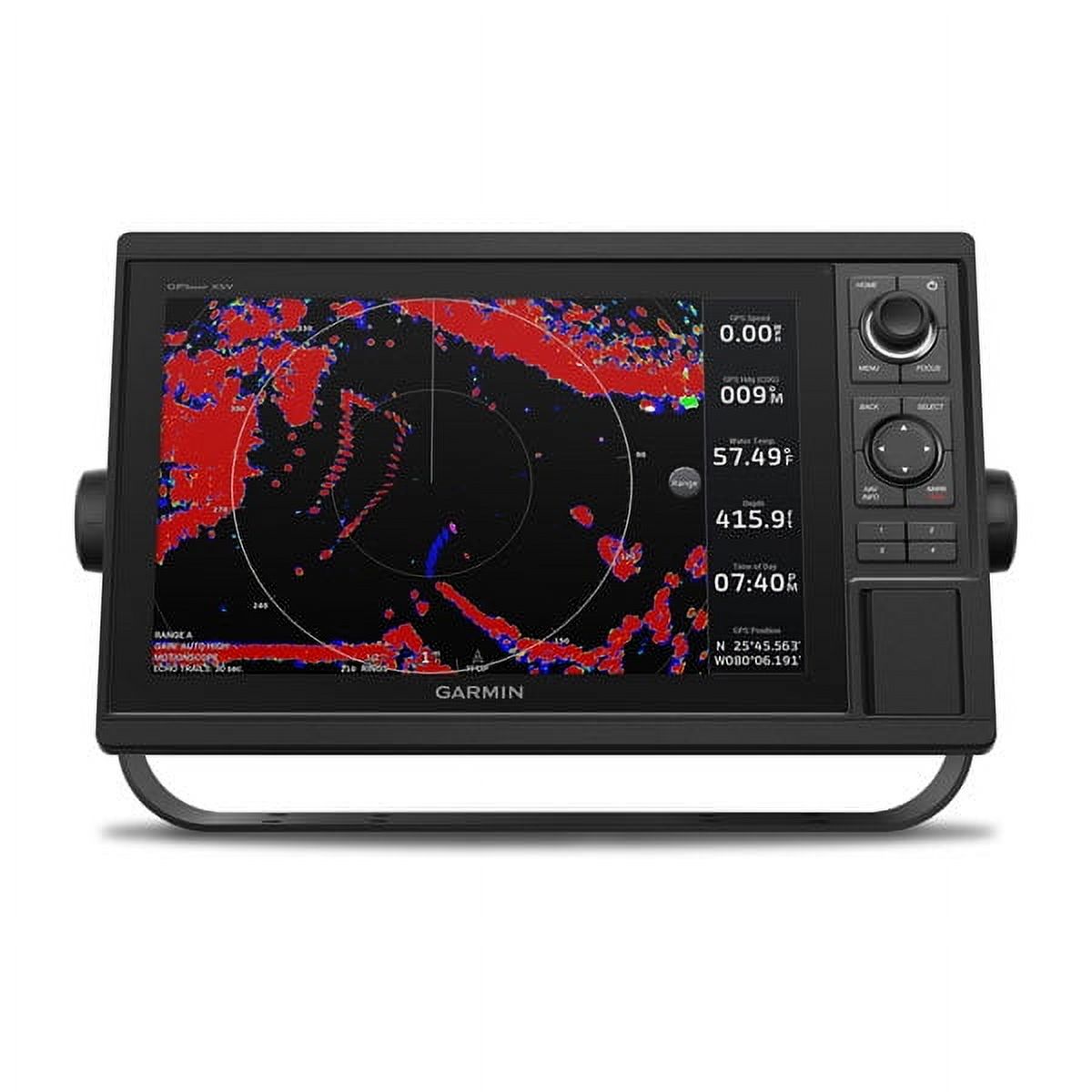

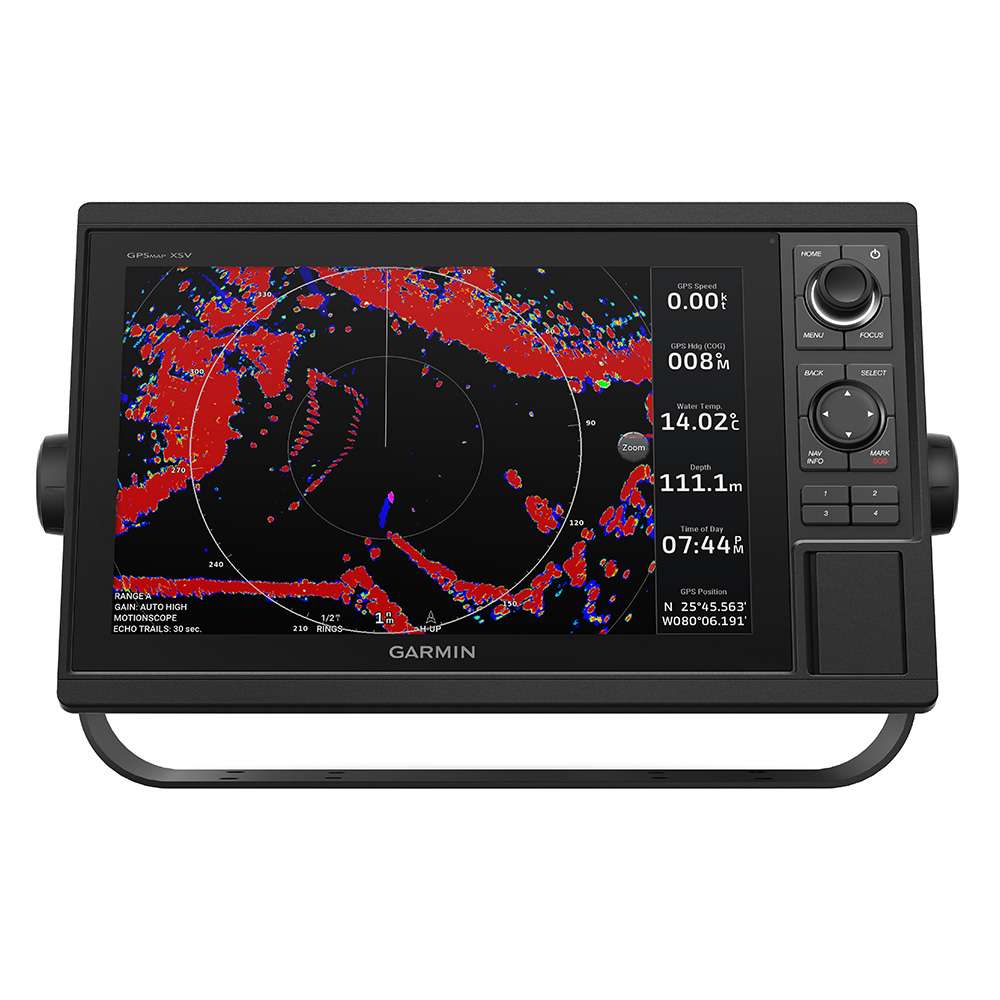

Garmin GPSMAP® 1242xsv 12-inch Chartplotter/Sonar Combo Is All-in-1 Solution with Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Model: 010-01741-50 UPC: 753759175511 Large, bright 12" screen with keypad interface and multifunction control knob Supports all-seeing live sonar, which includes LiveScope™ sonar (transducers sold separately) Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.

Built-in wireless capabilities for Garmin mobile apps See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors Includes Quickdraw Contours map drawing software Built-in Garmin SailAssist™ features include laylines, race features, set and drift, wind data and more Integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and remote controls (sold separately) Experience an advanced all-in-one solution with our 12" GPSMAP® 1242xsv keyed combo.

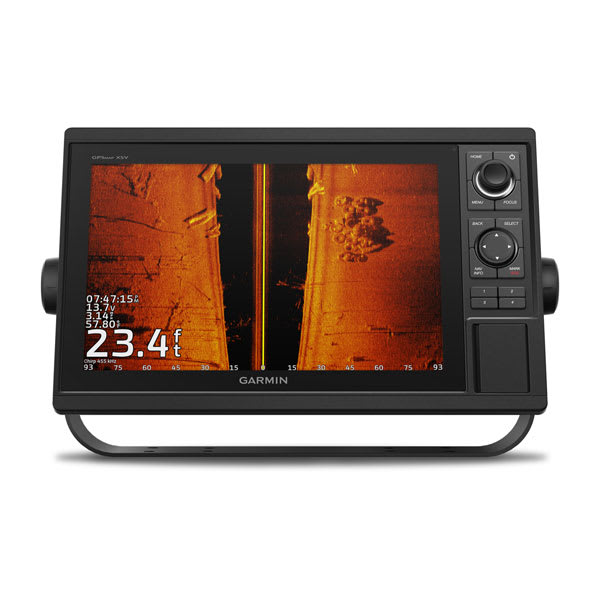

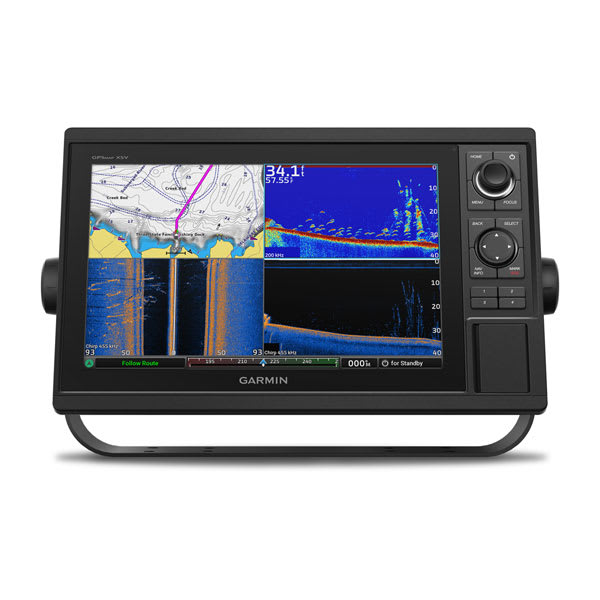

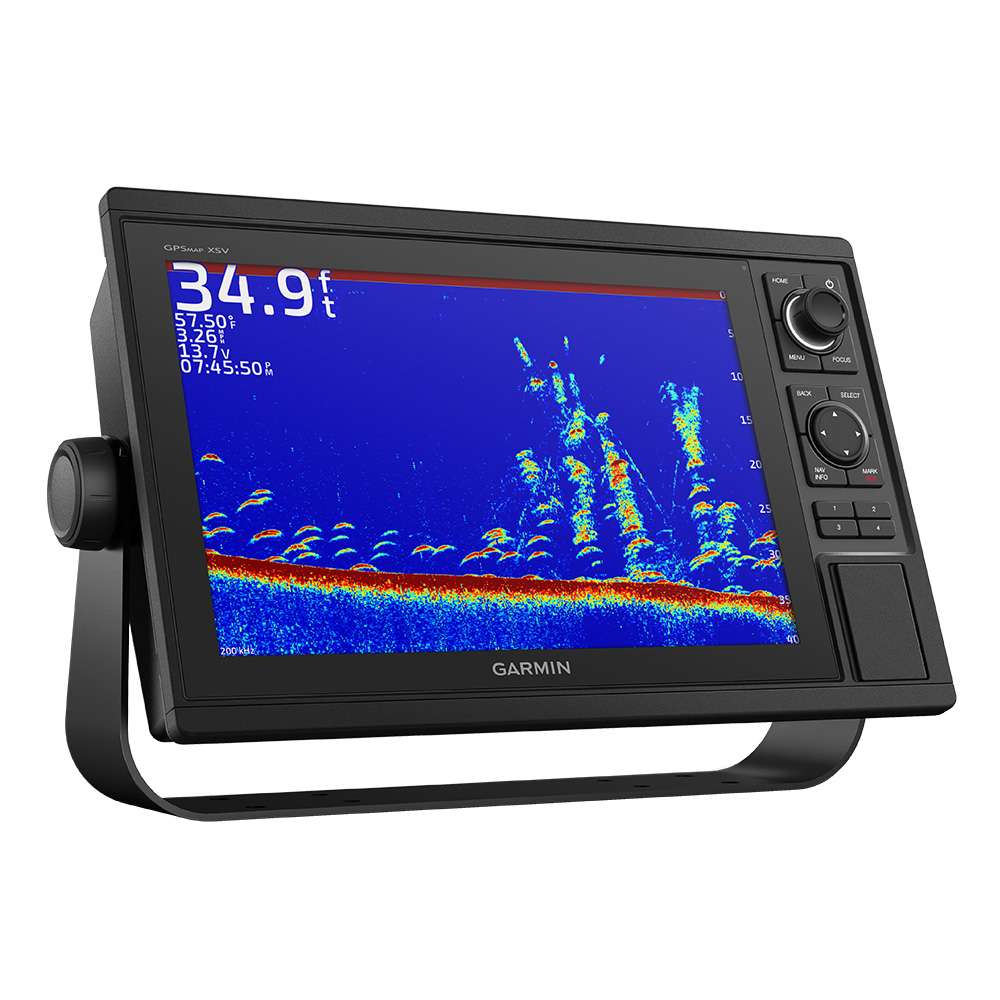

It features a large, bright screen coupled with a keypad interface and multifunction control knob. It comes with built-in support for Garmin CHIRP sonar along with CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars. The combo also supports Panoptix™ and LiveScope™ sonar products, including the LiveScope™ Plus System and a wide range of other transducers (sold separately).

Use built-in Wi-Fi® technology to pair with the free ActiveCaptain® smatrphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units.

Plus, there’s NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls (sold separately).

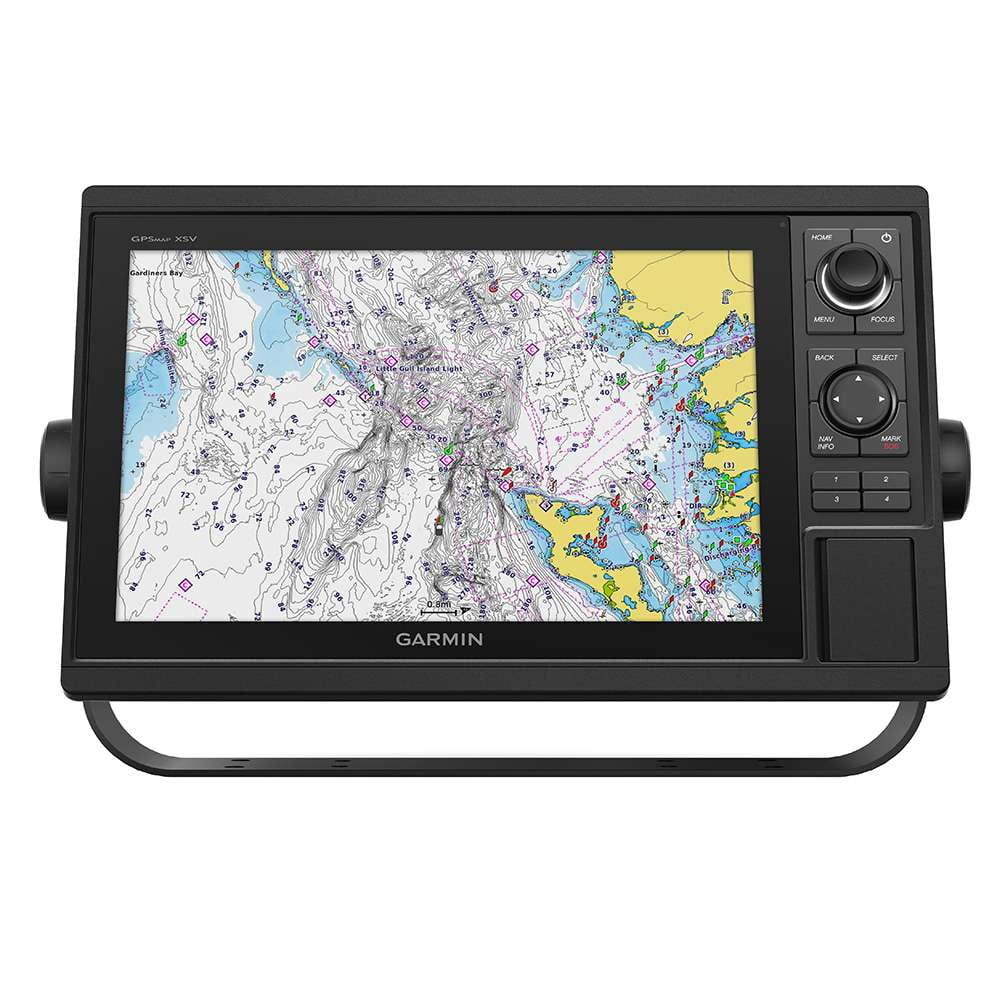

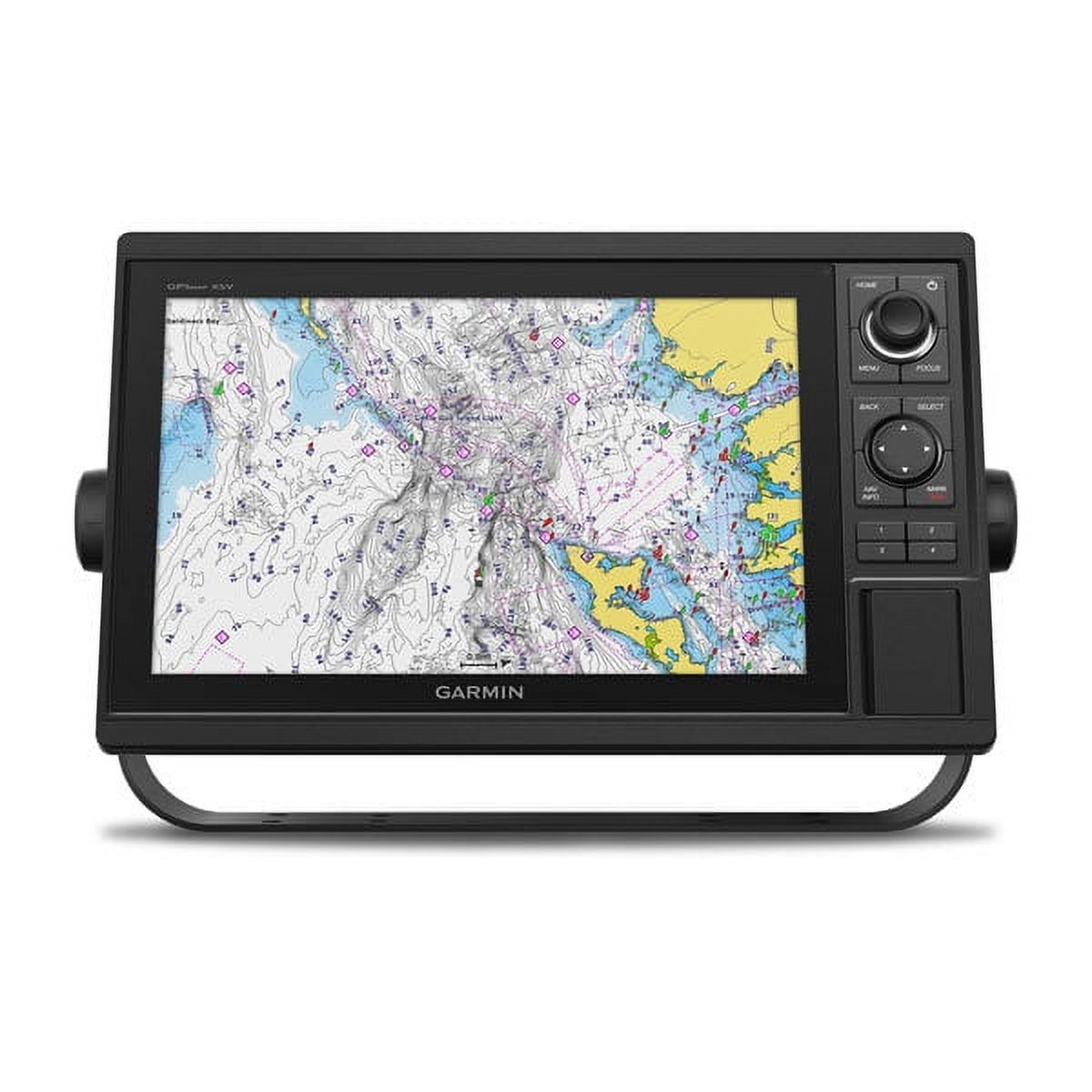

Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.) Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin Connect™ online network.

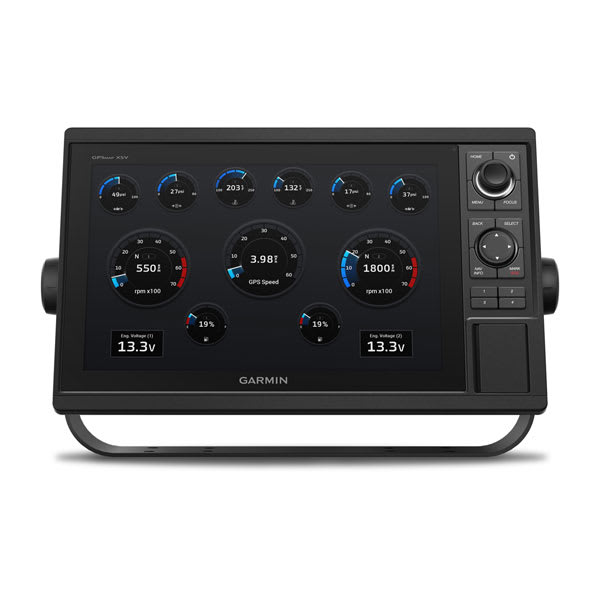

See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway.Specifications Performance and Physical Dimensions 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm) Display size 10.3" x 6.4" (26.2 x 16.3 cm) Display resolution 1280 x 800 Display type WXGA display Weight 5.2 lbs Water rating IPX7 Power consumption Max power usage at 10 Vdc: 34.8 W Antenna Internal or external over NMEA 2000 Mounting options Bail or flush Receiver 10 Hz high-sensitivity Garmin Marine Network™ ports 2 Preloaded maps Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Accepts data cards 2 SD™ cards Waypoints 5,000 Routes 100 Track log 50,000 points; 50 saved tracks Tide tables Yes Garmin Radar compatible Yes Garmin Sonar compatible Yes (built-in) Garmin SmartMode compatible (customizable monitor presets) Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes Garmin Meteor™ Audio System compatible Yes Supports FUSION-Link™ compatible radios Yes GSD™ Black Box sonar support Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Garmin Helm compatible Yes GRID™ (Garmin Remote Input Device) compatible Yes Wireless remote compatible Yes Dual-frequency (50/200 kHz) sonar capable Yes Dual-beam (77/200 kHz) sonar capable Yes Transmit power 1 kW traditional; 1 kW CHIRP CHIRP sonar technology Yes (Built-in) ClearVü Yes with CHIRP (built-in) SideVü Yes with CHIRP (built-in) Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) Bottom lock (shows return from the bottom up) Yes Water temperature log and graph Yes Sonar recording Yes Sonar history rewind Yes NMEA 2000® compatible Yes Transducer pin numbers 12 NMEA 0183 input ports 1 NMEA 0183 output ports 1 Video input ports 1 BNC Video output ports None Wireless connectivity Yes What's in the Box: GPSMAP 1242xsv chartplotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada Power/data cable NMEA 2000 T-connector NMEA 2000 drop cable (2 m) Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation 8-pin transducer to 12-pin sounder adapter cable Garmin GPSMAP1242XSV 12" Combo No transducer US and Canada GN+ 010-01741-50 Garmin
