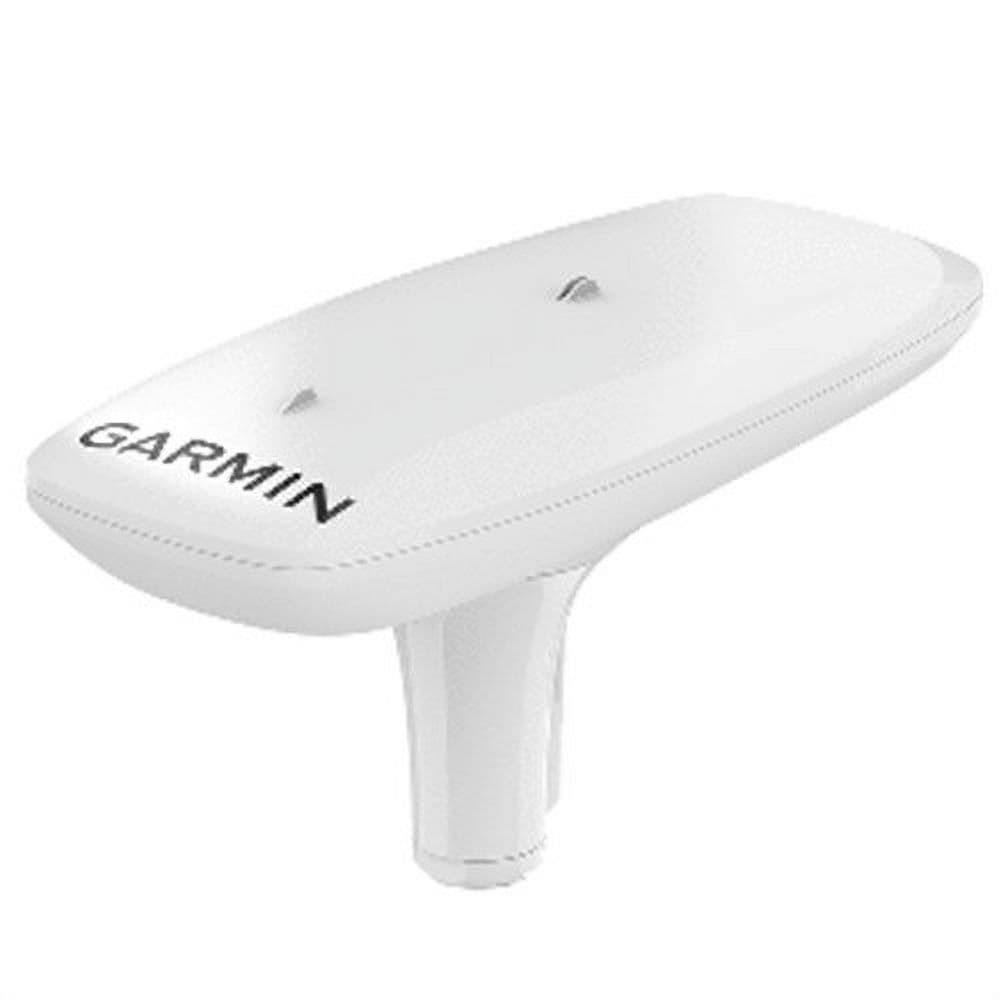

GARMIN 010-02407-00 White Boating Compass sku-859120431

The White GARMIN MSC 10 marine satellite compass is a Boating heading sensor, model 010-02407-00, SKU sku-859120431, UPC 753759254971. The product title also lists 0100240700; the model number contains the segments 010, 02407 and 00. Its integrated attitude and heading reference system smooths GPS-derived heading, including at high speeds.

A multi-band GNSS receiver uses L1 and L5 GPS and multiple satellite constellations for positioning within 1 meter and heading accuracy of 2-degree RMS in dynamic conditions. GPS heading is unaffected by magnetic interference. If satellite signal is lost, the unit can switch to magnetometer-based heading, which requires calibration.

It sends heave information to a chartplotter over NMEA 2000 and provides position updates at 10 Hz. It can serve as the primary heading sensor for autopilots and other onboard systems and integrates with Garmin marine equipment. Installation requires no calibration unless magnetic backup heading is used.

The compact unit includes a pole mount, mounting hardware, a 6-meter NMEA 2000 backbone/drop cable, a T-connector and documentation.
