GARMIN Panoptix 010-01945-10 Boating sku-11233667151

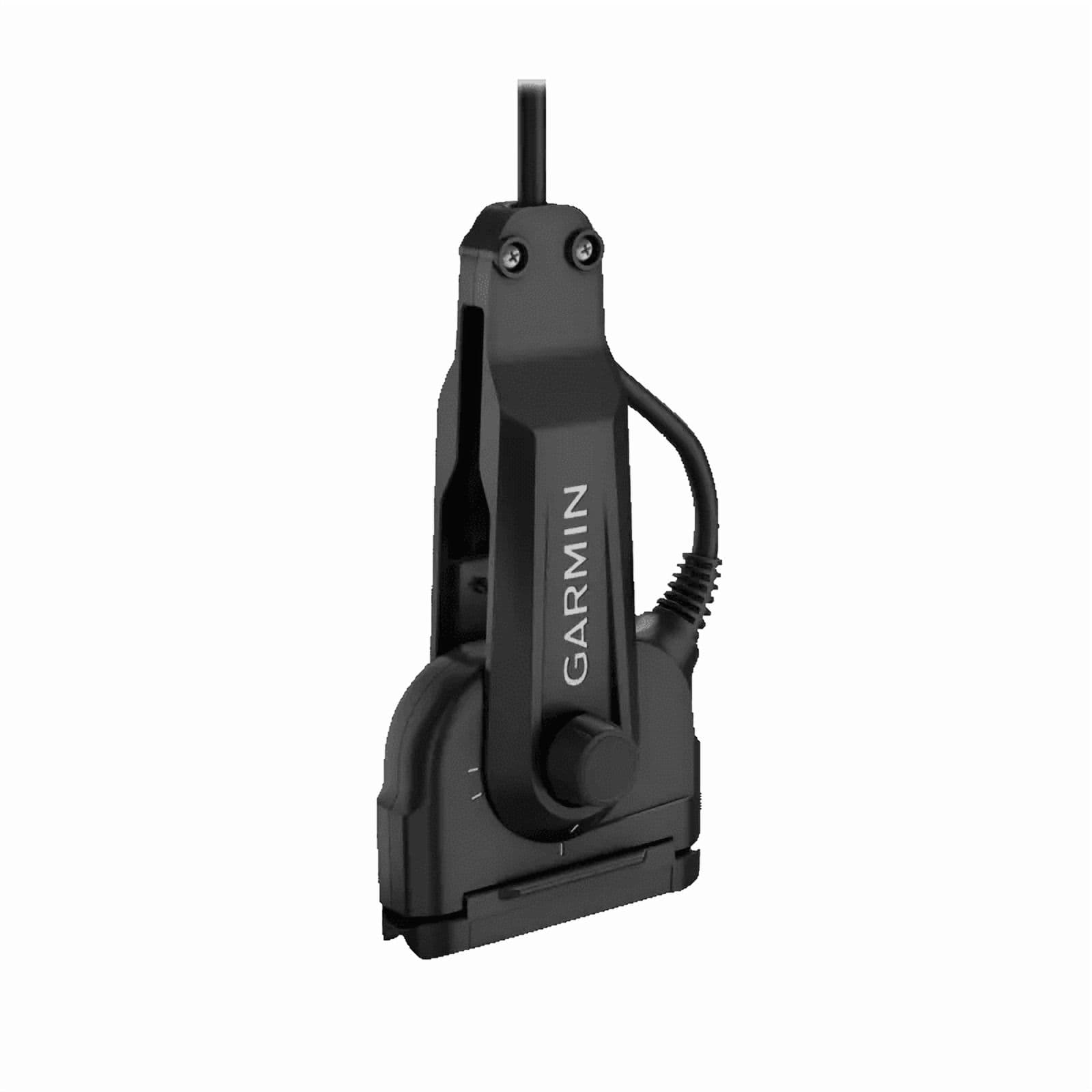

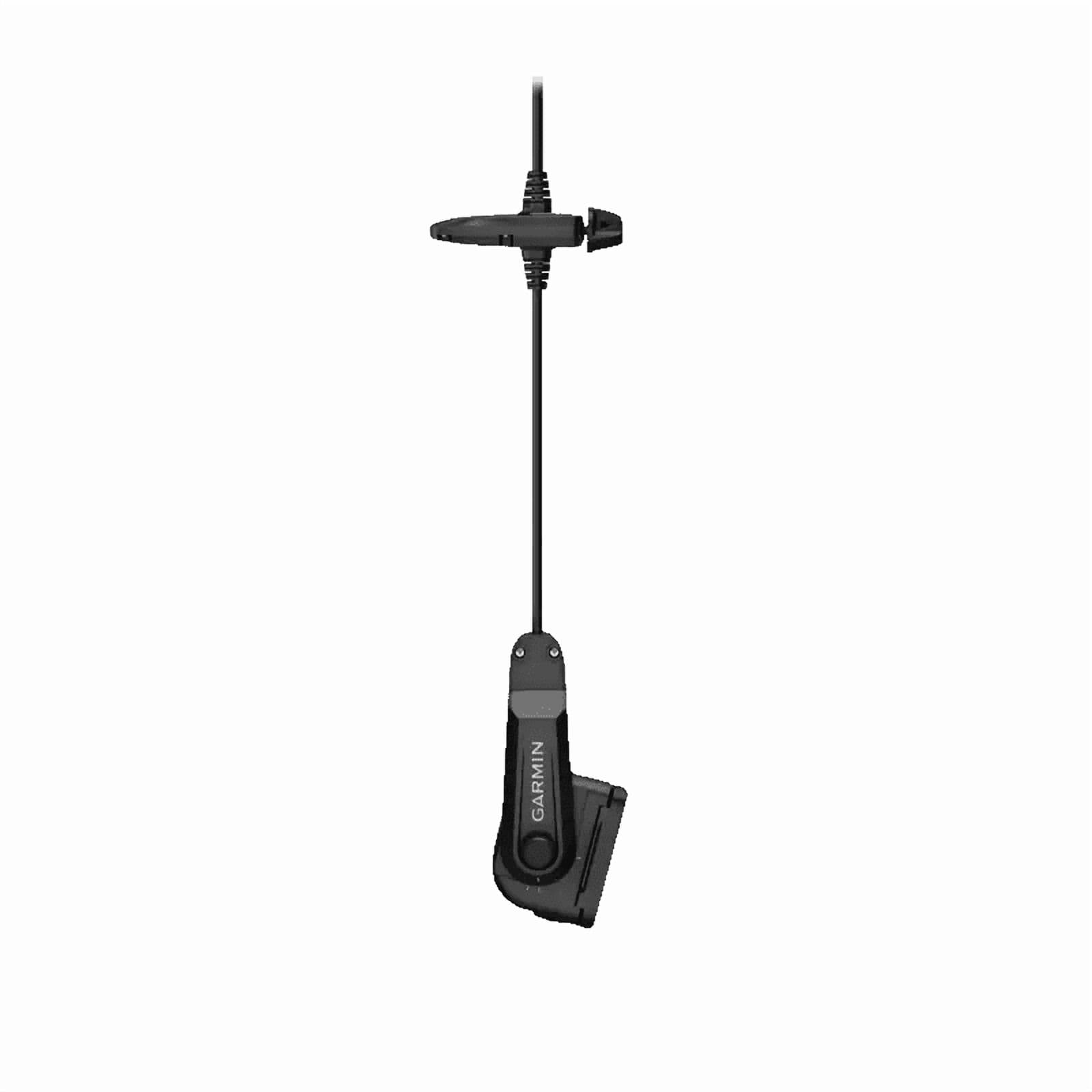

The GARMIN Panoptix PS22-IF portable live sonar transducer is a Boating product, model 010-01945-10, UPC 753759340223, SKU sku-11233667151. Its bracket and rotator eliminate the need for a pole mount. A removable lens lets you adjust the sonar beam angle. LiveVü Forward and LiveVü Down modes show fish in real time; a traditional sonar source is also supported.

Beamwidth is 12° x 120° with the lens and 57° x 120° without it. The cable is 9.8' (3 m). Dimensions are 9.1" x 4.1" x 2.5" (23.1 x 10.4 x 6.4 cm), and weight is 2.60 lbs (1.18 kg). Operating temperature is 0° C to 40° C. Power input is 10-32 V with a 4A fuse. Sonar frequency is 417 kHz, transmit power is 48 W, and maximum depth is 300'.

It has 1 Garmin Marine Network port with a standard connector. The box contains the transducer, rotator and bracket, removable lens, hardware, and documentation.
