Eugene Color Electrical Testing Clamp | sku-6715967297

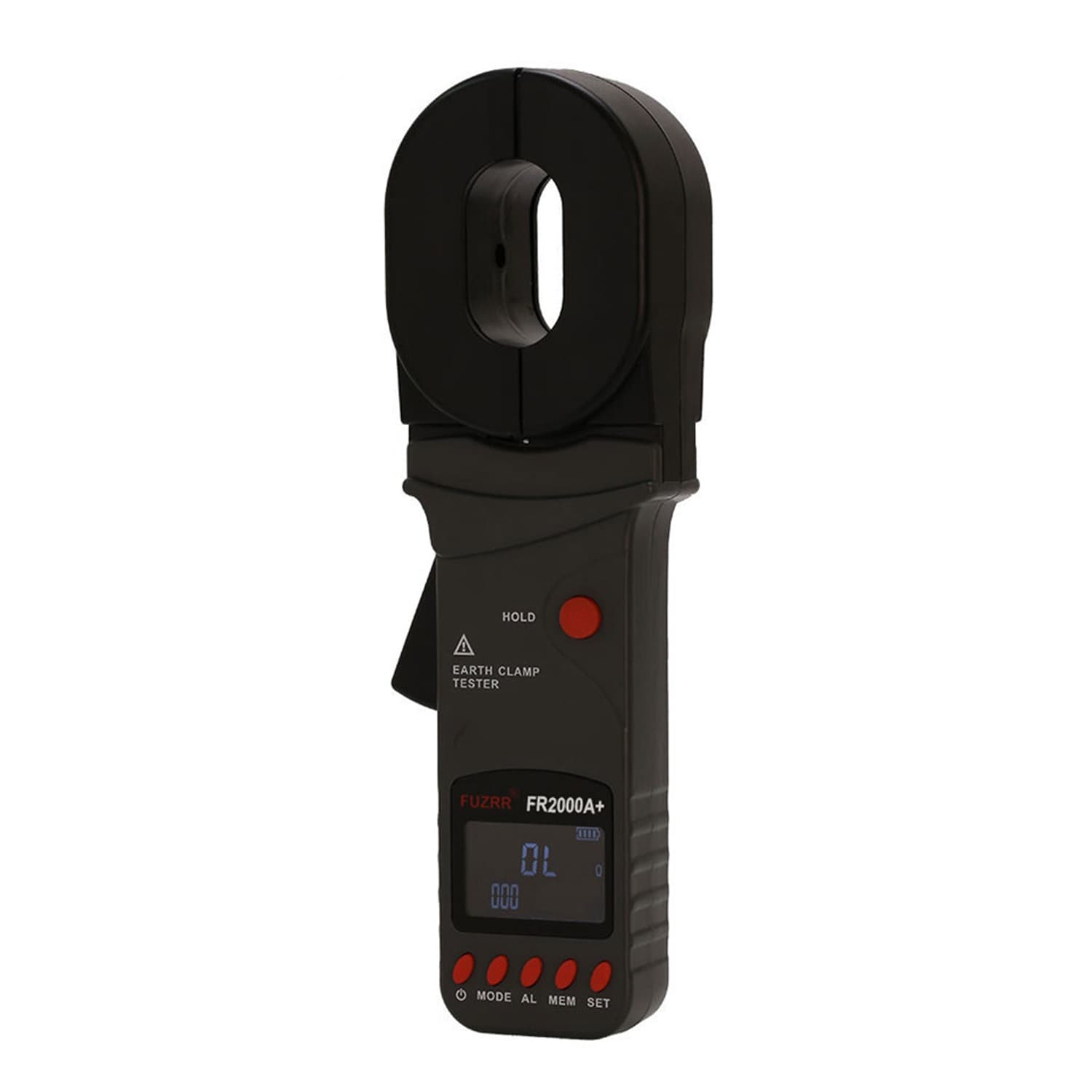

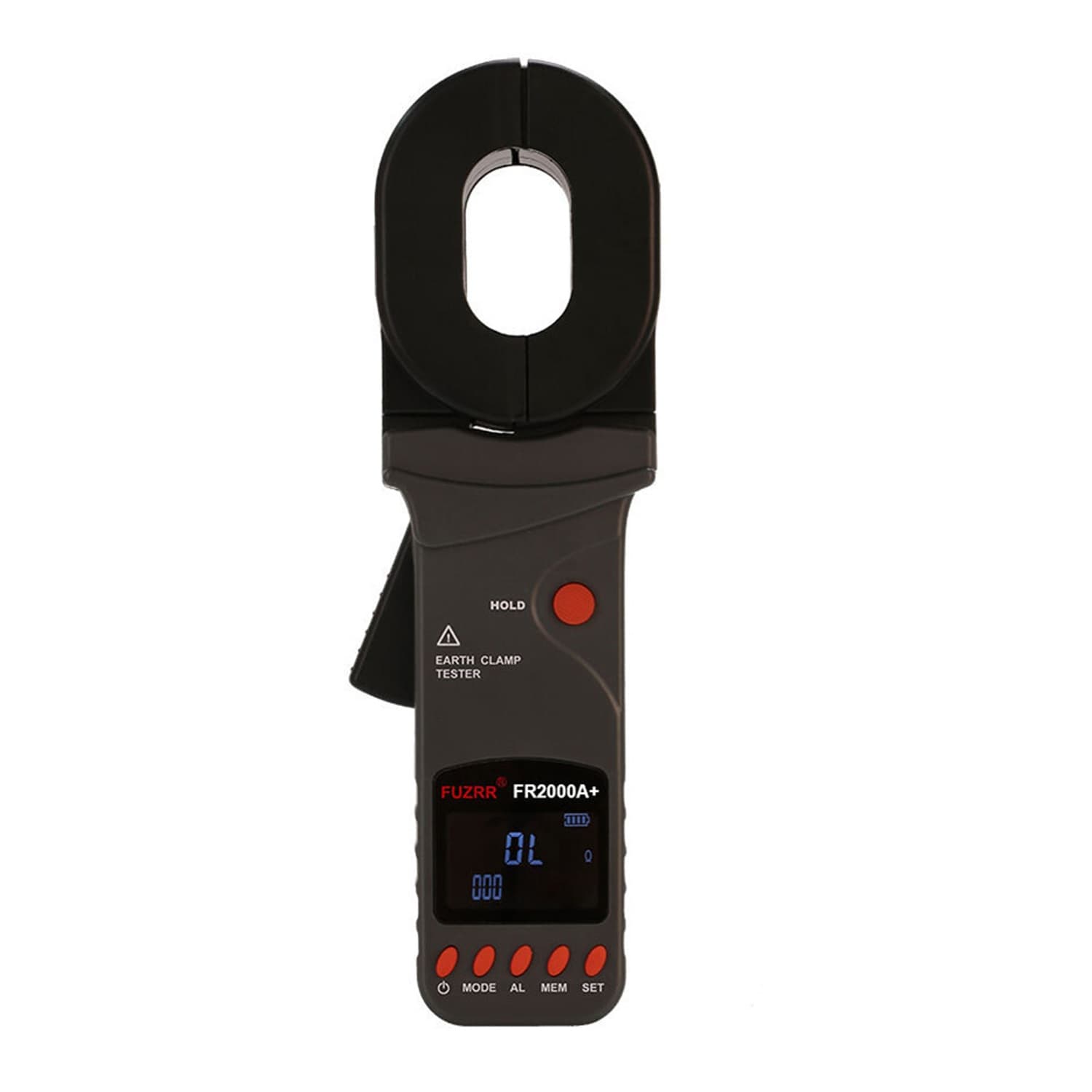

The Eugene Color FR2000A+ clamp tester is listed under Electrical Testing, SKU sku-6715967297. It measures ground and loop resistance by mutual induction using a clamp CT and integral method. Its range is 0.01Ω to 200Ω, resolution is 0.001Ω, and accuracy is ±1%±0.01Ω. It uses a DC6V supply from 4 LR6 alkaline batteries rated at 1.5V each. The clamp opening is 65mm x 32mm.

It has a clock and a black-screen, 4-digit LCD measuring 46mm x 29mm; the meter measures 85mm x 58mm x 285mm. Sampling is about 2 times per second. Memory holds 300 groups, with “MEM” and a flashing “FULL” indicator; “MR” appears during review. “OL” indicates a reading outside the measurement range, while “NOISE” indicates a large interference current detected automatically.

An alarm sounds when a reading exceeds its set value. The display shows battery power, with a low-voltage reminder. “APO” indicates automatic shutoff after 5 minutes. Maximum power consumption is 50MA, and the instrument weighs 1180g with its batteries. The operating range is -10°C to 40C at below 80% relative humidity.

Insulation resistance is 20Ω or more at 500V between the circuit and exterior; pressure resistance is AC 3700V/rms between them. Listed safety specifications are IEC61010-1 (CAT III 300V, CAT IV 150V, Pollution Degree 2), IEC61010-031 and IEC61557-1 for grounding resistance.
