Faitalpro 6FE200-8 Midrange Car Speakers sku-18135359659

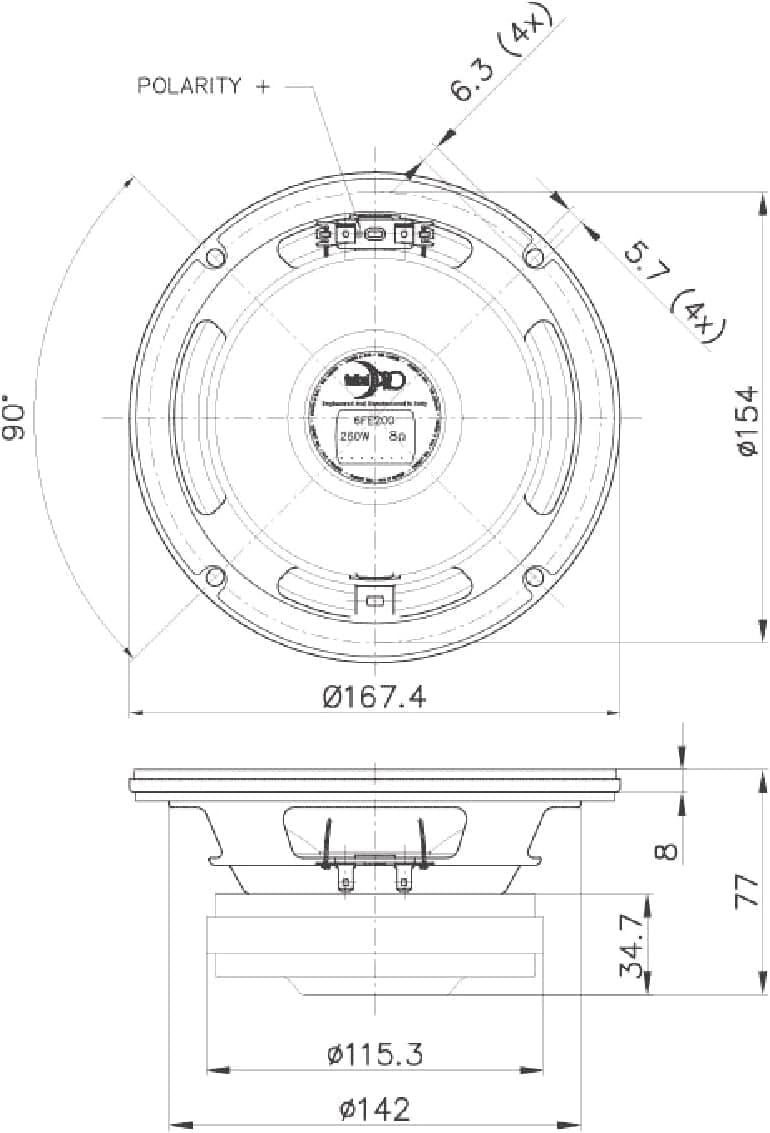

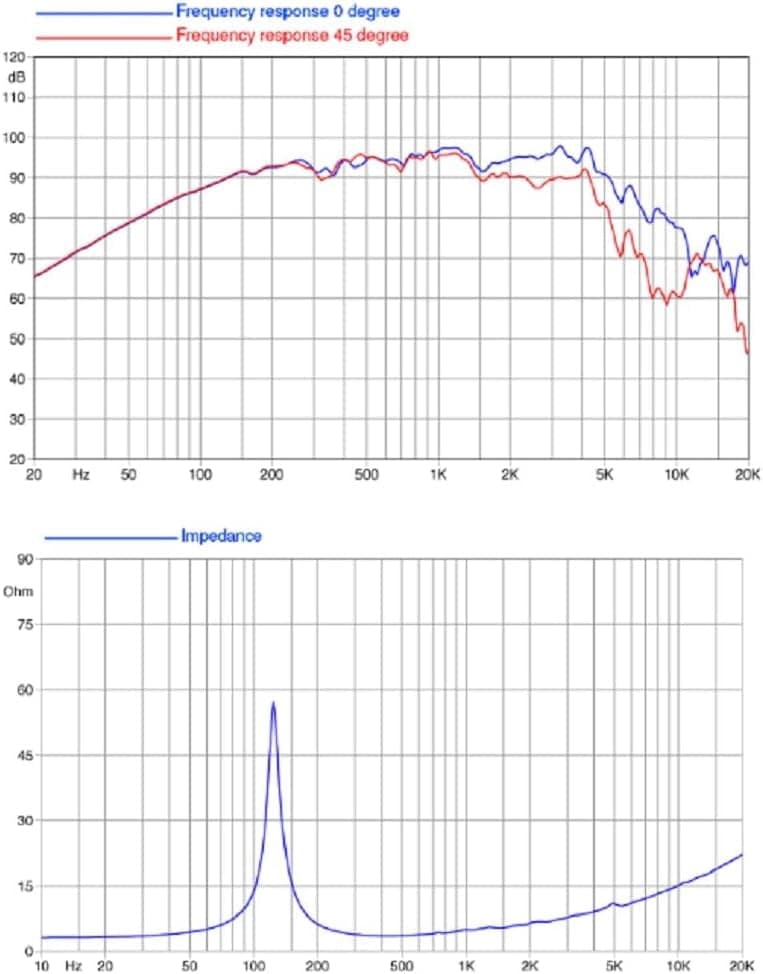

Faitalpro Car Speakers listing sku-18135359659, UPC 578969401225, is the Faital Pro 6FE200-8 (also listed as 6FE200), a 6-inch midrange/mid-bass driver for PA, home and car audio. It has 130 W AES power handling, a 260 W maximum rating, 95 dB sensitivity and an 85-6000 Hz frequency range. The AES rating uses a 2-hour test under AES 2-1984 Rev. 2003; maximum power is defined as 3dB above nominal power. Dimensions are 160 mm (6 in) nominal diameter, 167.4 mm (6.59 in) overall diameter, 154 mm (6.06 in) bolt circle diameter, 144 mm (5.67 in) baffle cutout diameter and 77 mm (3.03 in) depth. Flange and gasket thickness is 8 mm (0.31 in). Net weight is 2 kg (4.4 lb). The single-carton shipping box measures 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in), with a shipping weight of 2.2 kg (4.9 lb). Nominal impedance is 8 Ohm and minimum impedance is 6.8 Ohm. Sensitivity is measured at 1W/1m. The voice coil has a 37 mm (1.46 in) diameter, Al winding, Kapton former and 12 mm (0.47 in) winding depth. Magnetic gap depth is 8 mm (0.31 in), flux density is 1 T, and the magnet is a ferrite ring. The steel basket has an M-Roll cone surround (3), made of treated polycotton, and a spider with 1x constant-height waves. There is no demodulation. The loudspeaker occupies 0.45 dm^3 (0.016 ft^3) of net air volume. Xmax (4) is 4.67 mm; Xdamage (5) is 10.4 mm, the maximum excursion before permanent damage. Bl is 8.2 N/A and Le is 0.4 mH. Thiele and Small parameters are Fs 120 Hz, Re 5.9 Ohm, Qes 0.75, Qms 6.2, Qts 0.67, Vas 3.6 dm^3 (0.13 ft^3), Sd 131 cm^2 (20.23 in^2), Mms 11.5 g, Mmd 9.8 g, Cms 0.15 mm/N, Rms 1.4 kg/s, Eta Zero 0.80 % and EBP 160 Hz. Xmax is calculated as [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3). The Faston-terminal 8 Ohm version has part number 01604017. The source also lists UPC 810130951345.You may also like Faitalpro 6PR122-8 6" Midrange Car Speakers sku-5443464226.
