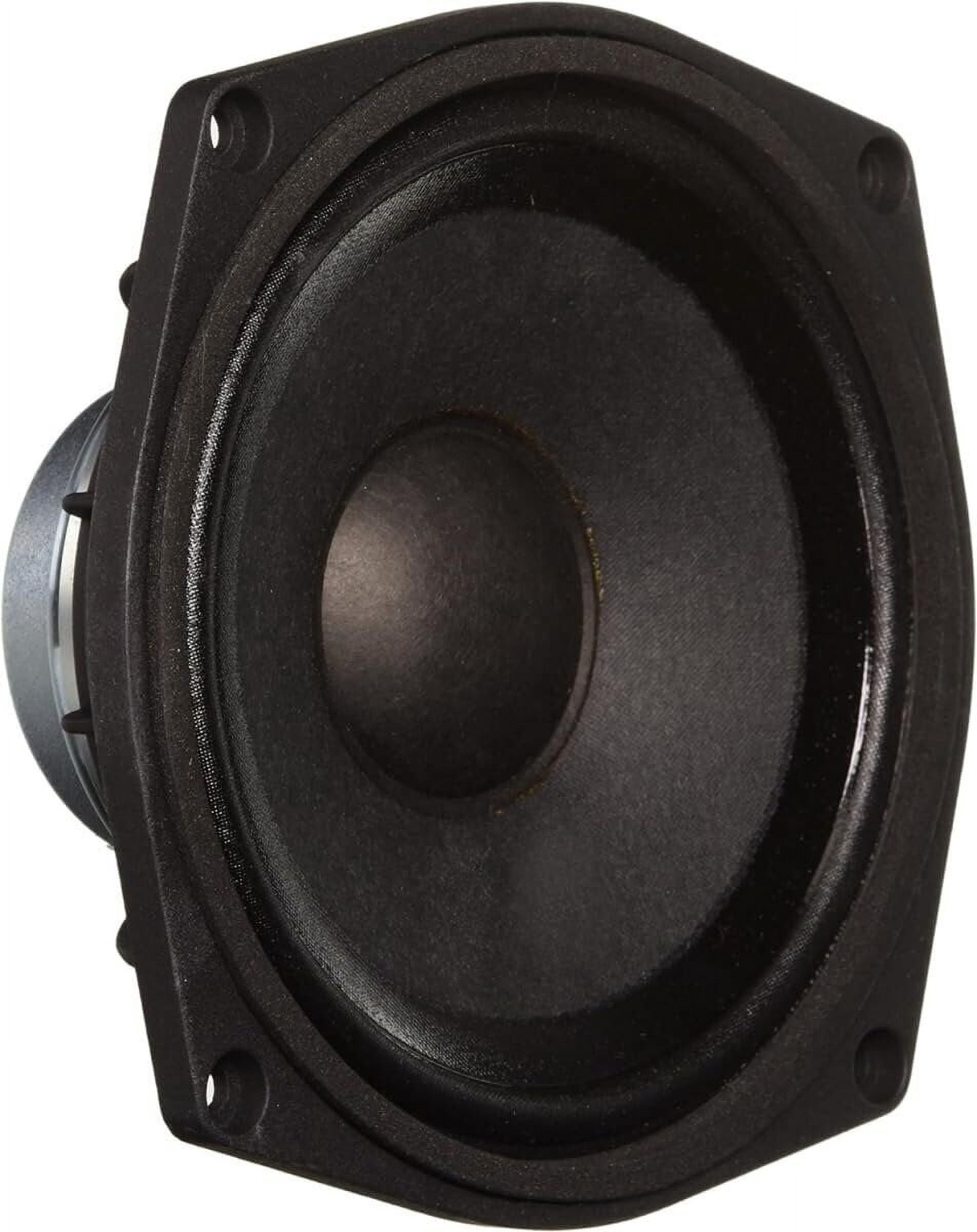

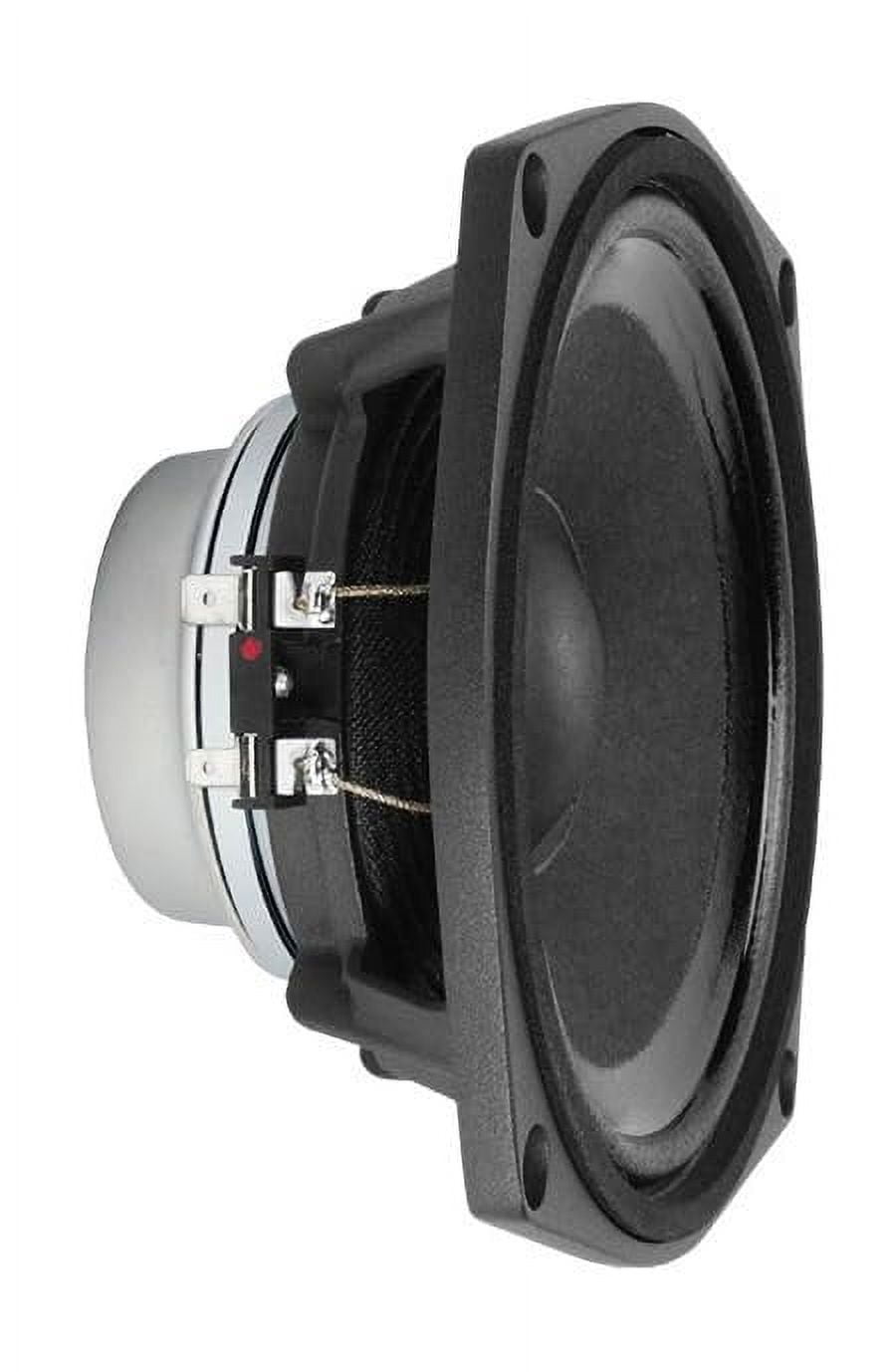

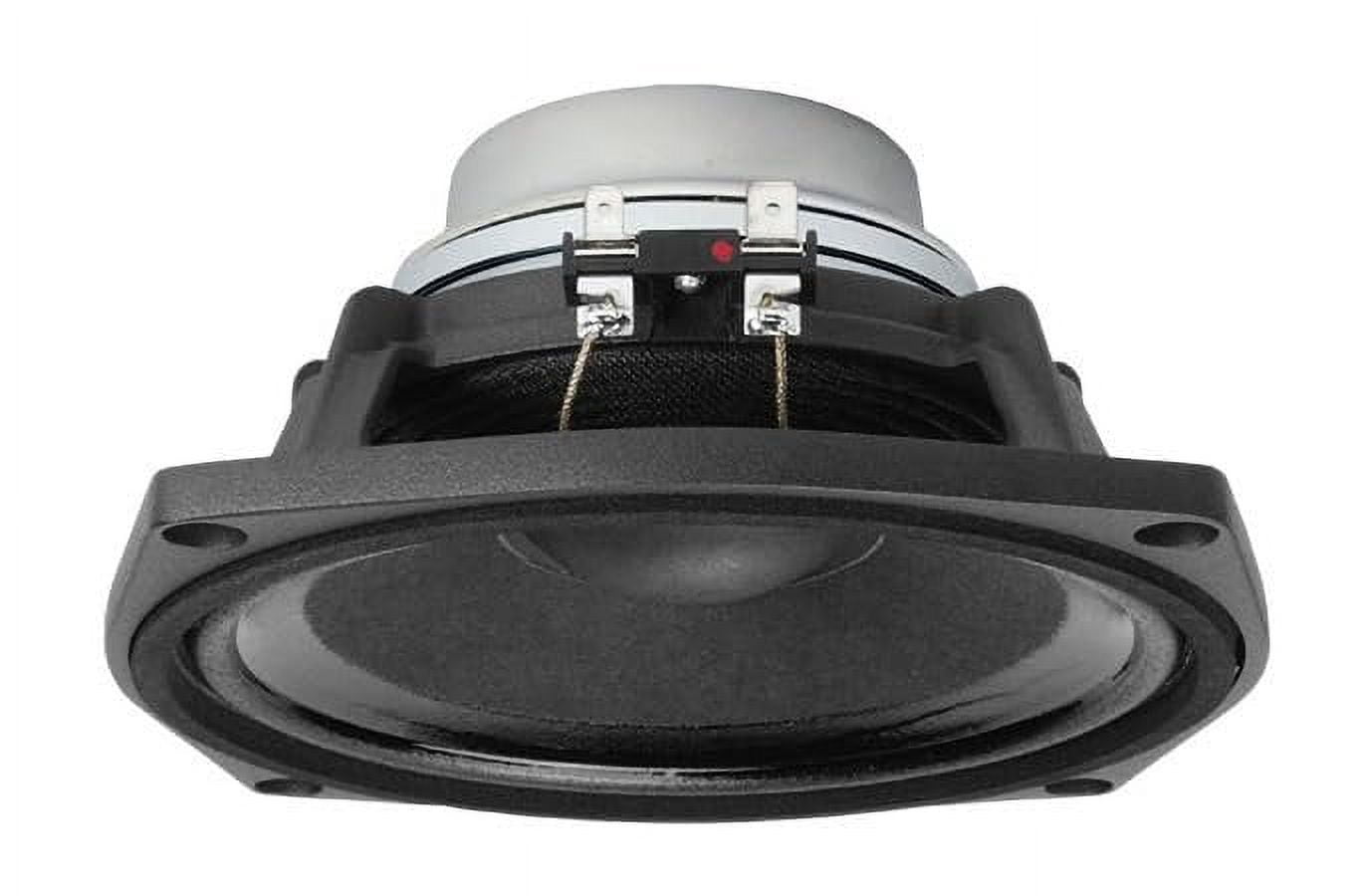

Faitalpro 6PR122-8 6" Midrange Car Speakers sku-5443464226

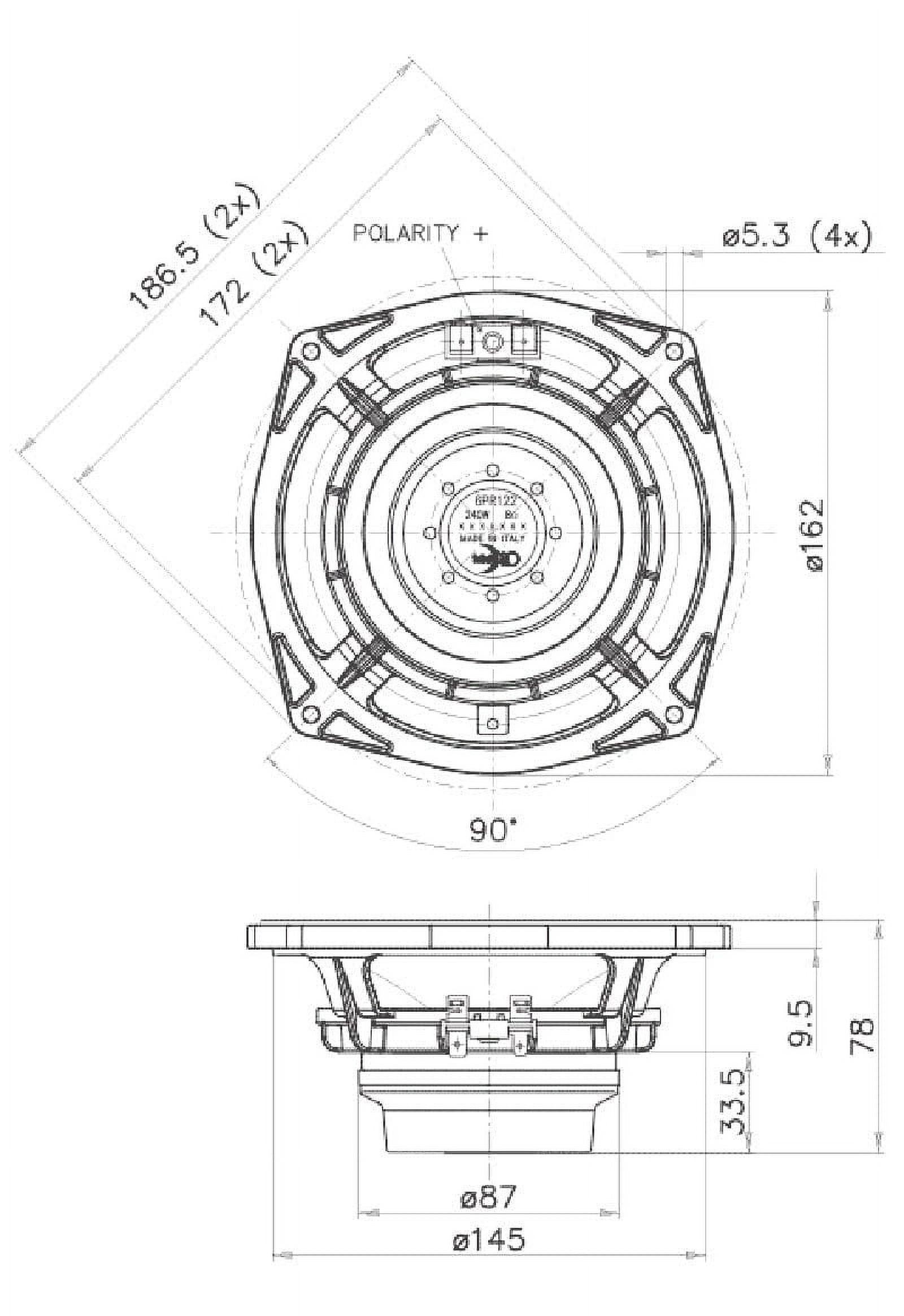

The Faitalpro 6PR122-8 is a Multicolor 6" midrange driver listed under Car Speakers. SKU: sku-5443464226. UPC: 810130951376. Also identified as 6PR122, it is designed for efficient vocal and instrument reproduction. Its neodymium ring motor, aluminum demodulation ring and aluminum basket provide a lightweight structure. AES power handling is 120 W (120W); maximum power is 240 W. Sensitivity is 97 dB at 1W/1m. Mechanical and mounting dimensions: nominal diameter 160 mm (6 in); overall diameter 186.5/162 mm (7.34/6.37 in); bolt circle 172 mm (6.77 in); baffle cutout 147 mm (5.79 in); depth 78 mm (3.07 in); flange and gasket thickness 9.5 mm (0.37 in). Net weight is 1.3 kg (2.8 lb). The single shipping carton measures 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in), and shipping weight is 1.5 kg (3.2 lb). Electrical specifications: nominal impedance 8 Ohm; minimum impedance 6.8 Ohm; AES power handling (1) 120 W; maximum power handling (2) 240 W; sensitivity 97 dB (1W/1m); frequency range 12510000 Hz. The voice coil has a 37 mm (1.46 in) diameter, Al winding, Kapton former and 7.5 mm (0.30 in) winding depth. Magnetic gap depth is 6 mm (0.24 in), and flux density is 1.6 T. The motor uses a neodymium ring magnet and aluminum demodulation ring; the basket is aluminum. The cone surround (3) is a half roll of treated polycotton. Net air volume filled by the loudspeaker is 0.38 dm^3 (0.013 ft^3), and the spider has 1x constant-height waves. Thiele and Small parameters: Fs 110 Hz; Re 6 Ohm; Qes 0.44; Qms 3.3; Qts 0.39; Vas 4.7 dm^3 (0.17 ft^3); Sd 137.3 cm^2 (21.28 in^2); Xmax (4) 2.75 mm; Xdamage (5) 11.6 mm; Mms 11.7 g; Bl 10.5 N/A; Le 0.15 mH; Mmd 9.9 g; Cms 0.18 mm/N; Rms 2.4 kg/s; Eta Zero 1.38 %; EBP 250 Hz. The Faston-terminal part number for the 8 Ohm version is 01604160. Note (1): the AES rating uses a 2-hour test according to AES 2-1984 Rev. 2003. Note (2): maximum power is defined as 3 dB above nominal power. Note (4): Xmax = [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3). Note (5): Xdamage is the maximum excursion before permanent damage.You may also like Faitalpro 6FE200-8 Midrange Car Speakers sku-18135359659.
