Unbranded DSO2512G Blue 2.8" Oscilloscope sku-8916162171

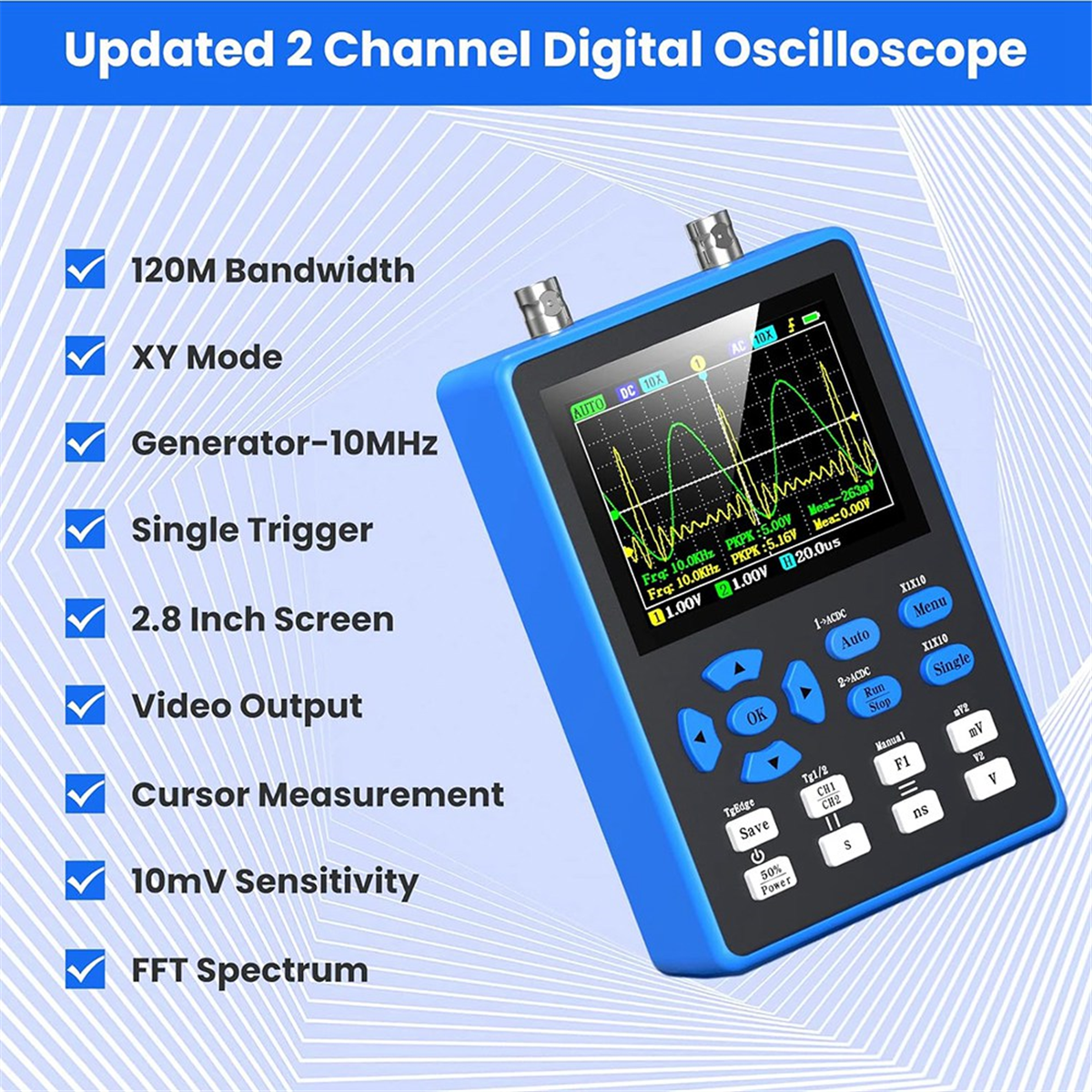

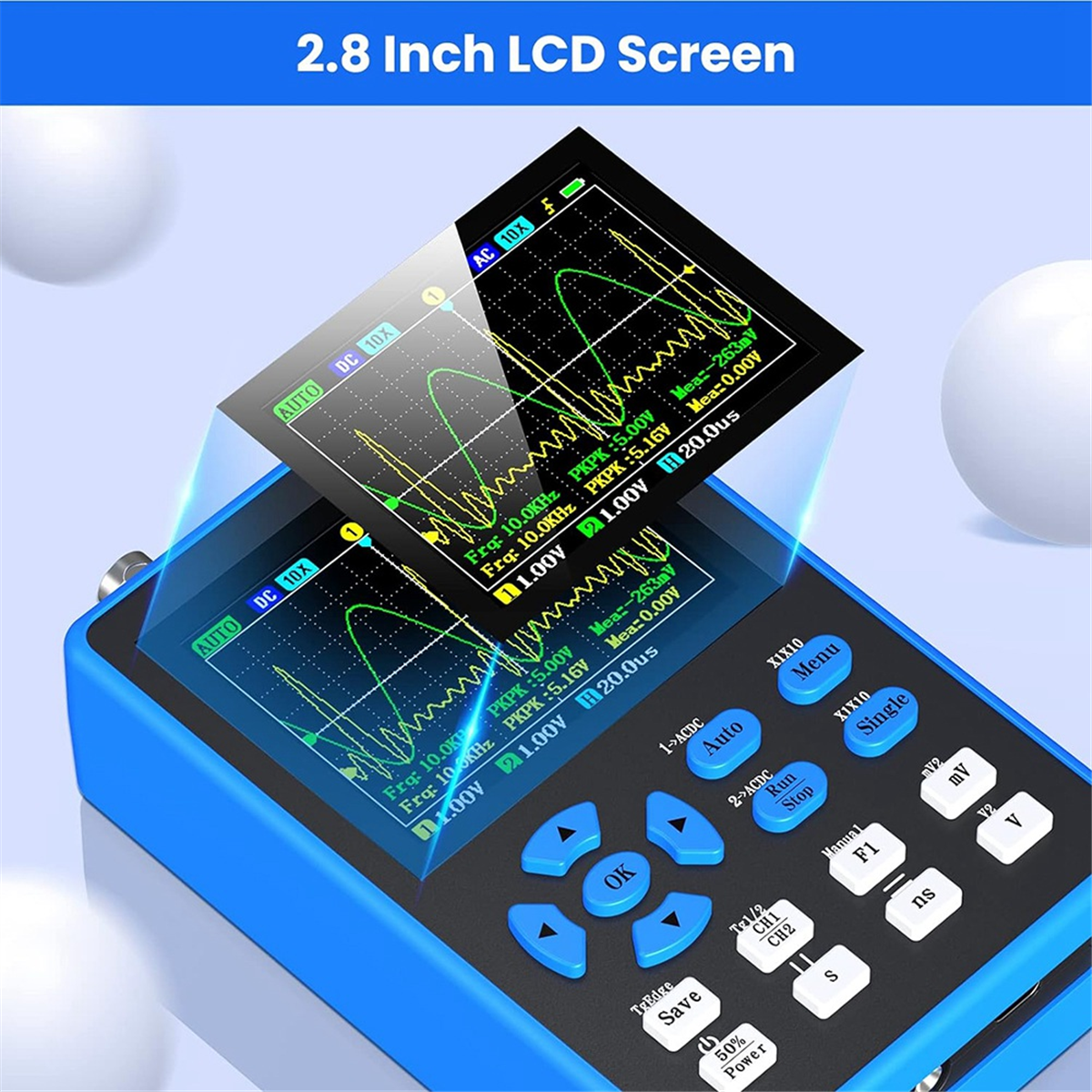

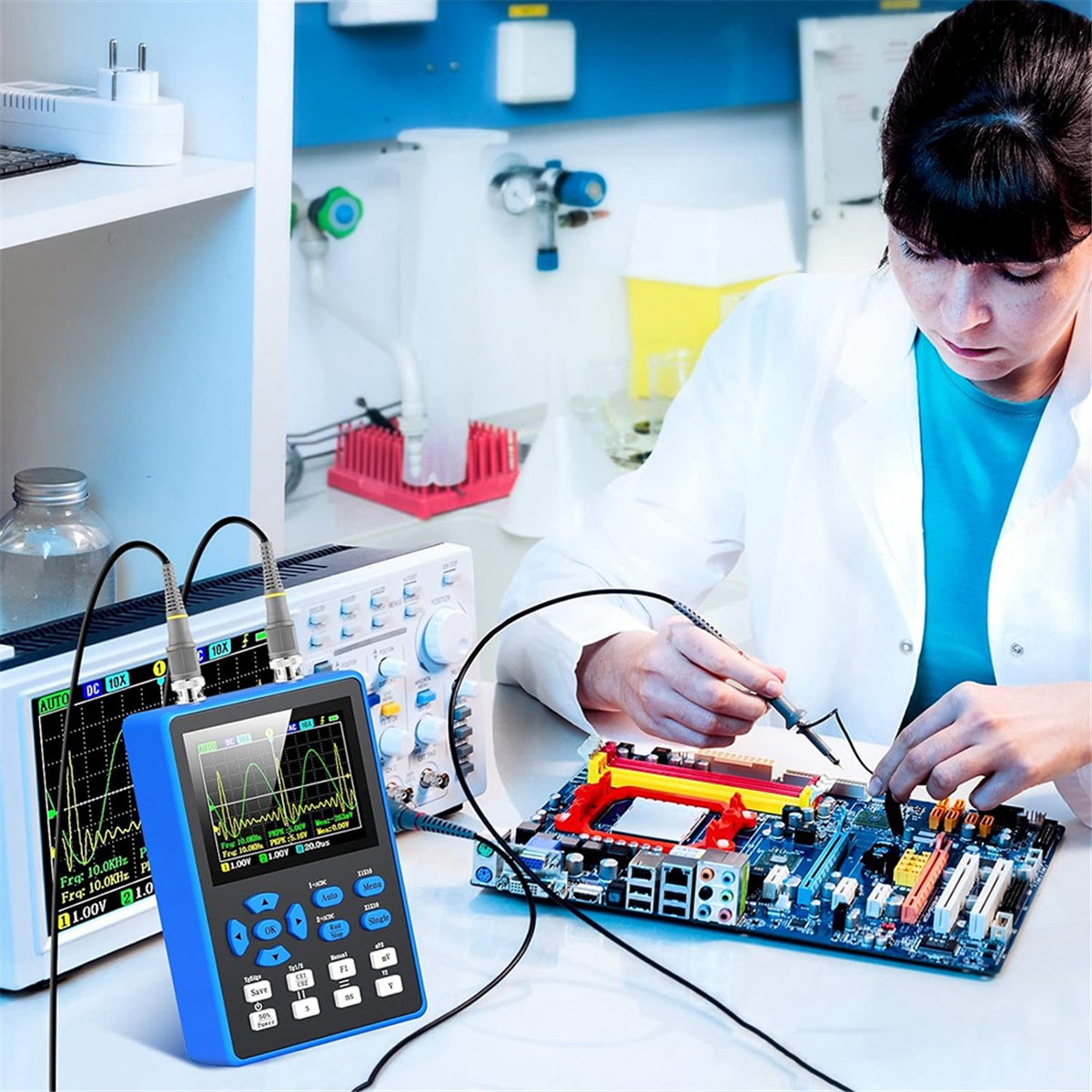

The Unbranded DSO2512G is a Blue 2.8" oscilloscope with a 2.8 Inch display for Electrical Testing (sku-8916162171). It has 2 channels, 120M bandwidth, a 10mV minimum measurement range, 500MSa/s sampling and a digital trigger system. It can be used for MCU debugging, car and home appliance repair, DIY electronics, competitions, power supplies, inverters and on-site debugging.

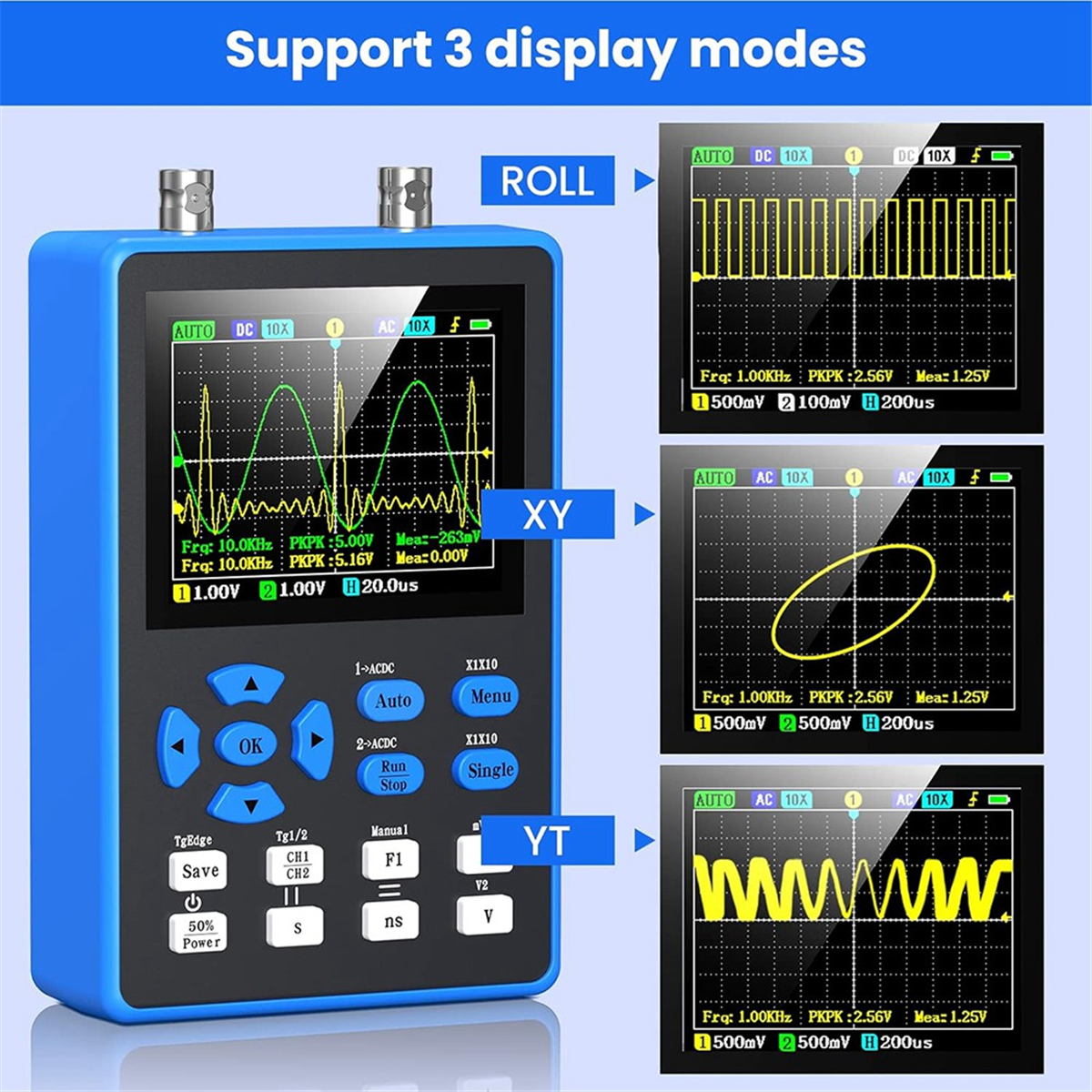

The signal generator outputs waveforms at 2.5V amplitude, including sine, square, triangle and half-wave forms. Sine-wave frequency adjusts from 0 to 10MHz; other waveforms adjust from 0 to 2MHz, with accuracy up to 0.1Hz. Its 3 trigger modes are auto, normal and single. Time base, amplitude and trigger slope can be set manually, while one-key AUTO fits the waveform to the screen.

There are 14 measurement options, including frequency, peak-to-peak value, duty cycle, amplitude, RMS, average, period, pulse widths, maximum, minimum, top and base. Spectrum display and cursor measurement support manual readings of period, frequency and voltage.
