DLB600W White Battery Capacity Tester Electronic Load 600W Power Tester Discharge Meter 200V 40A ,Fast and Accurate Precise

User manual and APP Download File Download Way and 600W(200V & 3mA40A) --Product Parameter-- Electrical parameters Test voltage:2~200V Working current:0.2~40A < 150 W (The actual running current is limited by the maximum power, please adjust the current according to the law of energy conservation) The built-in over-current, over-temperature, over-power safety protection functions, if the protection interface is popped up, please pay attention to the parameter adjustment, shall adjust to the maximum power, and then discharge, you can first slowly and smoothly adjust the preset value in the start and discharge, in order to adjust up to the maximum power for discharging Note: The discharge current is limited by the maximum power, less than 3A above 200V, and less than 40A at 15V.

(1): 1.1 Battery capacity test The tester is designed for the discharge of various batteries,18650 battery,car battery including NiMH, NiCd, LiPo, LiFe and Pb, as well as capacity testing. 1.2 Mobile power test This tester supports discharging of mobile power supply and capacity test. 1.3 Power performance test The tester supports performance and aging tests of various DC power supplies.

(2): 2.1 Power supply: DC 12V/2A 2.2 Voltage range: 0-200.00V, step 0.01V 2.3 Current range: 0.010-40.00A, step 0.01A (the current is automatically adjusted according to the power limit) 2.4 Discharge method: CC: Constant current discharge of the battery, which supports testing of battery capacity or power supply current.

CP: Discharge the battery with constant power for use or test power such as constant power equipment. 2.5 Discharge power:600W 2.6 Four wires: voltage and current channels are separated, with high test accuracy 2.7 IPS display: voltage, current, time, capacity, power, electric energy, etc.

2.8 PC connection: The tester can be connected to the computer through Bluetooth to achieve more functions, such as graphics, calibration, firmware upgrades, and test cycles. 1) Apple Mobile APP: Please search for E_test in the application store to download and install, then click the Bluetooth APP icon to open the software, and then click the Bluetooth icon above the software to enter the selection DL24-BLE to connect, you can achieve mobile phone remote wireless remote control settings and Measurement function, the discharge status can be viewed at any time on the mobile phone, various data cleaning is visible, the voltage and current power curve of the discharge, etc. 2) phone APP: Scan the QR code on the back of the host to download the corresponding APP software or APP: search E-test at Google play to down load .

After the installation is complete, open the software and click the Bluetooth icon to enter the direct selection of DL24-BLE to successfully use it online. (No need for Bluetooth pairing, the software Bluetooth icon directly selects DL24. can) 3) Computer Bluetooth wireless online APP: First add the Bluetooth device to the serial port device of DL24-SPP on the computer, then scan the QR code on the back of the host to download the corresponding APP software and store it.

Open the software without installing and select the Bluetooth serial port model just added. You can successfully use online Through testing various DC power adapters Play and measure the current, voltage, power and other parameters of various DC power adapters Use the DC power supply to connect the DC independent power supply port of the load meter, and then use the "Settings" button to connect as shown in the figure below.

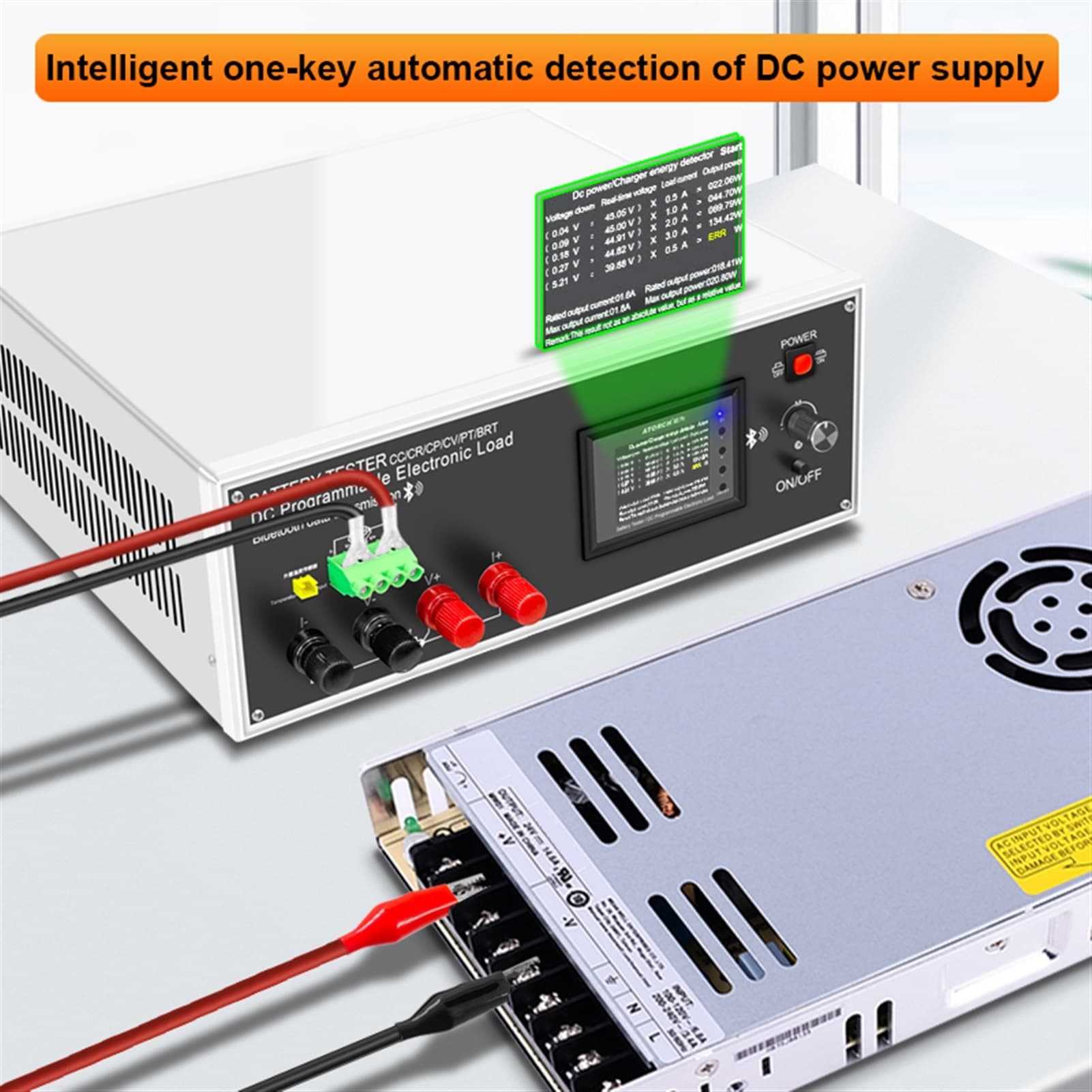

Precisely adjust the current to test the voltage and rated current of the power supply The DC power supply can also be aged for a long time, with strong functions, simple operation, convenient and quick testing Intelligent one-key full automatic detection of DC power supply PT mode of charger current power performance Press and hold the M button in the menu until the mode bar flashes, wait a while after pressing the ten-key PT mode Automatically enter the DC power supply/charger auto-detector mode, then in your tested power supply and Charger, then short press the start button, it will automatically start to run for a period of time and then report Displays 4 kinds of important numerical results, making complicated tests instantly simplified, accurate, and easy to use DLB-600W Product List 1.600W battery tester 1pcs 2.

DC12V 2A power supply 1pcs 3.10A red and black alligator clip cable 1set 4. Temperature probe 1pcs 5. Adapter board 1pcs 6. to adapter 1pcs Related Products: battery load tester,battery tester,car battery tester,load tester,automotive battery tester,voltage tester,attery capacity tester,battery testers,multimeter tester,battery tester automotive,usb tester,auto battery tester,automotive tools
