Digital oscilloscope DSO-TC3 transistor tester LCR meter three in one

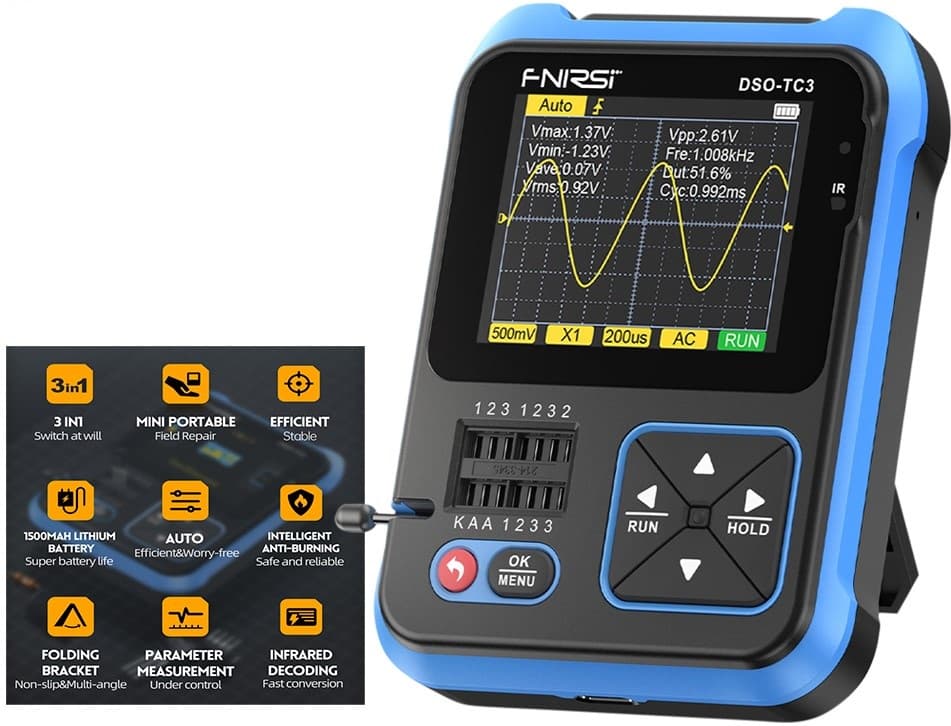

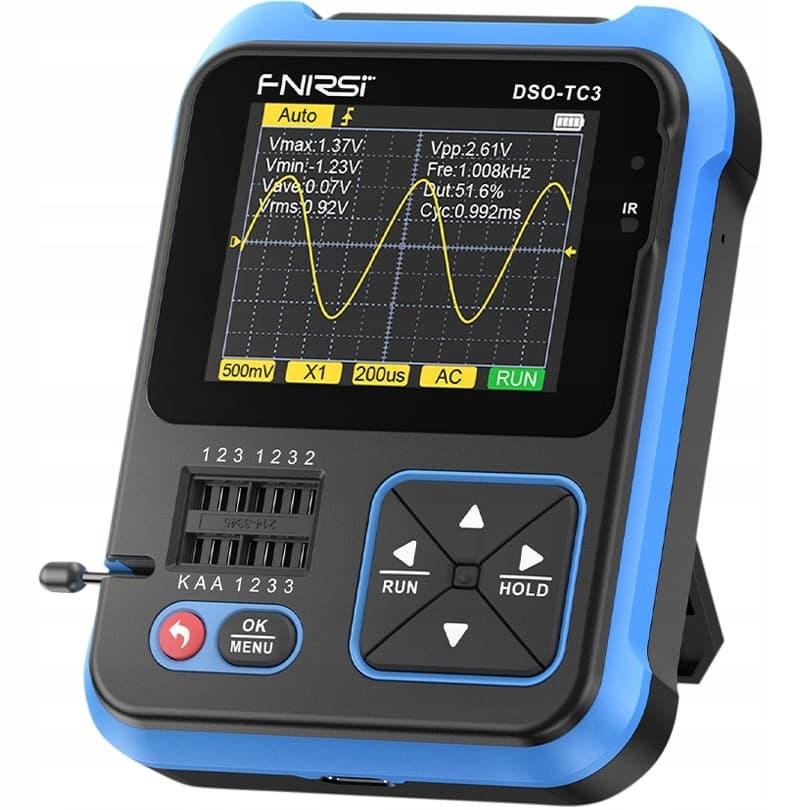

DSO-TC3 three in one oscilloscope measurement equipment The FNIRSI DSO-TC3 device combines three main functions: digital oscilloscope Electronic component tester signal generator In addition, it cleverly integrates functions such as conductivity testing, voltage testing, temperature and humidity measurement, and infrared decoding. The instrument panel is equipped with a 2.4-inch color TFT display and a built-in rechargeable lithium battery, ensuring efficient operation and easy portability, thereby providing better functionality. This device is very suitable for those who value portable multifunctional devices for measuring and testing electronic components. Main features of the product: Three in one equipment: combination of digital oscilloscope, LCR tester, and DDS generator 2.4-inch LCD TFT display - easy to control devices and easily read measurement results Powered by a 1500 mAh battery Charging through USB-C connector Widely used in electronic product work Digital oscilloscope: Measure analog signals with a bandwidth of up to 500 kHz It has a channel It allows you to detect signal changes in real-time at a sampling rate of 10 MS/s It allows you to measure the frequency, period, and duty cycle of the signal Accurate signal measurement is achieved through three triggering modes: automatic, normal, or single measurement LCR tester: It allows you to measure the capacitance, resistance, and inductance of electronic components It has a signal generator that includes sine wave, square wave, triangular wave, pulse, and DC Specifications - Digital Oscilloscope: Number of channels: 1 Simulated bandwidth: 0 to 500kHz Input resistance: 1M Ω Coupling method: AC/DC Real time sampling rate: 10 MS/s Test voltage range: 1X: 40V/10X: 400V Vertical sensitivity: 10mV/Div to 10V/Div Vertical offset: adjustable Horizontal time base range: 10us/Div to 500s/Div Trigger method: automatic, normal, single measurement Trigger type: rising edge, falling edge Trigger level: adjustable Stop measurement: HOLD function Parameter measurement: frequency, cycle, duty cycle Size: 79 x 103 x 31 (millimeters) Specifications - LCR tester: Transistor tester: JFET, IGBT, MOSFET Diode test:<4.5V ESR measurement of capacitors Capacitance: 25pF to 100mF Resistance: 0.01 Ω to 50M Ω Inductance: 10uH to 1000uH Battery: 0.1 to 4.5V Input voltage: 0 to 40V PWM output: 1.5 kHz to 9.99 MHz Specifications - Signal Generator: Signal: Sine wave: 1-100kHz, 3.3V/50% Signal: Square wave: 1-100kHz, 3.3V/50% Signal: Pulse: 1-100kHz, 3.3V/50% Signal: Triangular wave: 1-100 kHz, 3.3V/50% Signal: Slope type: 1-100 kHz, 3.3V/50% Signal: DC: 0-3.3V Other specifications: Display screen: Color 2.4 "LCD TFT Power supply: 1500mAh battery Charging: USB C-type, 5V Dimensions: 79 x 31 x 103 mm The set includes: 1x 3-in-1 FNIRSI DSO-TC3 oscilloscope measurement equipment 1x P6100 high-pressure probe 1x probe with crocodile clip 3x test head with hook 1 adapter 1 USB-C power cord Information! Due to differences in the type, intensity, angle of light, and monitor settings, the colors in the photo may differ from the actual colors.
