DIAMOND AUDIO MSMS692LK 2014+ HARLEY DAVIDSON CUT-IN LID KIT WITH MS692CXP 6"x9" (2Ω)

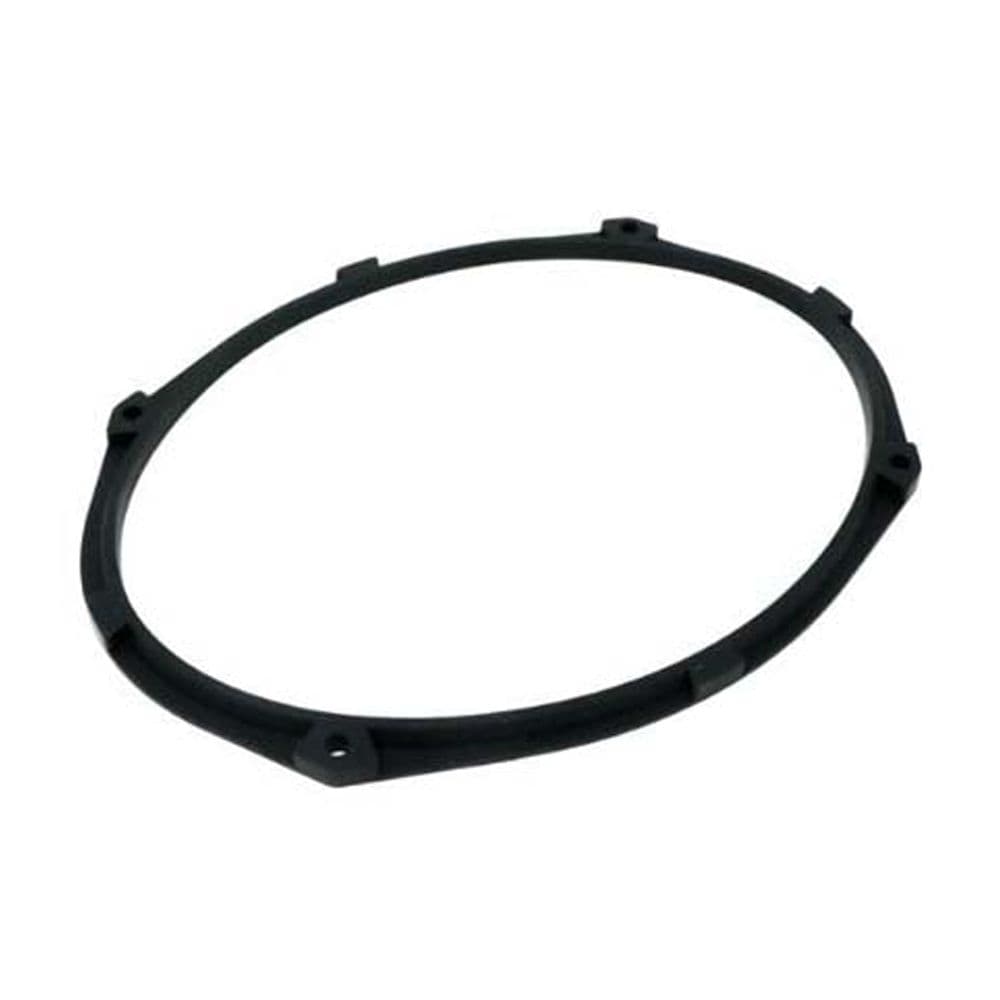

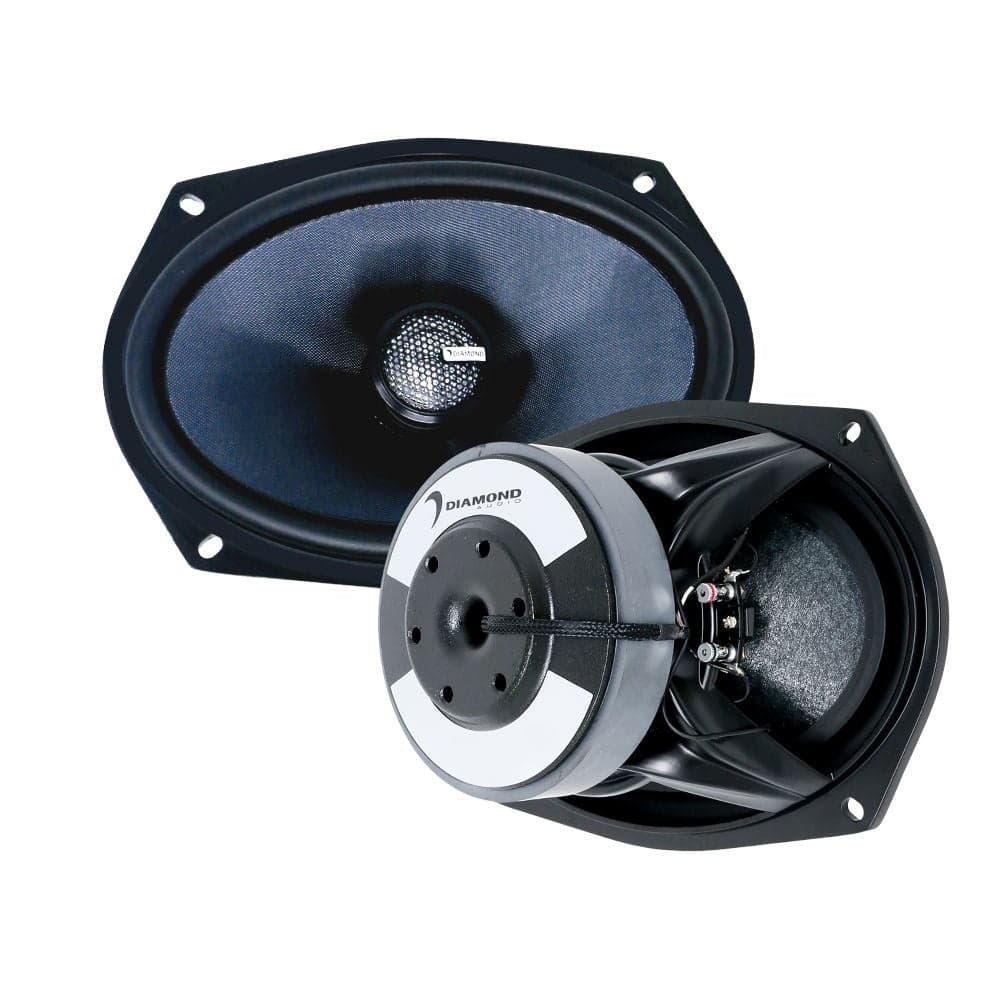

Overview: Complete cut-in lid solution for 2014+ Harley Davidson models featuring the MS692CXP Motor Sports marine-grade 6" x 9" speaker. This kit (MSMS692LK) is built for high-output sound and simple installation. What’s included: .5” 6” x 9” spacer ring; MS692CXP Motor Sports 2Ω 6” x 9” marine grade speaker; Plug-n-Play wire harness with DLED. Key electrical/performance specs: Nominal Impedance (ohms): 2Ω. RMS Power Rating: 130W. Max Power Rating: 260W. Power Handling (RMS/Peak): 130W/260W. Frequency Response: 45Hz-23kHz. Sensitivity (1W/1M): 93.5 dB. Type: 2-way. Driver and mechanical details: Speaker Size: 6"X9" (152.4mmx228.6mm). Nominal Diameter (inch/mm): 6.574” x 9.37” (167mm/238mm). Mounting Diameter (inch/mm): 5.98” x 8.85” (152mm x 225mm). Mounting Depth: 3.81” (97mm). Voice Coil Diameter (inch/mm): 1.661 (42.2mm). Xmax - Inch(mm): 0.315 (8). Thiele-Small parameters: Qts: 0.51. Fs - Free Air Resonance (Hz): 46Hz. Vas (Liter): 22.5. Product ID/Description: 2014+ Harley Davidson Cut in Lid Kit with MS692CXP - MSMS692LK (2Ω). Ideal for riders seeking a factory-style install with marine-grade speakers and plug-and-play wiring.
