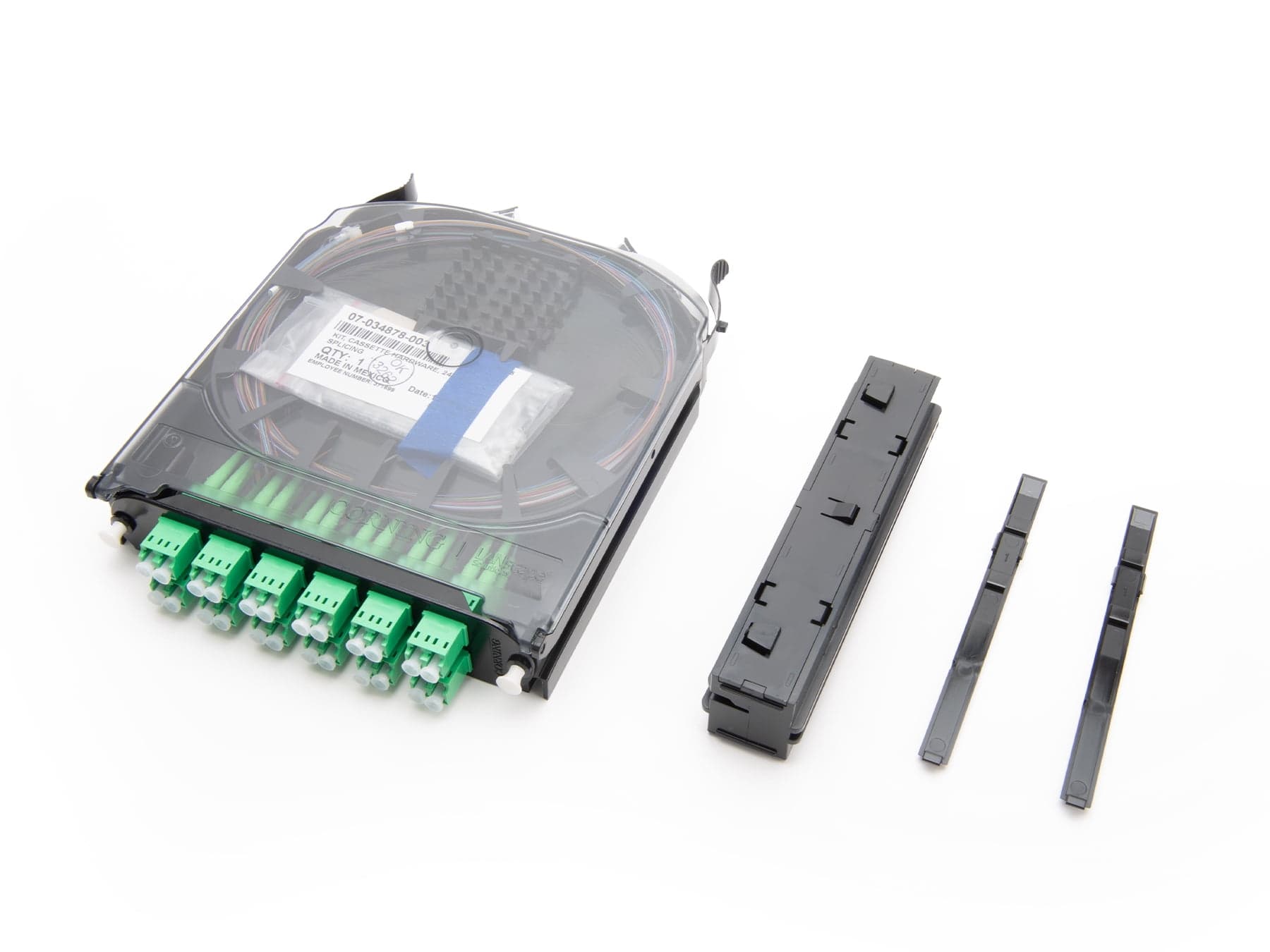

Corning CCH-CS24-B3-P00RE 24-Fiber Splice Cassette — LC Duplex Singlemode (OS2), Single-Fiber (250 um), APC Polish

Compact splice cassette from Corning engineered for enterprise networks and data centers. This CCH-series module supports 24 fibers and is configured for LC duplex adapters with APC polish. It is designed for fusion splicing and uses single-fiber heat-shrink splice protectors (24 protectors included). Key specifications and features: - Product type: Rack-mountable hardware - Mounting type: CCH housings; also suitable for wall-mountable installations - Panel/Module type: CCH - Application: Enterprise Networks, Data Center - Cable type: Ribbon Fiber - Fiber category: Single-mode (OS2) - Splicing technology: Fusion Splice - Connector configuration: LC duplex - Adapter type: LC duplex - Connector polish: APC - Fiber count: 24 - Single-fiber size: 250 um - Splice protectors: Single-fiber, heat-shrink; Number of splice protectors: 24 - Approvals/listings: Meets ANSI/TIA/EIA-568A and 606 - Chemical compliance: RoHS — free of hazardous substances according to RoHS 2002/95/EG - Units per delivery: 1/1 Dimensions: - 162 mm x 35 mm x 200 mm (6.4 in x 1.4 in x 7.9 in) - Overall (HxWxD): 5 cm x 20.3 cm x 36.8 cm (2 in x 8 in x 14.5 in)
