Bell & Gossett BNG00015408001 | sku-673895398 Zeus 3S

Name: Bell & Gossett BNG00015408001 | sku-673895398 Zeus 3S
Brand: Bell & Gossett
SKU: prod_117caab8f06085f606143a77
Price: 3248.75 USD
Availability: InStock

No rating yet(0 ratings)

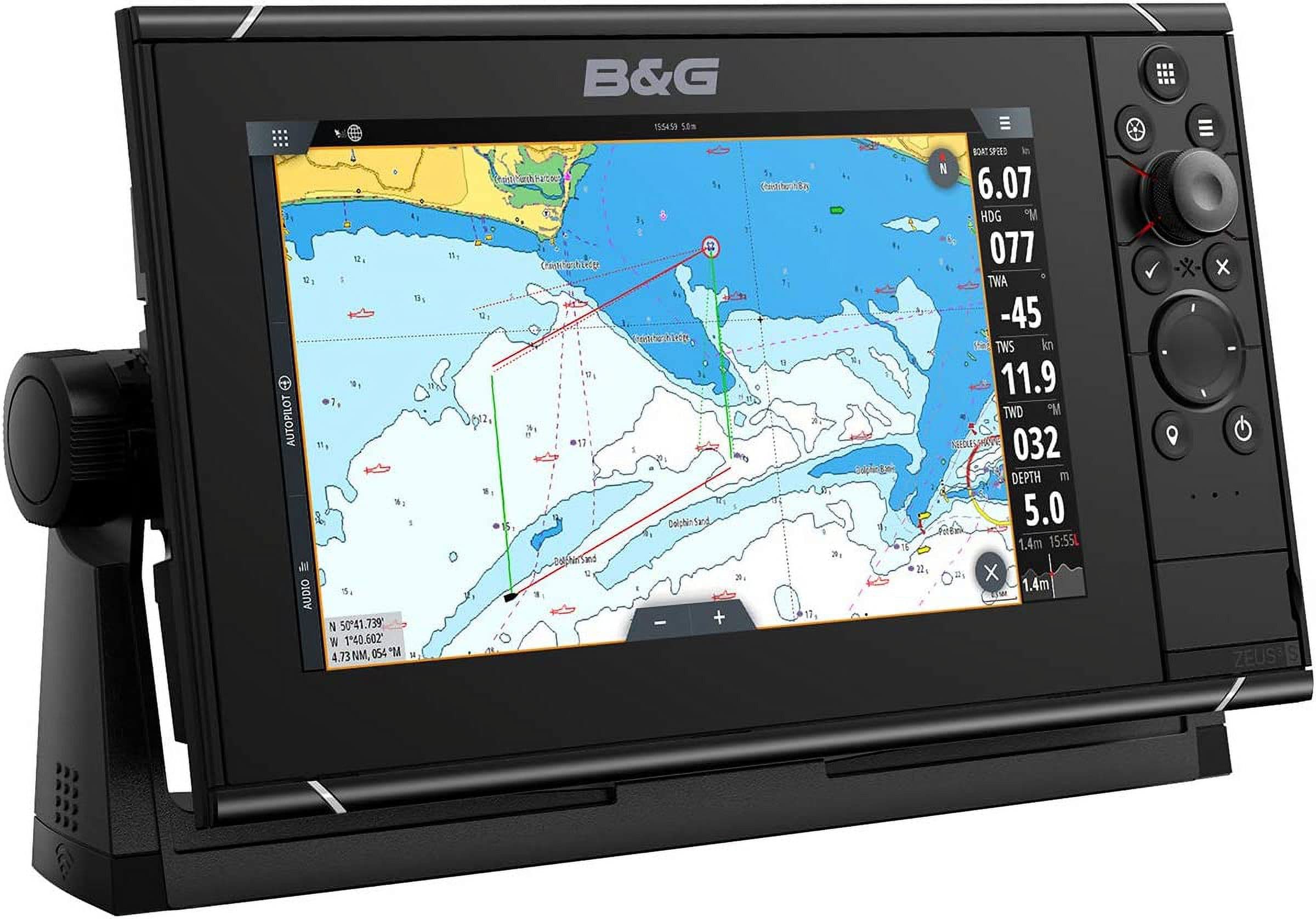

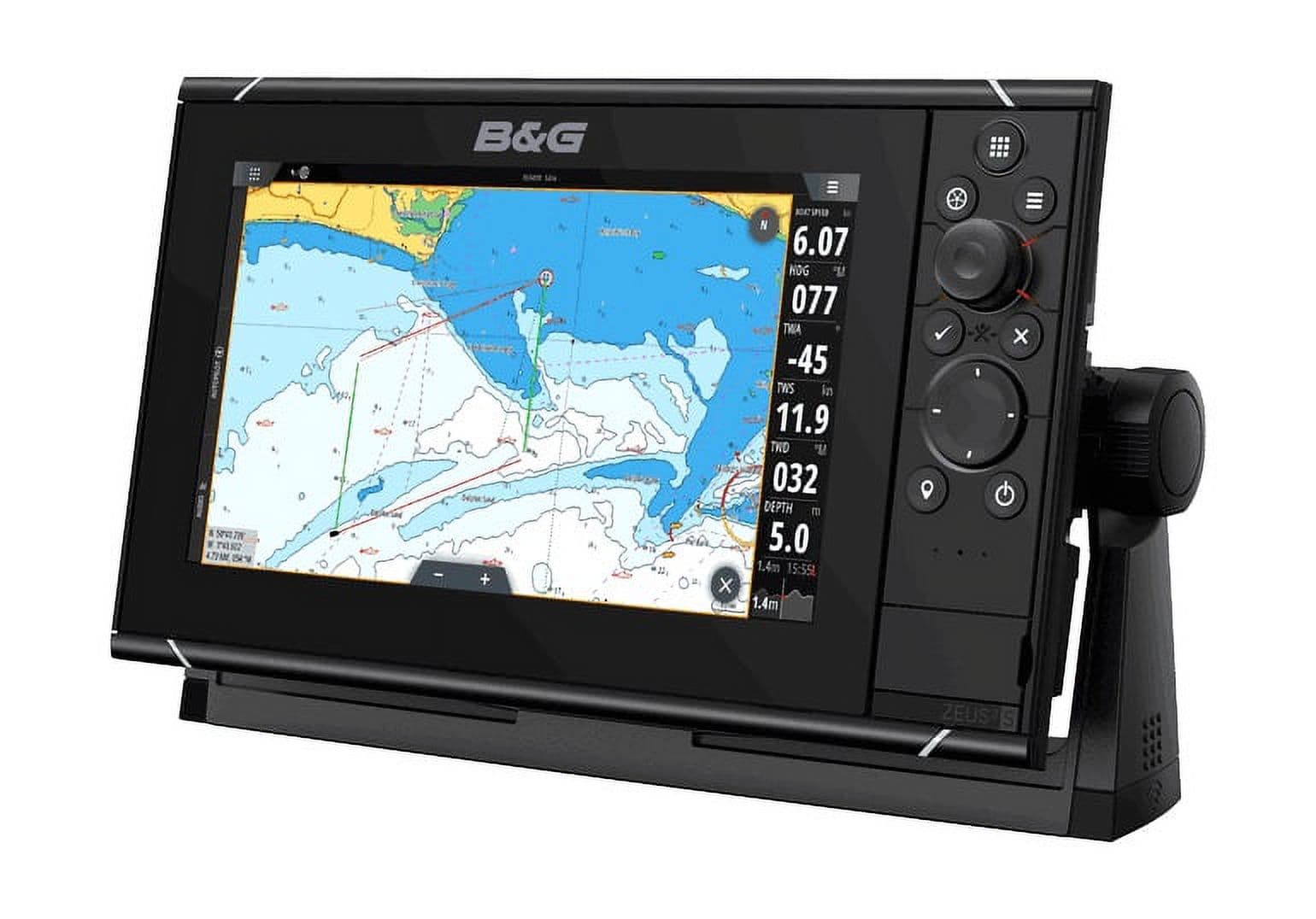

Bell & Gossett BNG00015408001, sku-673895398, is a Multicolor Fishing chartplotter listed as the B&G Zeus3S 9 with C-MAP Enhanced Chart, part 000-15408-001. Its 9-inch SolarMAX IPS touchscreen has a rotary dial and keypad and can show up to 6 information panels.

Sailing tools include SailSteer, Laylines, SailingTime and RacePanel; connections include built-in Wi-Fi, Bluetooth, NMEA 2000 and 0183, and support for Halo Radar, ForwardScan, autopilot control, H5000, Naviop, CZone and SonicHub. It supports C-MAP and Navionics charts. The supplied specifications also list a 7-inch display; confirm the display size before ordering.

Physical dimensions are 287 x 166 x 90 mm (11.30 x 6.55 x 3.50 inches), or 311 x 180 x 95 (11.30 x 7.07 x 3.72) with bracket; weight is 1.41kg/3.11lb. Operating range is -15°C to +55°C (5°F to 131°F), storage range -20°C to +60°C (4°F to 140°F), with 100,000 cycles of 20G shock vibration and IPX6 and 7 water resistance. Supply is 10 to 31.2 V DC with a 5A fuse and 21W maximum consumption.

Display specifications list 600 x 1280 resolution, 1200-nit brightness and 80° viewing angles. Connections include 1 Ethernet connector, 1 NMEA 2000 port, 1 NMEA 0183 transmit and receive connection at 4800, 9600, 19200 or 38400 baud, and 2 video inputs; the optional cable is 000-00129-001. Sonar ranges are 40-250kHz and 455-800kHz, with a stated 3000-foot-plus maximum depth and 1kW output.

GPS has a 10 Hz update rate, 34 channels, 3 m (9.8 ft) horizontal accuracy, a 50-second cold start and 5-second reacquisition. It has 2 MicroSD slots supporting up to 32GB each, or larger cards formatted to NTFS, plus 16 GB internal storage. Capacity is 6000 waypoints, 500 routes with 100 points each, and 50 tracks with up to 12,000 points.

Listed accessories and functions include OP50 remote support, 9-pin sonar ports, WM-3 weather support, autopilot modes and multilingual menus. The box includes the display, mounting bracket, dash mount kit, edge bezels, sun cover and 4-pin power cable.
