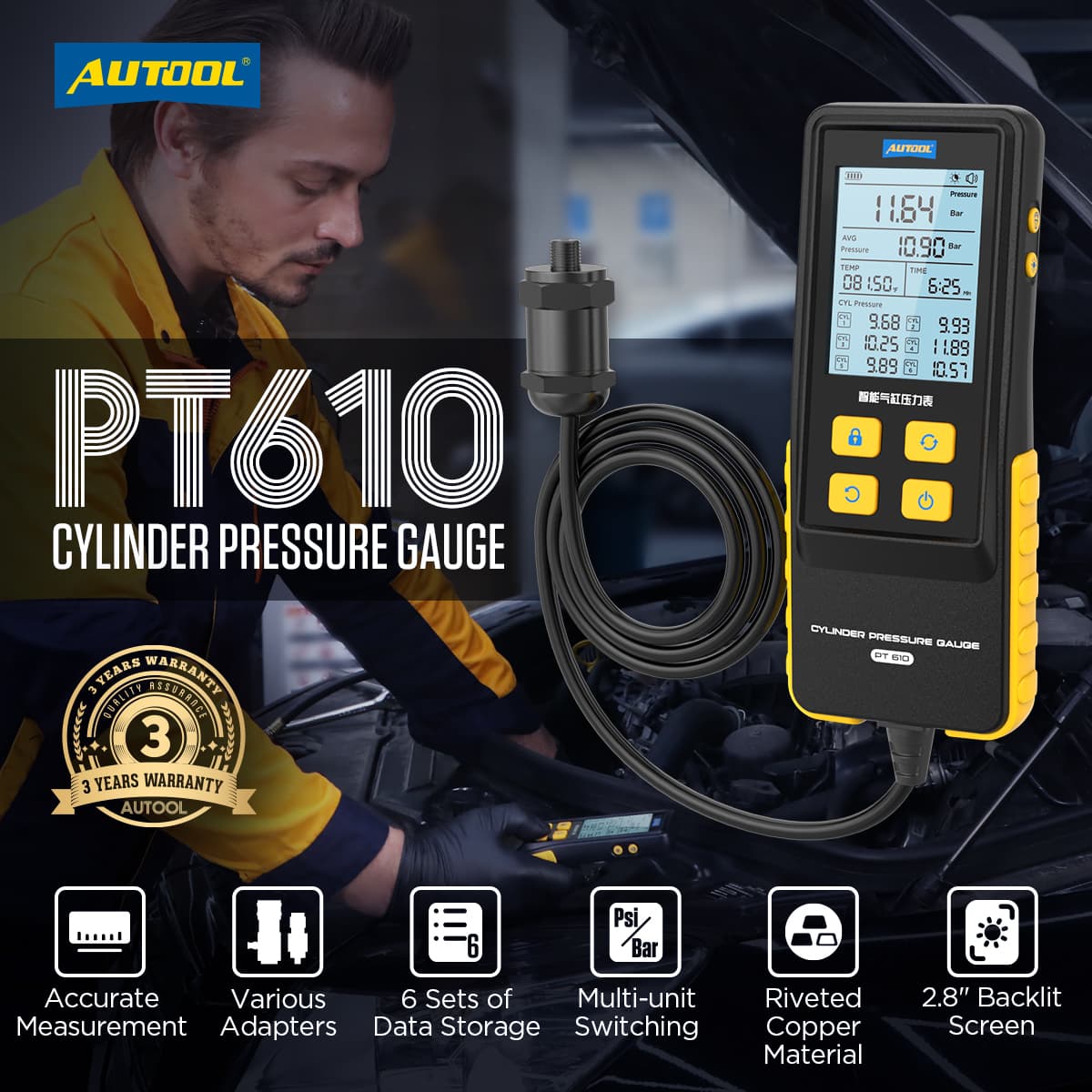

AUTOOL PT610 LCD Digital Engine Cylinder Compression Pressure Tester, 0-426.6psi Smart Petrol Engine Cylinder Compression Pressure Gauge Tool Kit With Datas Storage

PT610 Digital Cylinder Pressure Tester Features: Digital Measurement System PT610 featuring a wide measurement range,high accuracy, and measurement values accurate to two decimal places. Pressure range: 0~426.6psi, 0~29.4bar, 0~30Kg/cm².

Selected Riveted Copper Material The cylinder pressure meter adapters are made of riveted copper with high hardness, high wear resistance and oxidation resistance. 2.8'' HD Screen Display Automotive cylinder pressure meter display includes a back-light design that allows it to be used in dimly lit condition.

For each test result, the display is broken into lines, making each piece of information more intuitive and clear at a glance. Data Saving: With data hold and save function, up to 6 sets of measurement data can be saved. Cylinder measurement data that can be easily recorded and viewed by the user. Compression tester with quick release valve button for fast pressure release.

Automotive Cylinder Pressure Tester Operation Steps: 1. Remove the spark plug. 2. Connect adapter for vehicle model to measuring probe. 3. Reset the pressure value to zero before testing. 4. Connect the measuring probe to the engine. 5. Start engine to rotate crankshaft. 6. Pressure gauge displays measured pressure.

Warm Tips: In order to make the measurement work more accurate, need to be in the normal water temperature test work! AUTOOL PT610 Package List: 1 x AUTOOL PT610 Cylinder Pressure Tester 1 x HP connecting line with safety lock 1 x Rubber connecting line with safety lock 1 x M18x1.5 1 x M16x1.5 1 x M14x1.25 1 x M12x1.25 1 x M10x1.0 1 x Bent test line with rubber stopper 1 x Straight test line with rubber stopper 1 x Package Box 1 x Storage Case 1 x Manual
