Autool SDT208 Yellow Smoke Leak Tester sku-11224015524

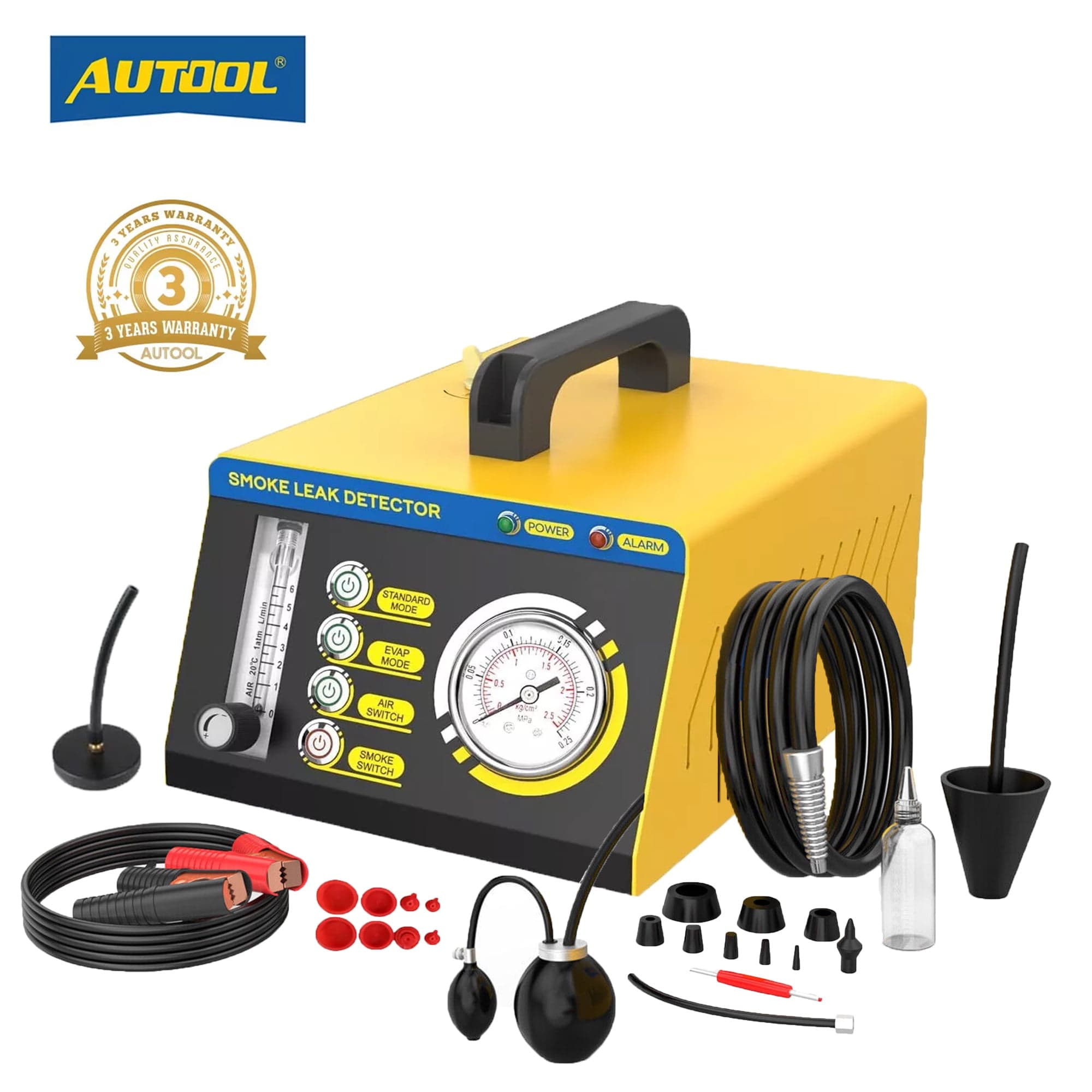

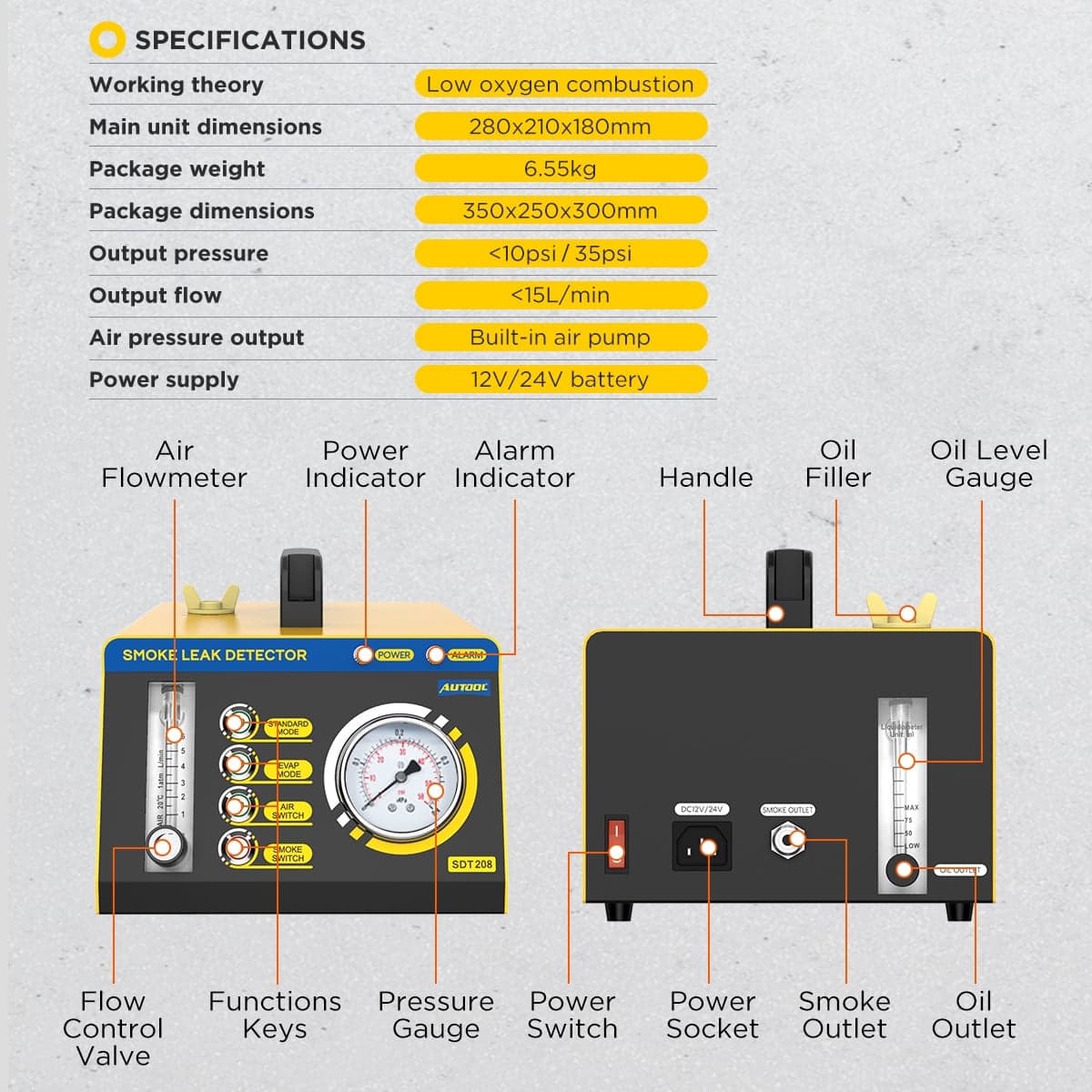

The Yellow Autool SDT208 smoke leak detector is listed under Diagnostic and Test Tools. It measures 11.02" x 8.68" x 7.09"; UPC 728990667262; SKU sku-11224015524. The product title lists 12V/24V and pressure settings of 10 PSI and 35 PSI, while the operating instructions specify a DC12V car battery. Standard mode reaches up to 35 PSI and is described for cars, large pickups and SUVs.

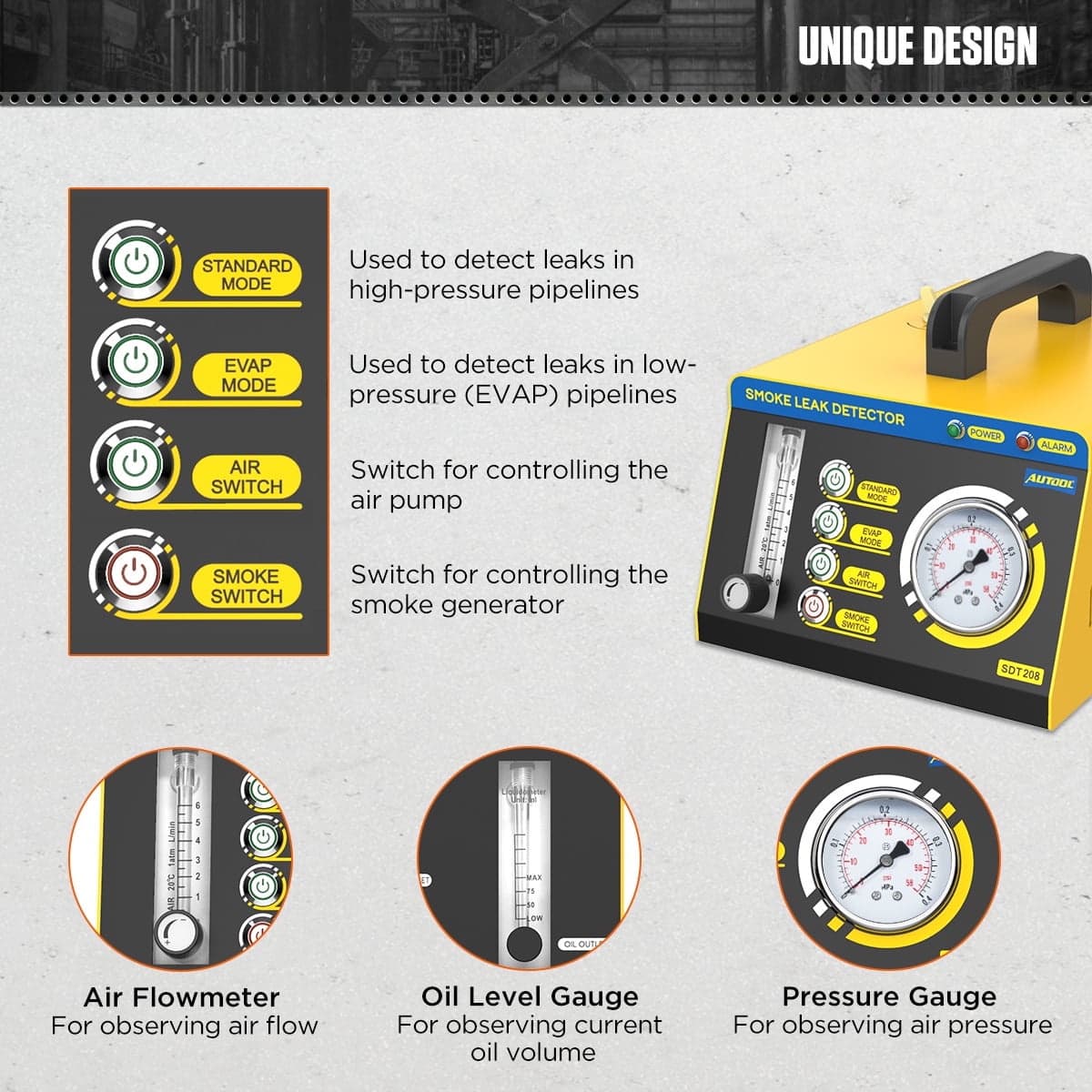

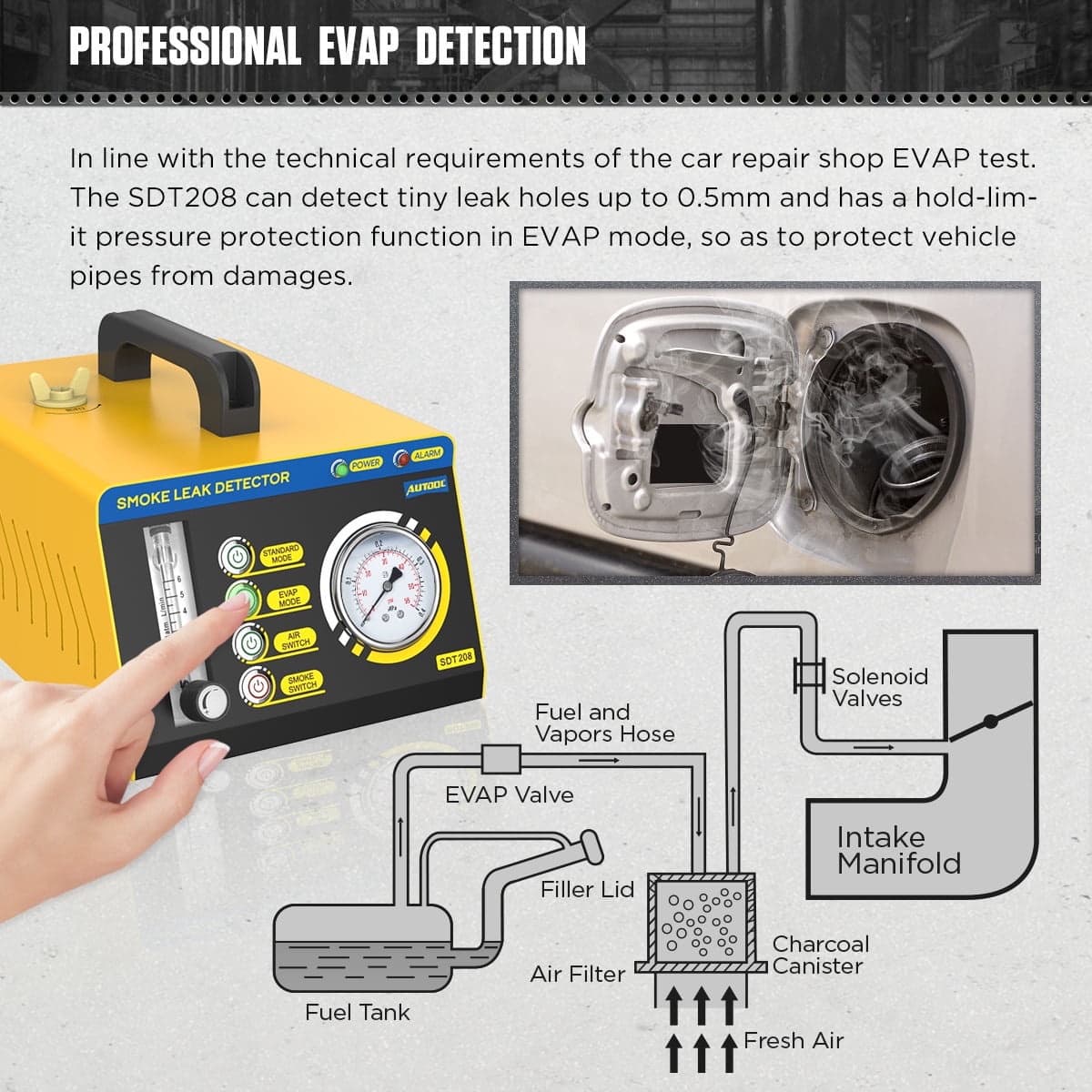

EVAP mode stays below 10 PSI. The modes have independent switches but cannot run together. The unit supplies its own air, has a pressure-holding function, and produces smoke within 10 seconds to help locate pipe leaks as small as 0.5mm. Its smoke is described as non-toxic; the engine need not be running during a test.

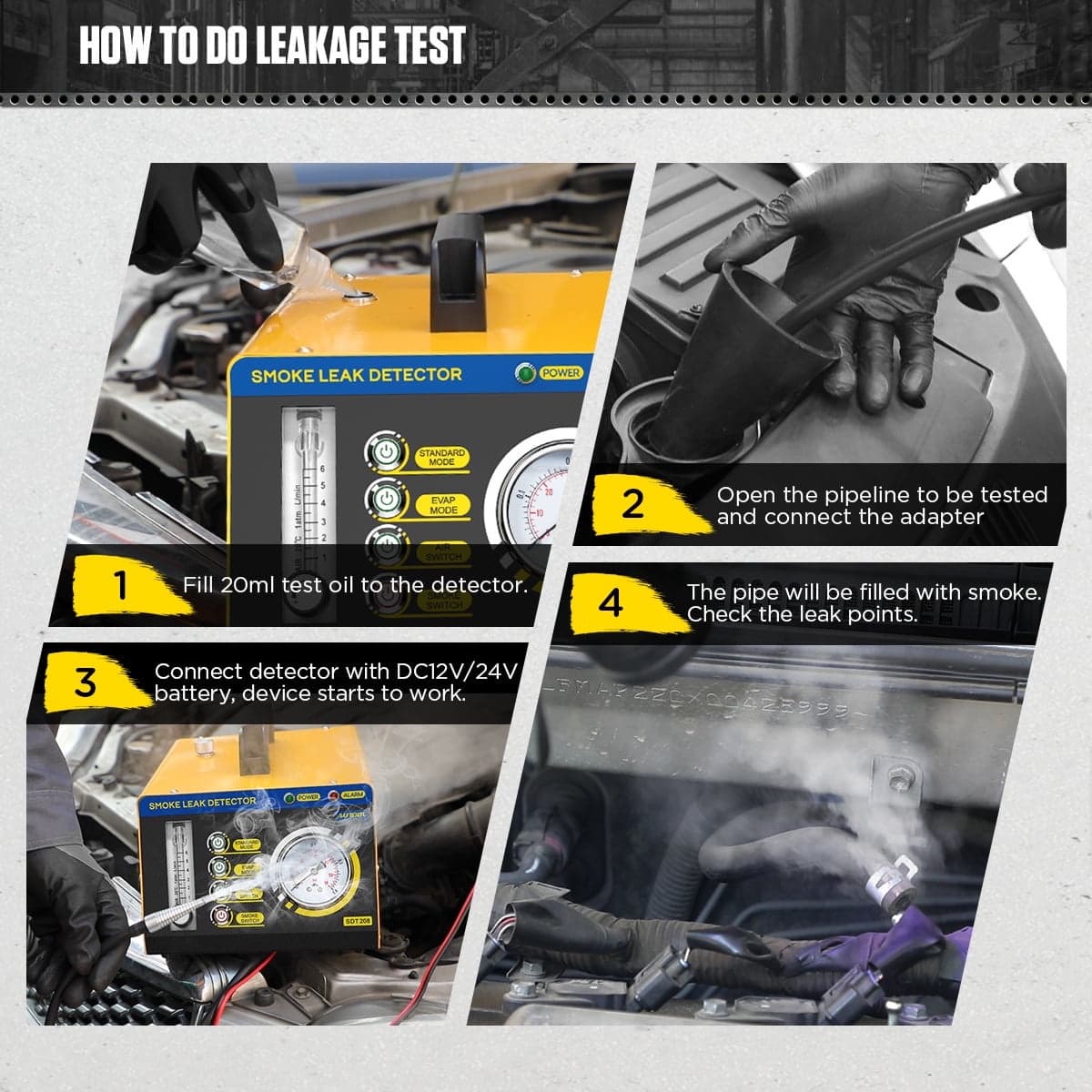

A hook lets it hang from a hood latch, and the conical adapter fits most intakes. To test a pipe: 1. Add 10ml to 20ml of test oil. 2. Open the pipe. 3. Fit the universal airbag adapter to the sealed pipeline and connect the smoke duct. 4. Connect the unit to the battery. 5. Check the smoke-filled pipeline for leaks. Use liquid paraffin or baby oil. 6.

Replace the oil regularly, adding fresh oil only when the smoke thins. 7. Keep smoke away from smoke-sensitive parts. 8. Do not run the unit continuously for more than 8 minutes; let it rest between runs. 9. Avoid touching the heated round section. 10. If a test pipe must be disconnected, secure its other side with a rubber stopper. 11. Keep the unit out of water and other liquids. 12.

Store it away from strong light and high temperatures. 13. Cool it with external airflow, not liquid. The unit shuts off if it exceeds its working limit, such as 75 °C. The store describes its products as 100% original and lists a three-year warranty and lifetime technical support.
