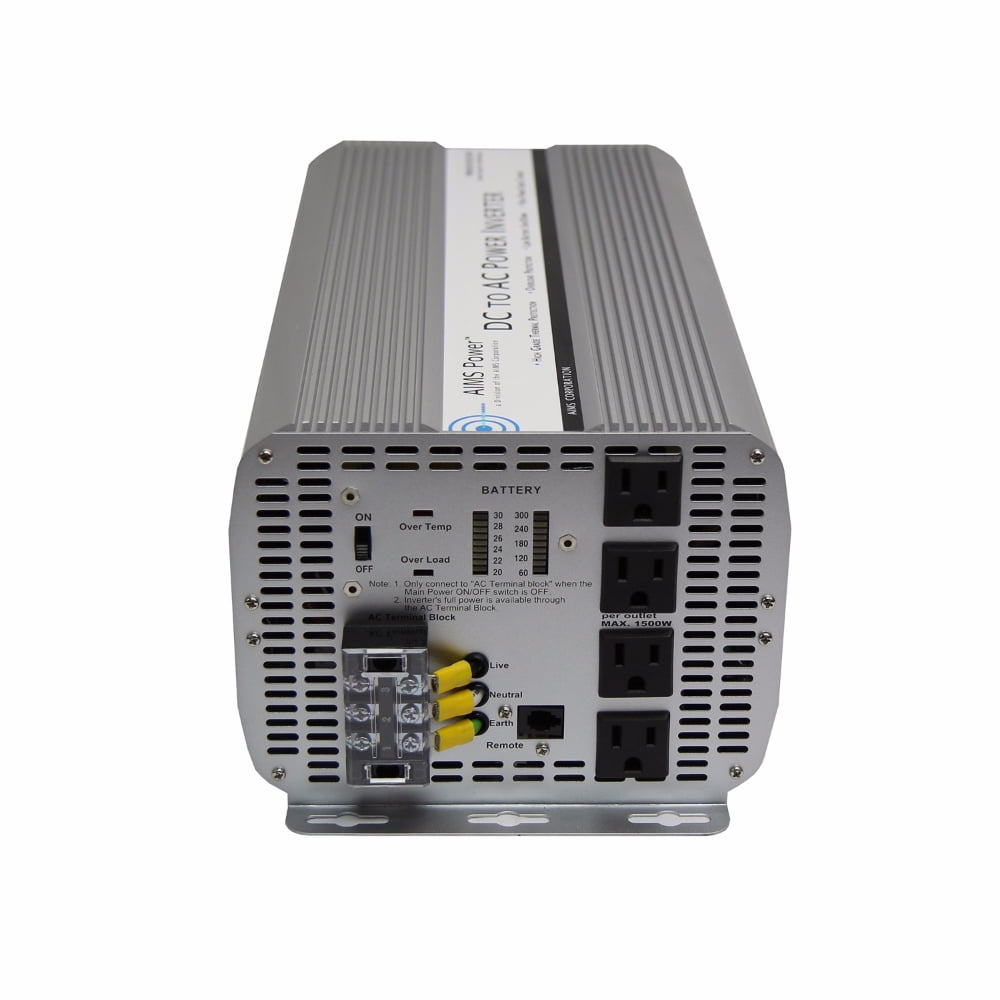

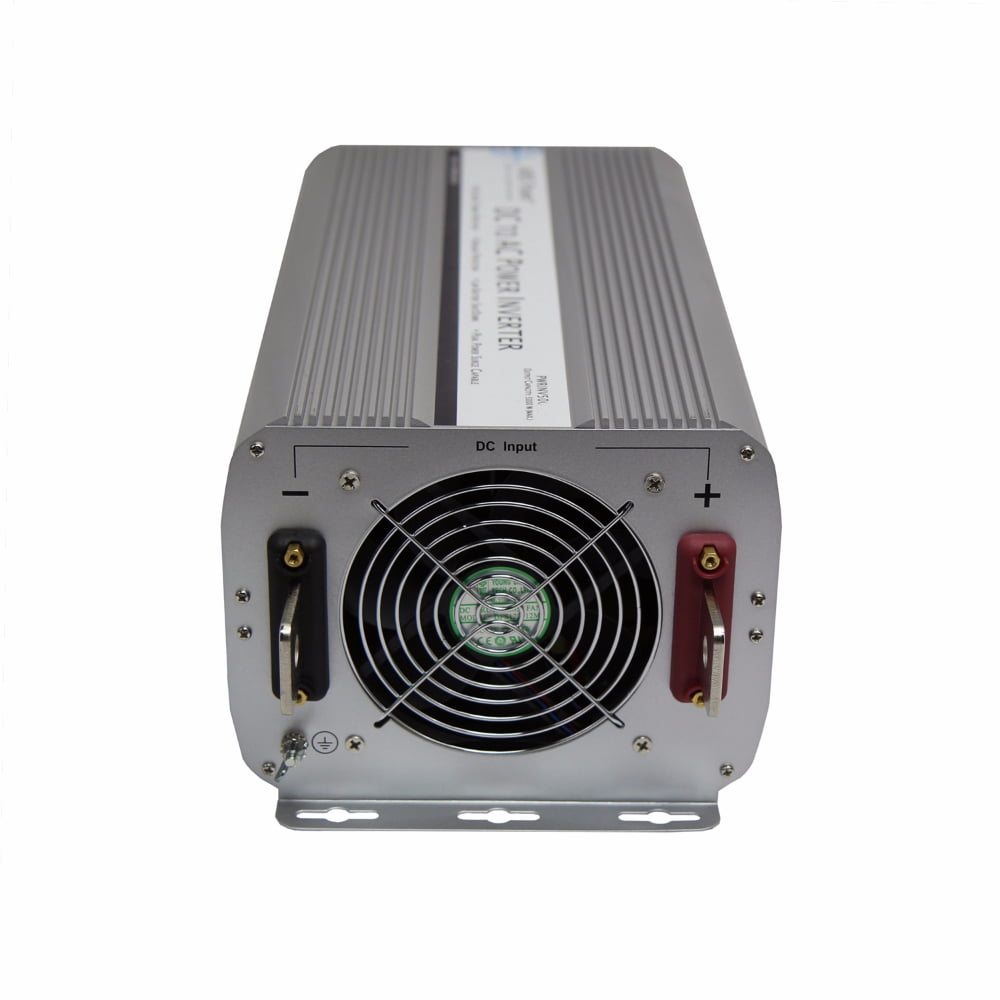

AIMS Power PWRINV500024W 5000 WATT MODIFIED SINE POWER INVERTER 24VDC to 120VAC

Compact 5000 watt modified sine inverter engineered for 24V battery banks and 120V AC equipment. Delivers 5000 Watt continuous power with a 10,000 Watt surge capacity (not recommended for motor start-up or other heavy-start applications). Built-in front panel volt and amp meters let you monitor battery voltage and real-time current draw. Key features: - Front panel volt meter to monitor battery voltage - Front panel amp meter to track current usage (battery drain rate) - AC Direct Connect Terminal and quadruple Type 2 three-prong AC receptacle - On/off switch - Over Temperature LED indicator and Over Load LED indicator - Over Temperature protection and Over Load protection - Single thermally controlled cooling fan - Internal fuse protection and AC output short circuit protection - Auto-reset function on most fault conditions - Pre-wired for remote on/off switch and pre-slotted mounting plate - Durable aluminum case for improved cooling - Includes instruction manual, free 1 year tech support, and 1 Year warranty parts and labor Electrical specifications: - Continuous output power: 5000 Watt - Surge power capability (peak power): 10,000 Watt - dc input / operating voltage: 34 to 20 V - Output voltage: 120 Volts ac ±10% - Output waveform: modified sine wave with phase correction - Output frequency: 60 Hz ±1 Hz - Battery low voltage alarm: 21.0 ±0.5 V - Battery low voltage shutdown: 20.0 ±0.5 V - No load current @ 24V: < 0.4 amps - Full load efficiency: 90% - 1/3 load efficiency: 95% - Full load maximum operating temperature: 150ºF Safety and protection details: - High input voltage protection: 34.5V - Low input voltage shutdown: 20.0V - Internal fuse protection - UL maximum recommended per outlet 1500W This model provides rugged, monitored AC power for RVs, off-grid systems, and backup setups where a high-capacity modified sine inverter is required.
