PowMr 10KW 48V Low-Frequency Hybrid Solar Inverter with 120A MPPT Controller (Max PV 150V) — 110V/220V Split-Phase, LCD Display

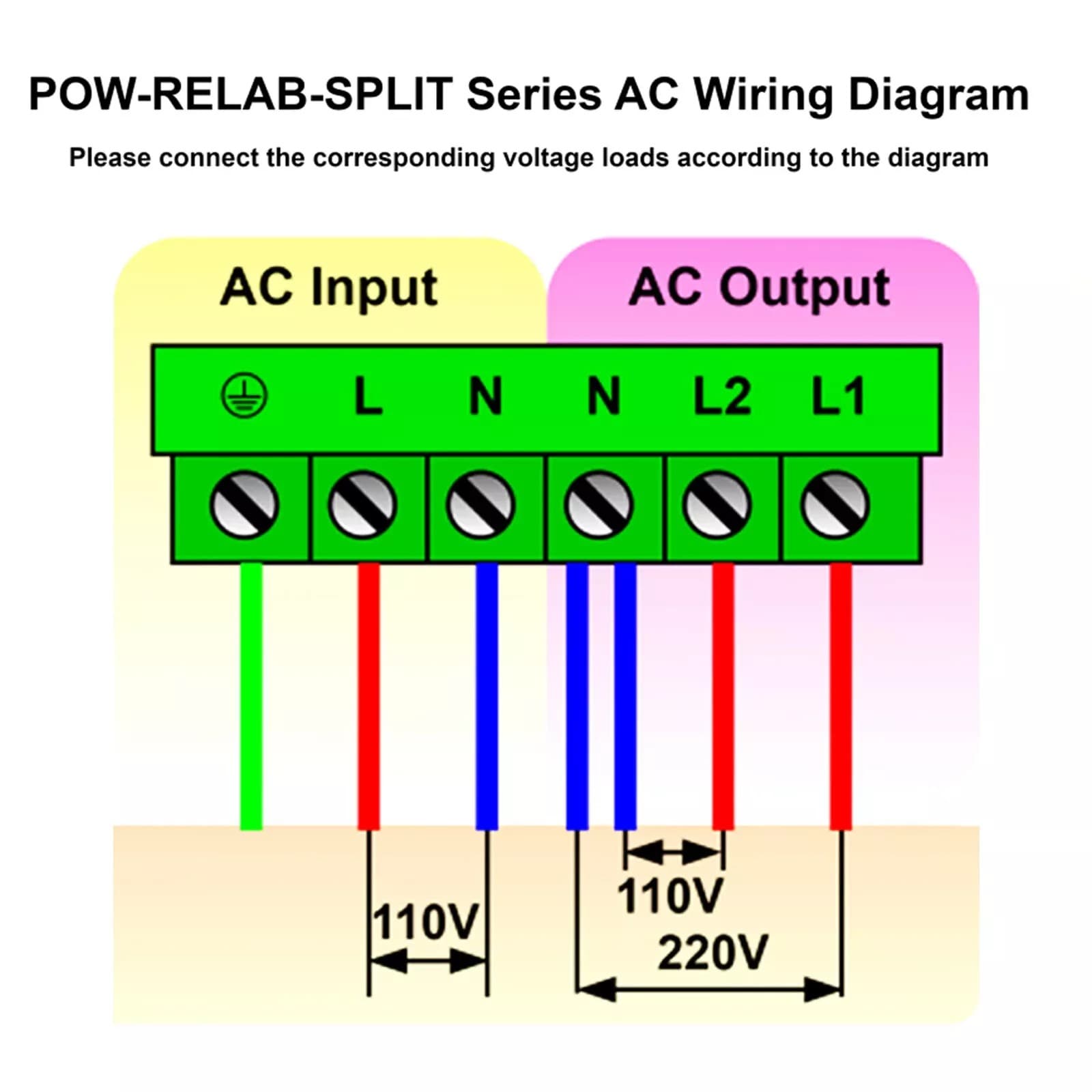

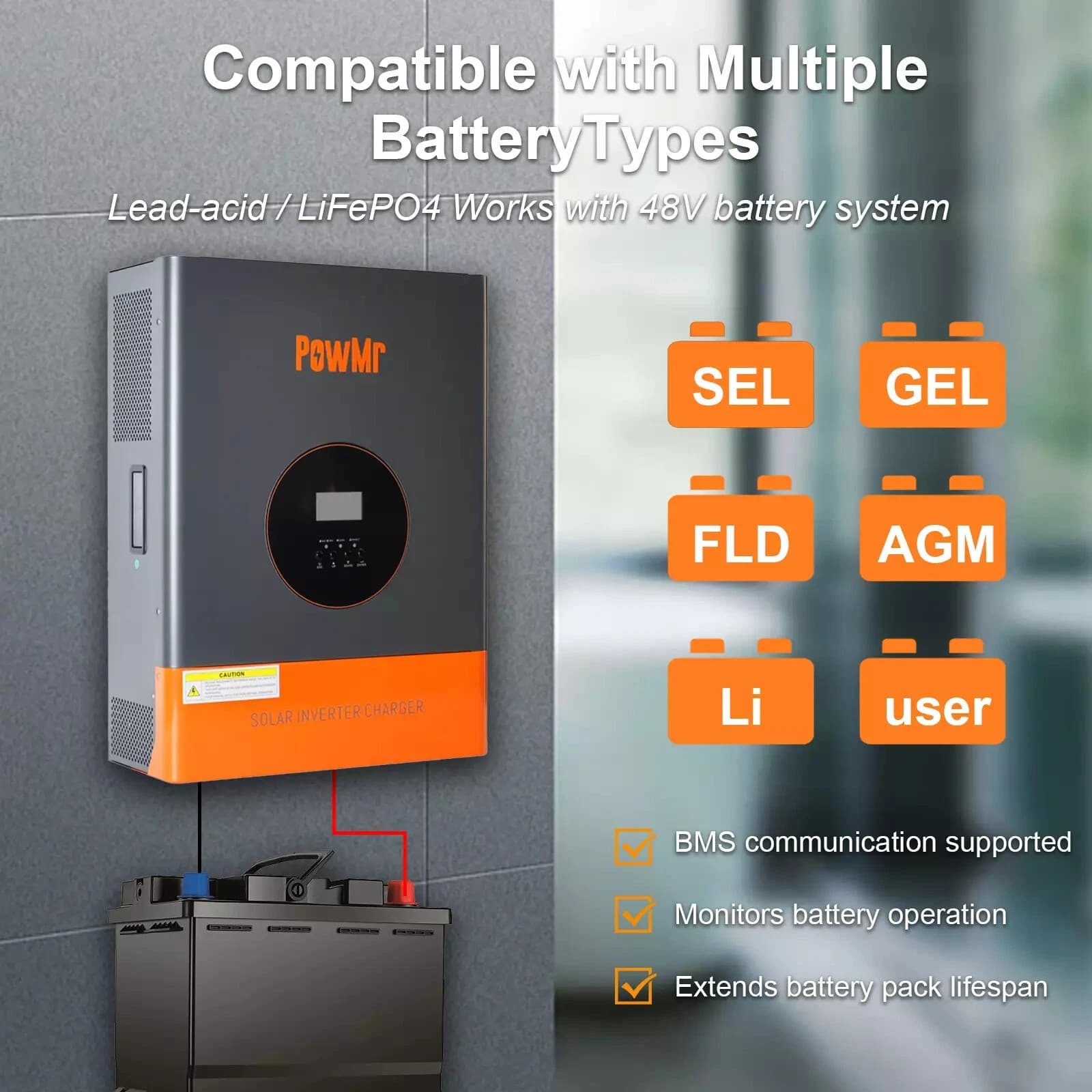

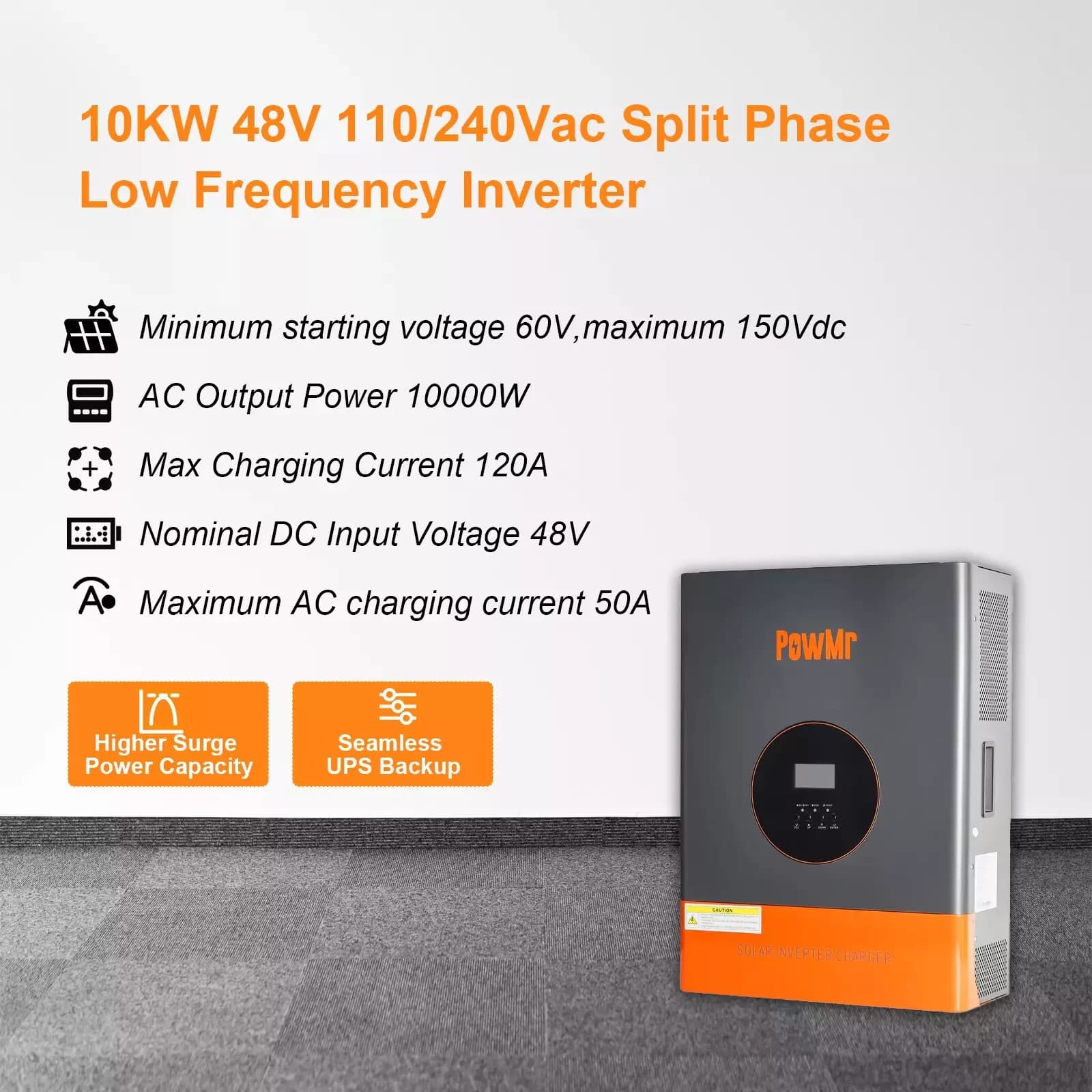

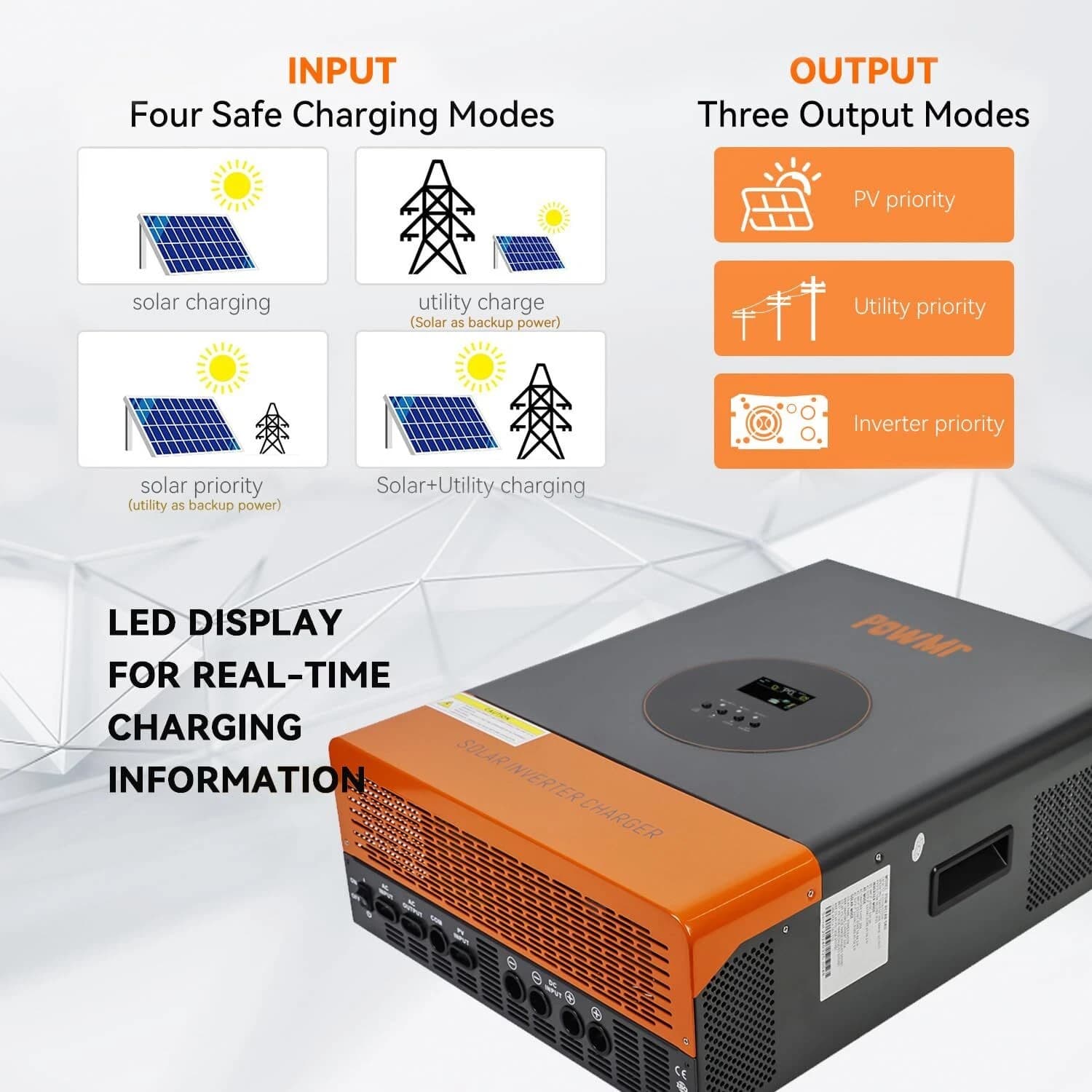

Overview: This PowMr low-frequency hybrid inverter is a heavy-duty 48V unit engineered for demanding residential and commercial applications. Its enlarged toroidal transformer and upgraded low-frequency design let a single unit deliver a rated output of 10000W with peak capability up to 30000W, providing stable power even under large transient loads. Key Technical Parameters: - Max PV input power: 6400W - Maximum PV input current: 120A - MPPT input voltage range: 60-150VDC - Maximum AC input current: 105A - Rated output power: 10000W (Peak power: 30000W) - Output frequency: 50Hz/60Hz - Output voltage: 110Vac / 220Vac split phase Power Handling and Design Advantages: Built around a robust toroidal transformer and improved low-frequency topology, this inverter excels at supporting continuous and high-startup-load equipment — refrigerators, industrial motors and other demanding devices — with reduced electromagnetic interference and enhanced long-term reliability. The simpler, rugged construction also simplifies maintenance and tends to extend service life compared with high-frequency alternatives. Charging/Discharging Flexibility: Supports three charging modes: solar-only / utility priority / solar priority. Discharge options include PV priority / utility priority / solar-only charging. The integrated 120A MPPT controller maximizes solar harvest while accommodating a wide MPPT voltage window. Battery and System Compatibility: Compatible with multiple 48V battery chemistries, including Flooded, LiCoMnNiO2, LiFePO4, AGM, Gel, USER and etc. BMS communication is supported to optimize charging and extend battery life. Cooling, Interface and Protections: Features a dual cooling fan arrangement and a corrosion-resistant, dust-proof housing to prolong service life. A front LCD plus three LED indicators display system status and operating data. Built-in protections include short-circuit protection, over-voltage and under-voltage protection, overload protection, reverse protection, plus battery circuit fuses located on the bottom of the unit. External monitoring and control are available via RS232 or RS482 connections. Installation Notes: This inverter provides split-phase and single-phase pure sine wave output. A single unit can supply both 110V and 220V loads as required. NOTE! Does NOT Support Parallel Operation!
