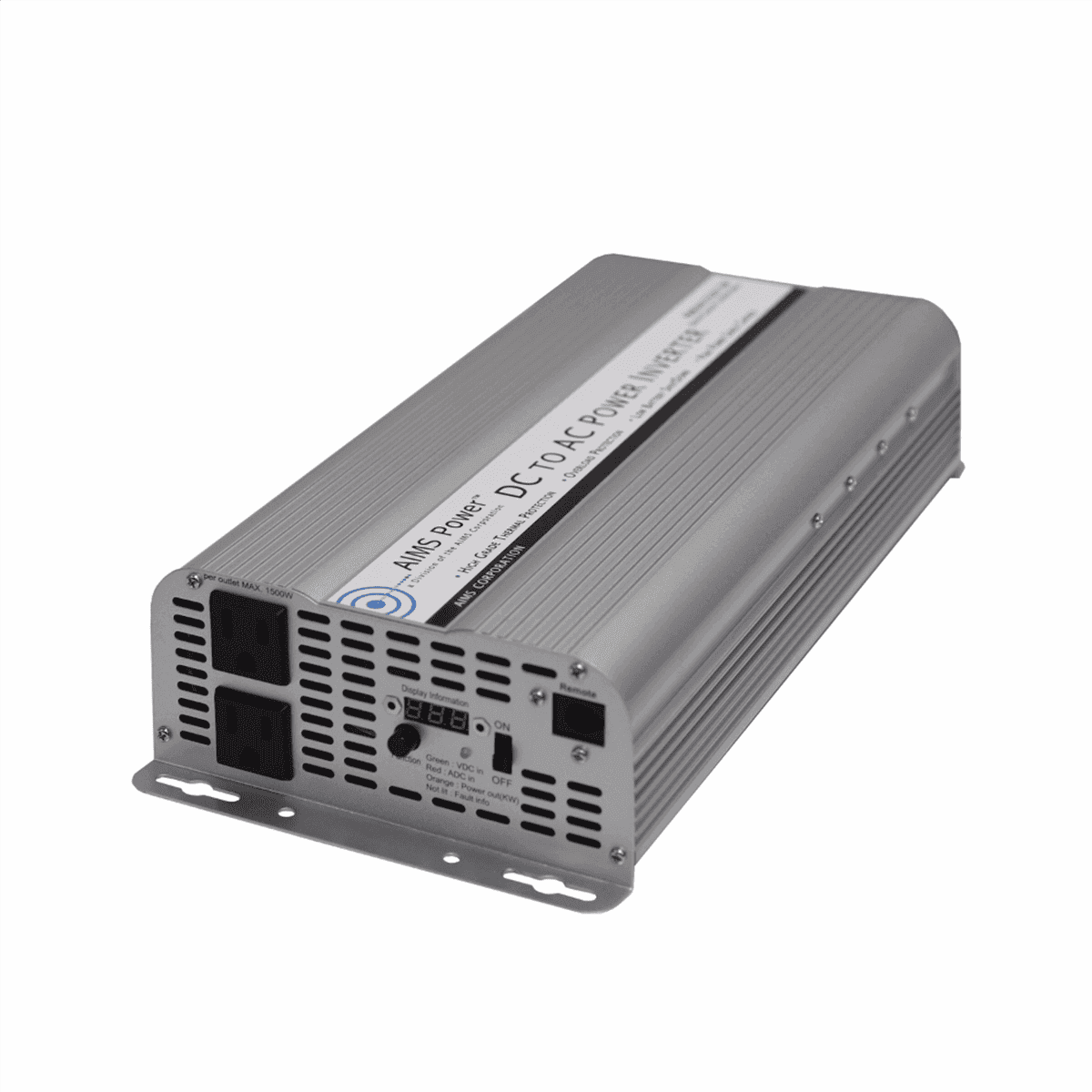

AIMS Power PWRINV250024W — 2500W Modified Sine Inverter (24 VDC to 120 VAC)

Compact 24 VDC-to-120 VAC inverter delivering 2500 Watt continuous output with a 5000 Watt surge capability (5000 Watt surge not recommended for start up applications). The unit uses a modified sine wave with phase correction and provides front-panel monitoring including a volt meter for battery voltage and a watt meter. A green/red LED indicates ready or fault status. Built with an isolated ground neutral and dual AC receptacles, it includes an on/off switch and is pre-wired for a remote on/off switch with a pre-slotted mounting plate for easier installation. The heavy-duty aluminum case aids cooling while a thermally controlled cooling fan manages temperature. Protection and convenience features: over temperature protection; over load protection; AC output short circuit protection; internally fuse protected with internal fuse protection; auto reset on most fault conditions; high input voltage protection (30V-34V); low input voltage shutdown (20V); battery low voltage shutdown set at 20.0 +/- 0.5 V. Includes instruction manual, free 1 year tech support, and a 1 Year warranty parts and labor. Specifications: Continuous output power: 2500 Watt. Surge power capability (peak power): 5000 Watt. DC input / operating voltage: 20 to 30 Volt. Output voltage: 120 VAC +/- 10%. Output waveform: modified sine wave with phase correction. Output frequency: 60 Hz +/- 1 Hz. No load current: < 0.6 amps. DC amps: 104. AC amps: 21. Full load efficiency: 90%. 1/3 load efficiency: 95%. Operating temperature: 30-150 degrees F (automatic shutdown). AC Output Socket Type: dual Type 2 -3 prong. High input voltage protection: 30V-34V. Low input voltage shutdown: 20V. Battery low voltage shutdown: 20.0 +/- 0.5 V. Internally fuse protection.
