AIMS Power 5000 Watt 12 Volt Modified Sine Inverter — 10,000W Surge

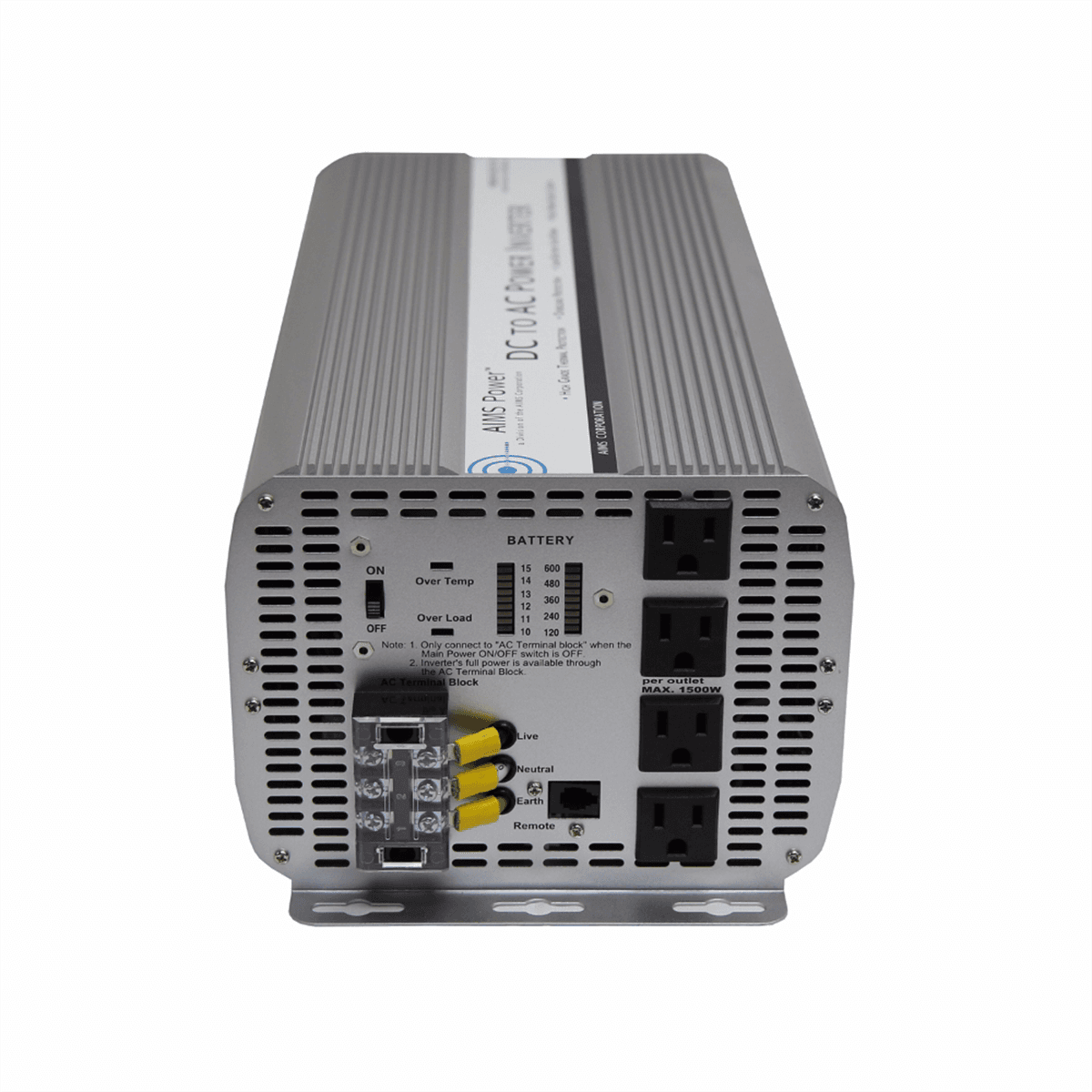

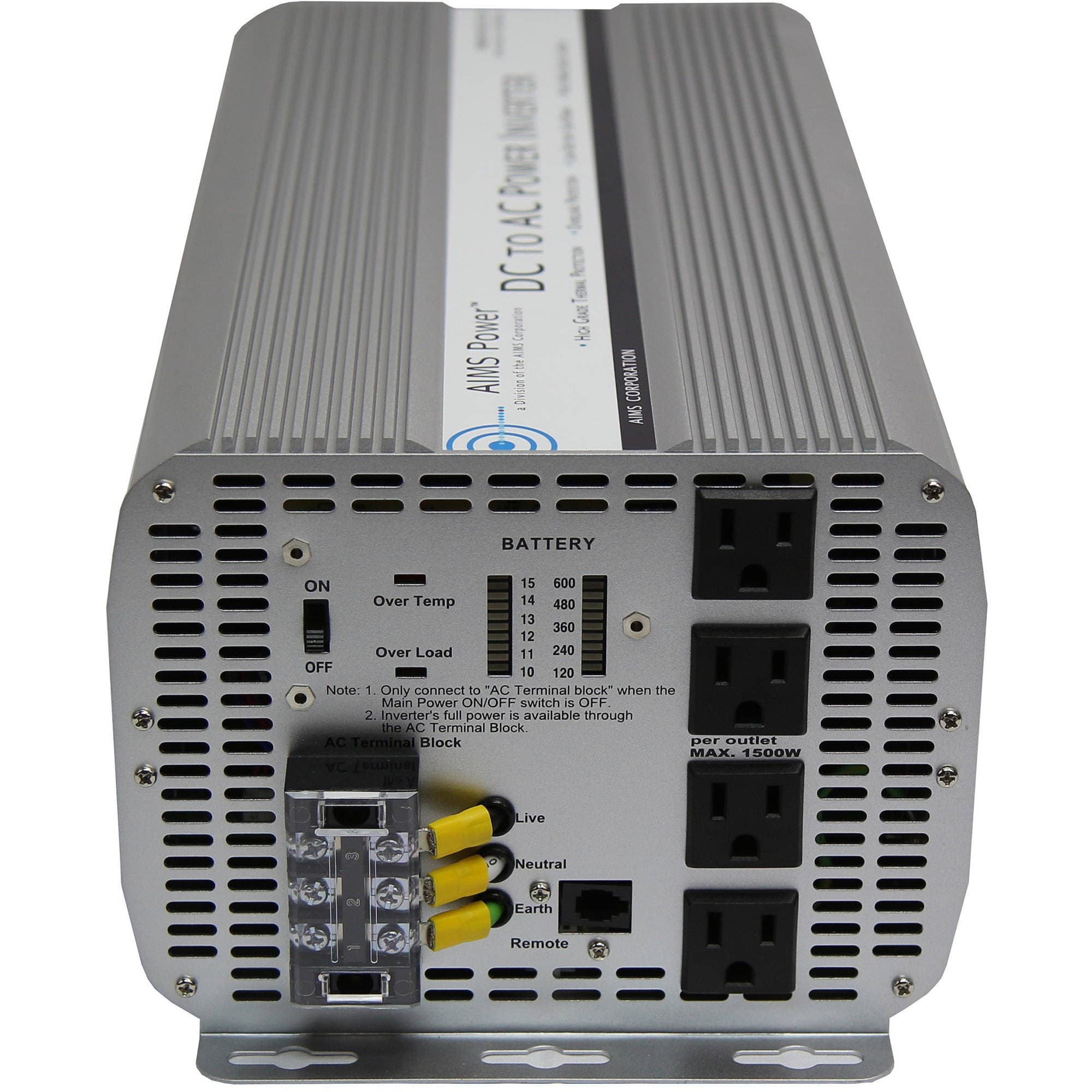

Powerful 12V inverter providing 5000 Watt continuous output with a 10,000 Watt surge capacity (not recommended for start-up applications). Delivers a modified sine wave with phase correction and includes front-panel volt and amp meters for monitoring battery voltage and current draw. The unit features a quadruple AC receptacle, an AC direct connect terminal, and an on/off switch for convenient operation. Built-in protections include overtemperature and overload LED indicators, overtemperature protection, overload protection, internally fuse-protected AC output short circuit protection, and high/low input voltage safeguards. Most fault conditions will auto reset. Cooling is handled by a single thermally controlled fan that operates only when necessary. The rugged aluminum case aids cooling and the inverter is pre-wired for a remote on/off switch and mounted on a pre-slotted plate for easier installation. Also supplied: instruction manual, free 1 year tech support, and 1 Year warranty parts and labor. Specifications: Continuous output power: 5000 Watt Surge power capability (peak power): 10,000 Watt DC input / operating voltage: 10 to 16 volts Output voltage: 120 volts ac +/- 10% Output wave form: modified sine wave with phase correction Output frequency: 60 Hz +/- 1 Hz Battery low voltage alarm: 10.5 +/- 0.5 volts Battery low voltage shutdown: 10.0 +/- 0.5 volts No load current: < 0.6 Amps Full load efficiency: 90% 1/3 load efficiency: 95% No load minimum operating temperature: 5° F Full load maximum operating temperature: 131 +/- 10° F (automatic shutdown) AC output socket type: quadruple type 2 -3 prong High input voltage protection: 15V-17V Low input voltage shutdown: 10V Internal fuse protection UL maximum recommended per outlet 1500W Features summary: Volt meter on front panel, Amp meter on front panel, AC direct connect terminal, Overtemperature LED indicator, Overload LED indicator, Quadruple AC receptacle, On/off switch, Overtemperature protection, Overload protection, Single cooling fan operation (thermally controlled), Internally fuse protected, AC output short circuit protection, Auto reset on most fault conditions, Aluminum case, Pre-wired for remote on/off switch, Pre-slotted mounting plate, Instruction manual, Free 1 year tech support, 1 Year warranty parts and labor.
