AIMS Power 2000W Pure Sine Inverter Charger — 12 VDC to 120 VAC

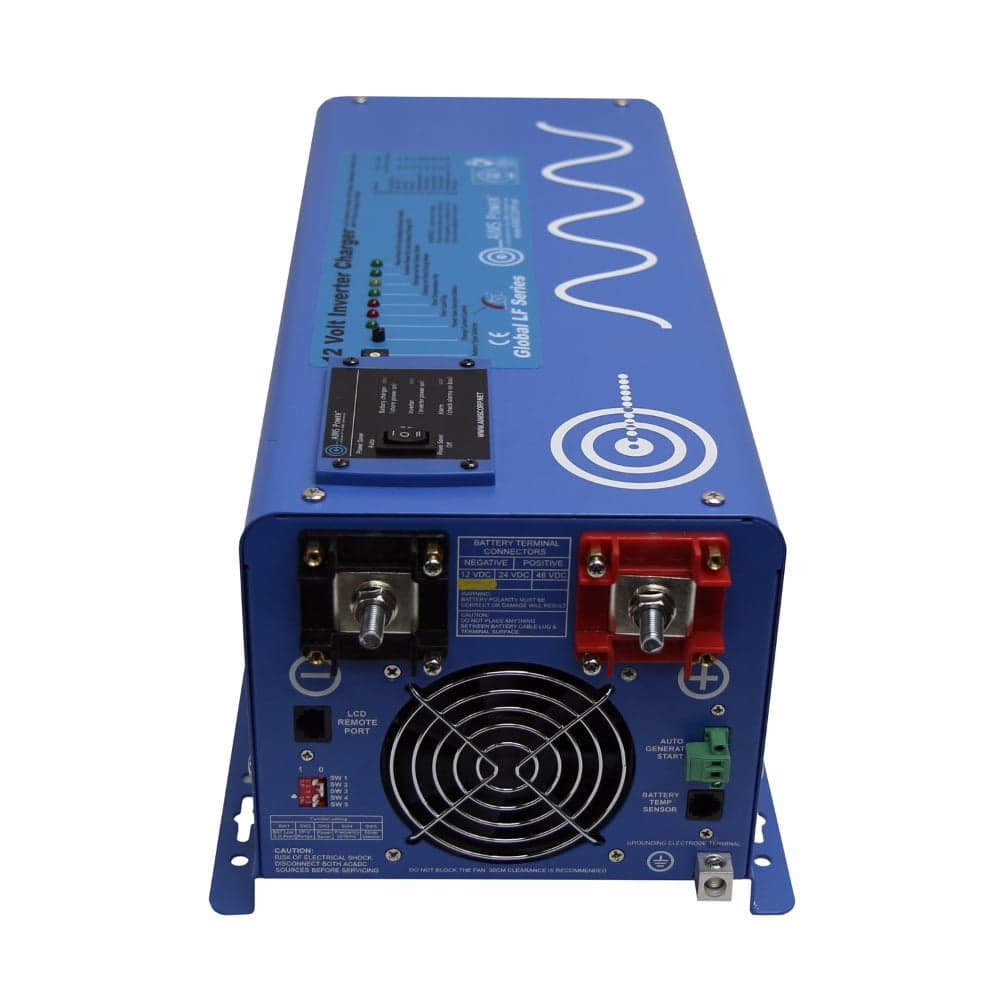

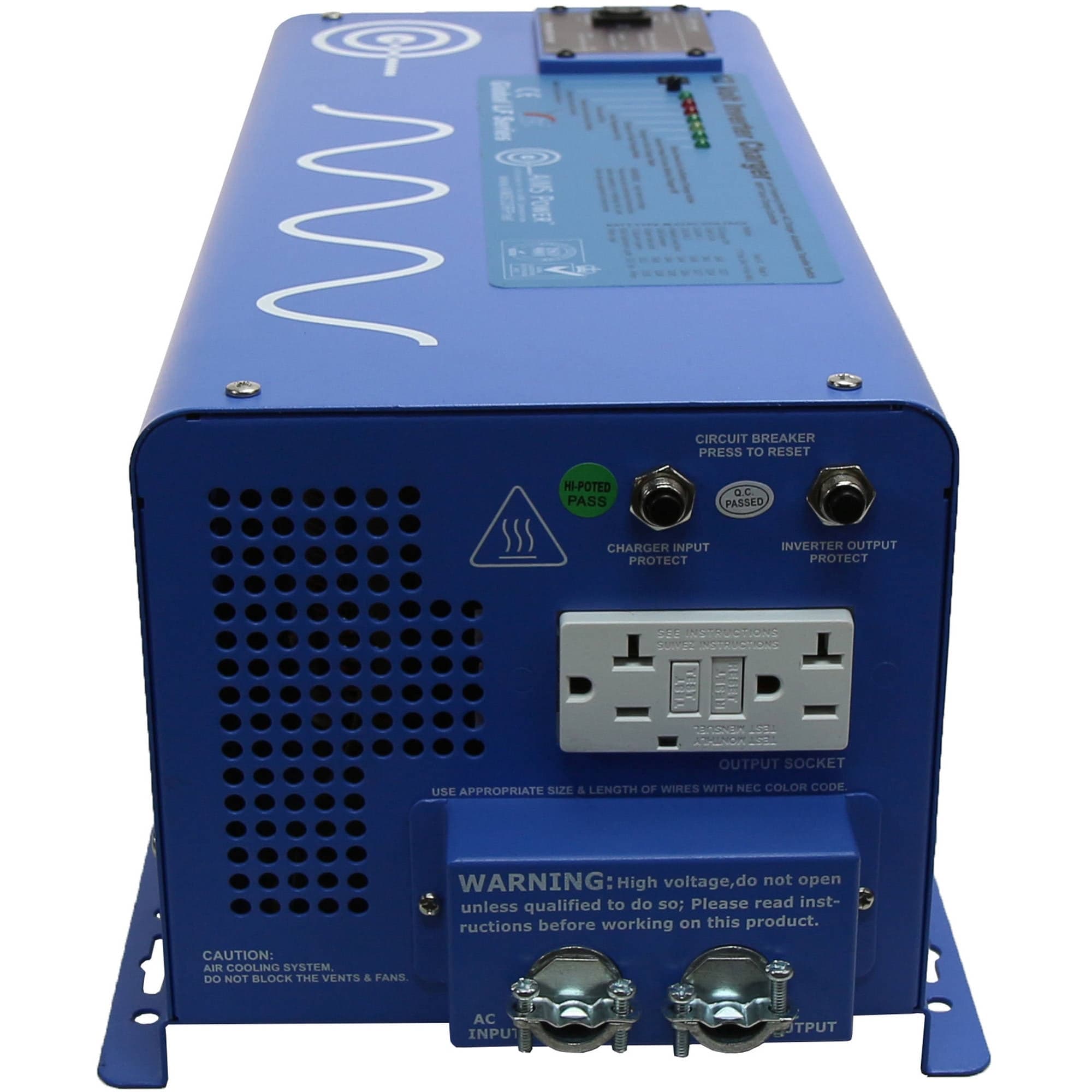

Compact 2000W continuous pure sine inverter/charger that converts 12 VDC to 120 VAC while integrating a 70-Amp onboard charger. The unit provides dual GFCI outlet protection and covered DC inputs, plus a direct-connect terminal block and a hardwired terminal block for AC input and an optional AC output connection. Protection and connections include externally resettable breakers for the charger input and AC output. There are dedicated ports for an optional remote and for an optional battery sensor. The charger is a high-speed multi-stage design and features a charge current control dial and a battery type selector dial to optimize charging for different battery chemistries. User controls and status are straightforward: a 3-way rocker switch selects On / Off / Power Save modes, and eight LEDs indicate inverter and charger states. The unit supports auto generator start and uses a conformal-coated circuit board for improved reliability in humid environments. Performance and configuration: the inverter achieves a rapid 10 ms transfer time when switching between city and inverter power modes. Five dip switches allow you to set the low-battery trip point (SW1), valid AC input range (SW2), power save override (SW3), output frequency 50/60Hz (SW4), and Battery/City Power priority selector (SW5). A convenient mounting plate is included for easy installation.
