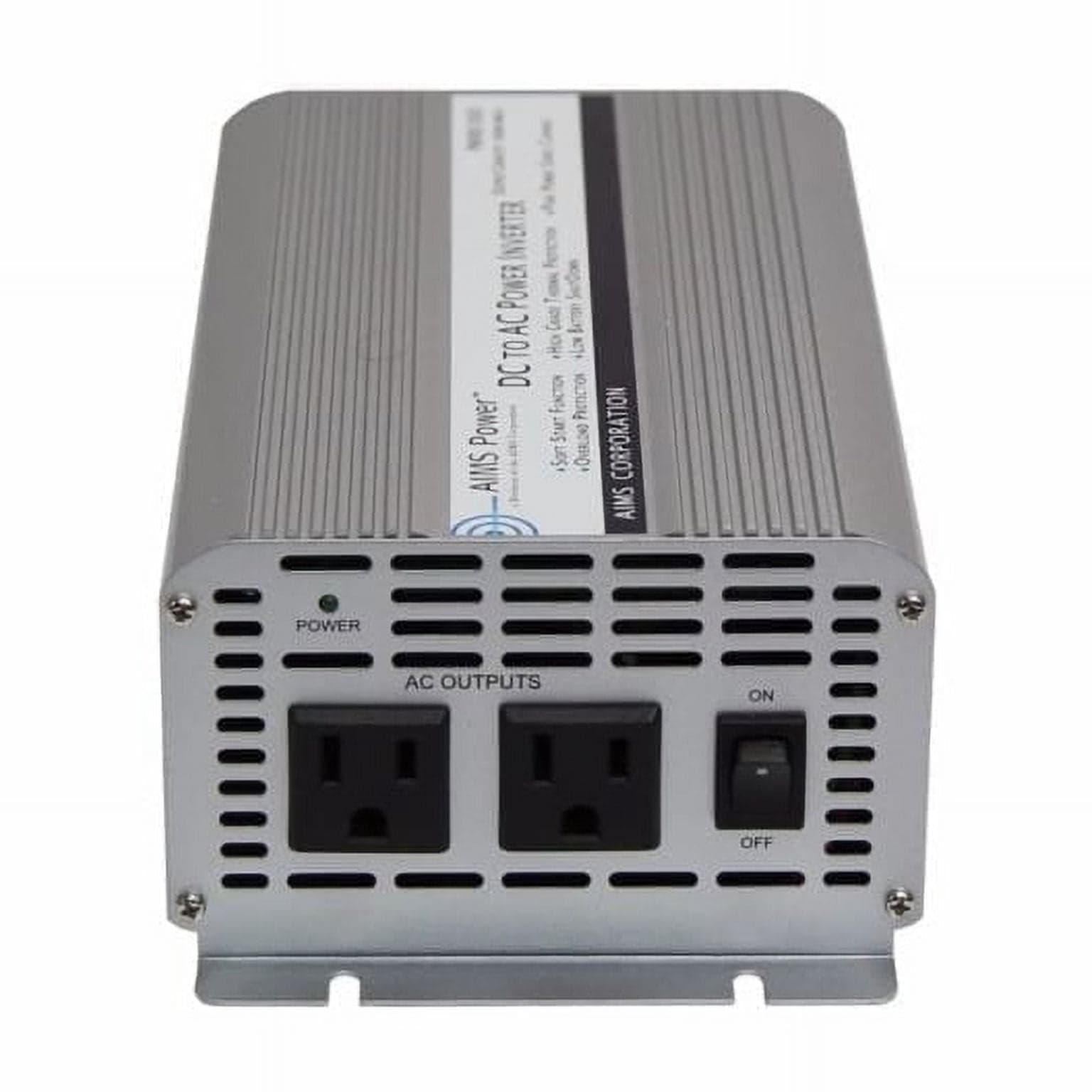

AIMS Power 1250 WATT 12VDC TO 120VAC Inverter — No Frills

Overview: This compact AIMS Power inverter converts 12 volts DC to 120 volts AC and supplies 1250 Watt continuous output in a straightforward, no-frills package. It uses a modified sine wave output and is intended for basic AC power needs. Power and surge ratings: Continuous power — 1250 Watt. Surge capability is listed in the documentation as 3000 Watt (Features) and 2500 Watt (Specifications). Protection & indicators: Green LED confirms the unit is powered on; red LED signals overload. Built-in overload protection and AC output short circuit protection help safeguard connected devices. Overtemperature protection includes an alarm and automatic shutdown at 130 + or – 10°F. The inverter employs a single, thermally controlled fan for cooling and will auto reset on most fault conditions. Installation & fusing: Use 100 amp inline fuse for proper installation. Electrical specifications: Modified sine wave output. Input: 12 volts DC (10-15 volts). Output: 120 volts AC · 60 Hz. No load current – 0.6A. Efficiency: >90%. Outputs & extras: Two AC receptacles. Dimensions (L x W x H): 11" x 5.25" x 3.25". Weight per unit – 3.2 lbs. Included support: Instruction manual, free 1 year tech support, and 1 Year warranty parts and labor.
