6082BE Digital Multimeter Oscilloscope USB 2 Channel 80MHz Virtual Oscilloscope Logic Analyzer

Name: 6082BE Digital Multimeter Oscilloscope USB 2 Channel 80MHz Virtual Oscilloscope Logic Analyzer
Brand: Eugene Color
SKU: prod_f0eb347e95adaa160b73a131
Price: 687.00 USD
Availability: InStock

No rating yet(0 ratings)

1. Characteristic Excellent industrial design-the same anodised aluminium casing as, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXI TM interface, easily inserts into USBXI TM housing to make up a combination instrument.

USB2.0 interface, no external power source required, easy to use. Be suitable for notebook computer, product line maintenance,be used easily on business. Dimensions (mm):205(L) x120(W) x35(H), be carried easily. High performance, 150MS/s real-time sampling, 50MHz Bandwidth, 23 measurement functions, be suitable for technical application.

Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot. One computer can connect many DSO, extend channel easily. Second Design Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support. 4.

Specification: Hantek6000BE Series Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s; Excellent industrial design-the same anodised aluminium casing as I, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument. Channel 2 Channels Bandwidth 20MHz 50MHz 80MHz 100MHz 200MHz Input Impedance 1M 25pF Max. Sample rate 48MS/s 150MS/s 250MS/s 250MS/s 250MS/s Coupling DC AC/DC/GND Vertical resolution 8Bit Gain range 10mV-5V, 9Steps DC accuracy ±3% Timebase range 4ns-5ks 4ns-1h, 38 Steps Vertical adjustable Yes Input protection Diode clamping X-Y Yes EXT. input No Yes Trigger Mode Auto, Normal and Single Trigger Slope +/- Trigger level adjustable Yes Trigger Type Rising edge, falling edge Trigger Source CH1, CH2 CH1, CH2, EXT Pre/Post trigger 0-100% Buffer size 1M 10K-64KB/Channel Sampling selection Yes Waveform port/line, waveform average, persistence, intensity Network Open/Close Vertical mode CH1, CH2, Dual, ADD Cursor measurement Yes Math FFT, addition, subtraction, multiplication, division.

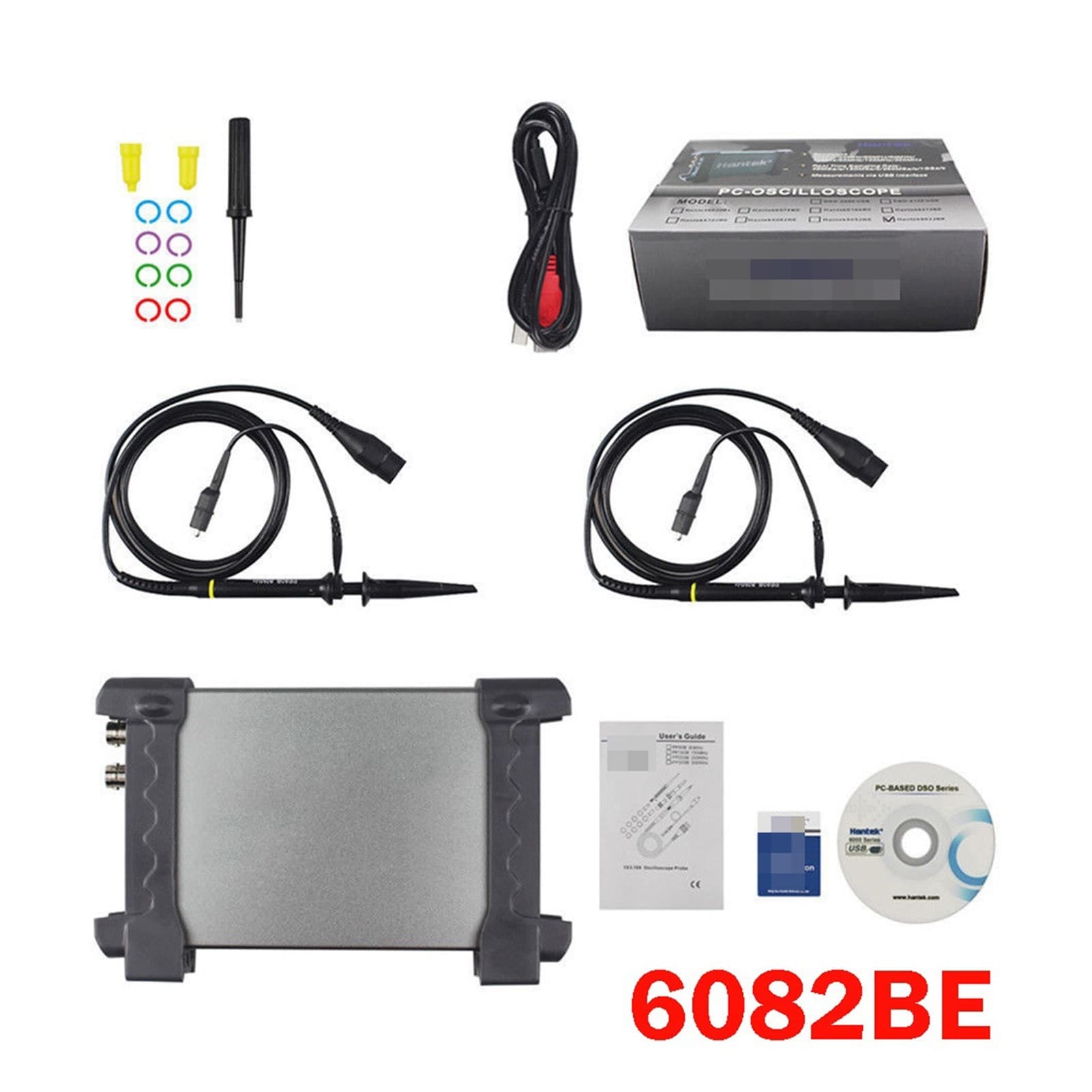

Cursor Frequency, Voltage Accessories S/W CD, probes, manual, USB cord
