6022BL Digital Oscilloscope 20MHz 2 Channels Osciloscopio PC Based USB 16Channels Logic Analyzer Diagnostic-tool

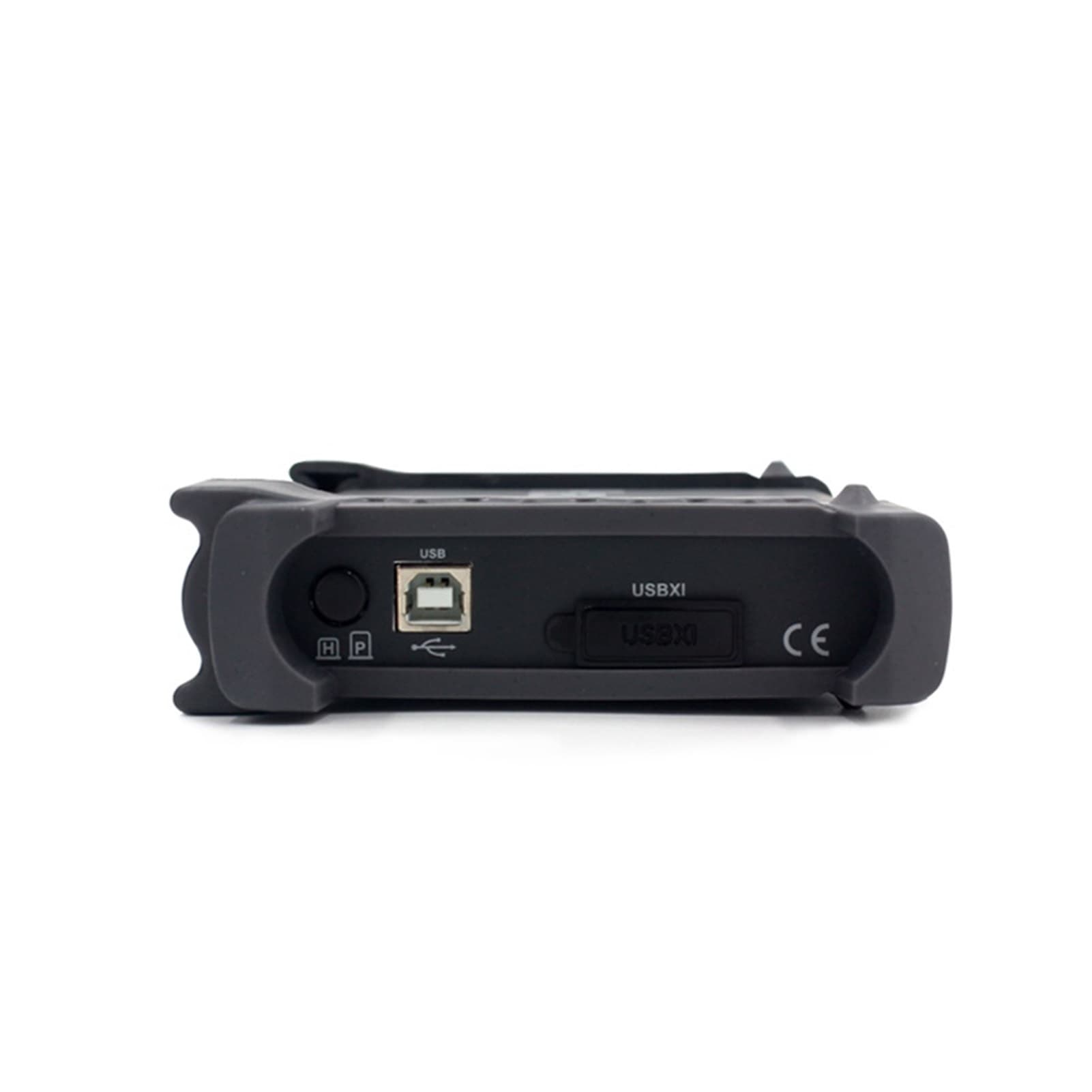

6022BL Digital Oscilloscope USB 20MHz bandwidth 48MS/s 2 Channels Automotive Osciloscopio Portable PC Multimeter Logic Analyzer Features: -Record Length to 1M(6022BE JUST 10K~60K/CH) -Excellent industrial design-the same anodised aluminium casing, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. -Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument. -USB2.0 interface, no external power source required, easy to use. -Be suitable for notebook computer, product line maintenance, be used easily on business. -Dimensions (mm): approx. 205(L) x120(W) x35(H) -High performance, 48MS/s real-time sampling, 20MHz bandwidth. -16Channels Logic Analyzer, 20MHz Bandwidth; -23 measurement functions, PASS/FAIL Check, be suitable for technical application. -Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot. -One computer can connect many DSO, extend channel easily. -PID/VID Second Design instance. Specifications: Model Oscilloscope Features Bandwidth 20MHz Channel 2(Digital)+16(Logic) Sample Rate 48MSa/s Memory Depth 1M Rise Time 17.5ns Time Base Precision 50ppm Time Base Range 4ns/div-1h/div (Step by1-2-4) Input Impendence 1M 25pF Input Sensitivity 10mV/div-5V/div Vertical Resolution 8Bit Vertical Position Range 10mV ~ 5V/div x1 probe; 100mV ~ 50V/div x10 probe; 1V ~ 500V/div x100 probe; 10V ~ 5KV/div x1000 probe DC Accuracy 3% Bandwidth Limited 20MHz Trigger Type Edge, Alternative Trigger Source CH1, CH2, EXT, EXT/10 Math +,-,x,÷,FFT, Invert Cursor Measurement Cross, Trace, Horizontal, Vertical Logic Analyzer Features Channel 16 Max. Impendance 1M(C=7.5pF) Max. Voltage 0V~5.5V Max. Sample 48M Bandwidth 10MHz Memory Depth 1M/CH General Features Power USB Port Dimensions 205mm x120mm x 35mm Weight 0.382KG Standard Probe 2 x PP80 Pacakge including: 1 * 6022BL oscilloscope 2 * Oscilloscope probe 1 * USB cable 1 * jumper clip set(color is random) 2 * jumper cable 1 * CD(manual etc.)
